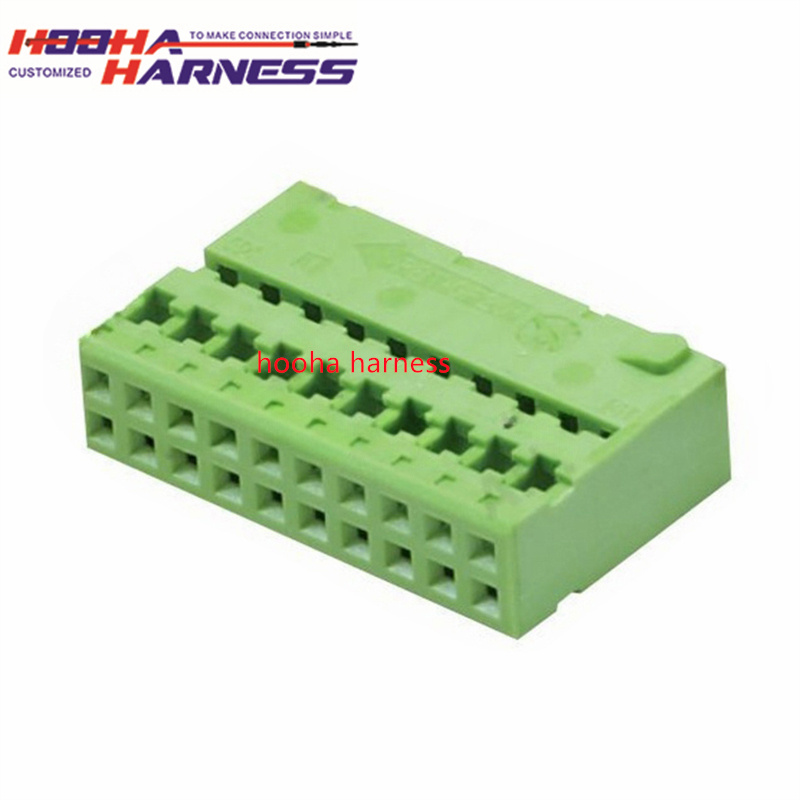

953119-1 TE replacement Chinese equivalent housing plastic automotive connector
Product ID : 953119-1
Product Attributes :
953119-1 TE replacement Chinese equivalent housing plastic automotive connector
Product Description
| Product Attribute | Attribute Value |
|---|---|
| TE Connectivity | |
| Product Category: | Automotive Connectors |
| RoHS: | Yes |
| Housings | |
| 20 Position | |
| 2.54 mm | |
| Receptacle (Female) | |
| Cable Mount / Free Hanging | |
| Crimp | |
| 22 AWG | |
| 18 AWG | |
| Green | |
| MQS | |
| Application: | Signal |
| Brand: | TE Connectivity / AMP |
| Contact Gender: | Without Socket Contacts |
| Contact Type: | Socket |
| Description/Function: | MQS, Housing for Female Terminals |
| Flammability Rating: | UL94HB |
| Height: | 16 mm |
| Housing Material: | Polybutylene Terephthalate (PBT) |
| Length: | 26.1 mm |
| Lock Mate Feature: | On the terminal |
| Maximum Operating Temperature: | + 100 C |
| Minimum Operating Temperature: | - 40 C |
| Mounting Angle: | Straight |
| Number of Rows: | 2 Row |
| Product Type: | Automotive Connectors |
| Row Spacing: | 2.54 mm |
| Voltage Rating: | 16 VDC |
| Width: | 16 mm |
| Wire Gauge Range: | 22 AWG to 18 AWG |
| Unit Weight: | 0.058202 oz |
