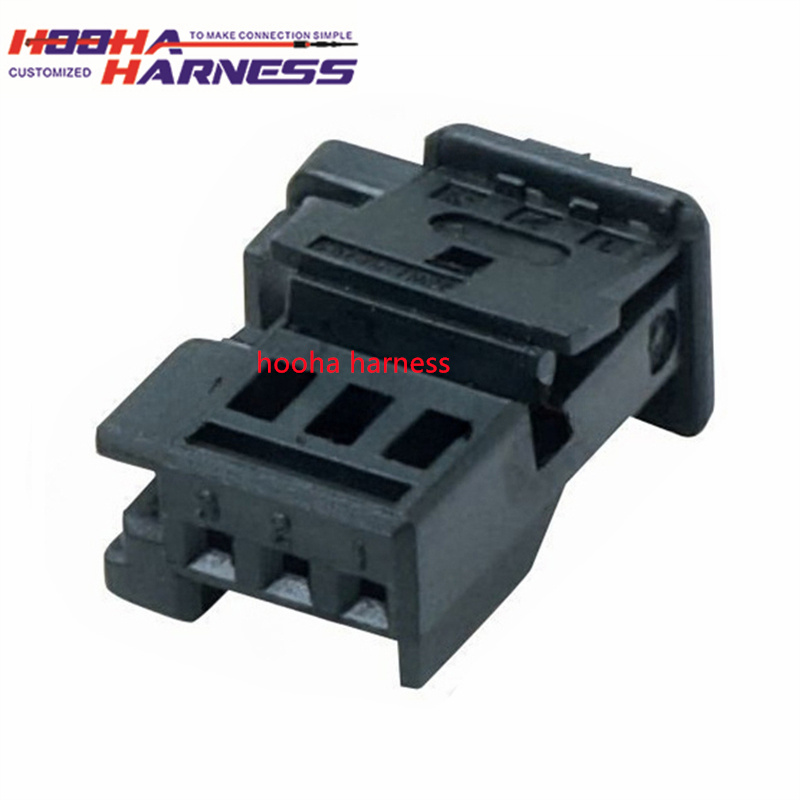

953697-1 TE replacement Chinese equivalent housing plastic automotive connector
Product ID : 953697-1
Product Attributes :
953697-1 TE replacement Chinese equivalent housing plastic automotive connector
Product Description
| Product Attribute | Attribute Value |
|---|---|
| TE Connectivity | |
| Product Category: | Automotive Connectors |
| RoHS: | Yes |
| Housings | |
| 3 Position | |
| 2.54 mm | |
| Receptacle (Female) | |
| Cable Mount / Free Hanging | |
| Crimp | |
| 24 AWG | |
| 18 AWG | |
| Black | |
| MQS | |
| Bulk | |
| Application: | Signal |
| Brand: | TE Connectivity / AMP |
| Contact Gender: | Without Socket Contacts |
| Contact Type: | Socket |
| Description/Function: | MQS, Housing for Female Terminals |
| Flammability Rating: | UL94HB |
| Height: | 17.6 mm |
| Housing Material: | Polybutylene Terephthalate (PBT) |
| Length: | 13.9 mm |
| Lock Mate Feature: | On the terminal |
| Maximum Operating Temperature: | + 85 C |
| Minimum Operating Temperature: | - 40 C |
| Mounting Angle: | Straight |
| Number of Rows: | 1 Row |
| Product Type: | Automotive Connectors |
| Voltage Rating: | 24 VDC |
| Width: | 8.6 mm |
| Wire Gauge Range: | 18 AWG to 24 AWG |
| Unit Weight: | 0.031747 oz |
