Toyota trunk fog light refit suit for corolla Yaris land cruiser switch
Toyota trunk fog light refit suit for corolla Yaris land cruiser switch Toyota trunk fog light refit suit for corolla Yaris land cruiser switch Toyota trunk fog light refit suit for corolla Yaris land cruiser switch Toyota trunk fog light refit suit for corolla Yaris land cruiser switch Toyota trunk fog light refit suit for corolla Yaris land cruiser switch

Toyota trunk fog light refit suit for corolla Yaris land cruiser switch

Product ID : HHDST321225-1
Product Tags : car switch
Product Attributes :

dimension : 32.1*21.5mm
Laser mark : trunk or custom made
wire : 4
wire length : 200mm or custom made
application : Vios, land cruiser, Camry, corolla, Yaris

Product Description

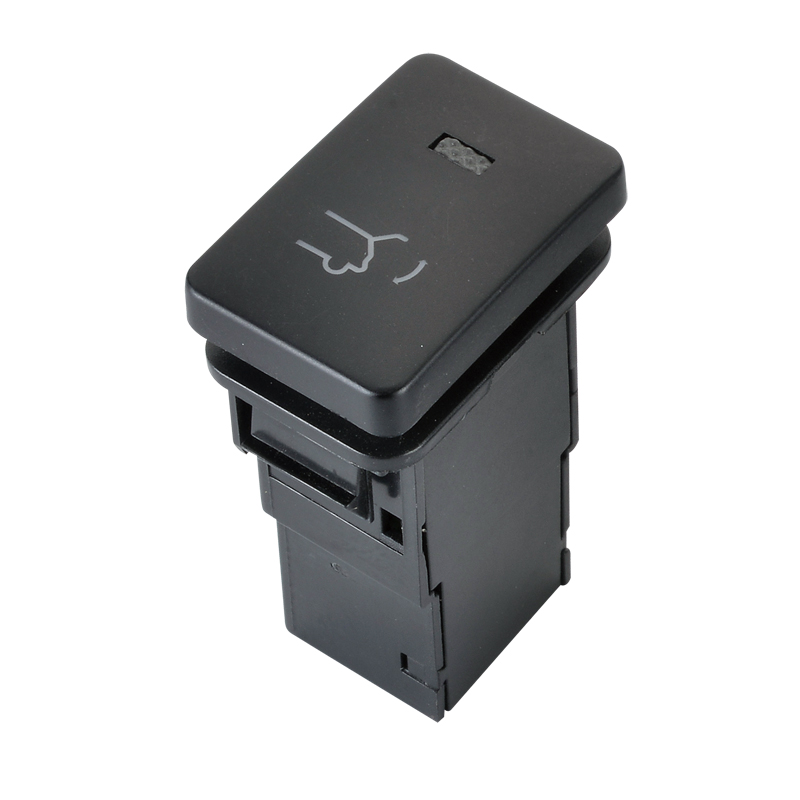

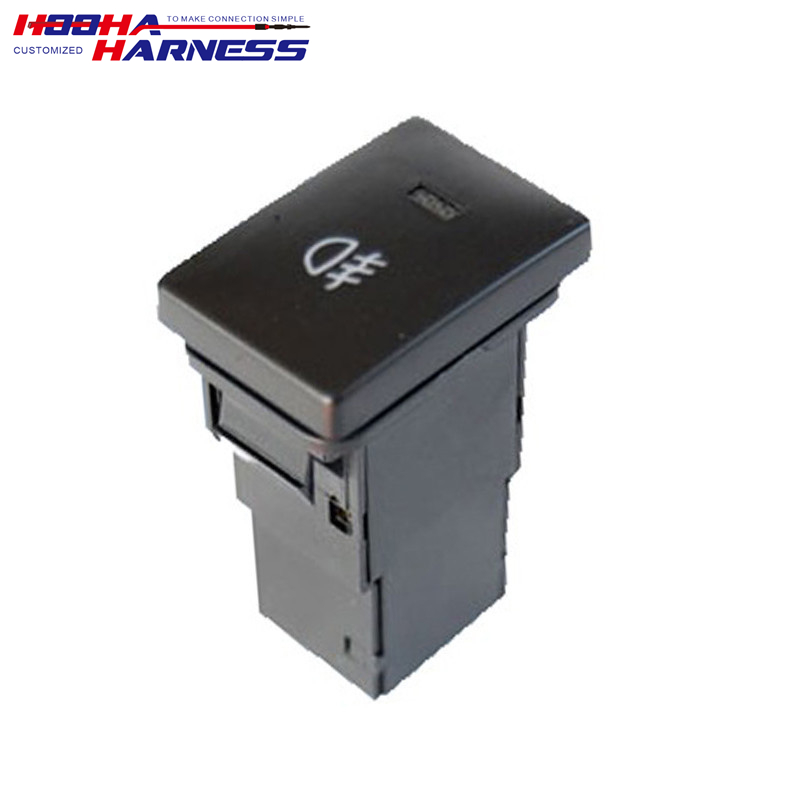

Toyota trunk/fog light refit suit for corolla/Yaris/Camry/Land cruiser switch

toyota switch



Specification:

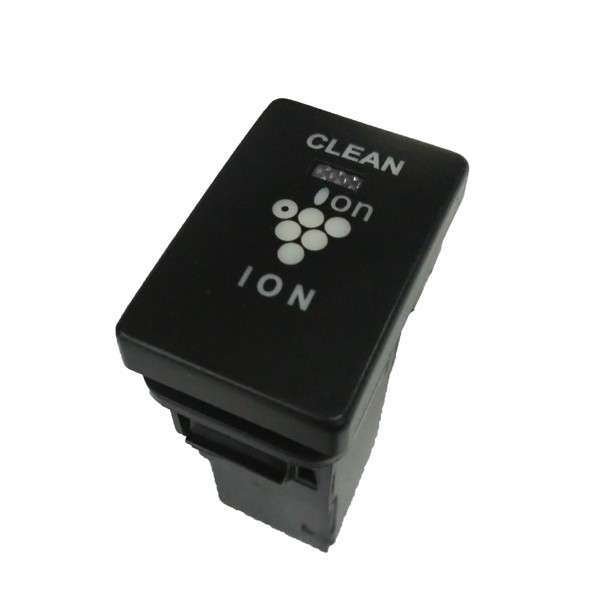

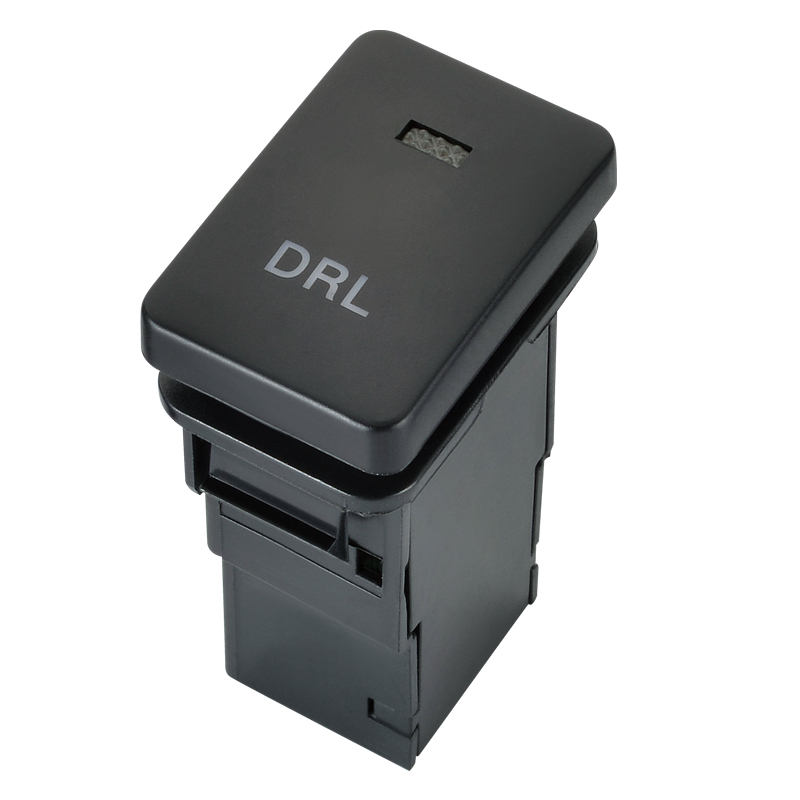

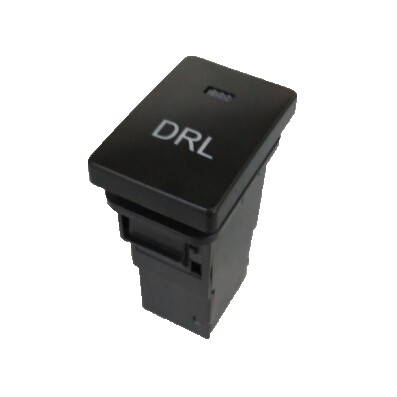

Other types of application:

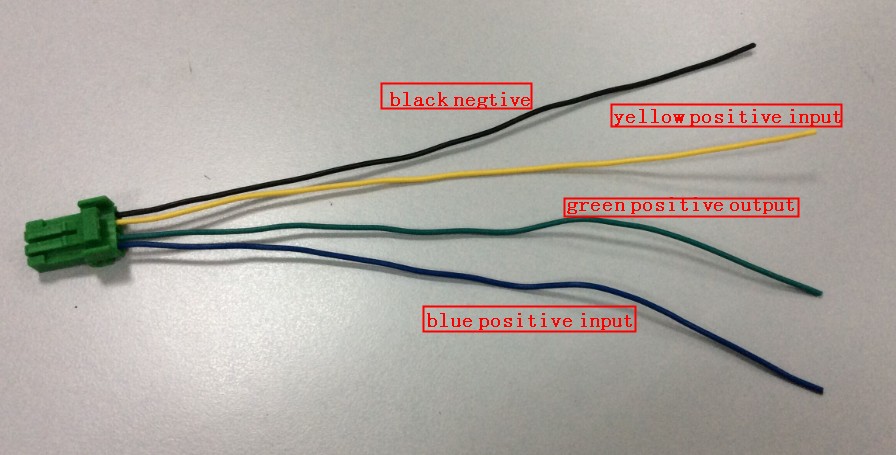

wire circuit.JPG

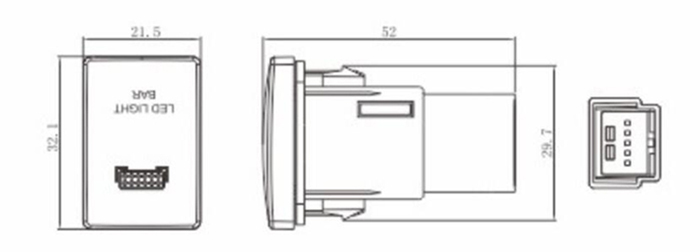

Drawing:




Details :



1. TS16949 approved.

2. Cover dimension: 32.1*21.5mm, 33.1*22.5mm;

3. Socket P/N: DJ7051-1.2-21/DJ622-1.2A.

4. Wire: AVSS 0.5mm^2.

5. Length: 200mm(yellow, blue, red, green).

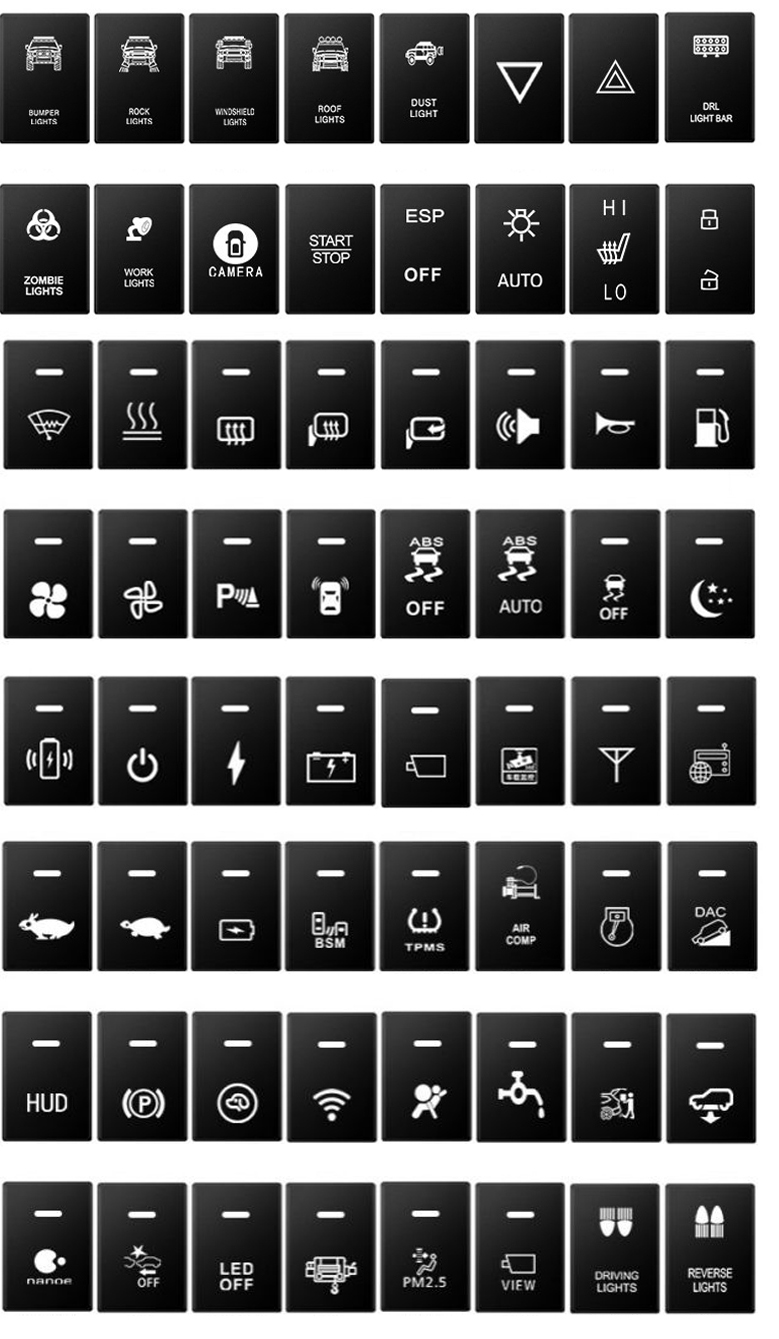

6. Laser mark: trunk/fog light/radar/DRL etc or custom made.



Description:



Customized Symbol LED Backlit Push Button ON/OFF Switch

This NEW high-quality 12-volt push switch allows you to operate ANY 12-volt accessories. It fits on Toyota Sequoia 2008-ON, Toyota Highlander 2008-ON, Toyota Tacoma 2012-ON Center ONLY, Toyota Tundra 2008-ON, Toyota 4Runner 2010-ON, Toyota RAV4 2008-2012, Toyota Yaris 2008. It has short circuit protection to protect your vehicle(s). The switch is made out of heavy-duty ABS plastic that will ensure years of service and come in a mate black surface color, the SAME color as the OEM Switches!

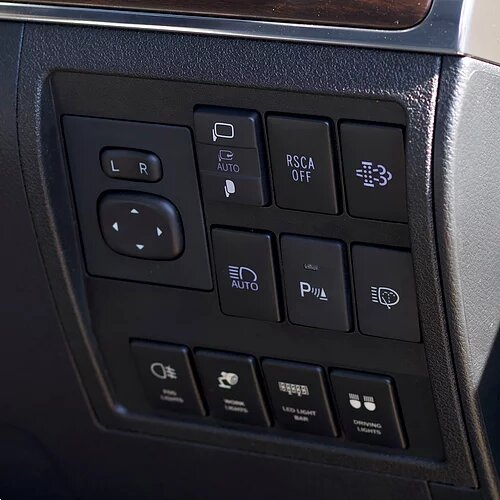

It has a face surface size of 1.28" x 0.87" and all symbols are Etched directly onto the switch face using modern high Tech engraving equipment to ensure long image life. These high-quality PUSH BUTTON SWITCHES feature a backlit panel that illuminates when the switch is turned on. There are 2 LEDs UPPER/ LOWER. 1 LED constant backlit, 1 LED ON when set to ON position. High Quality 12 Volt Push Switch will give you a clean and original style look, they are installed in the existing holes that come with the vehicle!

NOTE: The switch is an electronic switch rated at 3 Amp. Therefore in ALL cases, the accessory MUST be wired through a fused relay.

Compatible Vehicles:


# Toyota Sequoia 2008-ON
# Toyota Highlander 2008-ON
# Toyota Tacoma 2012-ON Center ONLY
# Toyota Tundra 2008-ON
# Toyota 4Runner 2010-ON
# Toyota RAV4 2008-2012
# Toyota Yaris 2008



Our service:



1. All goods are 100% test before shipping out.



2. The product can add your logo or word, OEM/ODM accepted, pls provide drawing or sample to us.



3. Any questions regarding our product will get high attention.



4. We will reply to you within 24 hours.



5. Customize specifications, drawings, materials are accepted.



6. Rich experience and sourcing on mold design, develop.



7. Strictly quality control, maximizing day output.



8.Exchange period of 30 days, 1-year warranty.



Sample Availability & Policy:



We specialize in customized designs

Customer fabrications can be manufactured to meet your special needs



Sample policy:



Samples are available free of charge(Value below $5.00)

Sample lead time five working days



Sample Shipping Costs:



Normally $30.00USD(weight below 1.0kg)

Final costs are based on which express choose



Mass production shipping way:



We will supply more kinds of shipping term, you can choose it by yourself.

1)By Air

Shipping time is : 5-30days.(Decide to your country.)



2)By Sea

Shipping time is : 10-60days.(Decide to your country.)



3)By Express

DHL, UPS, FedEx, TNT, etc. (Door To Door Service)

Shipping time is : 5-10days. (Decide to your country.)



Payment term:



T/T for a mass production order

Paypal for sample order and shipping costs



Export Processing Support:



We deliver quality products on time every time, within 30 days of receiving confirmed orders



After Sales Service:



Continuous and satisfactory service for repair or replacement

Strong support in failure analysis



Guarantee Period:



One year
