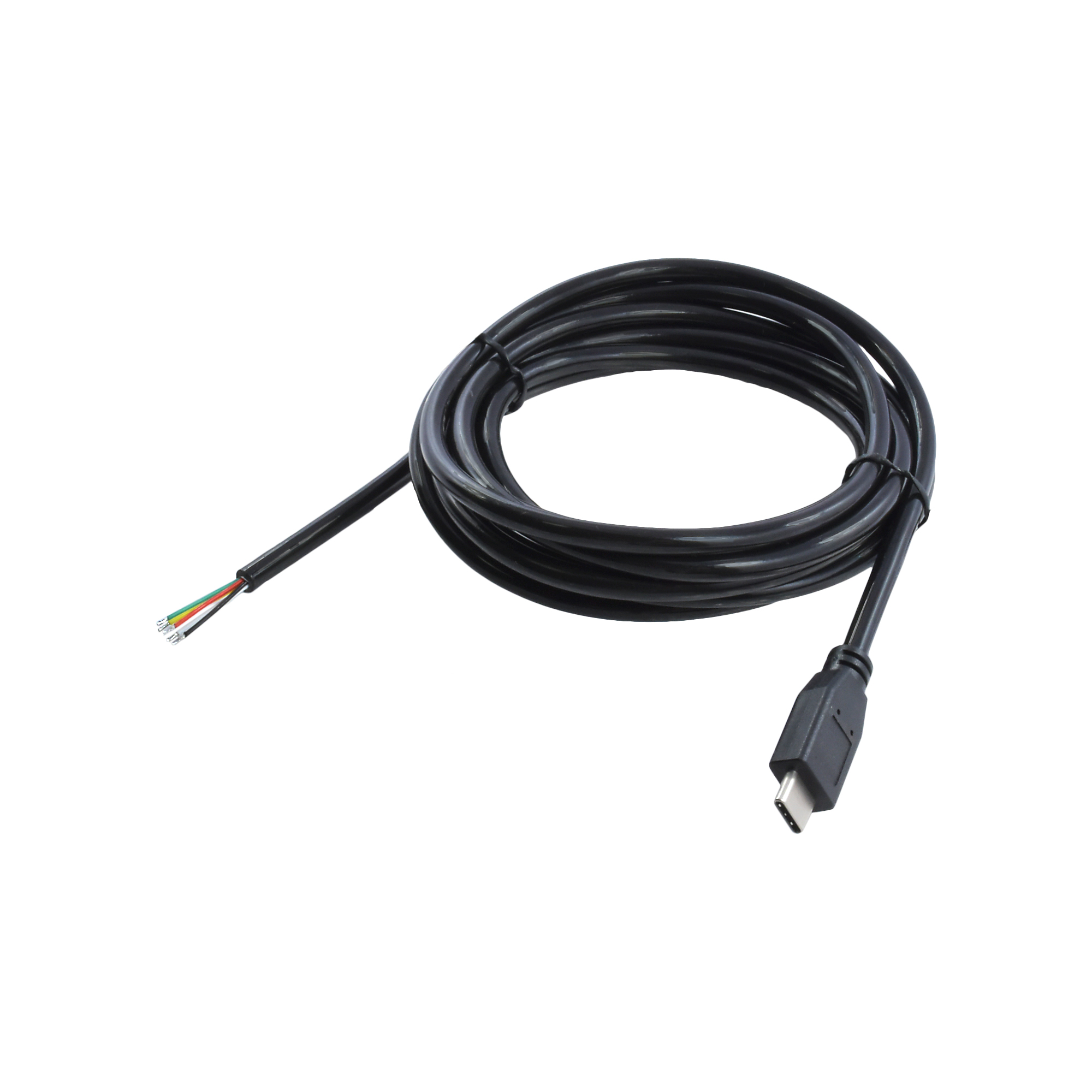

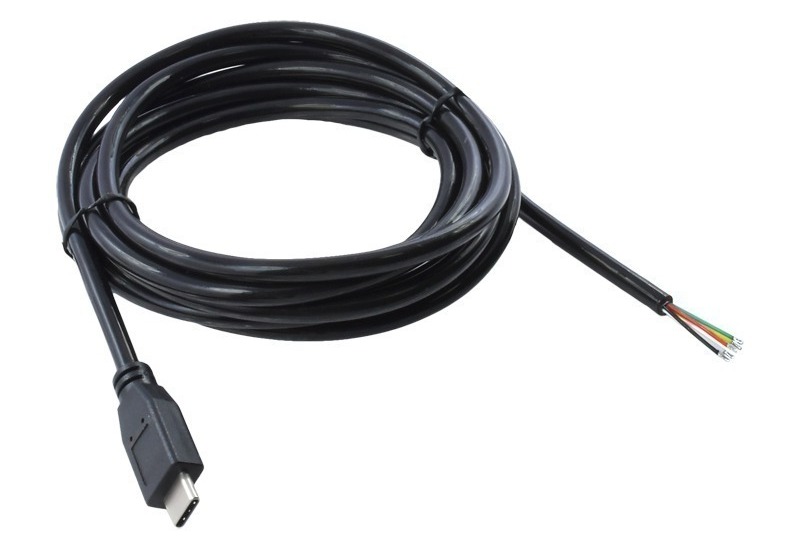

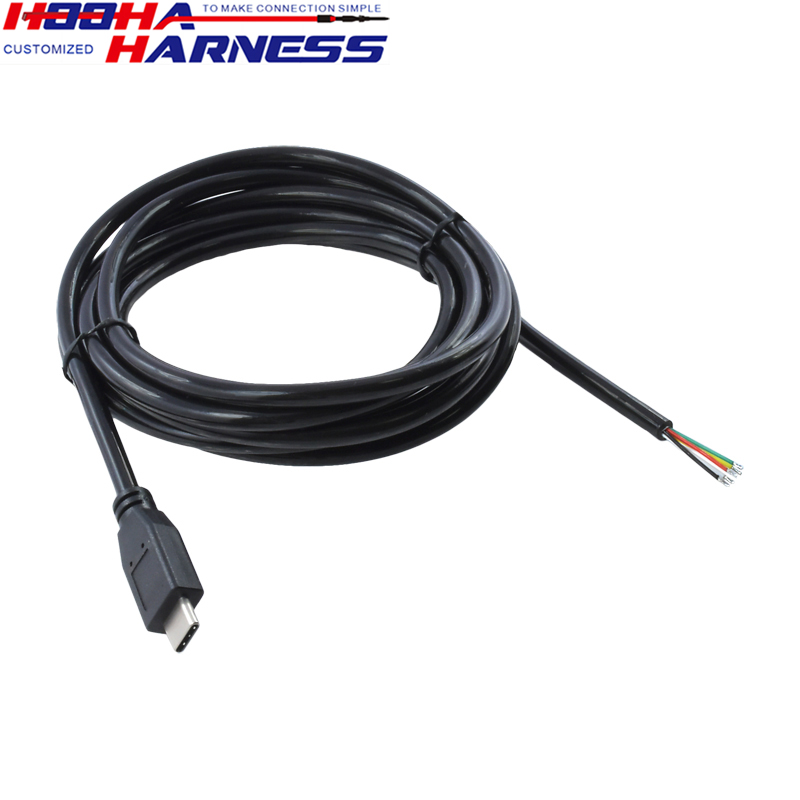

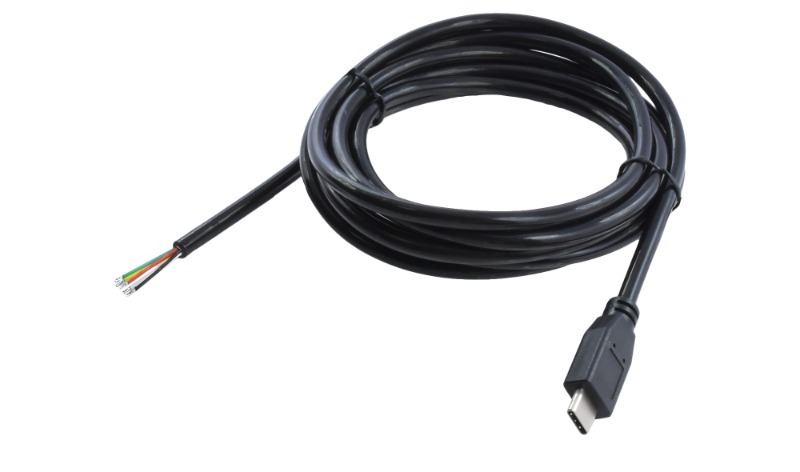

Type C male to open bare end cable right angle usb type c cable usb c to usb c 3a

Type C male to open bare end cable right angle usb type c cable usb c to usb c 3a

Product ID : 786

Product Tags : Computer wire and cable custom wire harness USB cable

Product Attributes :

This high-quality Type C male-to-open bare-end cable is the perfect solution for your USB needs. With its right-angle design, it allows for easy and convenient connectivity in tight spaces. This versatile cable can be used as a USB-C to USB-C 3A cable or as a standard USB-C cable, making it an essential accessory for any tech-savvy individual.

Crafted with precision and care, this durable cable ensures fast data transfer speeds and reliable charging capabilities. Whether you're transferring files between devices or powering up your smartphone or tablet, this Type C male-to-open bare-end cable has got you covered.

So why settle for less when you can have the best? Upgrade your tech game today with this top-of-the-line right-angle USB-type C cable!

Product Description

Type C male to open bare end cable right angle USB type c cable USB c to USB c 3a

Type C Male to Open Bare End Cable Right Angle USB Type C Cable USB C to USB C 3A

Engineered for precision connectivity, our right-angle USB Type C cable delivers reliable 3A power delivery and USB 3.0 data transfer speeds up to 5Gbps. Featuring a 90-degree connector design for space-constrained applications, tinned copper conductors for optimal conductivity, and aluminum foil shielding for 95% EMI reduction. The open bare end allows for custom termination to your specific requirements.

Key Features:

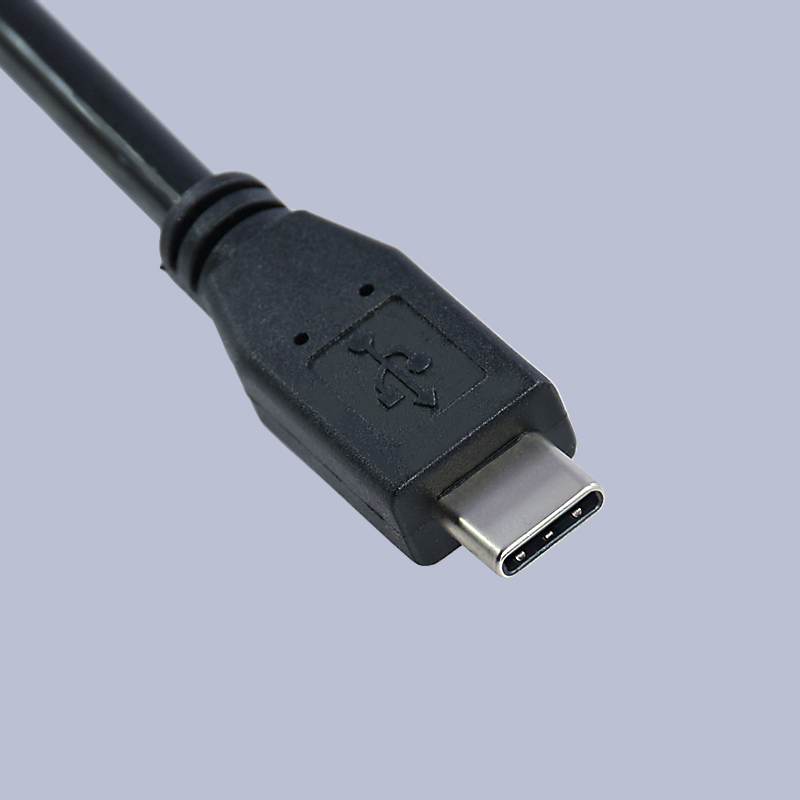

• USB Type C Male right-angle connector

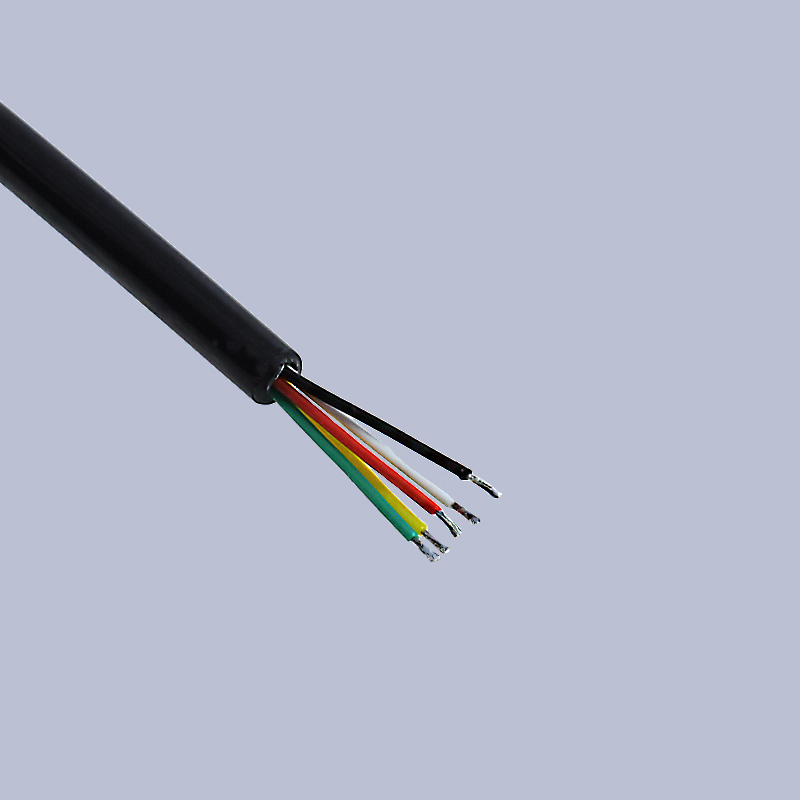

• Open bare end for custom termination
• 3A current rating for fast charging
• USB 3.0 compatible data transfer

Technical Specifications

Product ID: 786

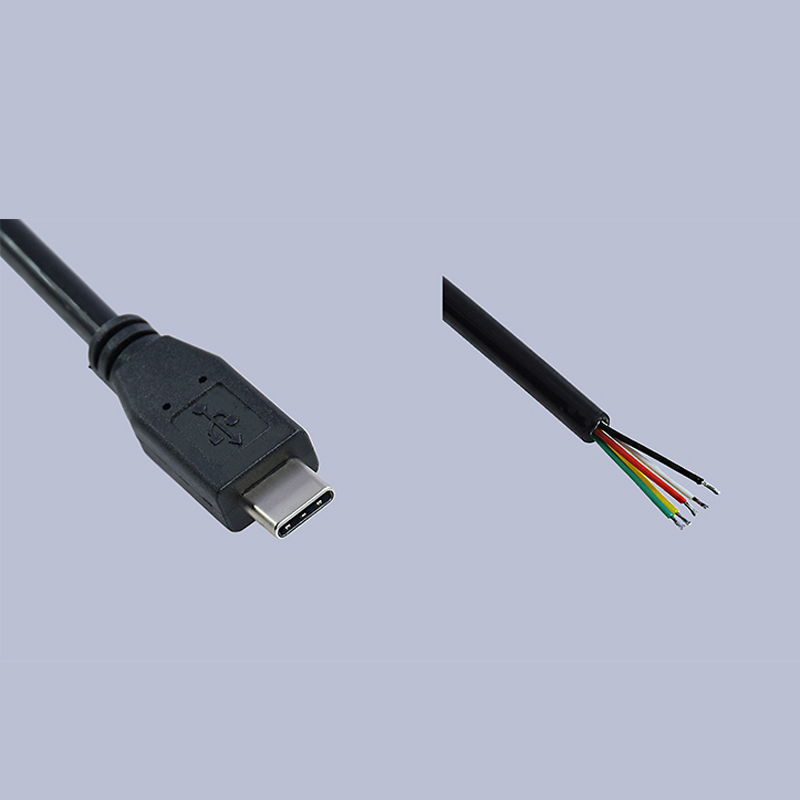

Connector Type: USB Type C Male (Right Angle) to Open Bare End
Current Rating: 3A maximum
Data Transfer: USB 3.0 (5 Gbps)
Cable Type: Standard round cable
Voltage Rating: 5V DC
Contact Resistance: <30mΩ

Customization Options

Cable Length: Custom lengths available from 0.5m to 5m
Cable Color: Black, white, or custom colors
Shielding: Aluminum foil and braid shielding standard

Product Advantages

●

Space-Saving Design

Right-angle connector allows for easy connectivity in tight spaces where straight connectors won't fit

●

Custom Termination

Open bare end allows for custom termination to meet specific application requirements

●

Fast Charging & Data Transfer

Supports 3A power delivery and USB 3.0 data transfer speeds up to 5Gbps

●

Durable Construction

High-quality materials ensure long-lasting performance even with frequent use

Implementation Technology

Right-Angle Design

Precision-molded 90-degree connector for space-constrained applications

EMI Shielding

Aluminum foil and braid shielding provides 95% EMI reduction for clean signal transmission

Tinned Copper Conductors

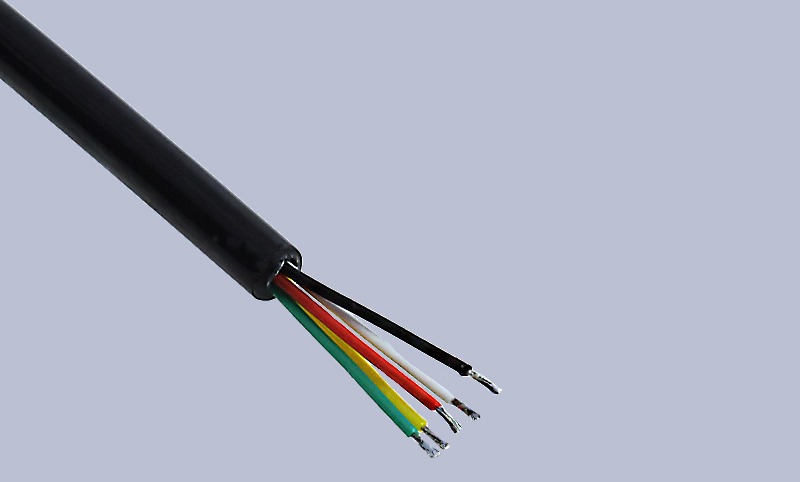

24AWG power conductors and 28AWG data wires with tin plating for corrosion resistance

PVC Insulation

High-quality PVC jacket provides durability and flexibility with 300V voltage rating

Product Specifications & Production Process

Detailed Specifications

Product Name: Type C Male to Open Bare End Cable Right Angle USB Type C Cable USB C to USB C 3A
Connector: USB Type C Male (Right Angle)
Termination: Open bare end for custom connections
Compatibility: USB Type C to USB Type C devices with 3A capability

Production Process

Our manufacturing process begins with precision molding of the right-angle USB Type C connector, followed by careful soldering of tinned copper conductors. Each cable undergoes aluminum foil shielding application, PVC jacket extrusion, and rigorous testing for electrical performance, including 3A current handling and data transfer verification. The open bare end is prepared for custom termination according to client specifications.

Each cable is individually tested for continuity, insulation resistance, and connector integrity before packaging.

✓

Quality Assurance

Each right-angle USB Type C cable undergoes rigorous testing for electrical performance, mechanical durability, and connector integrity to ensure reliable operation in various applications. Our quality control process includes continuity testing, hipot testing, and pull tests to guarantee customer satisfaction.

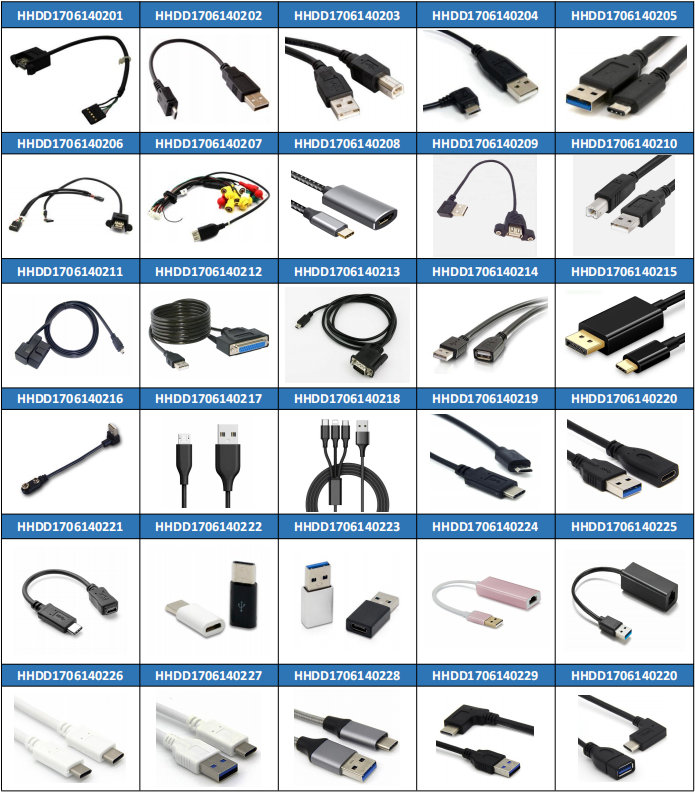

Related Products:

How to custom your own wire harness?

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
