custom extension refit truck power lift OBD wire harness cable

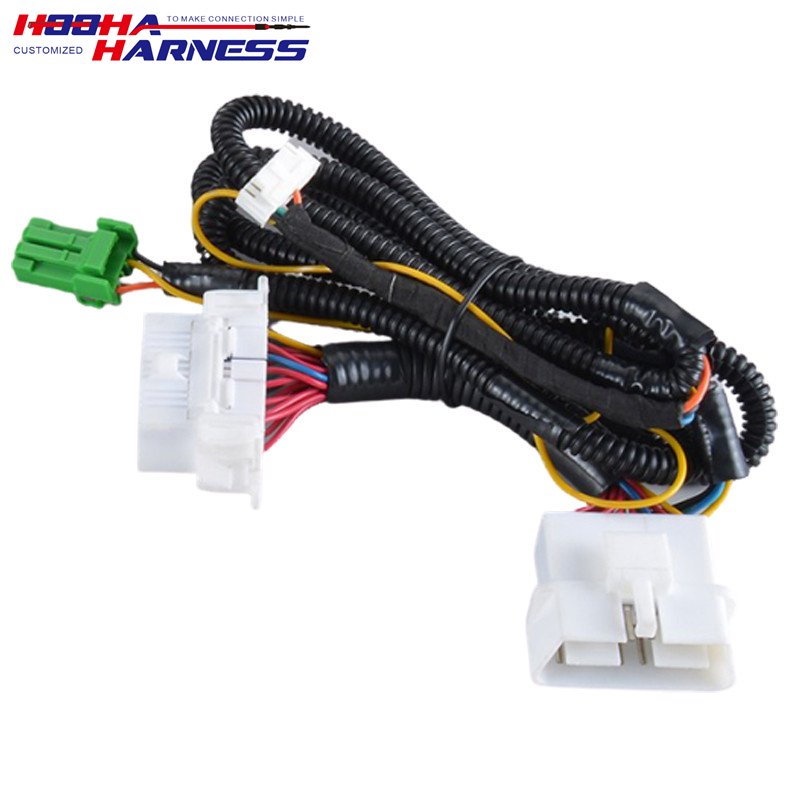

This is a custom OBD II wire assembly, which is a type of wiring harness used in automotive diagnostics.

The wire size for this assembly is AVSS 0.3mm², which means it has a cross-sectional area of 0.3 square millimeters and is insulated with heat-resistant PVC material. The color of the wires can be custom-made to suit specific requirements or preferences. The primary function of this wire assembly is to provide power to the trunk lift mechanism in a car diagnostic system. It connects the OBD II port to the trunk lift motor, allowing technicians to access and diagnose any issues related to the lifting mechanism. Application: This particular wire assembly is designed specifically for use in car diagnostic systems that require trunk power lift functionality. It can be used across various makes and models of vehicles, making it a versatile solution for automotive professionals who need reliable diagnostic tools at their disposal.

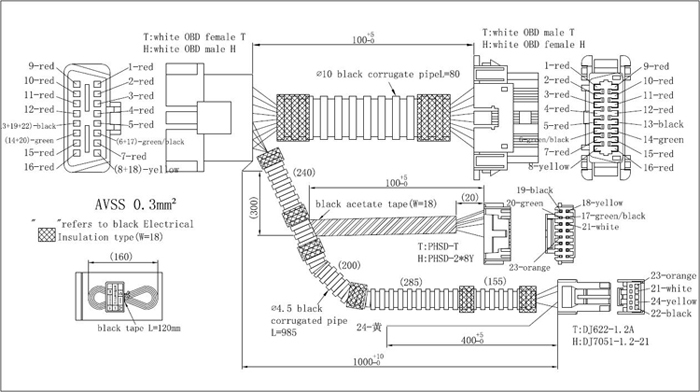

Diagram:

pin 1 to pin 1

pin 2 to pin 2

pin 3 to pin 3

pin 4 to pin 4

pin 5 to pin 5

pin 6 to pin 6 to pin 17

pin 7 to pin 7

pin 8 to pin 8 to pin 18

pin 9 to pin 9

pin 10 to pin 10

pin 11 to pin 11

pin 12 to pin 12

pin 13 to pin 13 to pin 19 to pin 22

pin 14 to pin 14 to pin 20

pin 15 to pin 15

pin 16 to pin 16

How to custom your own wire harness?

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
