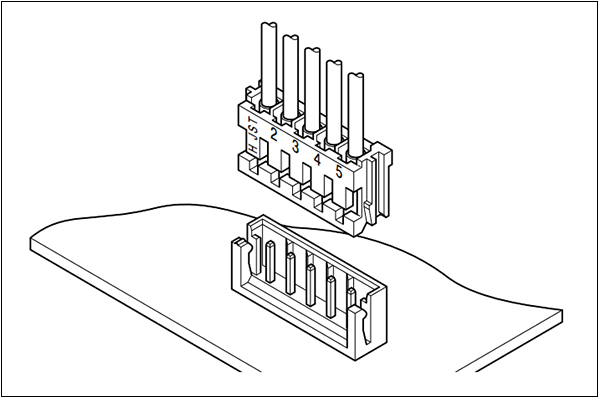

JST EH Connector

The JST EH Connector is a compact and cost-effective 2.5mm pitch connector specifically designed for high-density internal wire-to-printed circuit board (PCB) connections. As the thinnest connector in its class, it features a height of just 8.1mm after mounting and a width of 3.8mm, making it ideal for applications with limited space. Its slim profile does not compromise performance, as it ensures high reliability through secure and stable contact points. The connector incorporates polarizing guides to prevent misalignment during assembly, while its user-friendly crimping process simplifies wire termination. These attributes make the JST EH Connector a versatile and efficient solution for modern electronic devices.

Specifications

• Connector type: Wire to Board, Disconnectable Crimp style
• Connector pitch: 2.5mm
• Current rating: 3 A AC/DC (AWG #22)
• Voltage rating: 250 V AC/DC
• Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
• Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Withstanding voltage: 800 VAC/minute
• Applicable wire: AWG #32 to #22
• Applicable PC board thickness: 0.8 to 1.6 mm

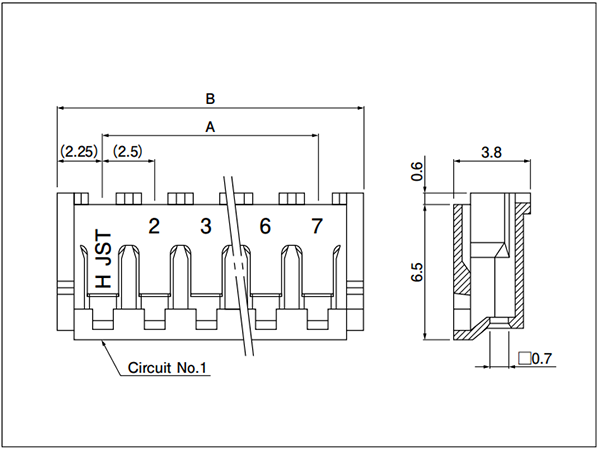

Housing

Material and Finish: PA 66, UL94V-0, natural (white)

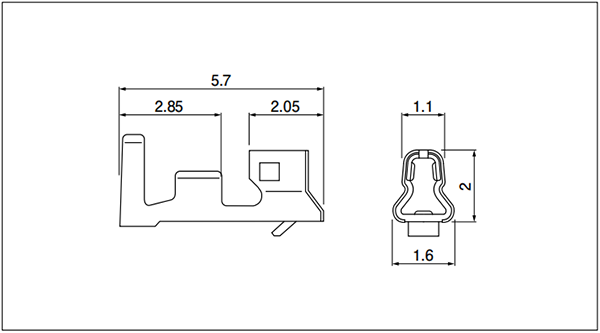

Terminal

Note:

1. SEH-00( )T-P0.6L is low-insertion force type contact, for easier insertion/withdrawal, which would be less resistant to the vibration. The crimp height is different from the standard contact.
2. *Marked products are not TÜV approved.
3. Material and Finish: Phosphor bronze, tin-plated (reflow treatment)
4. RoHS2 compliance

Header

Material and Finish

• Post: Brass, copper-undercoated, tin-plated (reflow treatment)
• Wafer: PA 66, UL94V-0, natural (white)

EH-A header

Notes:

• Material and Finish:
  • Post: Brass, copper-undercoated, tin-plated (reflow treatment)
  • Wafer: PA 66, UL94V-0, natural (white)
• RoHS2 compliance
• This product displays (LF)(SN) on a label.
• The length of the post is different between the EH-A header and the EH header.
•  The EH-A header has a post length of 3.3 mm on the header, and it provides easy insertion operation when mating with socket.

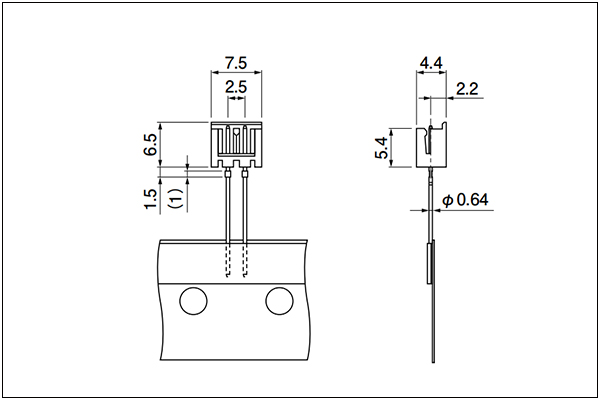

Header on radial-tape

Material and Finish

• Pin/Post: Brass, copper-undercoated, tin-plated (reflow treatment)
• Wafer: PA 66, UL94V-0, natural (white)
