JST EH Series Connector, Custom Wire Harness Assembly
- Connector support from 2Pin to 15Pin.
- Connector pitch: 2.5mm
- Terminal fit for 32AWG~22AWG (OD: 0.5-1.9mm).
- Header support from 2P to 15P.
- Current rating: 3A AC/DC (22AWG).
- Voltage rating: 250V AC/DC.
- Wire Style: support UL1571, UL1061, UL1007, UL1569, UL2464, etc.
- Wire Color: red, black, white, yellow, green, blue, orange, purple, and dual colors.
JST EH Connector, Wire Harness Assembly Services
This is a custom wire harness that has been specifically designed to meet the unique requirements of a customer based in the United States. The client needed this custom-made wire harness for their high-density mounting on PC board products, which required the use of JST EH series connectors with 2.5mm pitch and 6 positions.
The part number for this particular connector is EHR-6, and it has been expertly assembled into a custom wire harness assembly by our team of skilled technicians. This thin yet robust connector boasts an impressive height of just 8.1 mm after mounting and a width of only 3.8 mm.
Designed to cater to the growing demand for high-density connections between internal wires and printed circuit boards, this compact connector offers unparalleled performance and reliability. Our team worked tirelessly to ensure that every aspect of this custom-designed wire harness met or exceeded our client's expectations.
At Hooha Harness, we pride ourselves on delivering exceptional quality products that are tailored to meet each customer's unique needs. Whether you require standard off-the-shelf components or fully customized solutions like this one, we have the expertise and experience necessary to deliver outstanding results every time!
JST EH series connector Specifications:
- Current rating: 3 A AC/DC (AWG #22)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to +85°C (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 800 VAC/minute
- Applicable wire: AWG #32 to #22
- Applicable PC board thickness: 0.8 to 1.6 mm
JST EH connector series part number
| No. of circuits | Model No. |
| 2 | EHR-2 |
| 3 | EHR-3 |
| 4 | EHR-4 |
| 5 | EHR-5 |
| 6 | EHR-6 |
| 7 | EHR-7 |
| 8 | EHR-8 |
| 9 | EHR-9 |
| 10 | EHR-10 |
| 11 | EHR-11 |
| 12 | EHR-12 |
| 13 | EHR-13 |
| 14 | EHR-14 |
| 15 | EHR-15 |
EH header series for reference
>>> What type of JST EH connector wire harness do we provide? <<<

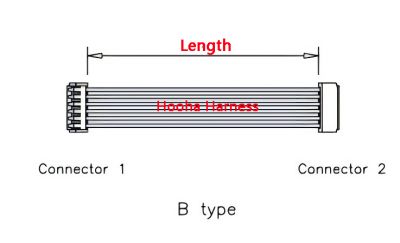

Both Connectors Same Direction
Both Connectors Opposite Direction

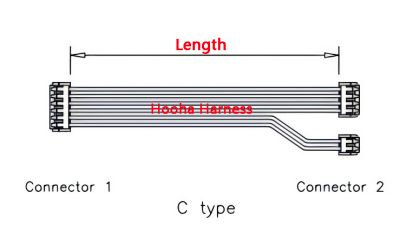

1 to 2 Splitter Wire Harness

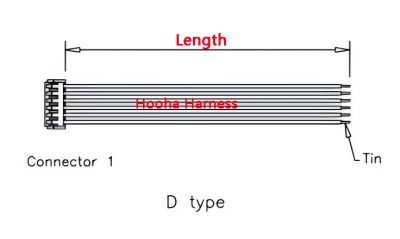

Wire Tinned End

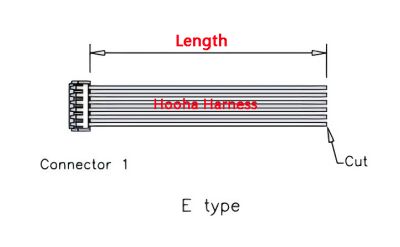

Wire Blunt End

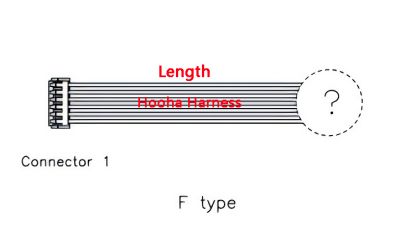

Add Any Suitable Connectors
>>> JST EH Connector Wire Harness Cases <<<

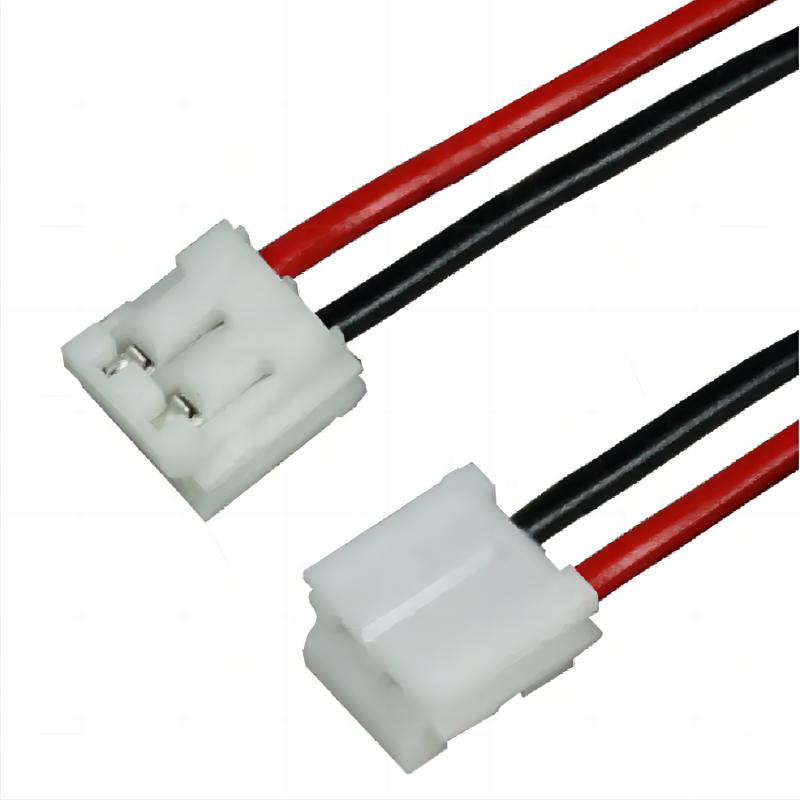

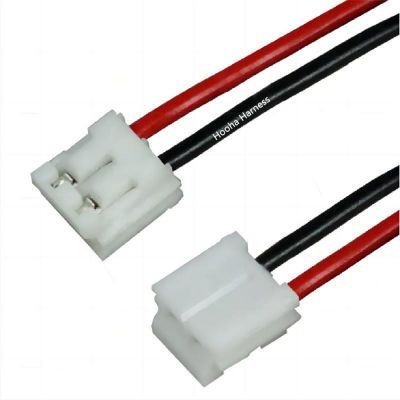

JST EH 2pin Wiring

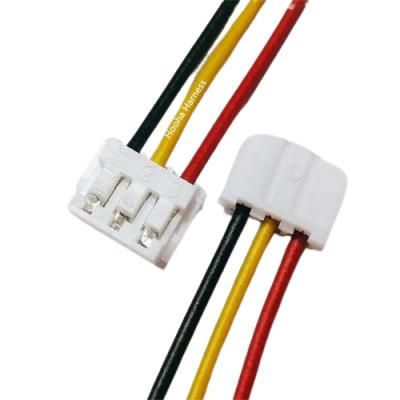

JST EH 3pin Wiring

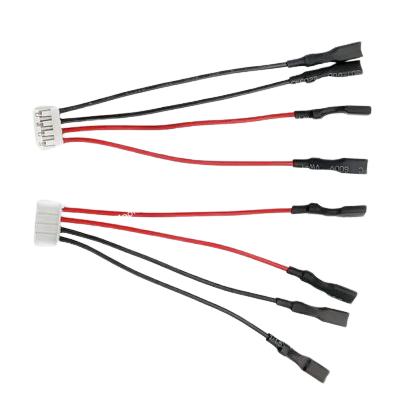

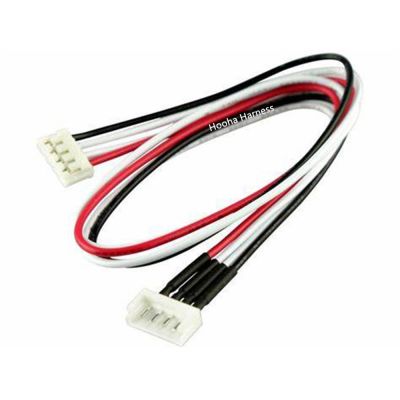

JST EH 4pin Wiring
JST EH 4pin Wiring

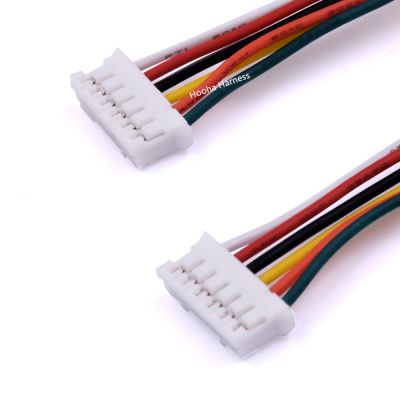

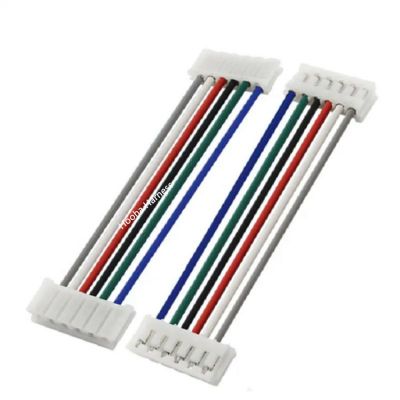

JST EH 6pin Wiring
JST EH 6pin Wiring

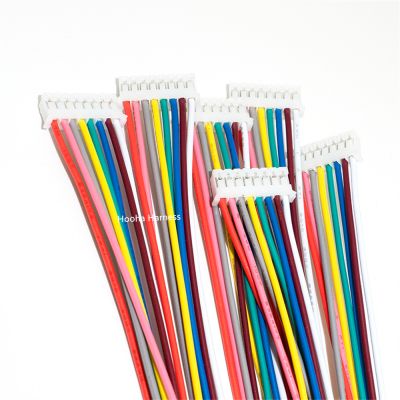

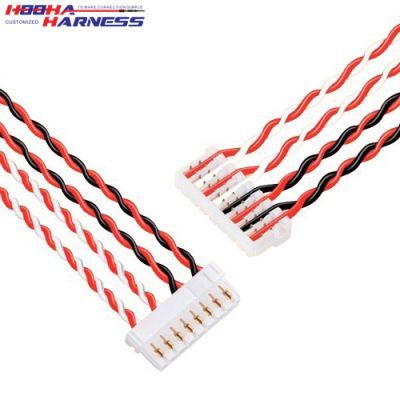

JST EH 8pin Wiring

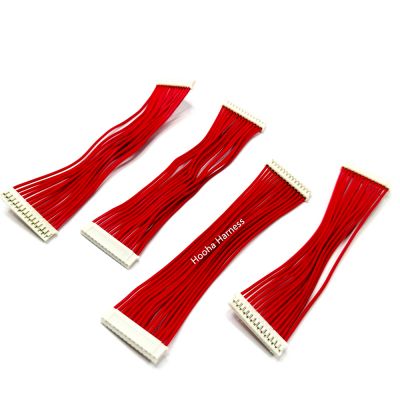

JST EH 12pin Wiring

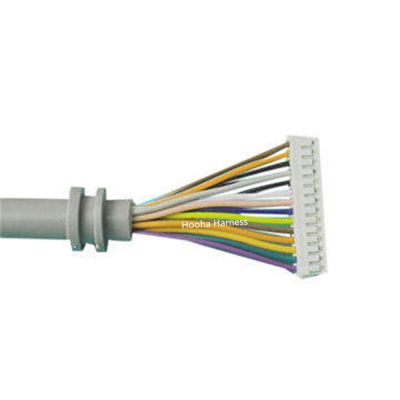

JST EH 14pin Wiring
How to customize your wire harness?
If all these wires are not exactly the same as you needed, don't worry, you can customize them from us, below is the custom way.
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
