JST SH Connectors, Custom Cable Assembly

JST SH Connector, Wire to Board Type

The JST SH connector is a groundbreaking 1.0 mm pitch crimp-style wire-to-board connector, renowned for being the world's first of its kind. Its compact and low-profile design makes it an ideal choice for space-constrained applications, particularly in small electronic devices where efficient use of space is critical. The connector is compatible with SR insulation displacement connectors, ensuring reliable and secure connections. Featuring housing lances for added stability, the JST SH connector system offers versatility with a range of pin configurations, including 2, 3, 4, 5, 6, and 8 pins, catering to diverse connectivity needs. Its innovative design and adaptability have made it a popular choice across various industries, enabling seamless integration into compact electronic assemblies while maintaining high performance and reliability.

Specifications

• Connector type: Disconnectable Crimp style connectors
• Connector pitch: 1.0mm
• Current rating: 1.0 A AC/DC (AWG #28)
• Voltage rating: 50 V AC/DC
• Temperature range: -25℃to+85℃ (including temperature rise in applying electrical current)
• Contact resistance: Initial value/ 20mΩ max. After environmental tests/ 40 mΩ max.
• Insulation resistance: 100 M min.
• Withstanding voltage: 500 VAC/minute
• Applicable wire: Conductor size/AWG #32 to #28, Insulation O.D./0.4 to 0.8 mm

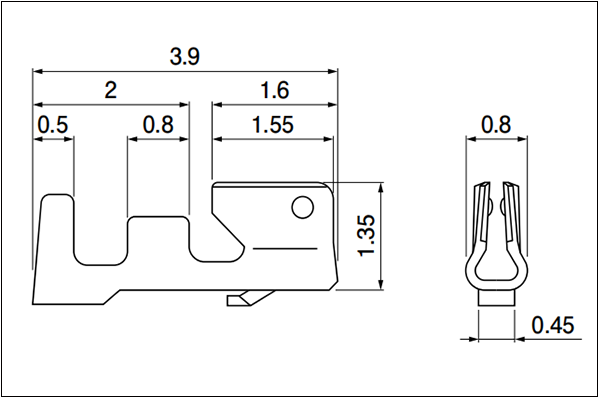

Terminal

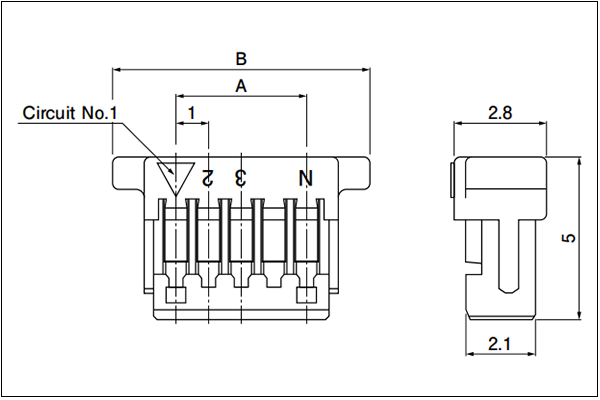

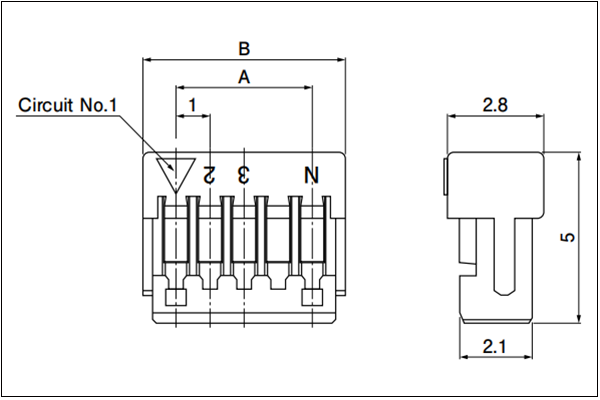

Housing

Support Chinese Equivalent Part

• Pins: 2~20
• Applicable wires: AWG32#~28#
• Applicable PC board thickness: 1.6mm
• Temperaturerange: -25℃~85℃
• Voltage rating: 50V.AC/DC
• Current rating: 1A
• Contact resistance: <0.0222
• Insulation resistance: >1000MΩ
• Withstand voltage: 250V.AC/1min
• Housing materials: PA66 UL94V-2(0)
• Terminal: Phos. Bronze tin/plated

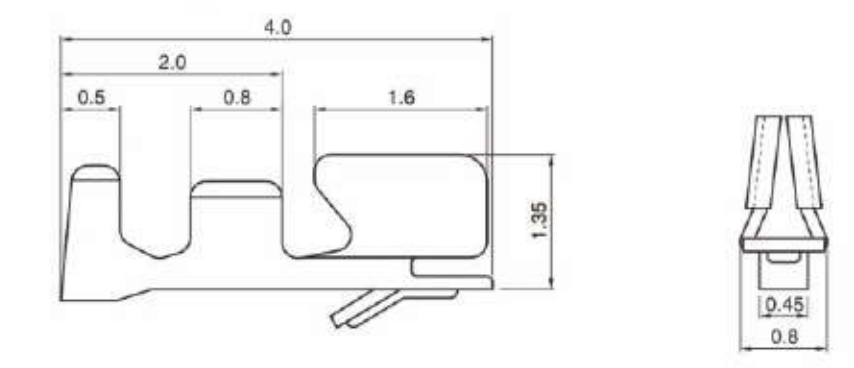

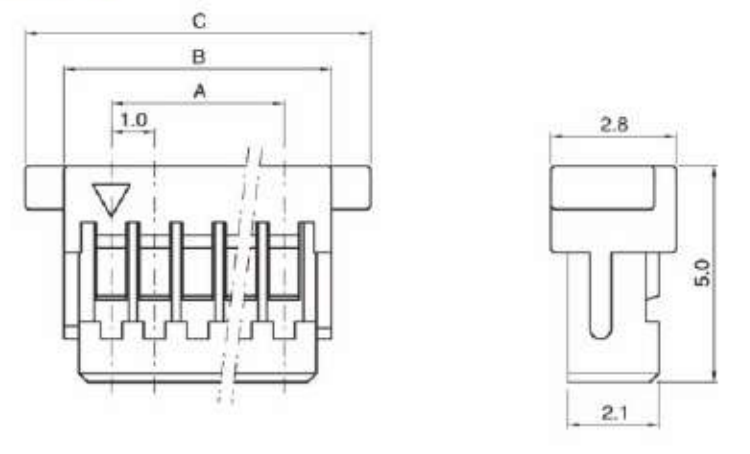

Replacement Housing and Contact size

Part Number lists

What are the differences?

JST original brand has a minimum packing quantity, housing is 2000pcs per bag, and terminal is 23000pcs per teel. but when you order Chinese equivalent parts to assembly your JST wire harness, it's not have such a big quantity needed, so, if you order just a small volume, then you can choose Chinese equivalent parts, the same quality, but better price and short delivery time.

Also, there are no any patent issues, some people might worry they are the same size, and whether they will encounter any patent problems, but I can positively tell you that there are no patent problems. patent has a limited time, while this one is out of that limit.

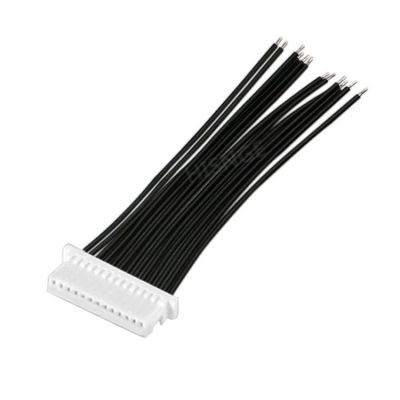

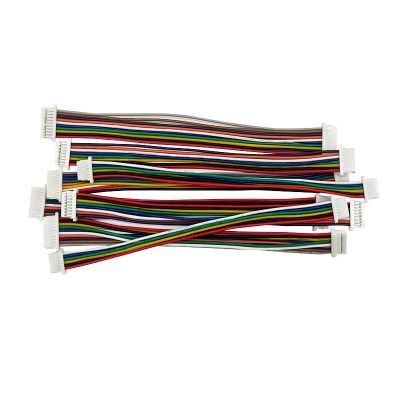

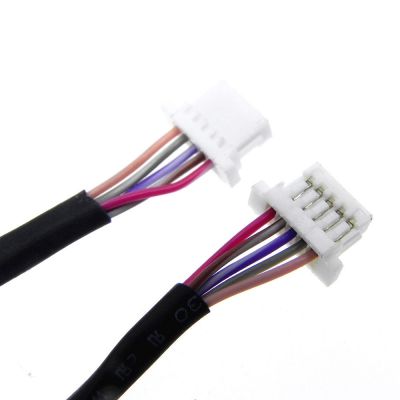

What type of JST SH connector wire harness do we provide?

Customize Your Wire Harness

If all these wires are not exactly the same as you needed, don't worry, you can customize them from us, below is the custom way.

Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
