JST SH series connector custom wire assembly
Connector support from 2Pin to 20Pin.
Header support from 2P to 20P.
Terminal fit for 32AWG~28AWG.
Current rating: 1.0A AC/DC (28AWG).
Voltage rating: 50V AC/DC.
JST SH Connector, Custom wire assembly
The JST SH Connector is designed with a range of features that make it highly reliable and suitable for various applications. With a current rating of 1.0 A AC/DC (AWG #28), it can handle moderate power requirements efficiently. These connectors also have a voltage rating of 50 V AC/DC, ensuring safe operation within specified limits. The JST SH Connector supports conductor sizes ranging from AWG #32 to #28. This versatility allows for easy integration into various electronic systems while accommodating different wire gauges commonly used in industry standards.
JST SH Connector Features

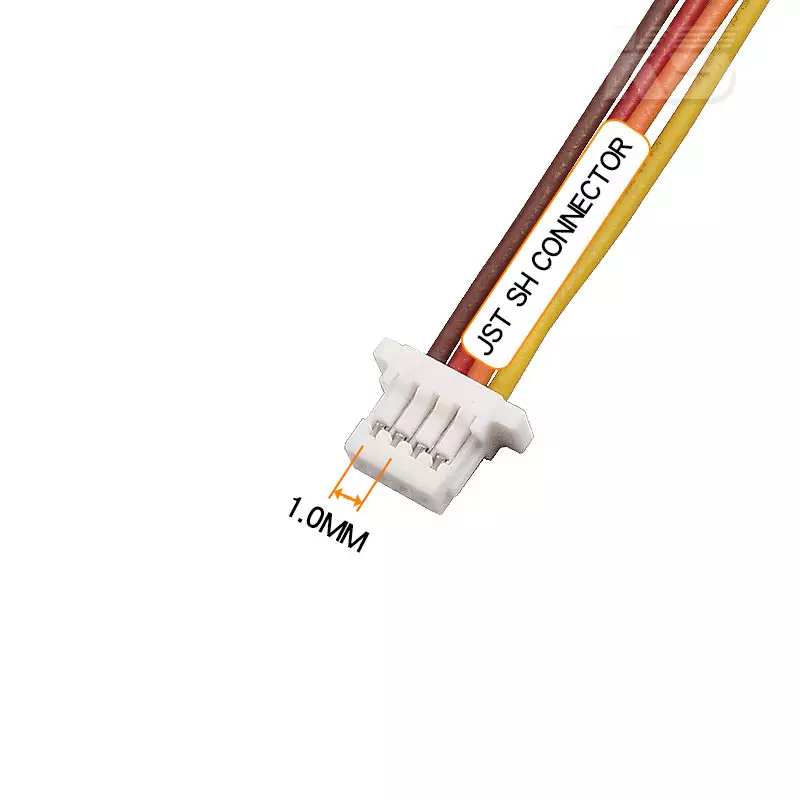

- Connector pitch: 1.0mm
- Current rating: 1.0 A AC/DC (AWG #28)
- Voltage rating: 50 V AC/DC
- Temperature range: -25℃ to +85°C
- (including temperature rise in applying electrical current)
- Contact resistance: initial value/ 20 mΩ max, After environmental tests/ 40 mΩ max.
- Insulation resistance: 100 MΩ min.
- Withstanding voltage: 500 VAC/minute

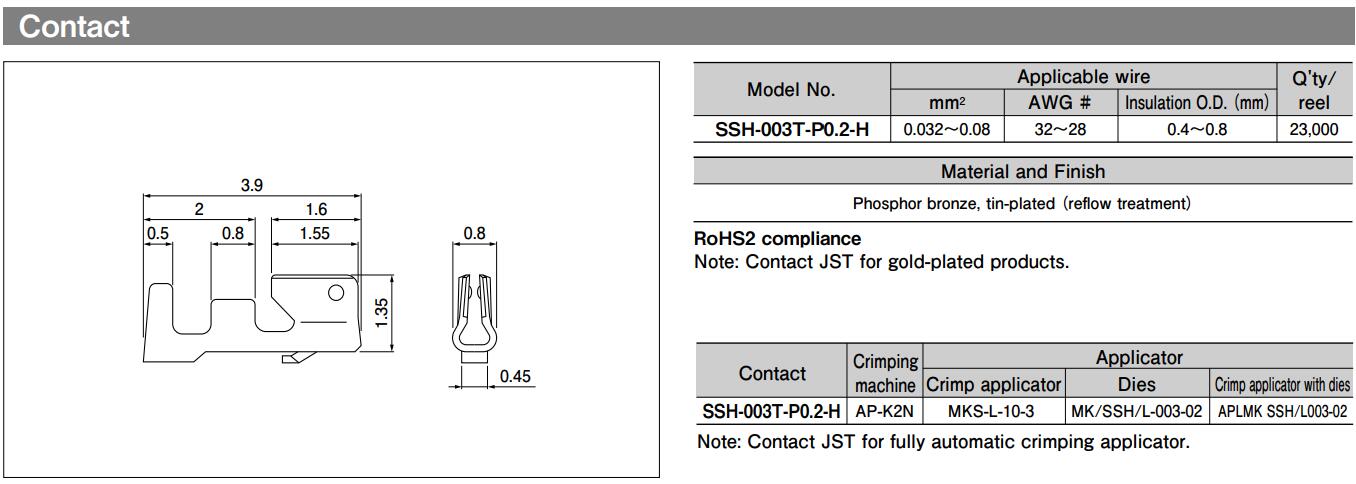

- Applicable wire: Conductor size/ AWG #32 to #28, Insulation O.D./ 0.4 to 0.8 mm

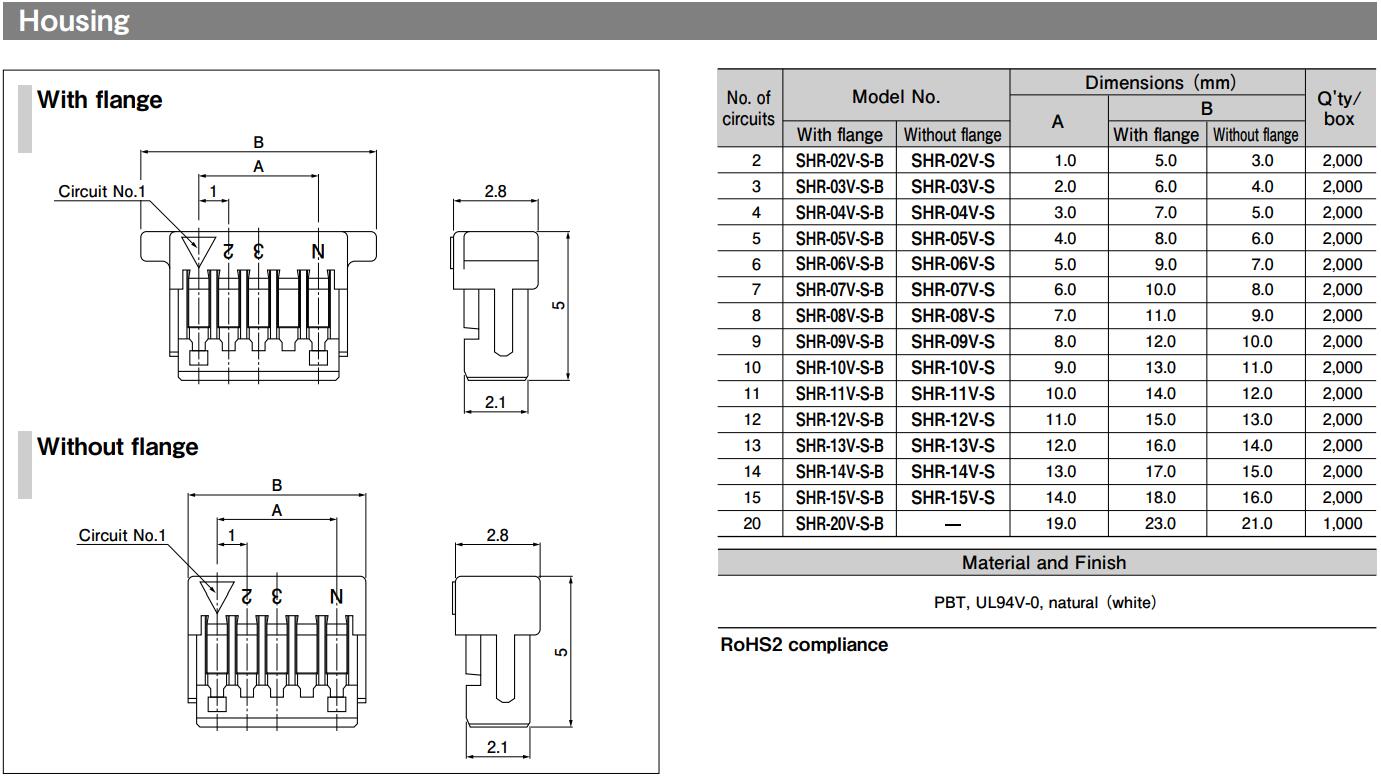

JST SH Series Connector Part Number
| No. of circuits | Model No. | |
| With flange | Without flange | |
| 2 | SHR-02V-S-B | SHR-02V-S |
| 3 | SHR-03V-S-B | SHR-03V-S |

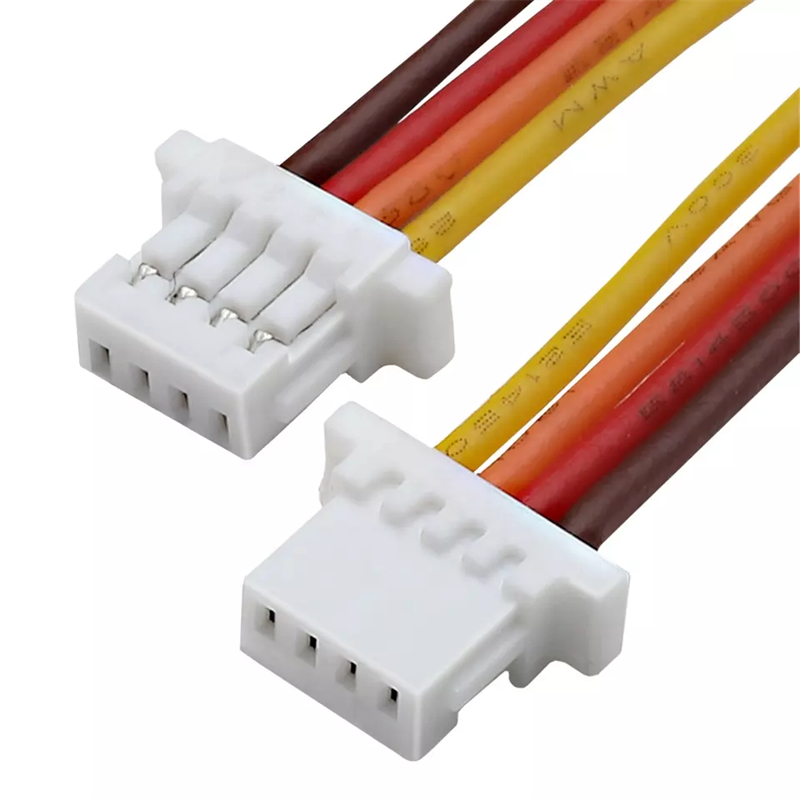

| 4 | SHR-04V-S-B | SHR-04V-S |
| 5 | SHR-05V-S-B | SHR-05V-S |
| 6 | SHR-06V-S-B | SHR-06V-S |
| 7 | SHR-07V-S-B | SHR-07V-S |
| 8 | SHR-08V-S-B | SHR-08V-S |
| 9 | SHR-09V-S-B | SHR-09V-S |
| 10 | SHR-10V-S-B | SHR-10V-S |
| 11 | SHR-11V-S-B | SHR-11V-S |
| 12 | SHR-12V-S-B | SHR-12V-S |
| 13 | SHR-13V-S-B | SHR-13V-S |
| 14 | SHR-14V-S-B | SHR-14V-S |
| 15 | SHR-15V-S-B | SHR-15V-S |
| 20 | SHR-20V-S-B | |
What type of JST SH connector wire harness do we provide?

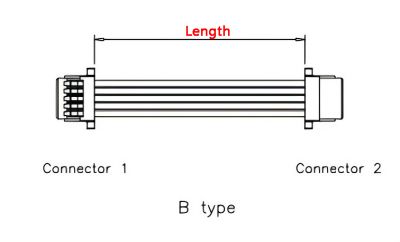

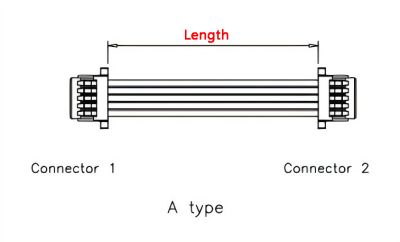

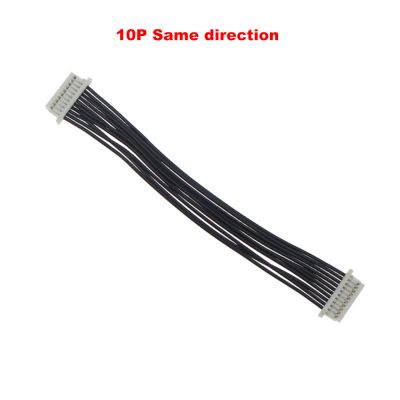

Both Connectors Same Direction
Both Connectors Opposite Direction

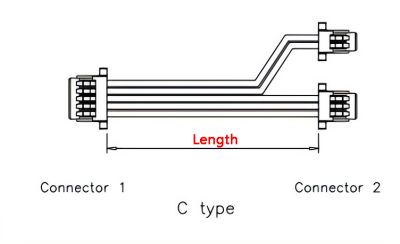

1 to 2 Splitter Wire Harness

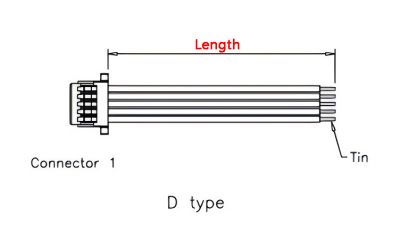

Wire Tinned End

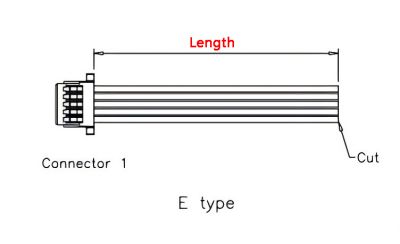

Wire Blunt End

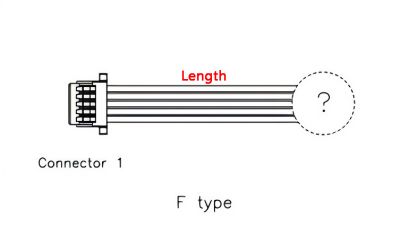

Add Any Suitable Connectors
JST SH Connector Wire Harness Cases

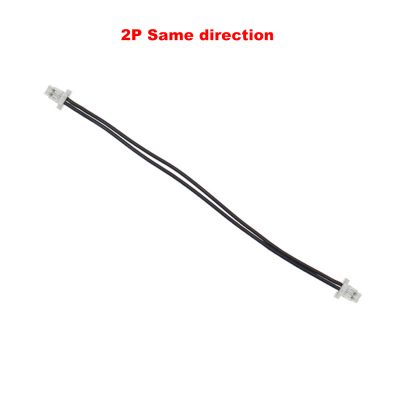

JST SH 2pin Wiring

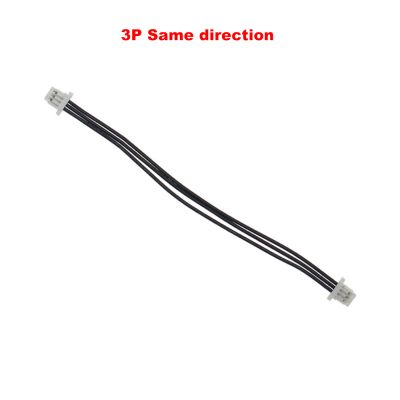

JST SH 3pin Wiring

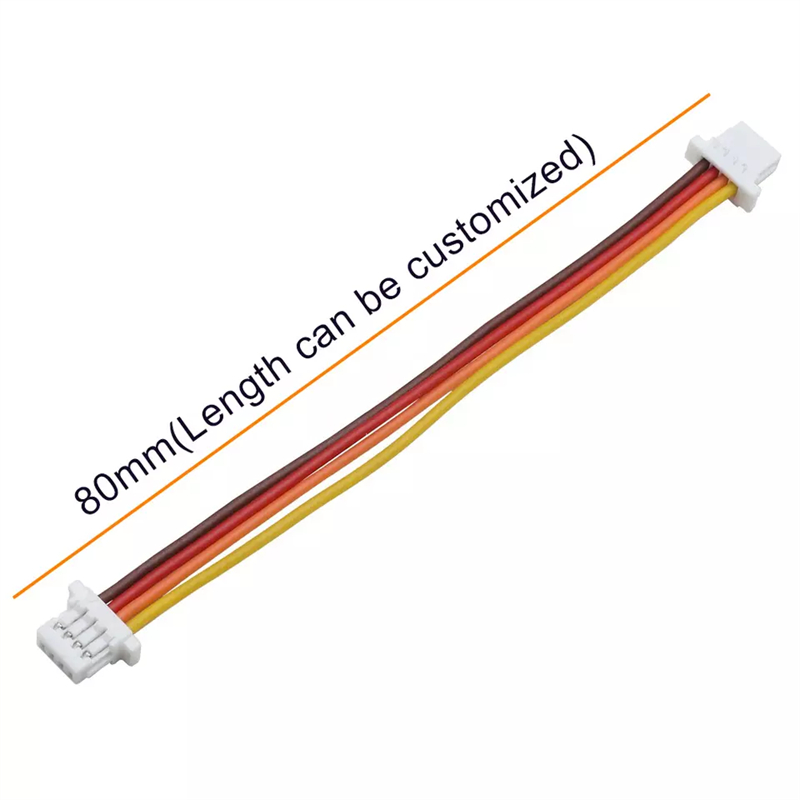

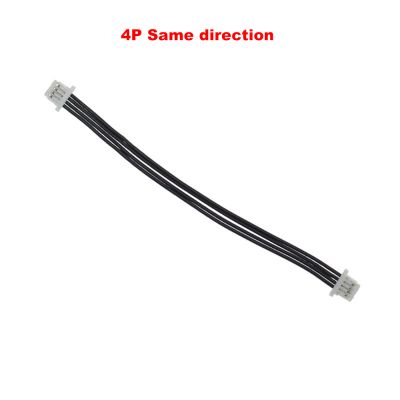

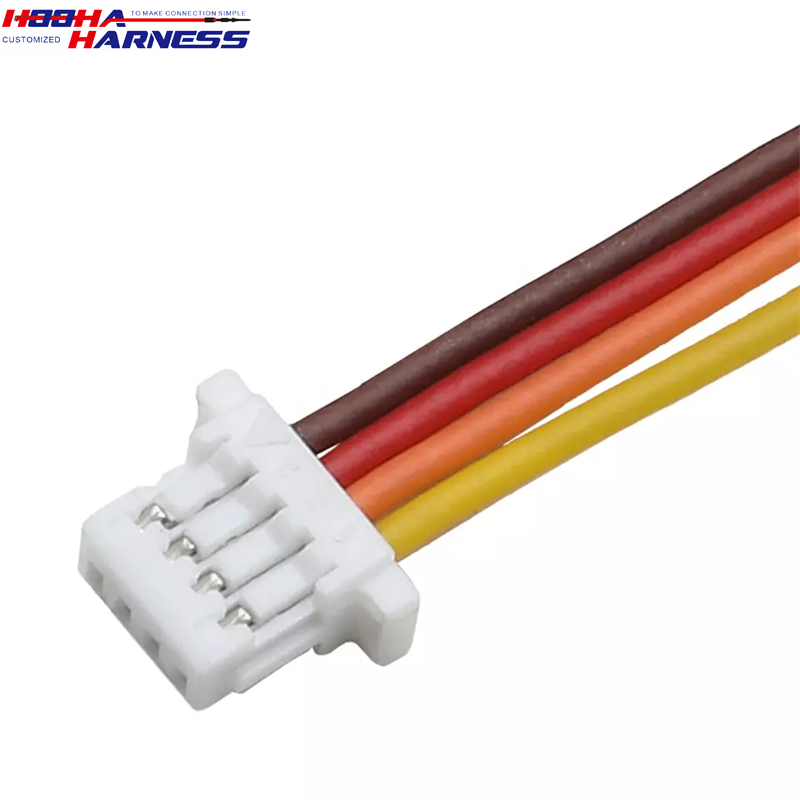

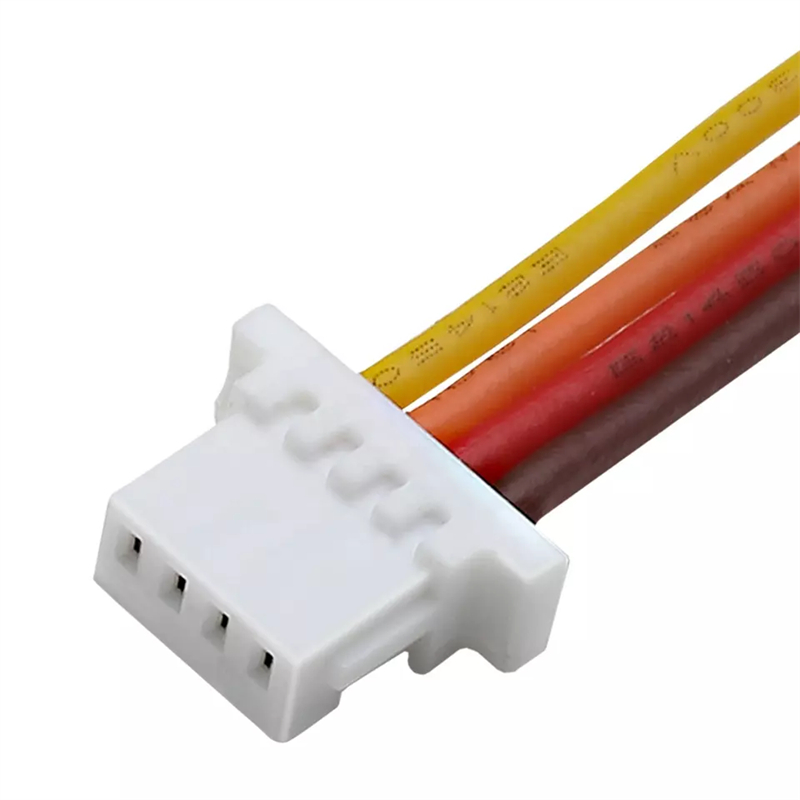

JST SH 4pin Wiring
JST SH 5pin Wiring

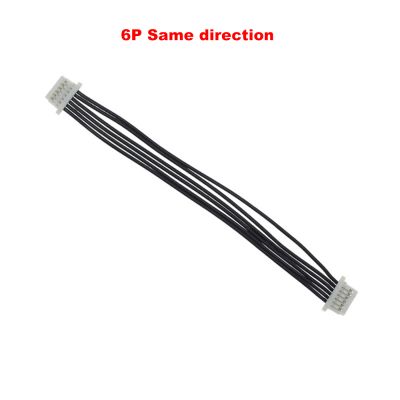

JST SH 6pin Wiring

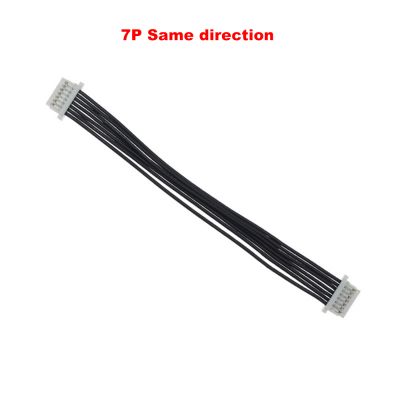

JST SH 7pin Wiring

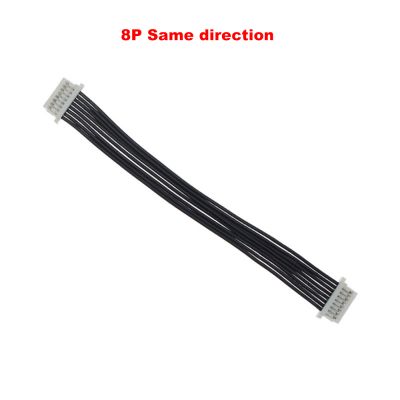

JST SH 8pin Wiring

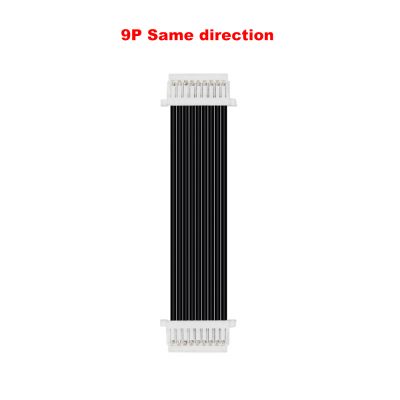

JST SH 9pin Wiring
JST SH 10pin Wiring

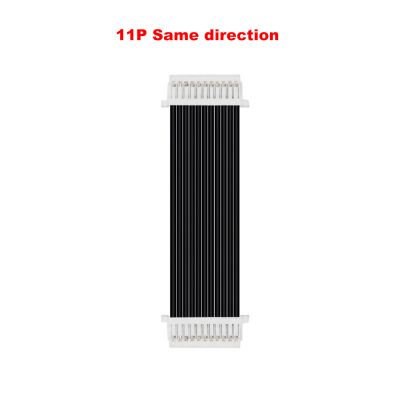

JST SH 11pin Wiring
JST SH 12pin Wiring

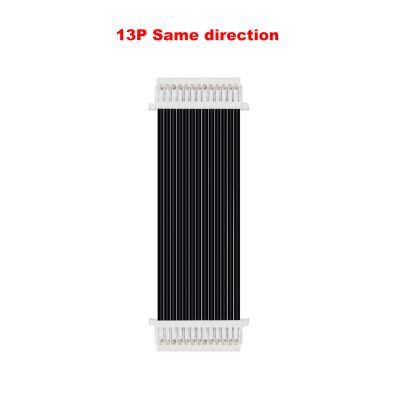

JST SH 13pin Wiring

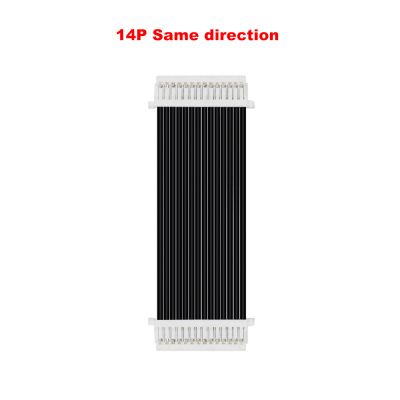

JST SH 14pin Wiring
JST SH 15pin Wiring

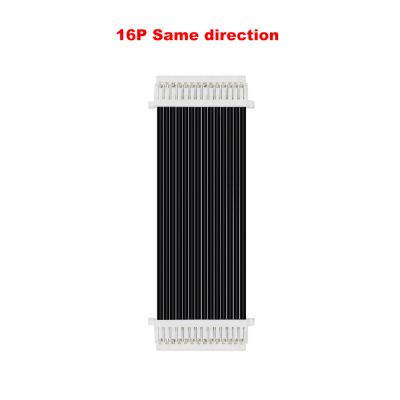

JST SH 16pin Wiring

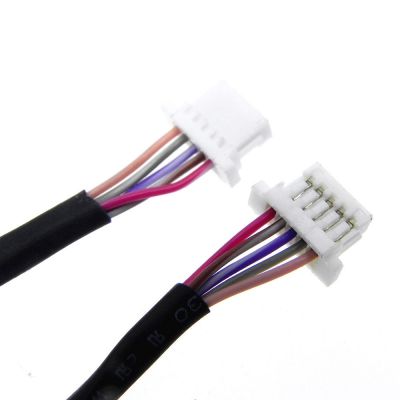

JST SH 5 Pin Connector Cable Assembly

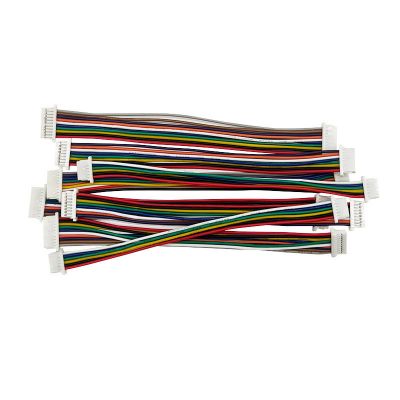

JST SH 8 Pin connector Wire Assembly

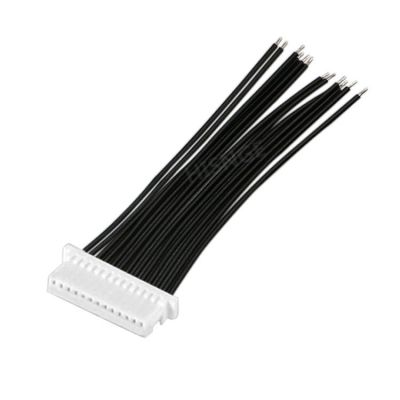

JST SH Connector 13P Wiring Harness
How to customize your wire harness?
If all these wires are not exactly the same as you needed, don't worry, you can customize them from us, below is the custom way.
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
