JST SHJ Connector

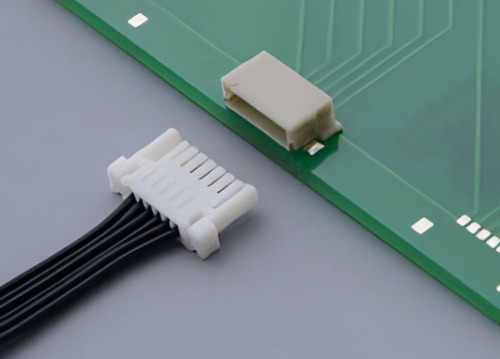

The JST SHJ Connector is a compact wire-to-board solution designed to meet the demanding requirements of LED power supply applications. Its low-profile design ensures efficient space utilization, making it ideal for modern, compact electronic systems. Featuring a robust and secure locking mechanism, the SHJ connector provides reliable mating retention, reducing the risk of accidental disconnection even in environments subject to vibration or movement. Additionally, it is constructed with halogen-free materials, aligning with environmentally friendly practices and ensuring compliance with industry standards for safety and sustainability. The SHJ Connector combines durability, functionality, and eco-consciousness, making it a dependable choice for LED power supply applications.
SHJ Connector Specifications
- Connector Type: Wire to Board
- Connector Pitch: 1.0mm
- Current rating: 1.0 A AC/DC (AWG #28)
- Voltage rating: 125 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 20 mΩ max. After environmental tests/ 40 mΩ max.
- Insulation resistance: 100 MΩ min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: Conductor size/ AWG #32 to #28, Insulation O.D./ 0.54 to 0.8 mm

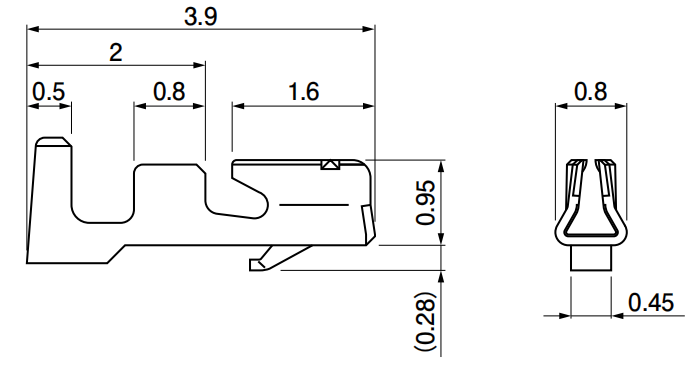

SHJ Connector Terminal Size
Notes:
- Model Number: SSHJ-003T-P0.2
- Suitable Wire Gauge: 0.032 - 0.08mm² (32 - 28AWG)
- Insulation O.D. (mm): 0.54 - 0.8
- Qty/Reel: 28000pcs
- Material and Finish: Phosphor bronze, tin-plated (reflow treatment)
- RoHS2 compliance

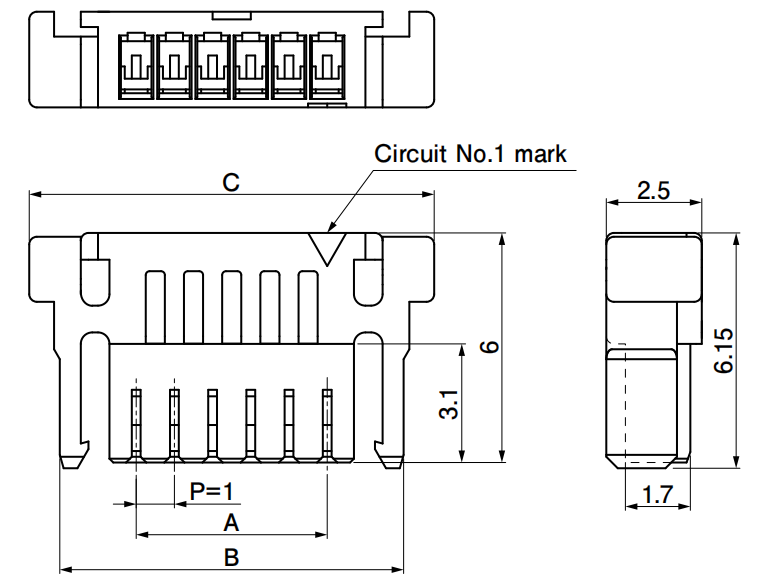

SHJ Connector Housing Size
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/bag | ||
| A | B | C | |||
| 2 | SHJP-02V-S(HF) | 1 | 5 | 6.6 | 1000 |
| 6 | SHJP-06V-S(HF) | 5 | 9 | 10.6 | 1000 |
Notes:
- Material and Finish: PBT, UL94V-0, natural (white)
- RoHS2 compliance
SHJ Connector Header

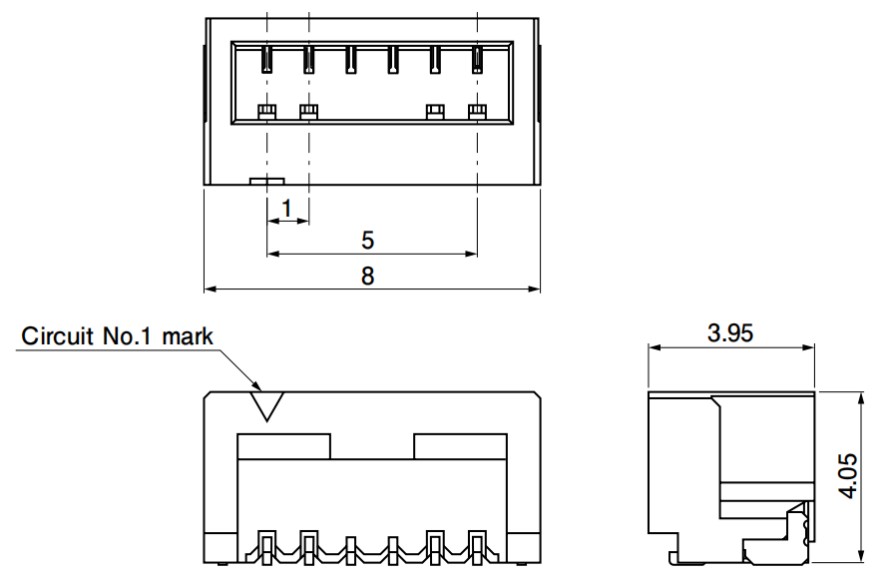

Top entry type

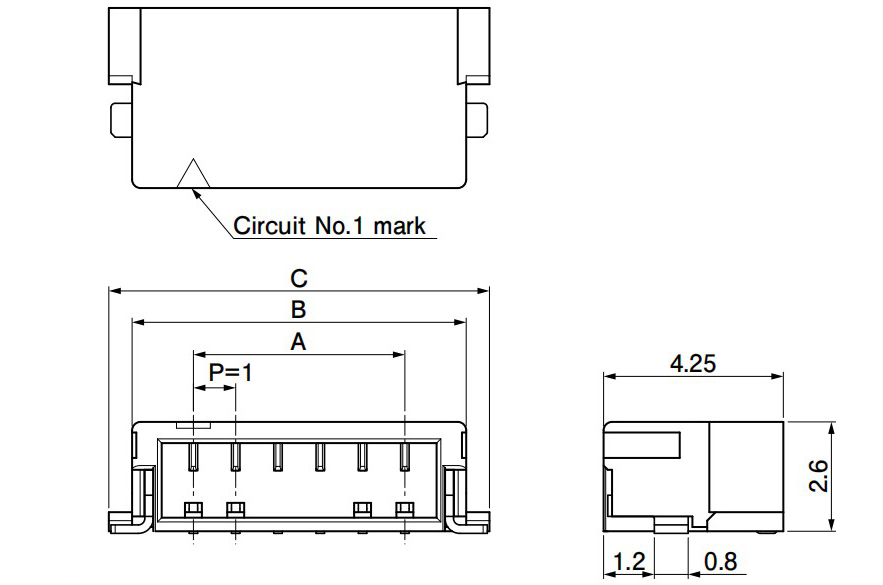

Side entry type
| Top entry type | No.of circuits | Model No. | Q'ty/reel | |||
| 6 | BM06B-SHJS-TB(HF) | 2500 | ||||
| Side entry type | No.of circuits | Model No. | Dimensions(mm) | Q'ty/ree | ||
| A | B | C | ||||
| 2 | SM02B-SHJH-TF(HF) | 1 | 3.9 | 5 | 3500 | |
| 6 | SM06B-SHJH-TF(HF) | 5 | 7.9 | 9 | 3500 | |
Notes
- Material and Finish:
- Base contact: Brass, tin-plated (reflow treatment)
- Base housing (Top entry type): PA 4T, natural
- Base housing (Side entry type): PA 6T, gray
- Solder tab: Brass, tin-plated (reflow treatment)
- RoHS2 compliance
- The product listed above are supplied on embossed-tape.

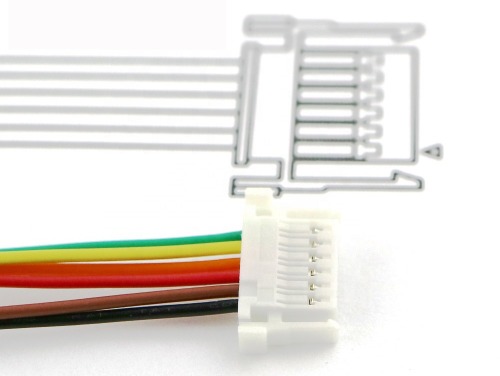

Support Custom Wiring Harness Assembly
- Connector: 2, 6pin
- Wire gauge: 28 - 32AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
