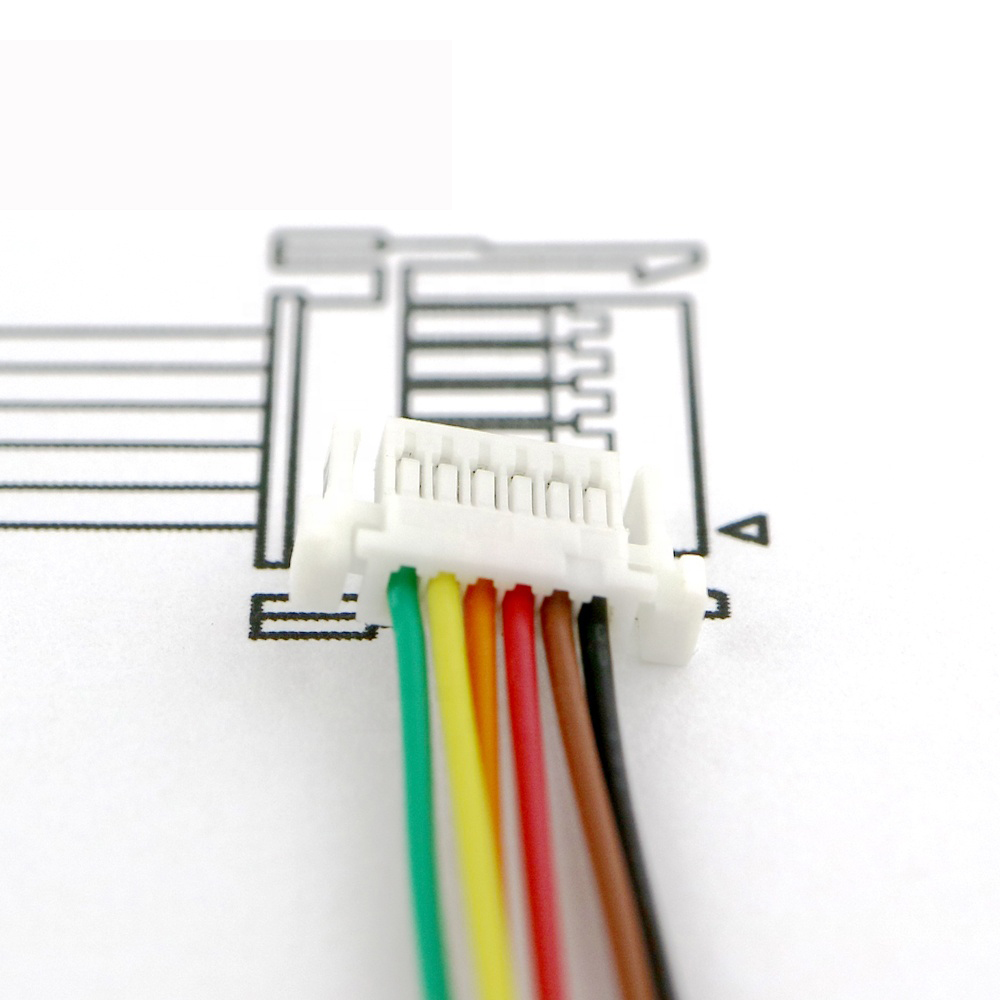

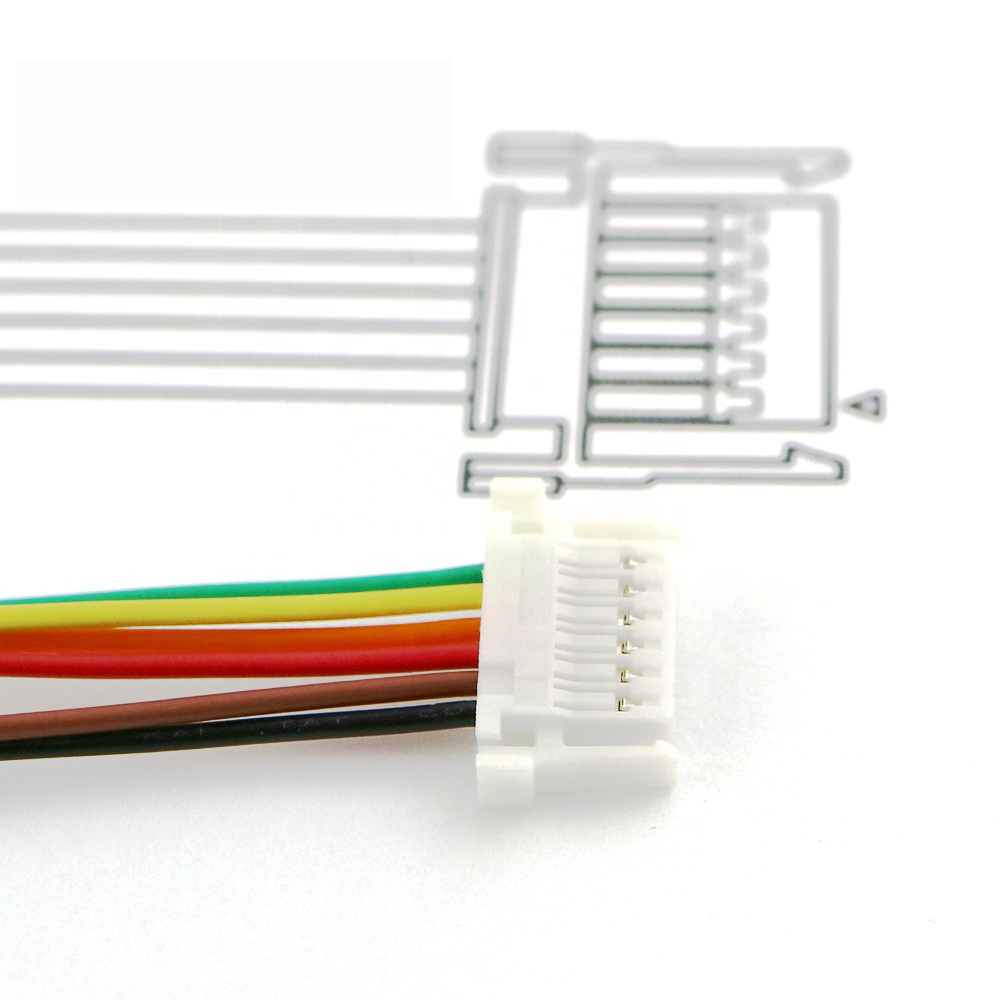

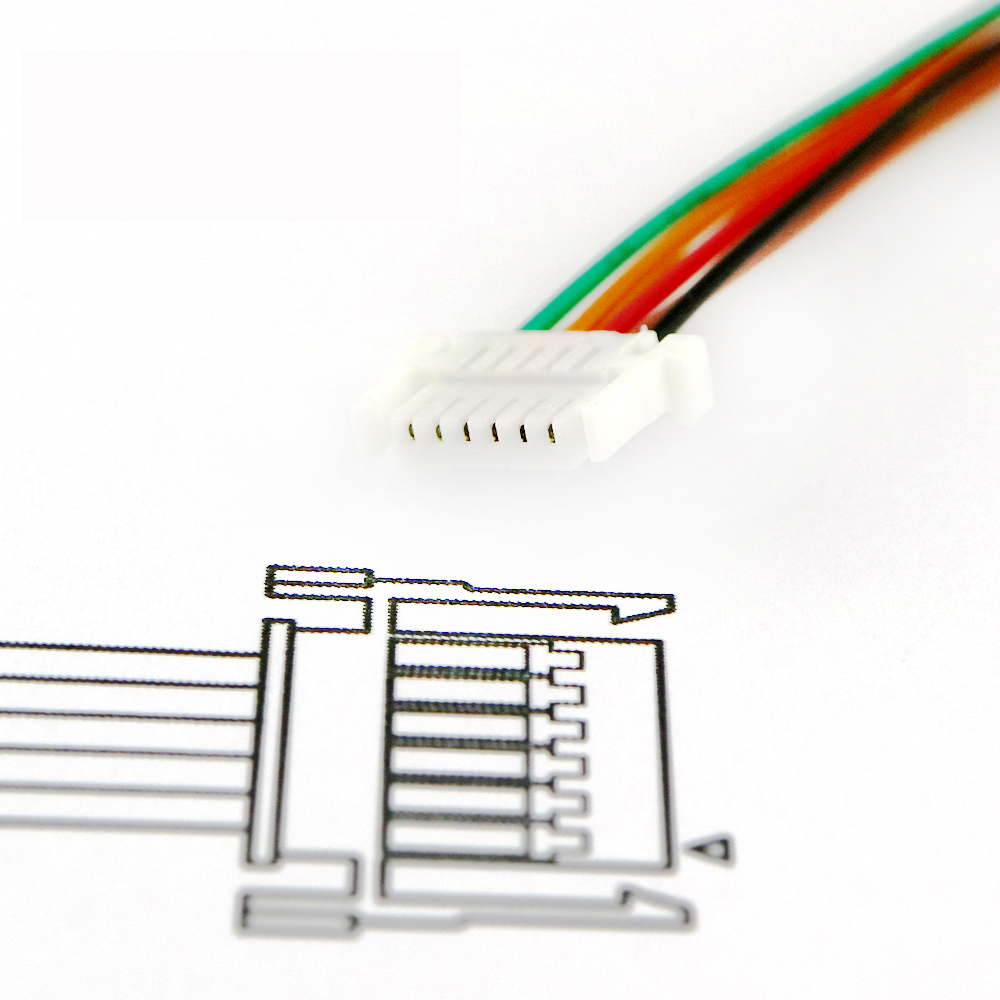

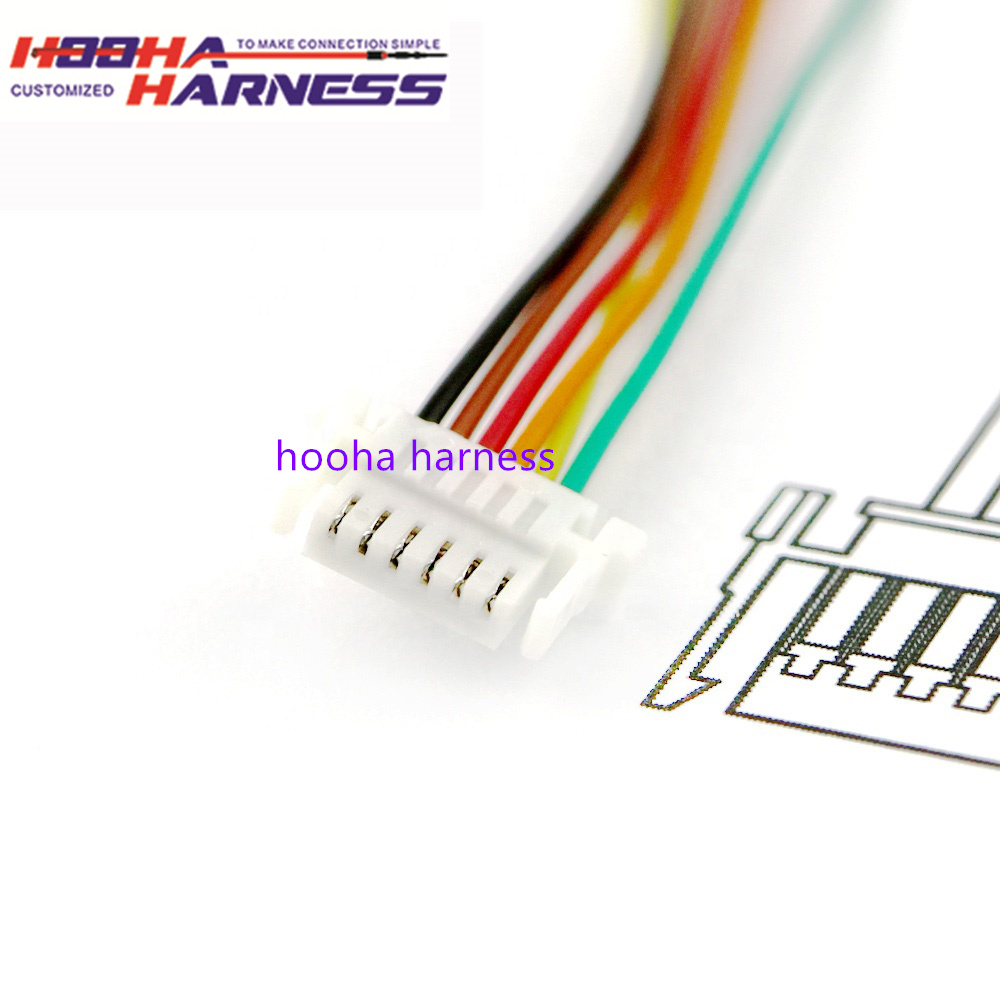

JST SHJ connector 1.0 pitch 6pin SHJP-06V-S (HF) custom Wiring Harness assembly

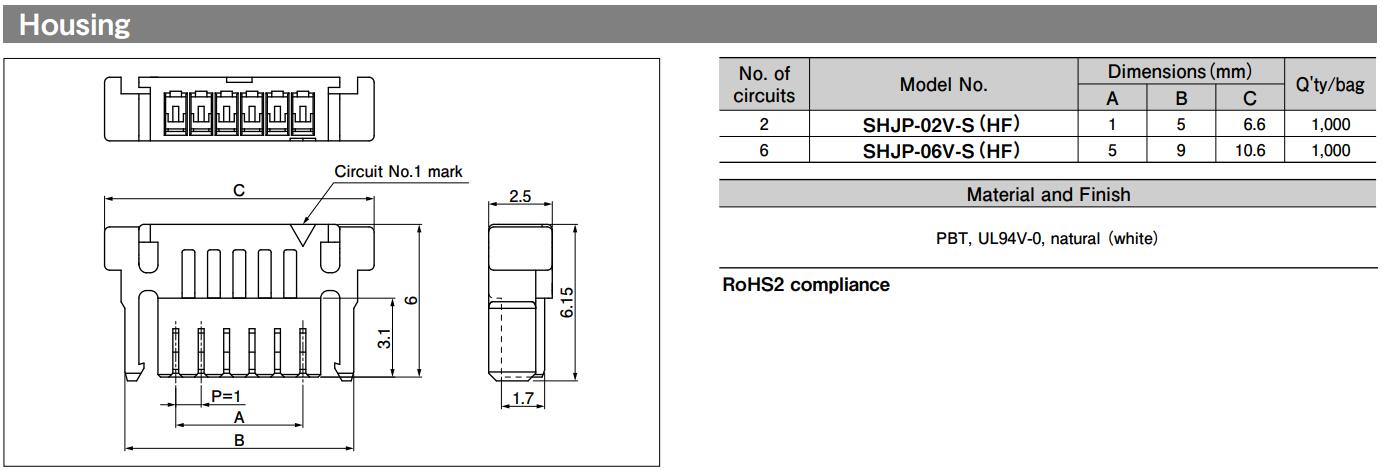

Connector Specifications:
Current rating: 1.0 A AC/DC (AWG #28)
Voltage rating: 125 V AC/DC
Temperature range: -25'C to +85C (including temperature rise in applying electrical current)
Contact resistance: Initial value/ 20 mQ max.
After environmental tests/ 40 mQ max
Insulation resistance: 100 MQ min.
Withstanding voltage: 500 VAC/minute

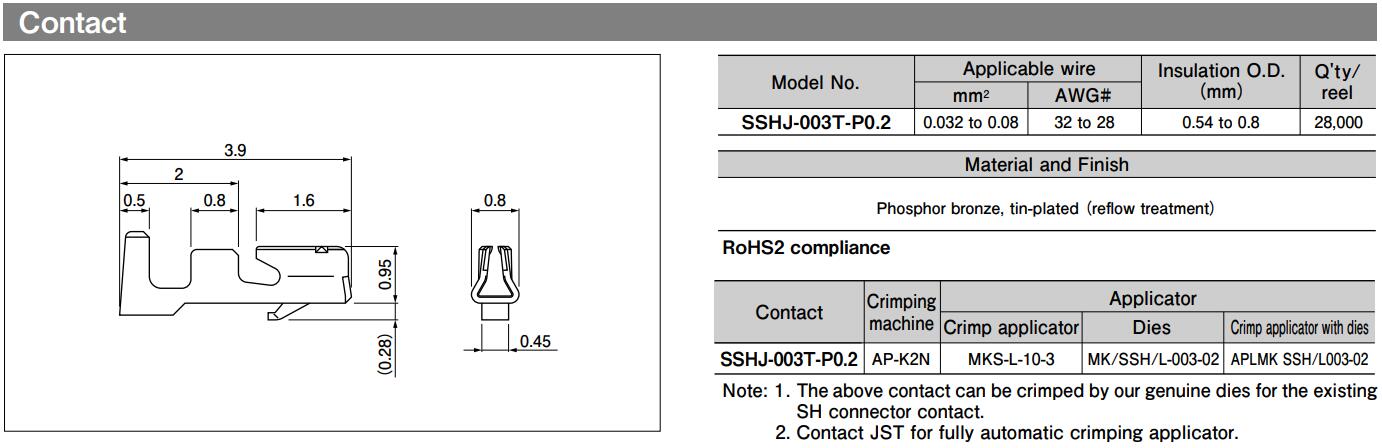

Applicable wire: Conductor size/ AWG #32 to #28
Insulation O.D./ 0.54 to 0.8 mm
This is a wire-to-board connector with the secure locking device used for the power supply of LED
Low profile design
Secure locking structure
Halogen-free
This is a custom wire harness that has been specifically designed to meet the needs of a customer based in the United States. The wire harness has been customized for use in their LED products, with the primary aim being to provide power supply and signal transfer and ensure optimal performance.
The JST SHJ connector 1.0 pitch 6pin SHJP-06V-S (HF) custom Wiring Harness assembly is an integral component of this wire harness, providing reliable connectivity and ensuring seamless integration with other components.
At Hooha Harness, we are proud to be recognized as one of China's leading custom wire harness manufacturers. With our extensive experience in automotive wire harnesses, we have developed a reputation for excellence and can create any wiring solution required by our clients.
Our team of experts works closely with customers to understand their unique requirements and develop tailored solutions that meet their specific needs. We pride ourselves on delivering high-quality products that exceed expectations while maintaining competitive pricing.
Whether you need a simple or complex wiring solution, Hooha Harness has the expertise and resources to deliver exceptional results every time. Contact us today to learn more about how we can help you achieve your goals!
How to customize your wire harness?
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
