JST SHLD Connector
The JST SHL Connector is a versatile solution engineered for use in PDP, LCD, and other compact electronic equipment. This dual-row, small crimp-type connector is available with or without a secure locking system, offering flexibility to meet diverse application needs. Its PC board layout is fully compatible with the existing SHD connector, ensuring easy replacement and design adaptability. Key features include a robust housing lock structure (in locking-type versions) for enhanced connection security, a contact lock system that prevents deformation, and a durable construction designed to resist external forces, ensuring reliability in demanding environments.
SHLD Connector Specifications
- Connector Type: Wire to Board, Disconnectable Crimp style
- Connectot Pitch: 1.0mm
- Current rating: 1.0 A AC/DC (AWG #28)
- Voltage rating: 50 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 30 mΩ max, After environmental tests/ 40 mΩ max.
- Insulation resistance: 100 MΩ min.
- Withstanding voltage: 500 VAC/minute

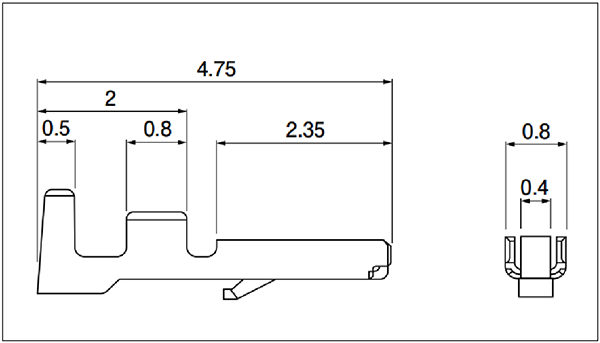

SHLD Connector Terminal Size
- Model Number: SSHL-003GA1-P0.2
- Suitable Wire Gauge: 0.032 - 0.08mm² (32 - 28AWG)
- Insulation O.D. (mm): 0.4 - 0.8
- Qty/Reel: 41000pcs
- Material and Finish: Phosphor bronze, nickel-undercoated, Mating part; gold-plated, Crimping part; gold-plated
- RoHS2 compliance
SHLD Connector Housing Size and P/N

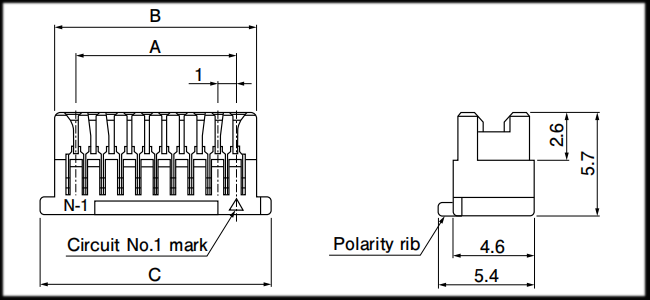

Regular Type

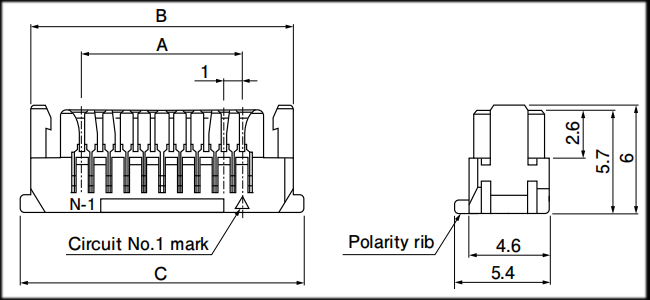

With secure lock type
| Regular type | No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | ||
| A | B | C | ||||
| 20 | SHLDP-20V-S(B) | 9.0 | 11.4 | 13.0 | 3500 | |
| 30 | SHLDP-30V-S(B) | 14.0 | 16.4 | 18.0 | 2500 | |
| 40 | SHLDP-40V-S(B) | 19.0 | 21.4 | 23.0 | 2000 | |
| 50 | SHLDP-50V-S(B) | 24.0 | 26.4 | 28.0 | 1500 | |
| With secure lock type | 20 | SHLDP-20V-S-1(B) | 9.0 | 14.7 | 15.7 | 3000 |
| 30 | SHLDP-30V-S-1(B) | 14.0 | 19.7 | 20.7 | 2000 | |
| 40 | SHLDP-40V-S-1(B) | 19.0 | 24.7 | 25.7 | 1500 | |
| 50 | SHLDP-50V-S-1(B) | 24.0 | 29.7 | 30.7 | 1200 | |
Material and Finish: PBT, UL94V-0, natural (white)
SHLD Connector Header Size and P/N

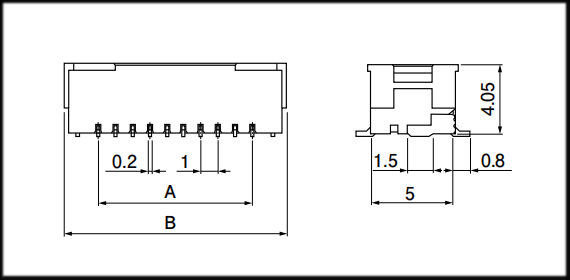

Top entry type

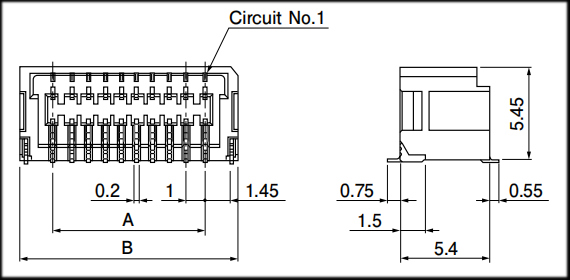

Side entry type
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/reel | |||
| Top entry type | Side entry type | A | B | Top type | Side type | |
| 20 | BM20B-SHLDS-G-TFT | SM20B-SHLDS-G-TF | 9.0 | 13.0 | 1400 | 1000 |
| 30 | BM30B-SHLDS-G-TFT | SM30B-SHLDS-G-TF | 14.0 | 18.0 | 1400 | 1000 |
| 40 | BM40B-SHLDS-G-TFT | SM40B-SHLDS-G-TF | 19.0 | 23.0 | 1400 | 1000 |
| 50 | BM50B-SHLDS-G-TFT | SM50B-SHLDS-G-TF | 24.0 | 28.0 | 1400 | 1000 |
Material and Finish
- Contact: Phosphor bronze, nickel-undercoated, gold-plated
- Wafer: PA, UL94V-0, natural (ivory)
- Solder tab: Brass, copper-undercoated, tin-plated (reflow treatment)

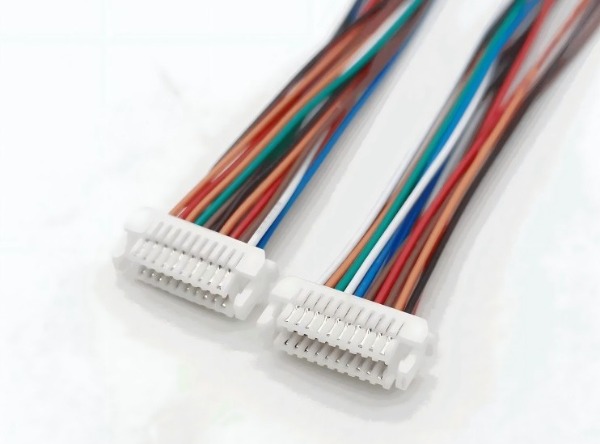

Support Custom Wiring Harness Assembly
- Connector: 20 - 50pin
- Wire gauge: 28 - 32AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
