JST SHLDP connector custom wire harness for laptop lvds
JST SHLDP Connector Specifications
Current rating: 1.0 A AC/DC (AWG #28)
Voltage rating: 50 V AC/DC
Temperature range: -25'C to +85°C(including temperature rise in applying electrical current)
Contact resistance: lnitial value/ 30 mQ max. After environmental tests/ 40 mQ max.
Insulation resistance: 100 MO min.
Withstanding voltage: 500 VAC/minute

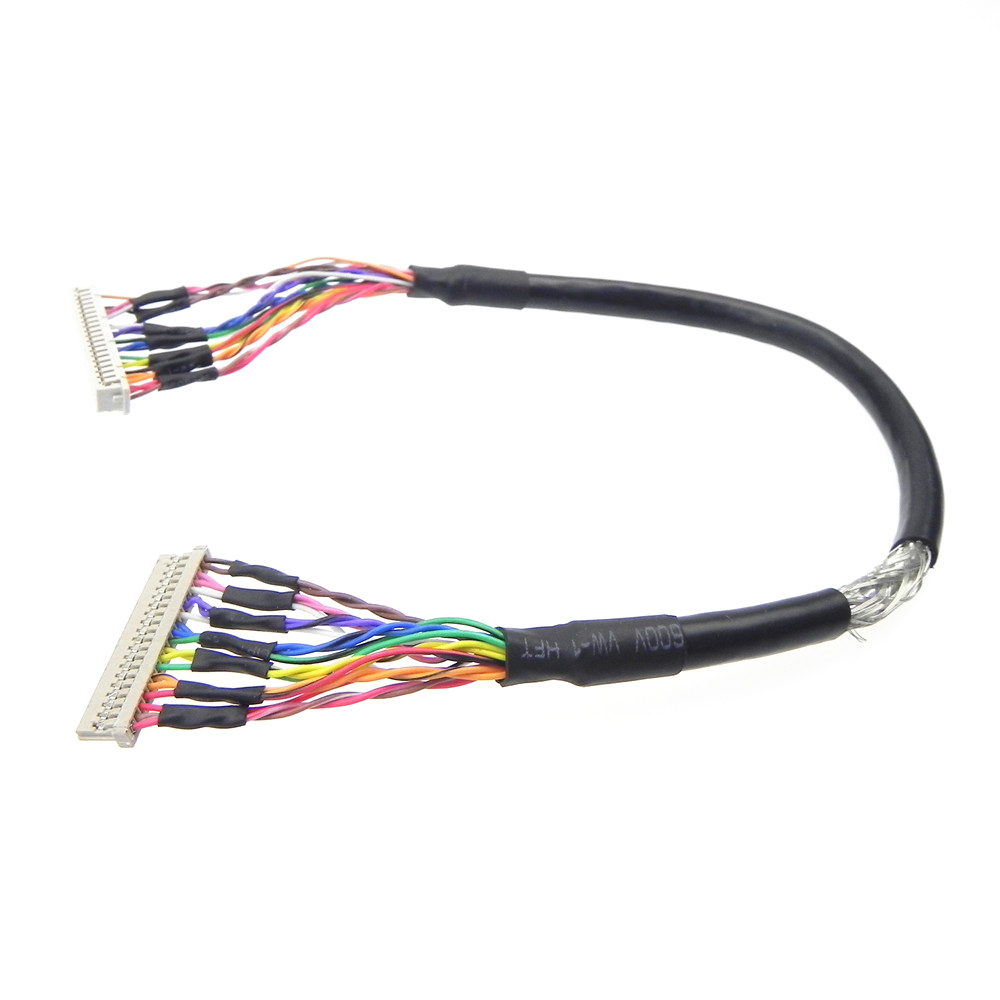

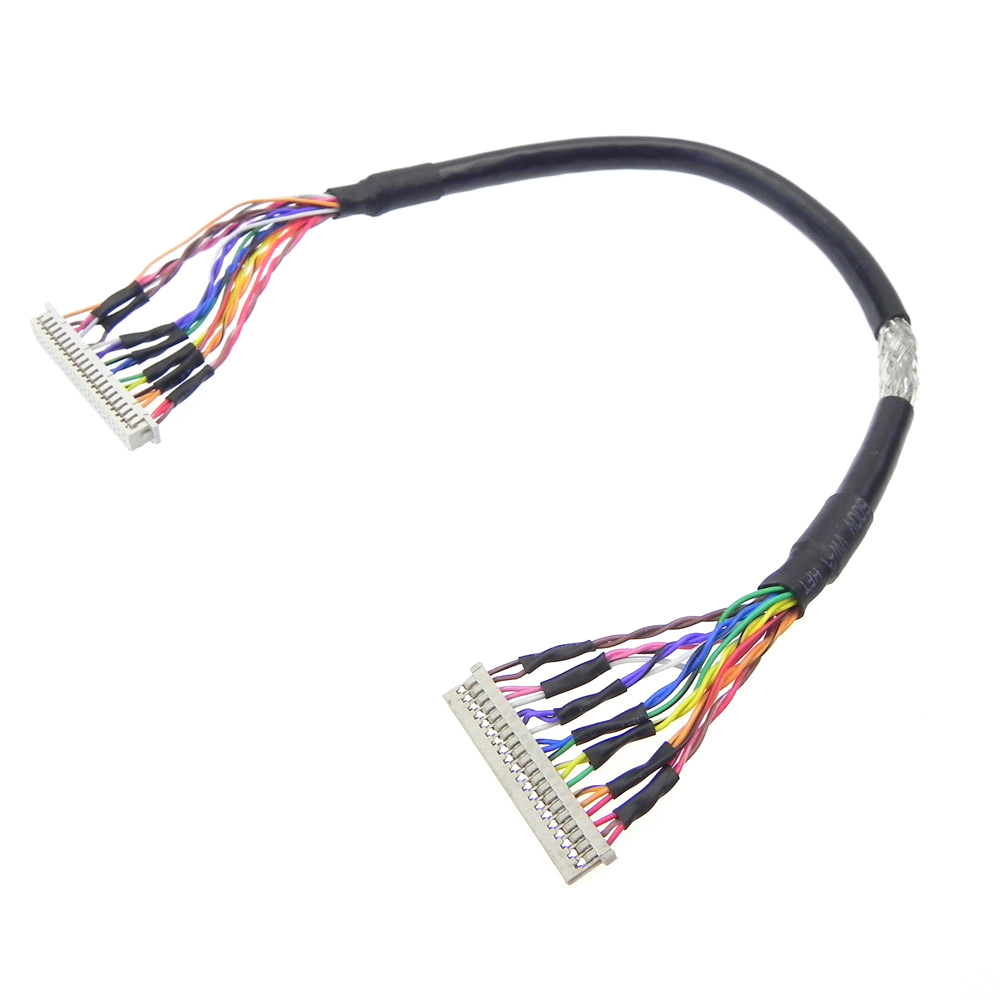

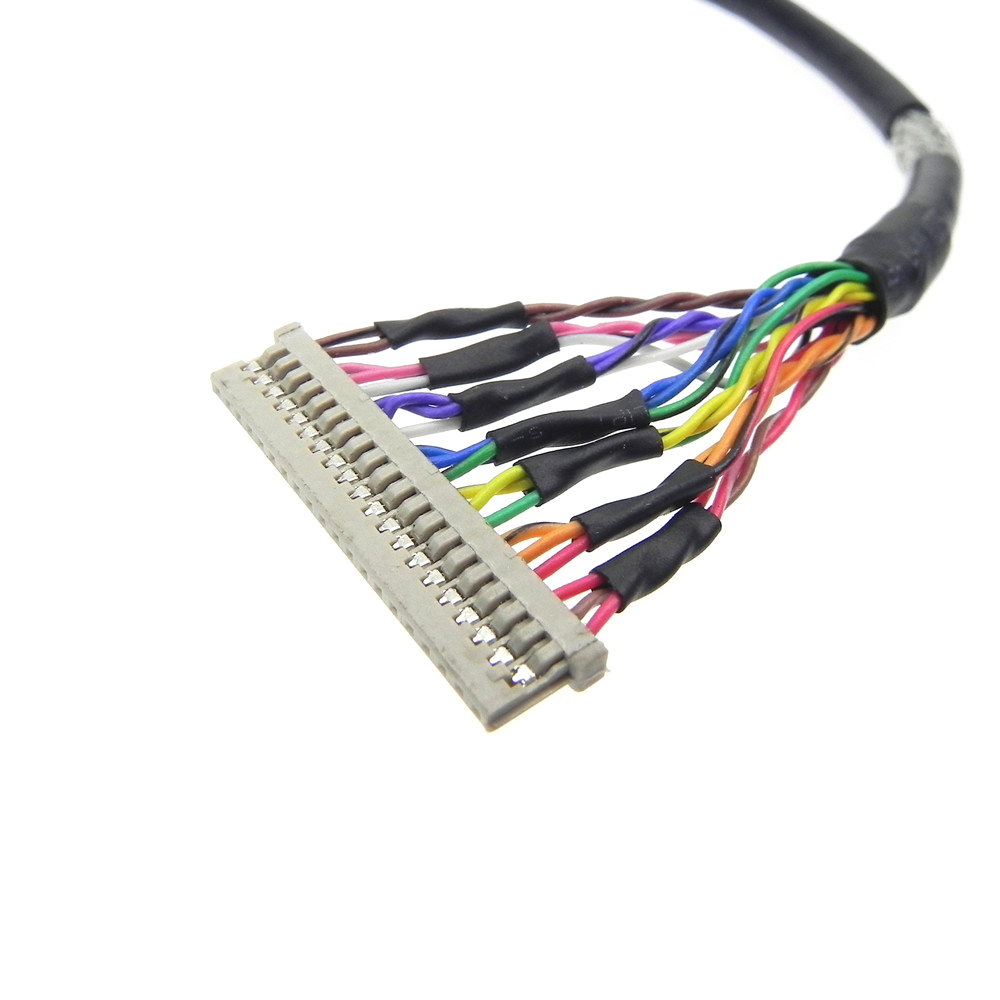

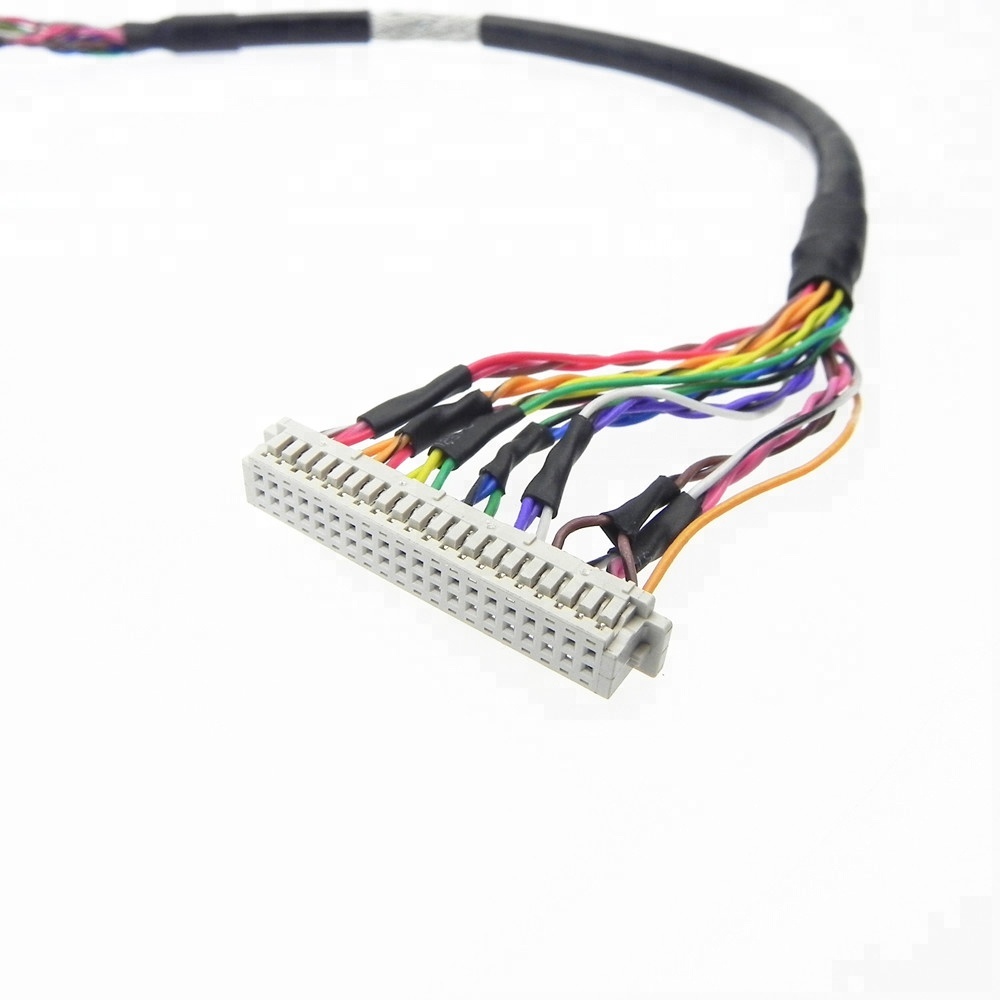

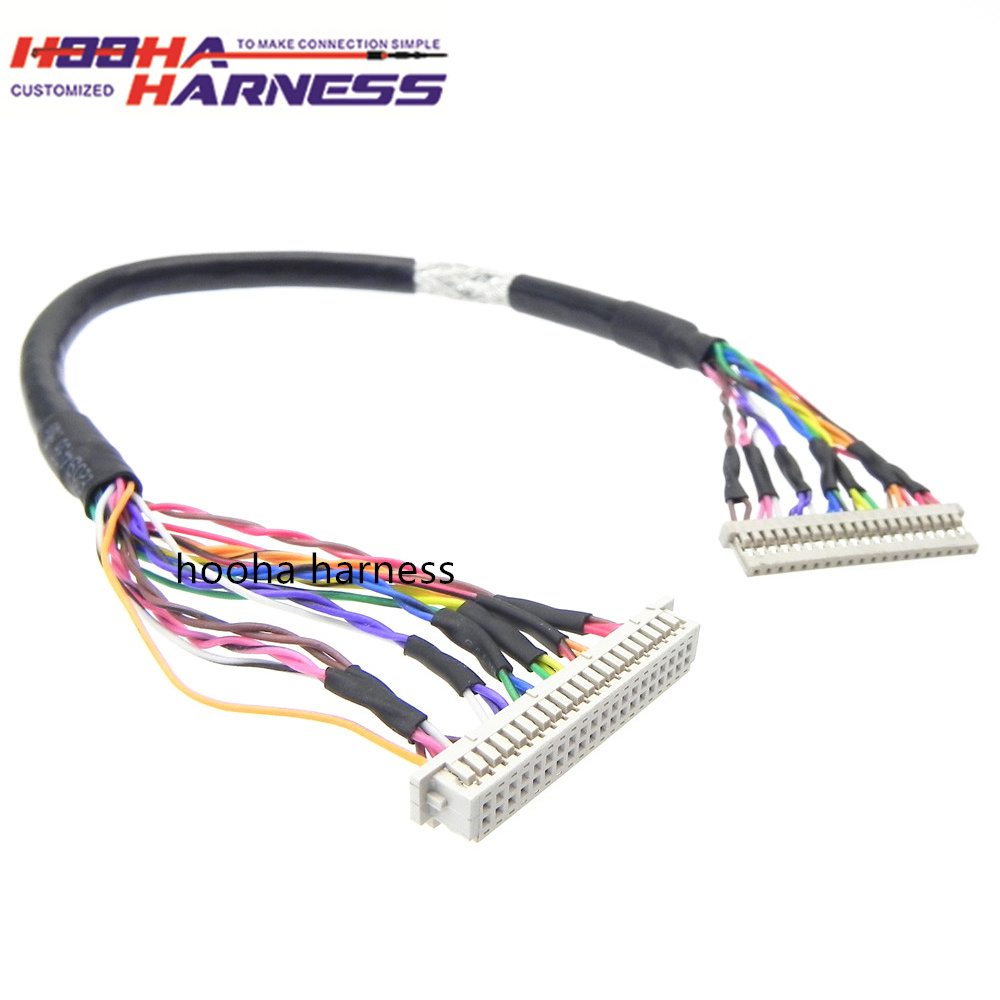

This is a custom wire harness that has been specifically designed to meet the unique needs of a customer based in the United States. The wire harness, which we refer to as Custom SHDR-20V-S-B and SHLDP-20V-S-1(B), DF13-10DS-1.25C connector custom laptop lvds cable, is used in their laptop LVDS products.
As a professional custom wire harness manufacturer based in China, hooha harness has extensive experience creating high-quality automotive wire harnesses and is well-equipped to handle any type of wiring project. Our team takes great pride in delivering exceptional results that exceed our client's expectations.
We understand that every client's needs are different, which is why we take a personalized approach to each project we undertake. We work closely with our clients throughout the entire process to ensure that their specific requirements are met and that they receive a product that meets all of their expectations.
At hooha Harness, quality is at the forefront of everything we do. We use only the highest quality materials and employ rigorous testing procedures to ensure that every product leaving our facility meets or exceeds industry standards.
Whether you need a custom wire harness for your automotive application or any other type of wiring project, you can count on us for exceptional service and unparalleled expertise. Contact us today to learn more about how we can help bring your vision to life!

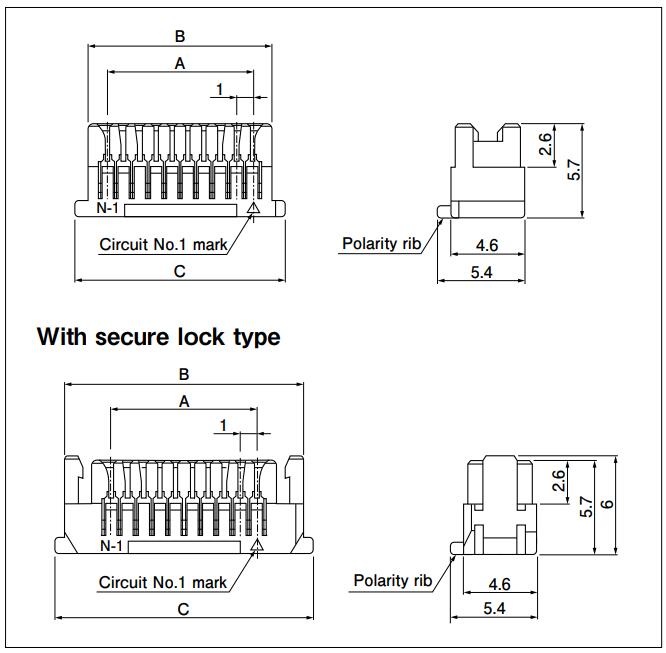

JST SHLDP Housing:
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/bag | ||
| A | B | C | |||
| 20 | SHLDP-20V-S(B) | 9.0 | 11.4 | 13.0 | 3,500 |
| 30 | SHLDP-30V-S(B) | 14.0 | 16.4 | 18.0 | 2,500 |
| 40 | SHLDP-40V-S(B) | 19.0 | 21.4 | 23.0 | 2,000 |
| 50 | SHLDP-50V-S(B) | 24.0 | 26.4 | 28.0 | 1,500 |
With a secure lock type
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/bag | ||
| A | B | C | |||
| 20 | SHLDP-20V-S-1(B) | 9.0 | 14.7 | 15.7 | 3,000 |
| 30 | SHLDP-30V-S-1(B) | 14.0 | 19.7 | 20.7 | 2,000 |
| 40 | SHLDP-40V-S-1(B) | 19.0 | 24.7 | 25.7 | 1,500 |
| 50 | SHLDP-50V-S-1(B) | 24.0 | 29.7 | 30.7 | 1,200 |
How to custom your own wire harness?
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
