JST SM Connector, Wire to Wire, Custom Wire Assembly

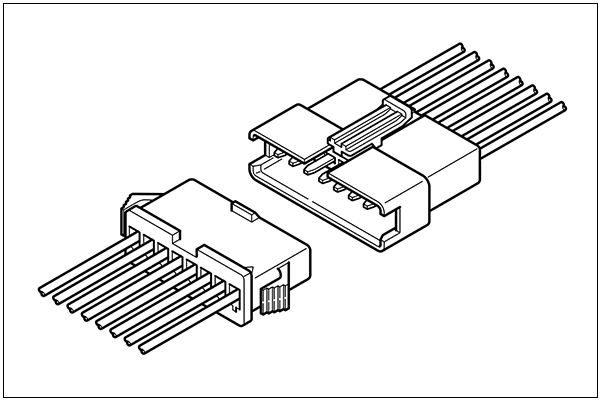

JST SM Connector, Wire to Wire Type

The JST SM series is a highly reliable 2.5 mm pitch wire-to-wire connector designed for small current, high-density applications. With its robust housing construction, it ensures long-lasting durability even in challenging environments. The connectors feature a high contact pressure that enhances electrical stability and performance, making them ideal for use in applications where reliability is critical. Additionally, the innovative arm lock mechanism secures the connection firmly, preventing accidental disconnections. These connectors are versatile and can be mounted on a wide range of panel types, offering flexibility in diverse installation scenarios.

Specifications

• Connector Type: Disconnectable Crimp style wire-to-wire
• Connector pitch: 2.5mm
• Current rating: 3 A AC/DC max.
• Voltage rating: 250 V AC/DC max.
• Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
• Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
• Insulation resistance: 500 MΩ min.
• Withstanding voltage: 1,500 VAC/minute
• Applicable wire: AWG #28 to #22, 0.08 to 0.33 mm²
• Applicable panel thickness: 0.5 to 2.0 mm

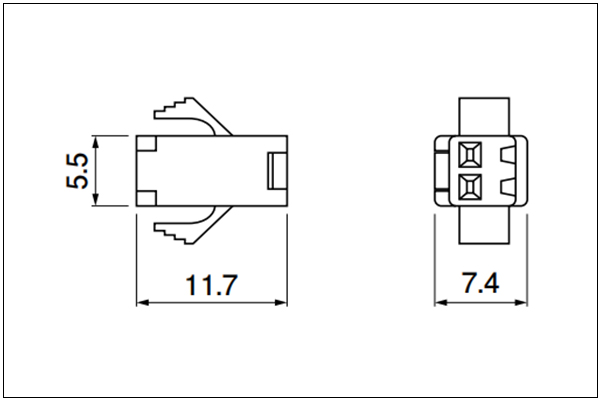

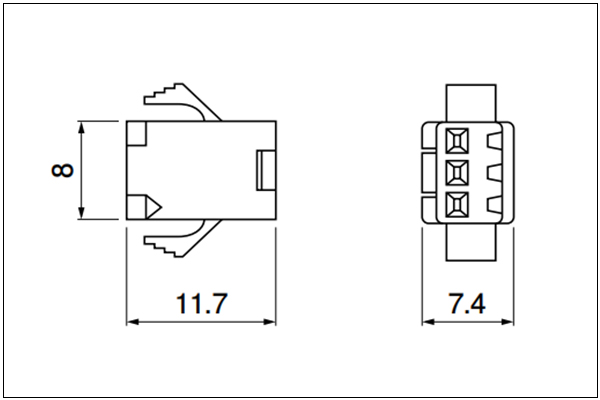

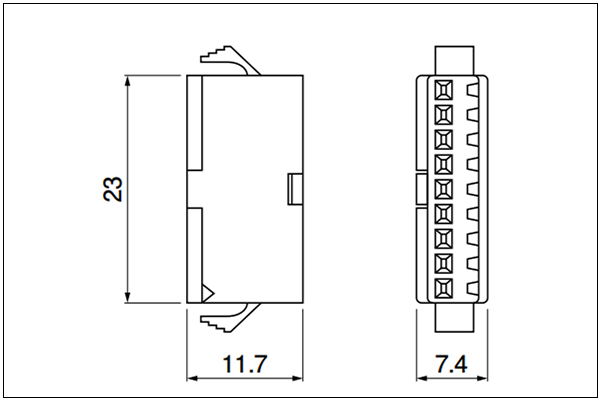

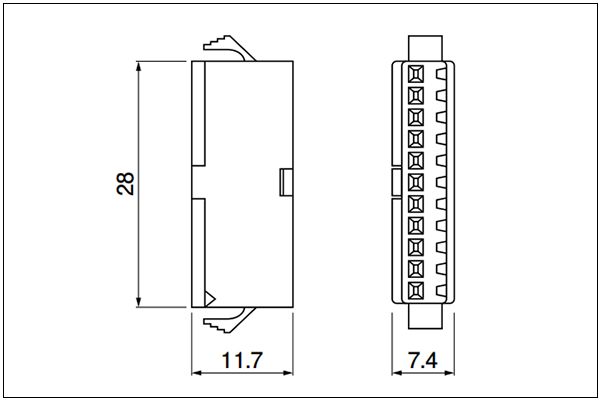

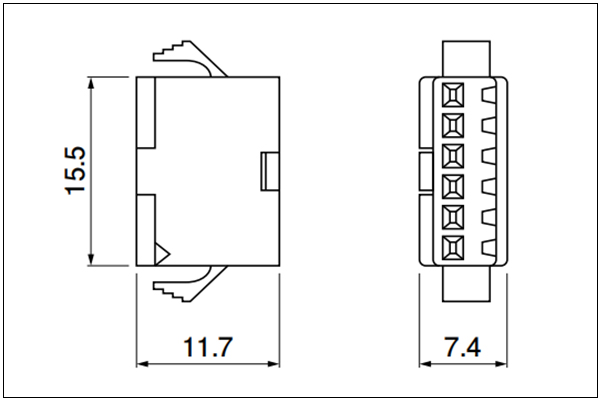

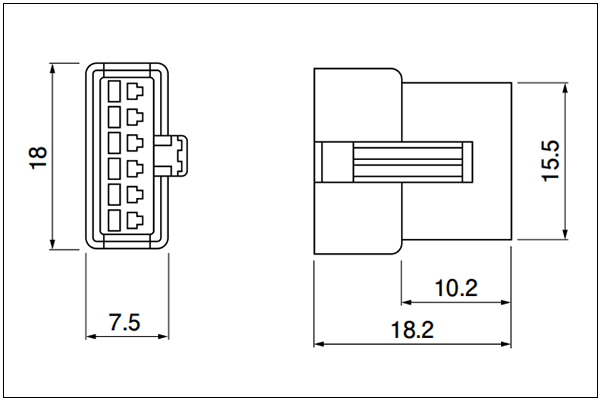

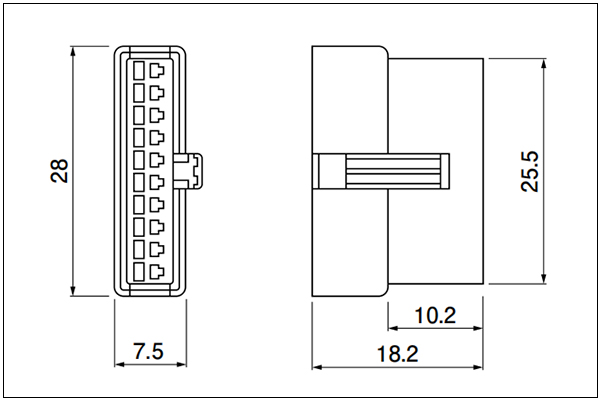

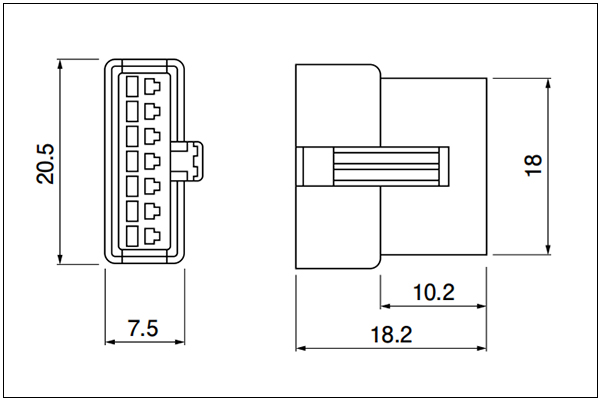

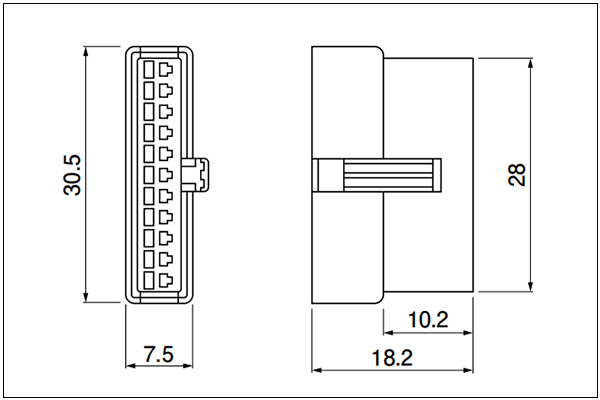

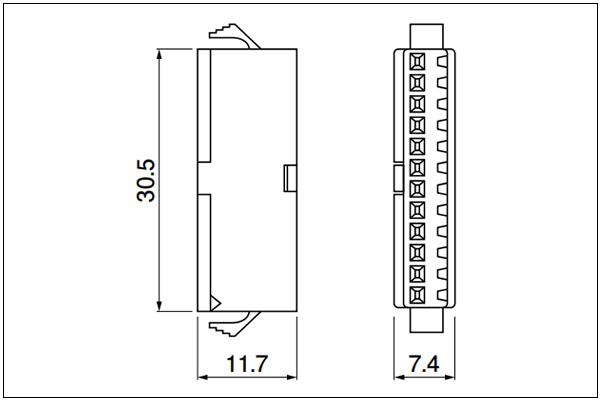

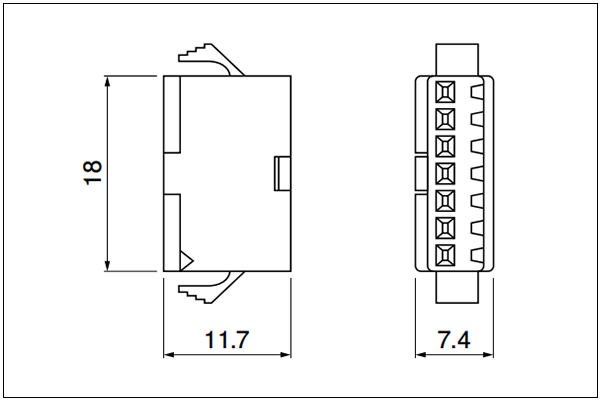

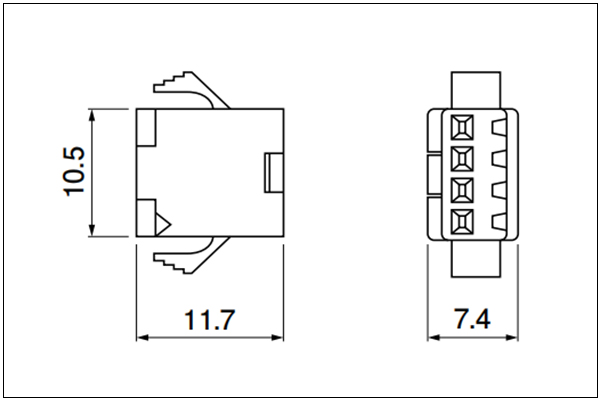

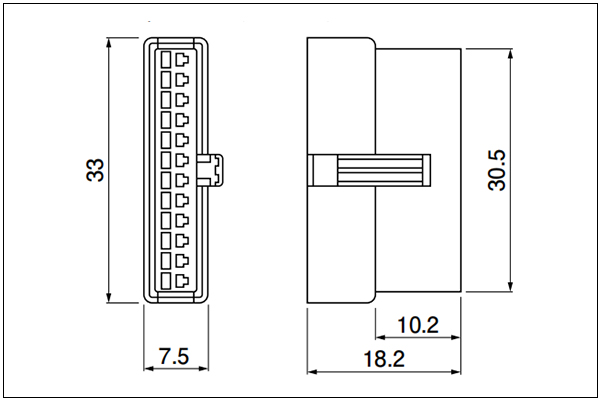

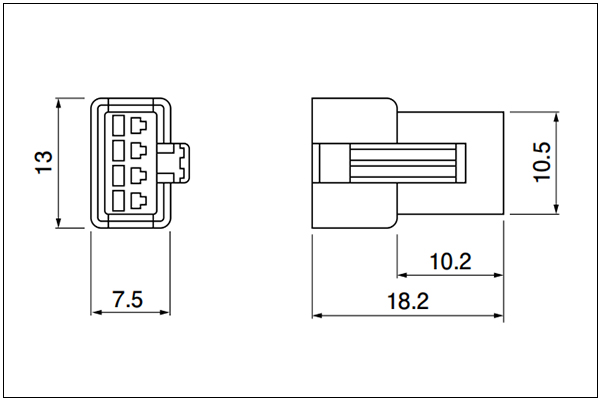

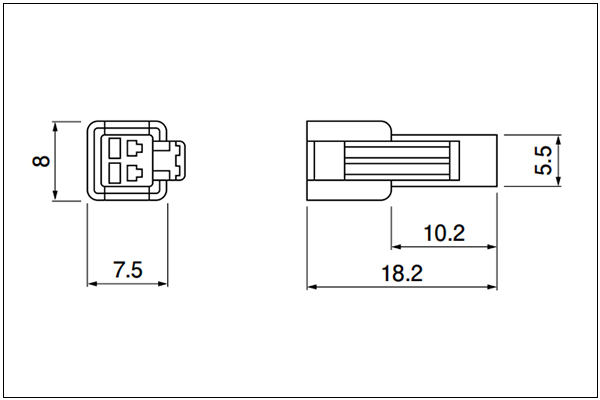

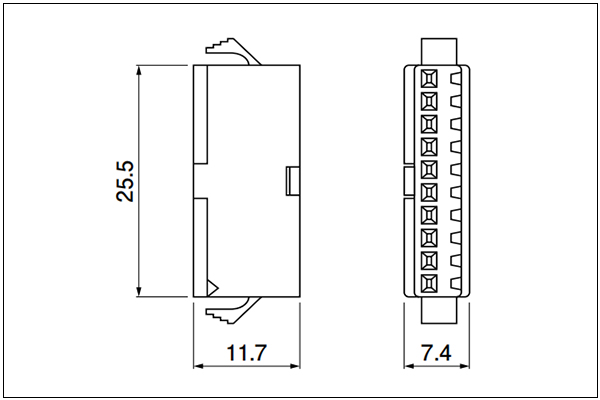

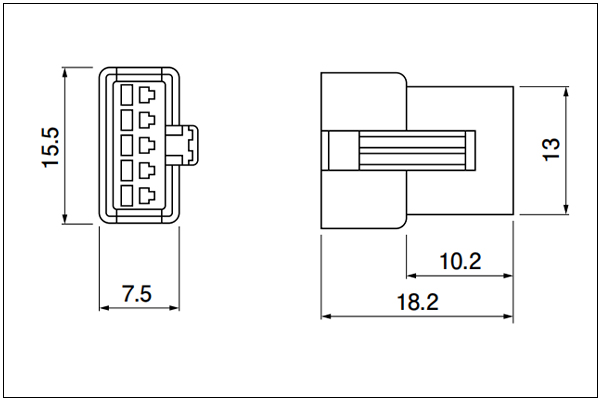

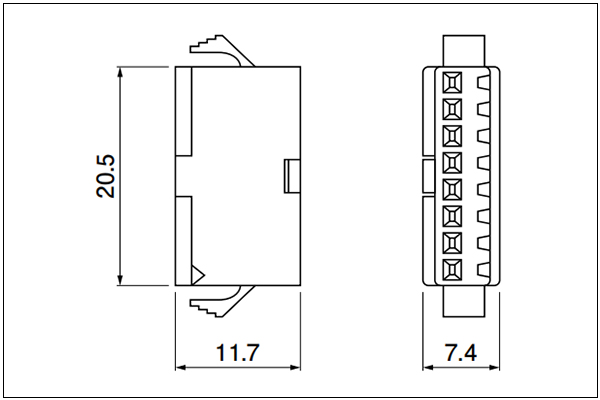

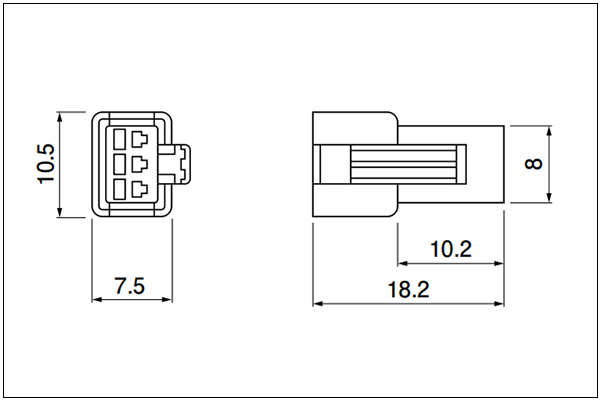

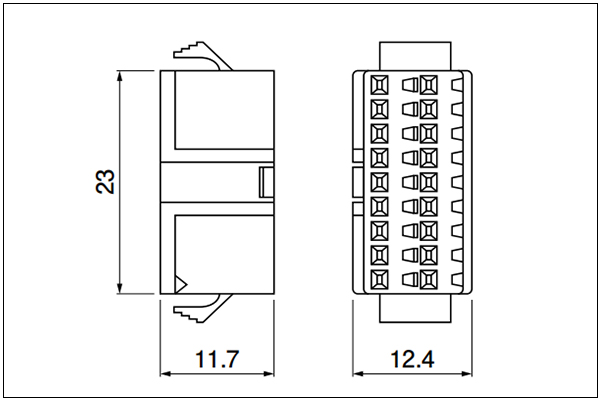

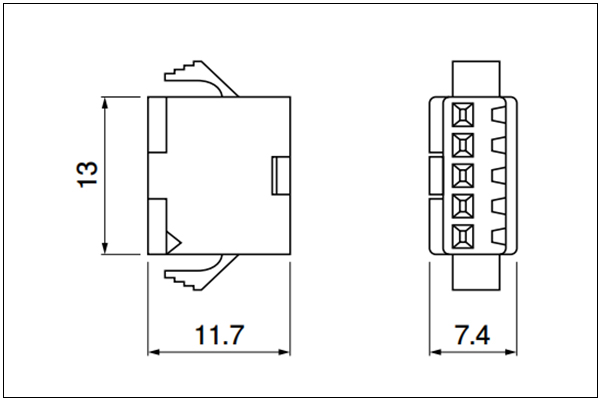

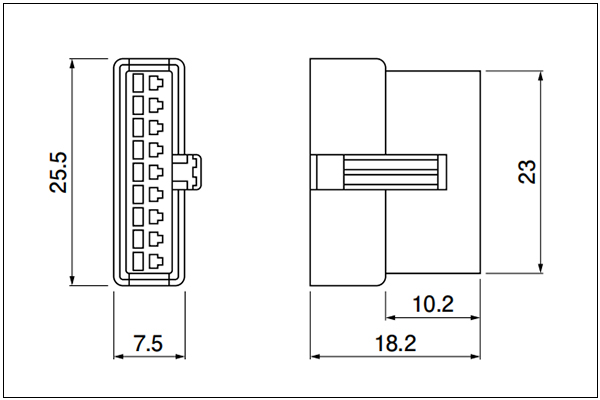

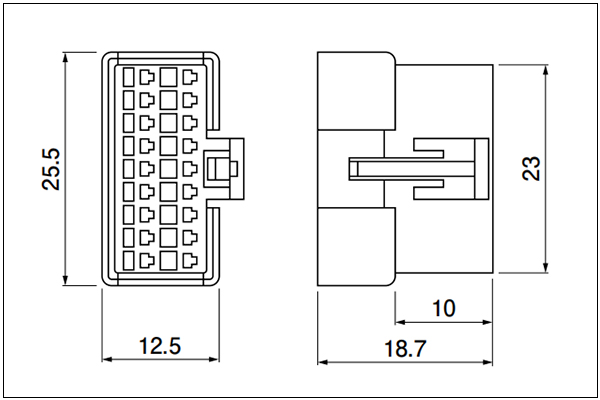

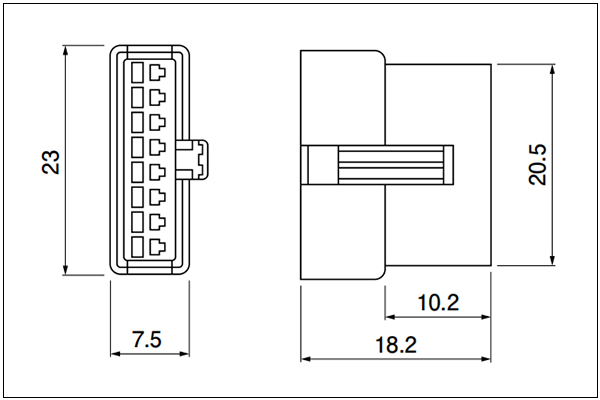

Housing

Note:

• -B, -BC are Black color, -N, -NC are white (natural) color
• SM connectors with any number of circuits can be used either panel mounted or free hanging
• RoHS2 compliance

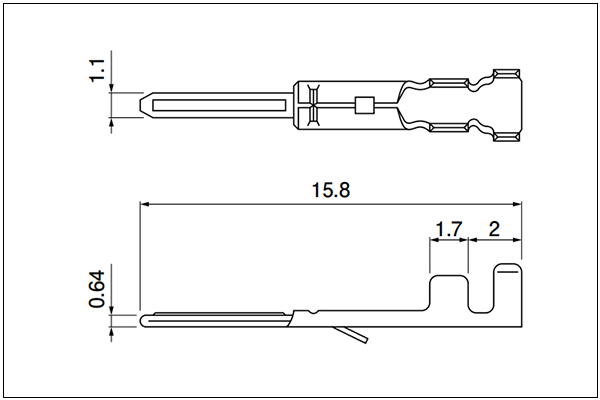

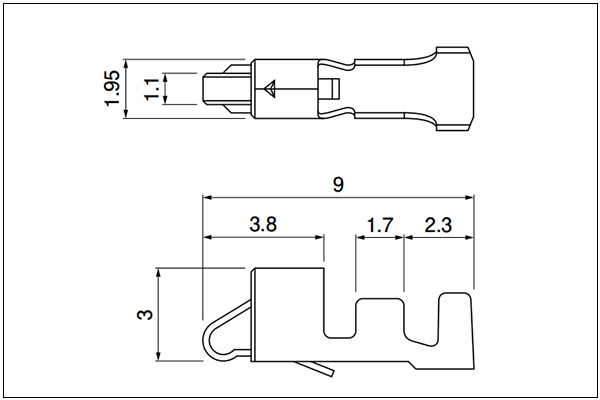

Terminal

Specs:

• Model No.: SHF-001T-0.8BS(Socket), SYM-001T-P0.6(Pin)
• Applicable Wire: 28 to 22AWG（0.08 to 0.33mm²）
• Insolations O.D. (mm): 1.2 to 1.8mm
• Q'ty/reel: 8500pcs(Pin Terminal), 5000pcs(Socket terminal)
• Materials and Finish: Phosphor bronze, tin-plated (reflow treatment)
• RoHS2 compliance

>>> What Type of JST SM Connector Wiring Harness We can be provided? <<<

>>> Part of JST SM Connector Wiring Harness Cases <<<

Customize Your Wire Harness

Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
