JST XH Connector, Wire to Board



The JST XH Connector is designed to provide exceptional reliability and versatility, building upon the proven performance of the NH series connectors. Engineered for compact applications, it features a minimal mounting height of just 9.8 mm, making it ideal for space-constrained designs. Its innovative folded beam contact ensures a secure and stable connection, while the box-shaped shrouded header enhances protection and durability. Additionally, the header includes a boss for precise mounting, ensuring ease of assembly. The XH Connector offers interchangeability and compatibility with HA terminals, making it a versatile solution for a wide range of electronic and industrial applications.







Specifications



• Connector type: Wire to Board, Disconnectable crimp style
• Connector pitch: 2.5mm
• Current rating: 3 A AC/DC (AWG #22)
• Voltage rating: 250 V AC/DC
• Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
• Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Withstanding voltage: 1,000 VAC/minute
• Applicable wire: AWG #30 to #22
• Applicable PC board thickness: 1.6 mm

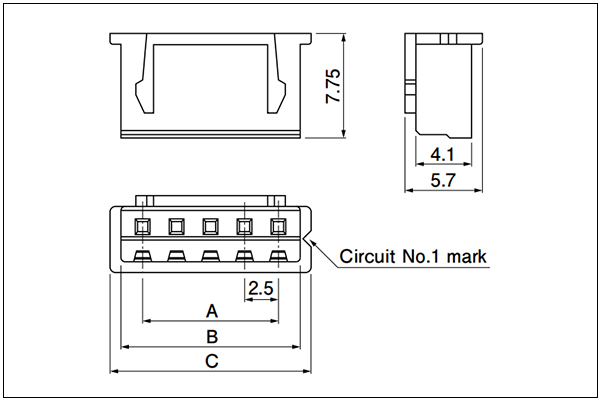

Housing





Note:

1. Material and Finish: PA 6, UL94V-0, natural (white)

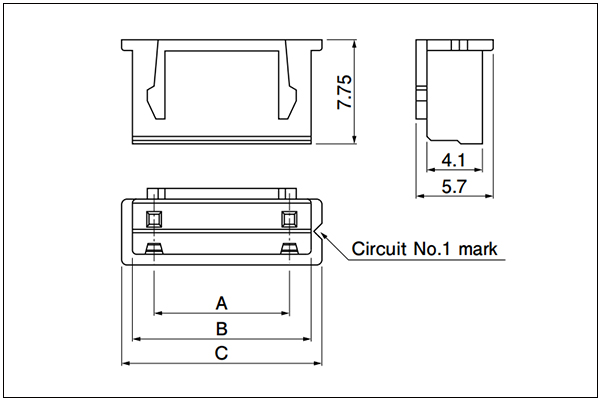

2. XHP-2(10.0)-U means the 2-circuits housing with 10.0 mm pitch, and 3-circuits of 5-circuits are filled with the resin. Unlisted in UL/TÜV.

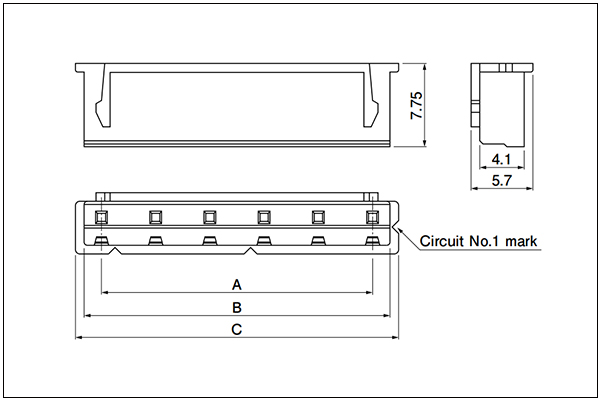

3. XHP-6(5.0)-U means the 6-circuits housing with 5.0 mm pitch and each even number circuit is filled with the resin.  Unlisted in UL/TÜV.
4. RoHS2 compliance

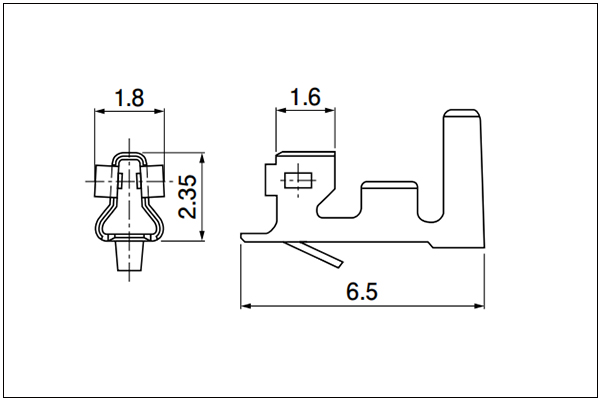

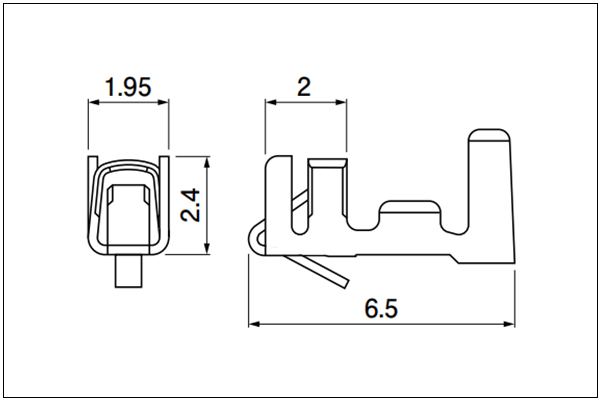

Terminal





Note:

• Material and Finish: Phosphor bronze, tin-plated (reflow treatment)
• RoHS2 compliance
• SXH-001T-P0.6N is low-insertion force type contact, for easier insertion/withdrawal, which would be less resistant to the vibration.





Header

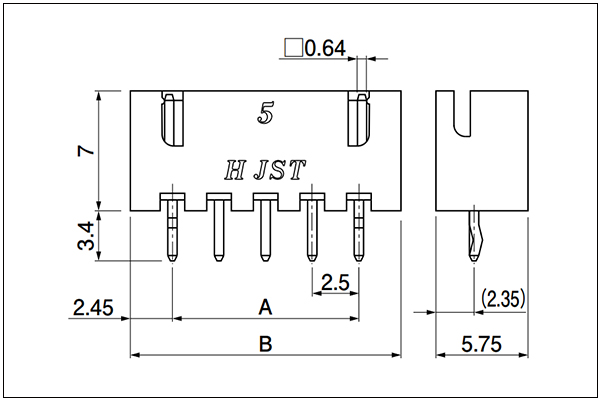

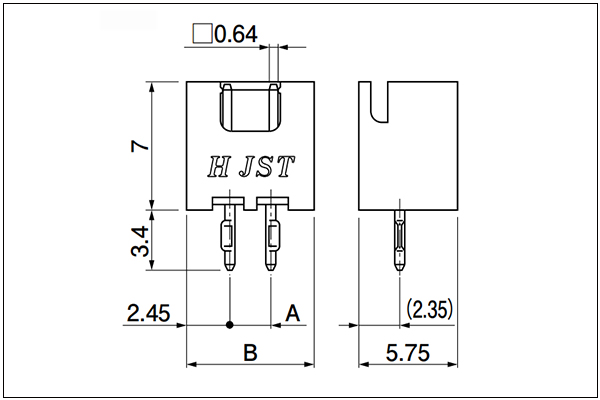

Top entry type

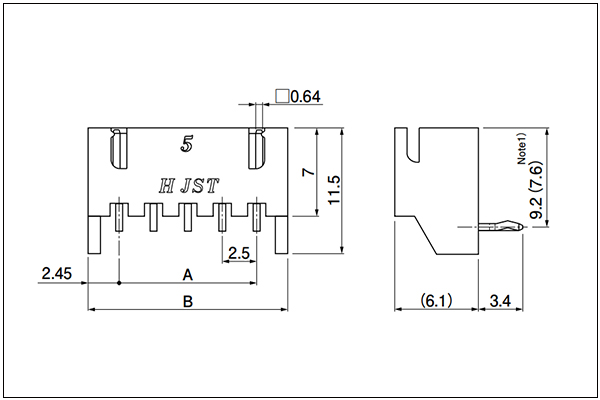

Side entry type



Note:

1. Material and Finish:
   • Post: Brass, copper-undercoated, tin-plated (reflow treatment)
   • Wafer: PA 66, UL94V-0, natural (white)
2. RoHS2 compliance
3. This product displays (LF)(SN) on a label.
4. Side entry type 2 to 15 circuits with a size of 7.6 mm from the end face of the mating part to the post for mounting the PC board are also available. For ordering, please add "-1" to the end of the above model number.

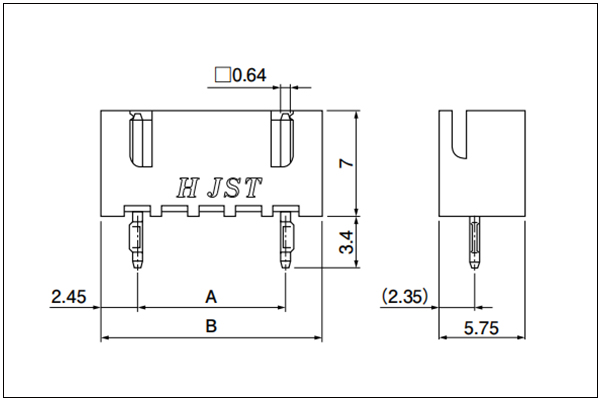

5. B2(10.0)B-XH-A-U means the 2-circuits header with 10.0 mm pitch, and 3 holes of 5-circuit housing among posts are plugged up.  (Unlisted in UL/TÜV.)
6. Headers are interchangeable with those of the NR and NRD insulation displacement connector, and JQ board-to-board connector.

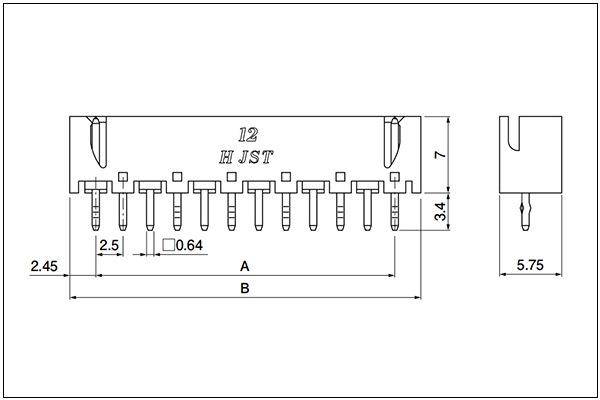

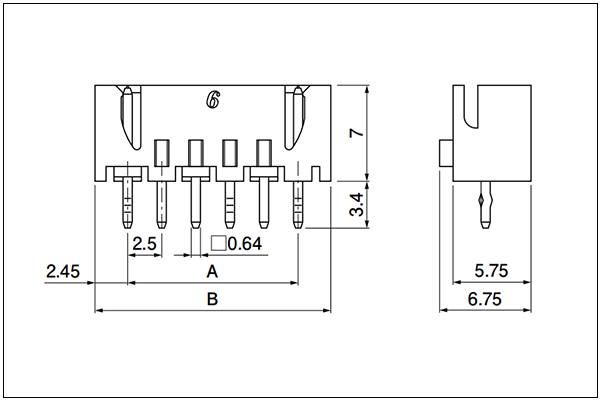

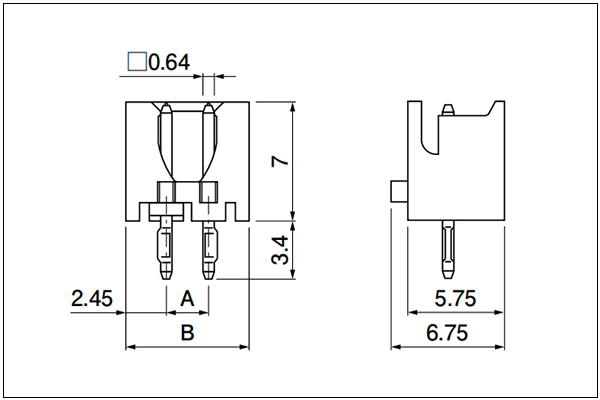

Header - Top entry type of glass-filled nylon





Material and Finish:

• Post: Brass, copper-undercoated, tin-plated (reflow treatment)
• Wafer: Glass-filled PA 66, UL94V-0, natural (ivory)

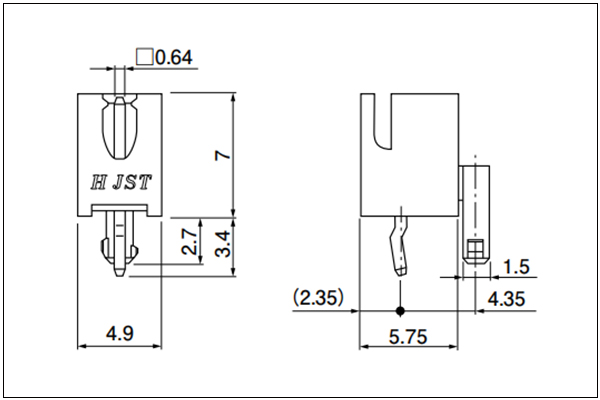

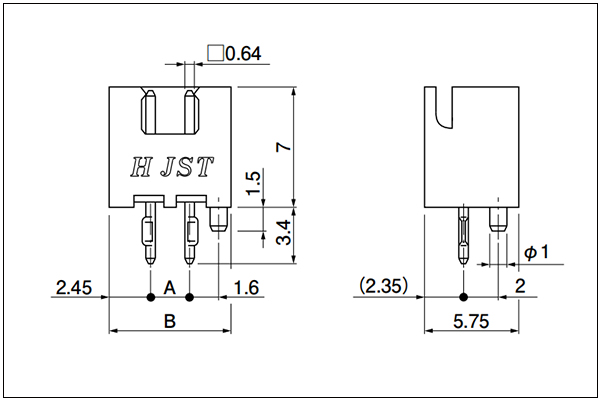

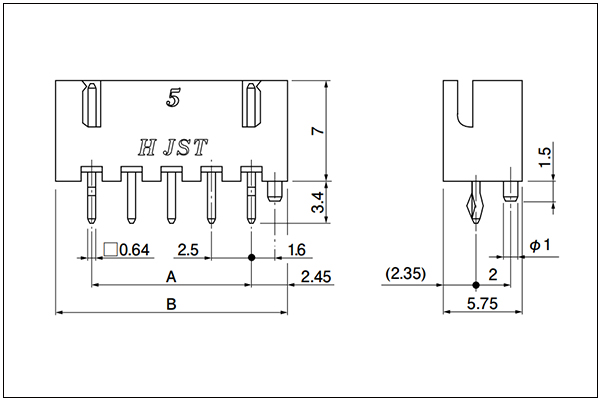

Header - Top entry type with a boss





Note:

1. Material and Finish
   • Post: Brass, copper-undercoated, tin-plated (reflow treatment)
   • Wafer: PA 66, UL94V-0, natural (white)
2. RoHS2 compliance
3. This product displays (LF)(SN) on a label.
4. Headers are interchangeable with those of the NR and NRD insulation displacement connector, and JQ board-to-board connector.
5. *Marked products are unlisted in UL/TÜV.





Header (SMT type)



Material and Finish

• Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
• Wafer: PA 6T, UL94V-0, natural (ivory)
• Solder tab: Brass, copper-undercoated, tin-plated (reflow treatment)

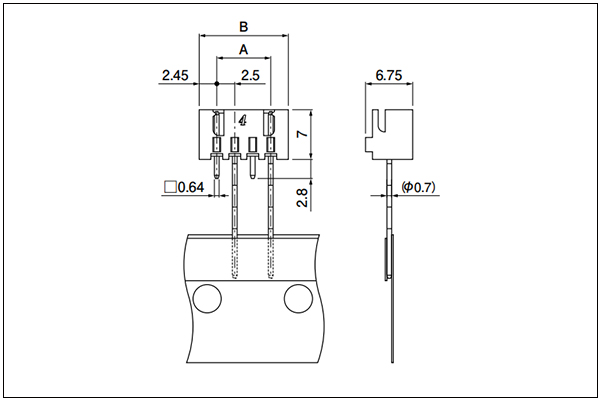

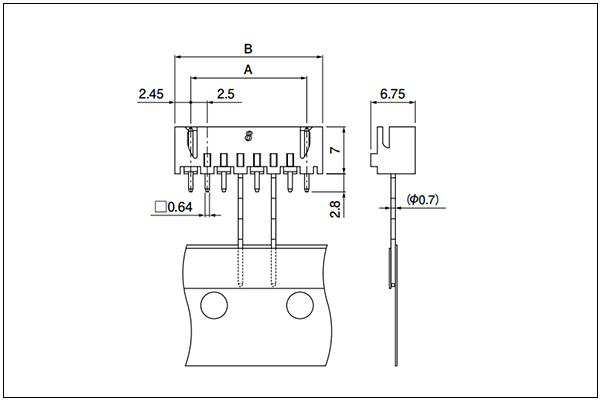

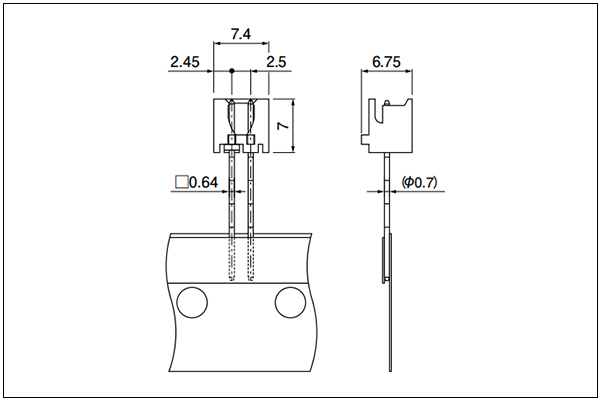

Header on radial-tape





Material and Finish

• Post: Brass, copper-undercoated, tin-plated (reflow treatment)
• Wafer: TV4 type/ PA 66, UL94V-0, natural (white)
•  2-TV4 type/ Glass-filled PA 66, UL94V-0, natural (ivory)
