PRODUCT
JST XH series connector 2.5mm pitch 3P housing custom wire harness
- Connector pitch: 2.5mm
- Connector support 1Pin to 16Pin and 20Pin.
- Terminal fit for 30AWG~22AWG (OD: 0.9-1.9mm).
- Header support from 2P to 16P and 20P.
- Current rating: 3A AC/DC (22AWG).
- Voltage rating: 250V AC/DC.
- Wire Style: support UL1571, UL1061, UL1007, UL1569, UL2464, etc.
- Wire color: support red, black, white, yellow, green, blue, orange, brown, purple, gray.
JST XH Series Connector Custom Wire Harness
The JST XH series connector cable assembly is a custom design and top-of-the-line solution for all wiring needs. With its 2.5mm pitch and 3P housing, this custom wire harness is the perfect choice for those who demand nothing but the best.
Whether you're working on a complex project or need to connect two wires together, the JST XH series connector has got you covered. housing pins options from 1 to 20 pins available, Its high-quality construction ensures that it will stand up to even the toughest conditions, while its sleek design makes it easy to use and install.
So if you're looking for a reliable and efficient way to connect your wires, look no further than the JST XH series connector. With its superior performance and unbeatable durability, it's sure to exceed all your expectations!
So why wait? send me your wire harness drawing if you are also using this connector in your design.
JST XH Connector Features
- Connector pitch: 2.5mm
- Current rating: 3A AC/DC (AWG #22)
- Voltage rating: 250 V AC/DC
- Temperature range: -25°C to +85°C (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, after environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,000 VAC/minute
- Applicable wire: AWG #30 to #22
- Applicable PC board thickness: 1.6 mm

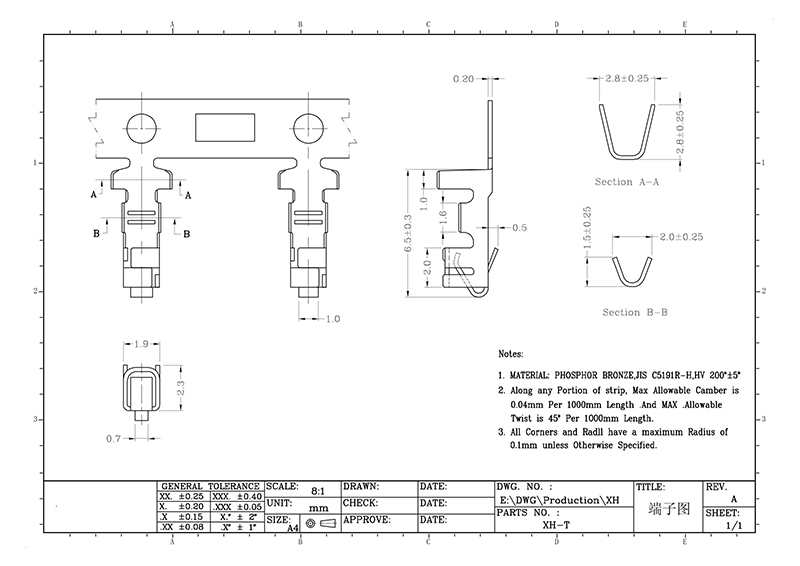

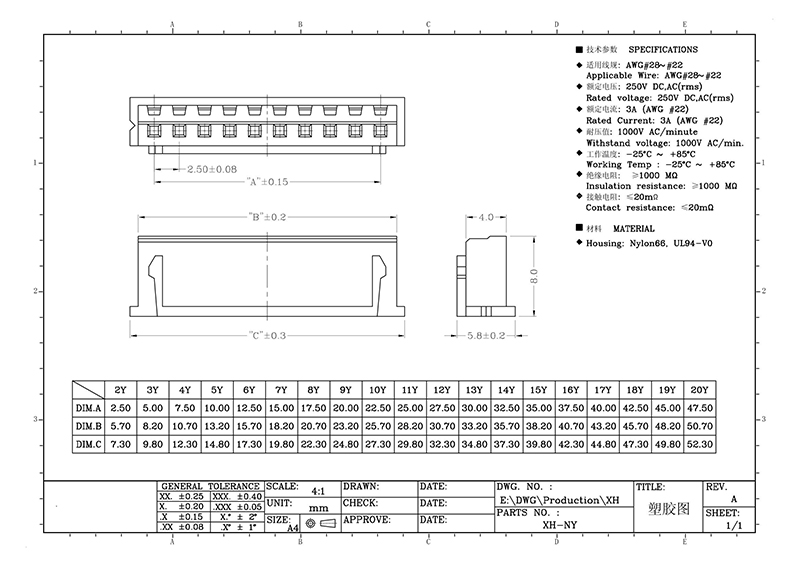

JST XH Connector Part Number Lists
| XH Connector (High box type) | XH Connector | ||
| No. of circuits | Model No. | No. of circuits | Model No. |
| 2 | XHP-2 | 1 | XHP-1 |
| 3 | XHP-3 | 2 | XHP-2 |
| 4 | XHP-4 | 3 | XHP-3 |
| 5 | XHP-5 | 4 | XHP-4 |
| 6 | XHP-6 | 5 | XHP-5 |
| 7 | XHP-7 | 6 | XHP-6 |
| 8 | XHP-8 | 7 | XHP-7 |
| 9 | XHP-9 | 8 | XHP-8 |
| 10 | XHP-10 | 9 | XHP-9 |
| 10 | XHP-10 | ||
| 11 | XHP-11 | ||
| 12 | XHP-12 | ||
| 13 | XHP-13 | ||
| 14 | XHP-14 | ||
| 15 | XHP-15 | ||
| 16 | XHP-16 | ||
| 17 | XHP-17 | ||
| 18 | XHP-18 | ||
| 19 | XHP-19 | ||
| 20 | XHP-20 | ||
>>> What Type of JST XH Connector Wiring Harness Do We Provide? <<<

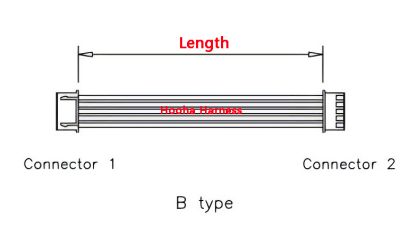

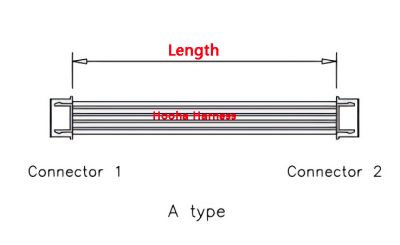

Both XH Connectors Same Direction
Both XH Connectors Opposite Direction

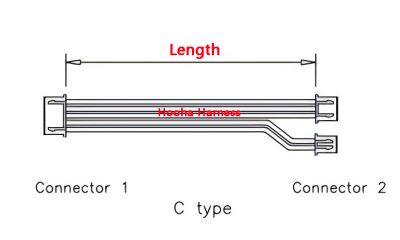

1 to 2 Splitter Wire Harness

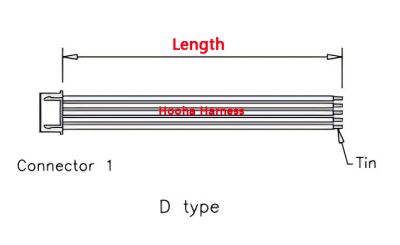

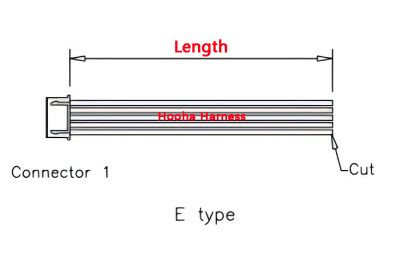

Wire Tinned End

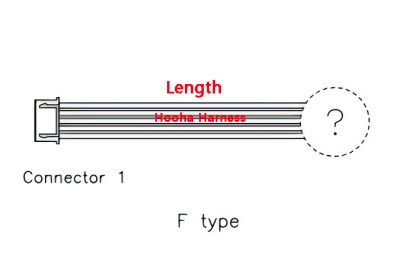

Wire Blunt End
Add Any Suitable Connectors
>>> JST XH Connector Wiring Harness Cases <<<

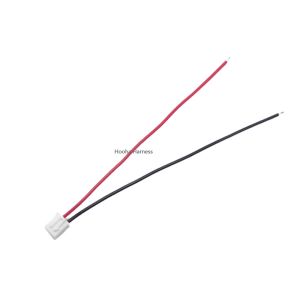

JST XH 2 Pin Connector Wiring

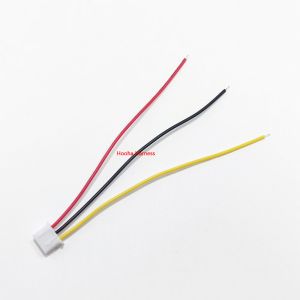

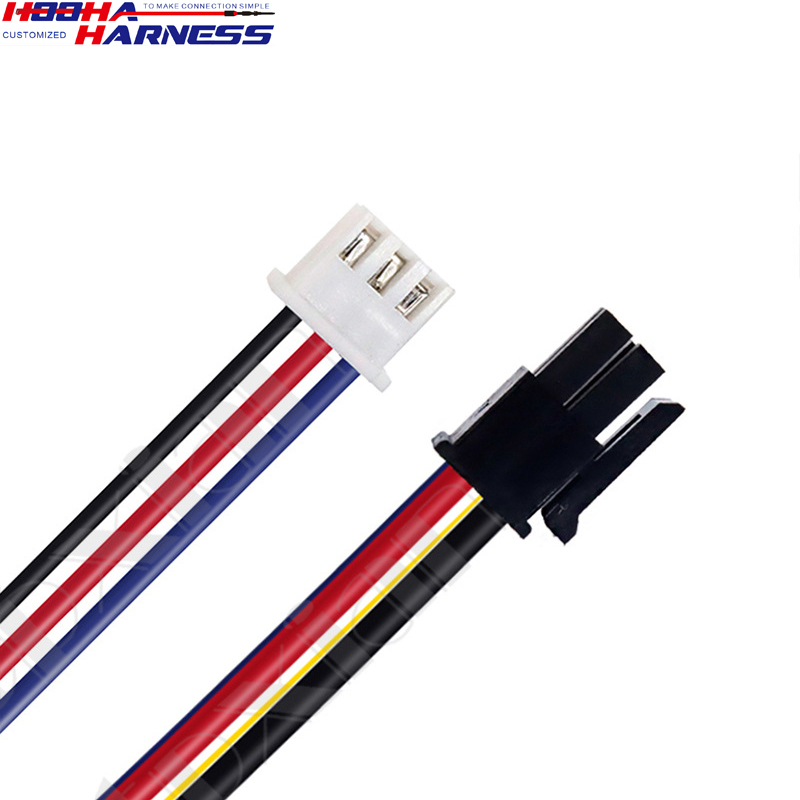

JST XH 3 Pin Connector Wiring

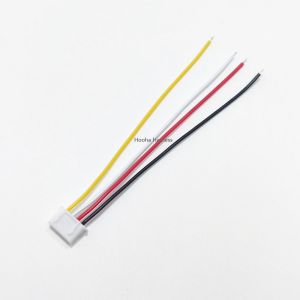

JST XH 4 Pin Connector Wiring

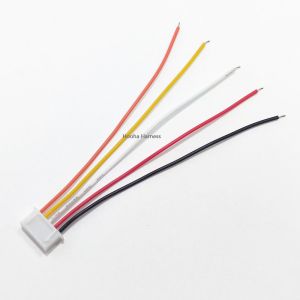

JST XH 5 Pin Connector Wiring

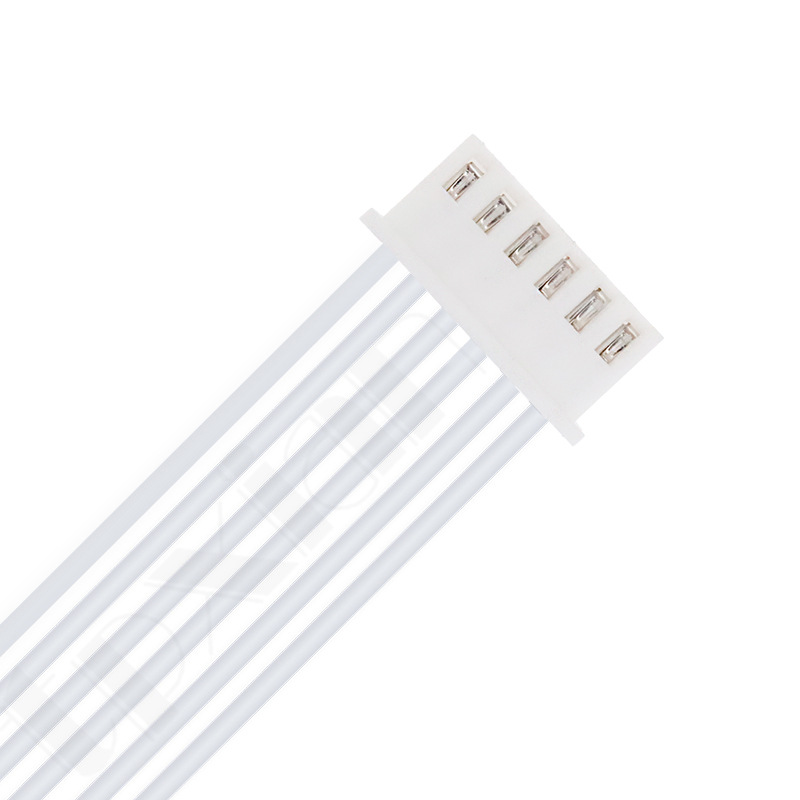

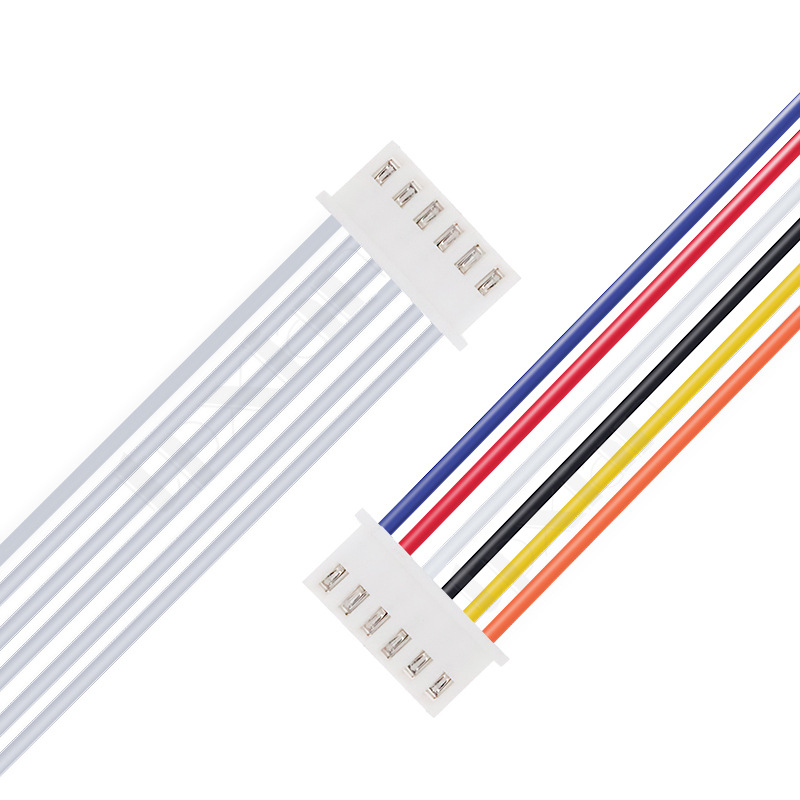

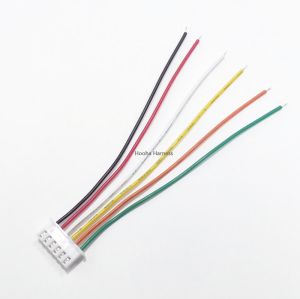

JST XH 6 Pin Connector Wiring

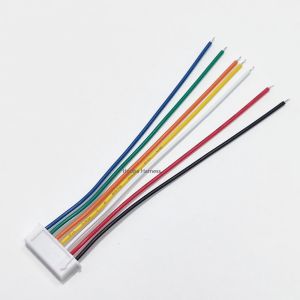

JST XH 7 Pin Connector Wiring

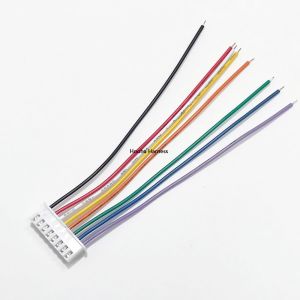

JST XH 8 Pin Connector Wiring

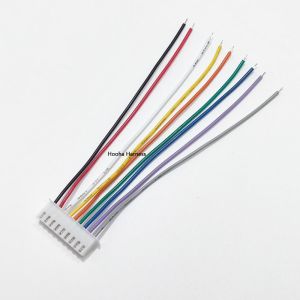

JST XH 9 Pin Connector Wiring

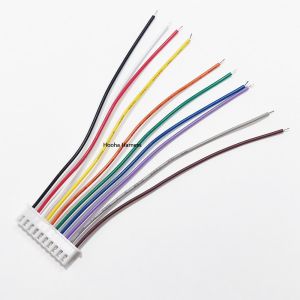

JST XH 10 Pin Connector Wiring

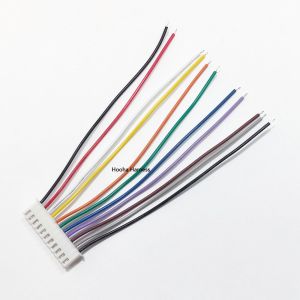

JST XH 11 Pin Connector Wiring

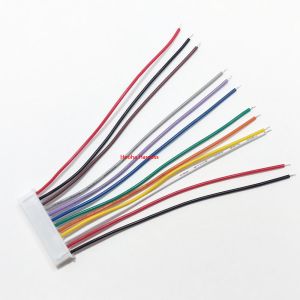

JST XH 12 Pin Connector Wiring

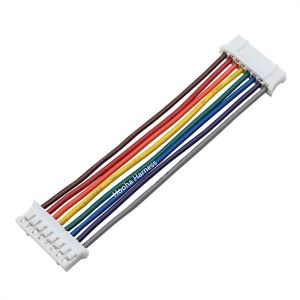

JST XH Connector Wiring Harness
How to customize your wire harness?
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
