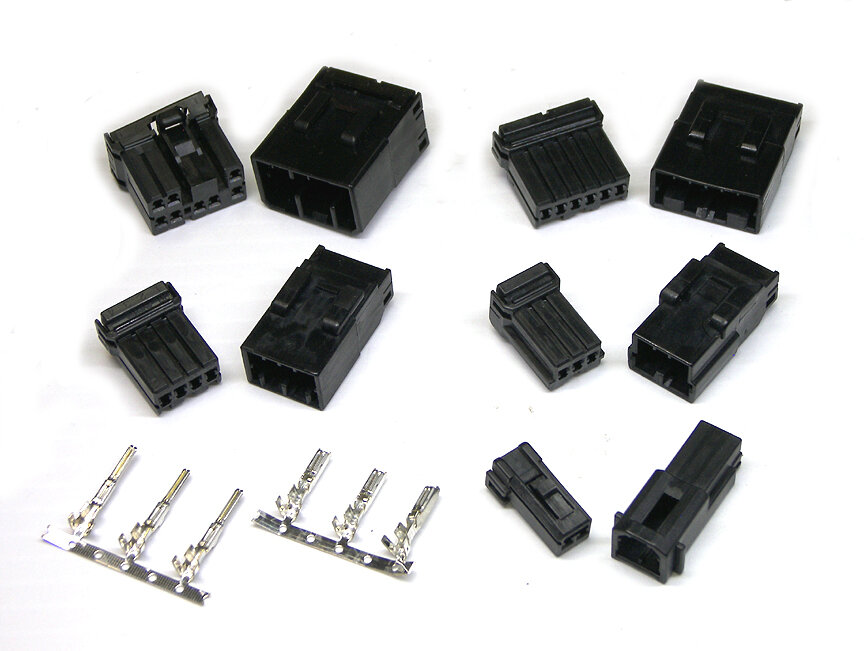

TE Multilock Connectors 20P to 80P, Custom Wiring Harness Assembly

Connector Features

• Connector System : Cable-to-Panel, Wire-to-Board, Wire-to-Device, Wire-to-Panel, Wire-to-Wire
• Number of Positions: 2, 3, 4, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 20, 21, 22, 24, 26, 31, 32, 33, 34, 36, 39, 40, 42, 45, 49, 51, 54, 56, 62, 76, 80P
• Connector & Housing Type: Housing for Female Terminals, Housing for Male Terminals
• Centerline (Pitch) (mm): 2, 2.2, 2.5, 2.54, 2.6, 3, 3.2, 3.4, 3.5, 3.51, 3.6, 3.8, 4, 4.2, 4.6, 5, 5.25, 5.4, 5.5, 5.6, 5.9, 6, 8, 8.5, 9.45
• Centerline (Pitch) (in): .079, .087, .09, .098, .1, .102, .118, .125, .134, .137, .138, .142, .15, .157, .165, .181, .196, .197, .206, .213, .217, .22, .232, .236, .315, .335, .372
• Sealable: No, Yes

Connector 20P to 80P Part Number Lists

2P to 18P connector part number lists, pls click here.

Support Custom Wire Harness Assembly

• Connectors: All TE Multilock Connectors.
• Wire Gauge:
  • depends on your needs
  • recommend by us
• Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  • Send drawing to customize.
  • Send a sample to customize.
  • Tell us as many details as possible to customize.
• Minimum Order: 100 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
