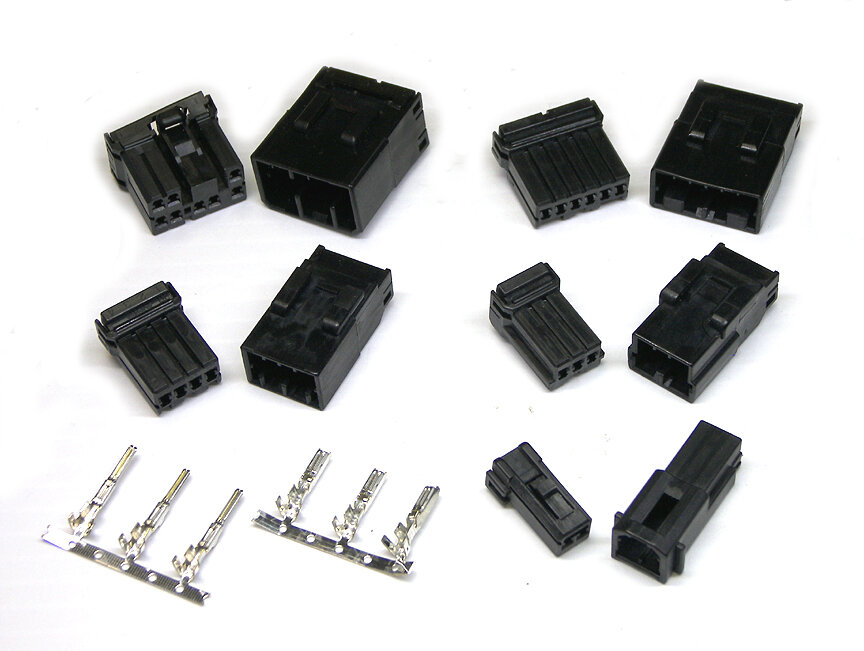

TE Multilock Connectors 2P to 18P, Custom Wiring Harness Assembly
Connector Features
- Connector System : Cable-to-Panel, Wire-to-Board, Wire-to-Device, Wire-to-Panel, Wire-to-Wire
- Number of Positions: 2, 3, 4, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 20, 21, 22, 24, 26, 31, 32, 33, 34, 36, 39, 40, 42, 45, 49, 51, 54, 56, 62, 76, 80P
- Connector & Housing Type: Housing for Female Terminals, Housing for Male Terminals
- Centerline (Pitch) (mm): 2, 2.2, 2.5, 2.54, 2.6, 3, 3.2, 3.4, 3.5, 3.51, 3.6, 3.8, 4, 4.2, 4.6, 5, 5.25, 5.4, 5.5, 5.6, 5.9, 6, 8, 8.5, 9.45
- Centerline (Pitch) (in): .079, .087, .09, .098, .1, .102, .118, .125, .134, .137, .138, .142, .15, .157, .165, .181, .196, .197, .206, .213, .217, .22, .232, .236, .315, .335, .372
- Sealable: No, Yes
Connector 2P to 18P Part Number Lists
| Part Number | Number of Positions | Connector & Housing Type | Primary Product Color |
| 174056-1 | 2 | Housing for Female Terminals | Yellow |
| 174056-2 | 2 | Housing for Female Terminals | Black |
| 174056-4 | 2 | Housing for Female Terminals | Green |
| 174057-2 | 2 | Housing for Male Terminals | Black |
| 174057-4 | 2 | Housing for Male Terminals | Green |
| 1743466-1 | 2 | White | |
| 174463-1 | 2 | Housing for Female Terminals | Natural |
| 174463-2 | 2 | Housing for Female Terminals | Black |
| 174463-3 | 2 | Housing for Female Terminals | Natural |
| 174463-5 | 2 | Housing for Female Terminals | Blue |
| 174463-7 | 2 | Housing for Female Terminals | Yellow |
| 2109366-2 | 2 | Housing for Male Terminals | Black |
| 282365-1 | 2 | Housing for Female Terminals | Natural |
| 284820-1 | 2 | Housing for Female Terminals | White |
| 284820-2 | 2 | Housing for Female Terminals | Black |
| 348794-3 | 2 | Housing for Male Terminals | Yellow |
| 348794-4 | 2 | Housing for Male Terminals | Yellow |
| 368538-1 | 2 | White | |
| 368538-2 | 2 | Housing for Female Terminals | Black |
| 368545-1 | 2 | Housing for Female Terminals | Natural |
| 368545-3 | 2 | Housing for Male Terminals | Black |
| 776128-6 | 2 | Gray | |
| 85284-1 | 2 | Housing for Male Terminals | White |
| 936224-1 | 2 | Housing for Female Terminals | Natural |
| 936224-2 | 2 | Housing for Female Terminals | Black |
| 936236-1 | 2 | Housing for Male Terminals | Natural |
| 936236-2 | 2 | Housing for Male Terminals | Black |
| 936248-2 | 2 | Housing for Female Terminals | Black |
| 936291-2 | 2 | Housing for Female Terminals | Black |
| 936582-1 | 2 | Housing for Female Terminals | Natural |
| 936584-2 | 2 | Housing for Female Terminals | Black |
| 1-174921-1 | 3 | Housing for Female Terminals | Natural |
| 174921-1 | 3 | Housing for Female Terminals | Natural |
| 174921-2 | 3 | Housing for Female Terminals | Black |
| 174921-7 | 3 | Housing for Female Terminals | Yellow |
| 282627-1 | 3 | Housing for Female Terminals | White |
| 284387-1 | 3 | Housing for Female Terminals | White |
| 368500-1 | 3 | Natural | |
| 368500-2 | 3 | Housing for Female Terminals | Black |
| 368503-1 | 3 | Housing for Female Terminals | Natural |
| 444043-1 | 3 | Housing for Female Terminals | Black |
| 936251-2 | 3 | Housing for Male Terminals | Black |
| 936292-2 | 3 | Housing for Male Terminals | Black |
| 936527-2 | 3 | Housing for Female Terminals | Black |
| 1438465-1 | 4 | Natural | |
| 174922-1 | 4 | Housing for Female Terminals | Natural |
| 174922-2 | 4 | Housing for Female Terminals | Black |
| 174922-4 | 4 | Housing for Female Terminals | Green |
| 174922-7 | 4 | Housing for Female Terminals | Yellow |
| 174966-2 | 4 | Housing for Female Terminals | Black |
| 174967-2 | 4 | Housing for Male Terminals | Black |
| 2219501-2 | 4 | Housing for Female Terminals | Black |
| 368501-1 | 4 | Natural | |
| 444046-1 | 4 | Housing for Female Terminals | Black |
| 638229-7 | 4 | Housing for Female Terminals | Yellow |
| 936227-1 | 4 | Housing for Female Terminals | Natural |
| 936227-2 | 4 | Black | |
| 936238-1 | 4 | Housing for Female Terminals | Natural |
| 936238-2 | 4 | Housing for Male Terminals | Black |
| 1-1743184-3 | 6 | Housing for Female Terminals | Gray |
| 1-1743184-4 | 6 | Housing for Female Terminals | Brown |
| 1-1743184-5 | 6 | Housing for Female Terminals | Yellow |
| 1-174923-1 | 6 | Housing for Female Terminals | Natural |
| 1318825-7 | 6 | Housing for Female Terminals | Yellow |
| 1743184-1 | 6 | Housing for Female Terminals | Natural |
| 1743184-2 | 6 | Housing for Female Terminals | Black |
| 1743184-8 | 6 | Housing for Female Terminals | Blue |
| 174923-1 | 6 | Housing for Female Terminals | Natural |
| 174923-2 | 6 | Housing for Female Terminals | Black |
| 174923-6 | 6 | Housing for Female Terminals | Gray |
| 175507-2 | 6 | Housing for Female Terminals | Black |
| 175658-1 | 6 | Housing for Female Terminals | Natural |
| 282989-1 | 6 | Housing for Female Terminals | White |
| 282989-3 | 6 | Housing for Female Terminals | Blue |
| 282992-1 | 6 | Housing for Male Terminals | White |
| 282992-2 | 6 | Housing for Male Terminals | Black |
| 282992-3 | 6 | Housing for Male Terminals | Blue |
| 368502-1 | 6 | Natural | |
| 368502-2 | 6 | Housing for Female Terminals | Black |
| 368504-1 | 6 | Housing for Female Terminals | Natural |
| 368539-1 | 6 | Natural | |
| 368546-1 | 6 | Housing for Male Terminals | Natural |
| 638100-1 | 6 | Natural | |
| 776204-2 | 6 | Housing for Female Terminals | Black |
| 936230-1 | 6 | Housing for Female Terminals | Natural |
| 936240-1 | 6 | Housing for Female Terminals | Natural |
| 936268-1 | 6 | Housing for Female Terminals | Natural |
| 936268-2 | 6 | Housing for Female Terminals | Black |
| 936271-1 | 6 | Housing for Female Terminals | Natural |
| 2822343-1 | 7 | Housing for Female Terminals | Green |
| 2822343-2 | 7 | Housing for Female Terminals | Natural |
| 2822343-3 | 7 | Housing for Female Terminals | Black |
| 2822343-4 | 7 | Housing for Female Terminals | Gray |
| 2822344-1 | 7 | Housing for Male Terminals | Green |
| 2822344-2 | 7 | Housing for Male Terminals | Natural |
| 2822344-3 | 7 | Housing for Male Terminals | Black |
| 2822344-4 | 7 | Housing for Male Terminals | Gray |
| 1-173850-1 | 8 | Housing for Female Terminals | Natural |
| 1-174931-1 | 8 | Housing for Female Terminals | White |
| 1-174937-1 | 8 | Housing for Female Terminals | White |
| 1-1897695-3 | 8 | Housing for Male Terminals | Gray |
| 1318828-6 | 8 | Housing for Female Terminals | Gray |
| 173850-1 | 8 | Housing for Female Terminals | Natural |
| 173850-2 | 8 | Housing for Female Terminals | Black |
| 174044-1 | 8 | Housing for Female Terminals | Natural |
| 174044-2 | 8 | Housing for Female Terminals | Black |
| 174931-2 | 8 | Housing for Female Terminals | Black |
| 175964-2 | 8 | Housing for Female Terminals | Black |
| 176121-2 | 8 | Housing for Male Terminals | Black |
| 178455-1 | 8 | Housing for Male Terminals | White |
| 1897695-2 | 8 | Housing for Male Terminals | Black |
| 282366-1 | 8 | Housing for Female Terminals | Natural |
| 282370-1 | 8 | Housing for Female Terminals | Natural |
| 284357-1 | 8 | Housing for Female Terminals | White |
| 368191-2 | 8 | Housing for Female Terminals | Black |
| 368505-1 | 8 | Housing for Male Terminals | Natural |
| 368540-1 | 8 | Housing for Female Terminals | White |
| 368540-2 | 8 | Black | |
| 936233-1 | 8 | Housing for Female Terminals | Green |
| 936233-2 | 8 | Housing for Female Terminals | Yellow |
| 936233-4 | 8 | Housing for Female Terminals | Brown |
| 936233-5 | 8 | Housing for Female Terminals | Blue |
| 936233-7 | 8 | Housing for Female Terminals | Black |
| 936242-1 | 8 | Housing for Male Terminals | Natural |
| 936242-2 | 8 | Housing for Male Terminals | Black |
| 1745074-2 | 9 | Housing for Female Terminals | Gray |
| 1745074-3 | 9 | Housing for Female Terminals | Gray |
| 284127-1 | 9 | Housing for Female Terminals | Natural |
| 174464-1 | 10 | White | |
| 174465-1 | 10 | White | |
| 174932-2 | 10 | Housing for Female Terminals | Black |
| 316988-6 | 10 | Housing for Female Terminals | Gray |
| 368506-1 | 10 | Housing for Male Terminals | Natural |
| 368541-1 | 10 | White | |
| 638207-6 | 10 | Gray | |
| 936092-1 | 10 | Housing for Female Terminals | Natural |
| 936092-8 | 10 | Housing for Female Terminals | Blue |
| 936129-1 | 10 | Housing for Male Terminals | Natural |
| 936129-8 | 10 | Housing for Male Terminals | Blue |
| 936363-1 | 10 | Housing for Female Terminals | Natural |
| 936363-2 | 10 | Housing for Female Terminals | Black |
| 1-85216-1 | 11 | Housing for Male Terminals | Natural |
| 1897699-5 | 11 | Housing for Female Terminals | Yellow |
| 85109-1 | 11 | Housing for Female Terminals | Natural |
| 85110-1 | 11 | Housing for Male Terminals | White |
| 85216-1 | 11 | Housing for Male Terminals | Natural |
| 85218-1 | 11 | Housing for Female Terminals | Natural |
| 85218-3 | 11 | Housing for Female Terminals | Gray |
| 1-173851-1 | 12 | Housing for Female Terminals | Natural |
| 1-174933-1 | 12 | Housing for Female Terminals | White |
| 173851-1 | 12 | Housing for Female Terminals | Natural |
| 174045-2 | 12 | Housing for Female Terminals | Black |
| 174058-2 | 12 | Housing for Male Terminals | Black |
| 1745013-1 | 12 | Housing for Female Terminals | Black |
| 1745014-1 | 12 | Housing for Female Terminals | Black |
| 175442-1 | 12 | Housing for Female Terminals | Natural |
| 175965-1 | 12 | Housing for Female Terminals | Natural |
| 175965-2 | 12 | Housing for Female Terminals | Black |
| 176116-6 | 12 | Housing for Female Terminals | Gray |
| 2005155-1 | 12 | Housing for Female Terminals | White |
| 2109220-2 | 12 | Housing for Female Terminals | Black |
| 282367-1 | 12 | Housing for Female Terminals | White |
| 282990-2 | 12 | Housing for Female Terminals | Black |
| 282990-3 | 12 | Housing for Female Terminals | Blue |
| 282990-4 | 12 | Housing for Female Terminals | Gray |
| 282993-2 | 12 | Housing for Male Terminals | Black |
| 282993-3 | 12 | Housing for Male Terminals | Blue |
| 282993-4 | 12 | Housing for Male Terminals | Gray |
| 284159-1 | 12 | Housing for Female Terminals | Natural |
| 368507-1 | 12 | Housing for Female Terminals | Natural |
| 368542-1 | 12 | Natural | |
| 917975-1 | 12 | Housing for Female Terminals | White |
| 917975-2 | 12 | Housing for Female Terminals | Black |
| 917978-1 | 12 | Housing for Female Terminals | Natural |
| 917978-7 | 12 | Housing for Female Terminals | Yellow |
| 936196-1 | 12 | Natural | |
| 936196-2 | 12 | Housing for Female Terminals | Black |
| 936196-4 | 12 | Housing for Female Terminals | Brown |
| 936207-1 | 12 | Housing for Male Terminals | Natural |
| 936207-4 | 12 | Housing for Male Terminals | Brown |
| 936207-5 | 12 | Housing for Male Terminals | Yellow |
| 936372-1 | 12 | Housing for Female Terminals | Natural |
| 85111-1 | 13 | White | |
| 85112-1 | 13 | Housing for Female Terminals | White |
| 173852-1 | 14 | Housing for Female Terminals | Natural |
| 1743247-1 | 14 | Natural | |
| 368268-3 | 14 | Housing for Female Terminals | Brown |
| 368285-1 | 14 | Black | |
| 368451-4 | 14 | Housing for Female Terminals | Brown |
| 368508-1 | 14 | Housing for Female Terminals | Natural |
| 368543-1 | 14 | White | |
| 936199-1 | 14 | Housing for Female Terminals | Natural |
| 936199-2 | 14 | Housing for Female Terminals | Black |
| 936209-1 | 14 | Housing for Male Terminals | Natural |
| 936209-2 | 14 | Housing for Male Terminals | Black |
| 174927-1 | 15 | Housing for Female Terminals | Natural |
| 85113-1 | 15 | White | |
| 85114-1 | 15 | Housing for Female Terminals | White |
| 1123371-1 | 16 | Housing for Female Terminals | Natural |
| 1123375-3 | 16 | Housing for Female Terminals | White |
| 1318221-1 | 16 | Housing for Female Terminals | Natural |
| 174046-1 | 16 | Housing for Female Terminals | Natural |
| 174046-2 | 16 | Housing for Female Terminals | Black |
| 174147-2 | 16 | Housing for Female Terminals | Black |
| 174514-1 | 16 | Housing for Female Terminals | Natural |
| 174514-6 | 16 | Housing for Female Terminals | Gray |
| 175966-2 | 16 | Housing for Female Terminals | Black |
| 179054-6 | 16 | Housing for Female Terminals | Gray |
| 179093-6 | 16 | Housing for Female Terminals | Gray |
| 2109134-1 | 16 | Housing for Female Terminals | Natural |
| 368134-1 | 16 | Housing for Female Terminals | Natural |
| 368134-6 | 16 | Housing for Female Terminals | Gray |
| 368454-2 | 16 | Housing for Female Terminals | Black |
| 917981-1 | 16 | Housing for Female Terminals | White |
| 917981-2 | 16 | Housing for Female Terminals | Black |
| 936201-1 | 16 | Housing for Female Terminals | Natural |
| 936201-2 | 16 | Housing for Female Terminals | Black |
| 936201-6 | 16 | Red | |
| 936211-1 | 16 | Housing for Male Terminals | Natural |
| 936211-2 | 16 | Housing for Male Terminals | Black |
| 936211-6 | 16 | Housing for Male Terminals | Red |
| 936471-1 | 16 | Housing for Female Terminals | Natural |
| 936497-1 | 16 | Housing for Male Terminals | Natural |
| 953490-3 | 16 | Housing for Female Terminals | Green |
| 353027-1 | 17 | Housing for Female Terminals | Natural |
| 1-1743611-2 | 18 | Housing for Female Terminals | Black |
| 173853-1 | 18 | Housing for Female Terminals | |
| 1743611-1 | 18 | Housing for Female Terminals | Natural |
| 176118-6 | 18 | Housing for Female Terminals | Gray |
| 1897499-1 | 18 | Housing for Male Terminals | White |
| 2109131-1 | 18 | Housing for Female Terminals | White |
| 368497-3 | 18 | Housing for Female Terminals | Gray |
| 368544-1 | 18 | White | |
| 936204-1 | 18 | Natural | |
| 936204-2 | 18 | Black | |
| 936204-4 | 18 | Brown | |
| 936213-1 | 18 | Housing for Female Terminals | Natural |
| 936213-2 | 18 | Housing for Male Terminals | Black |
| 936213-4 | 18 | Housing for Female Terminals | Brown |
| 936213-8 | 18 | Housing for Male Terminals | Blue |
20P to 80P connector part number lists, pls click here.
If you want to find these connectors' specs, search TE's official website using the correct part number and download the specs. you will get the exact info.
If you want TE Multilock Connectors, why not buy connectors with wires or complete wire harnesses? we provide wire and connector assembly, and wire harness assembly services, contact us for a free quote.
