OBD-II to DB9 Cable
OBD-II to DB9 Cable OBD-II to DB9 Cable OBD-II to DB9 Cable OBD-II to DB9 Cable OBD-II to DB9 Cable

OBD-II to DB9 Cable

Product ID : HHDO1805091431
Product Attributes :

item: OBD-II to DB9 Cable

length: 60"

connector: OBD II, DB9

cable style: UL2464

Product Description

OBD-II to DB9 Cable



The OBD-II to DB9 Cable is an essential tool for any automotive enthusiast or mechanic. With a length of 60 inches, this cable provides ample reach and flexibility for all your diagnostic needs.



Featuring connectors for both OBD II and DB9, this cable is compatible with a wide range of vehicles and devices. Whether you're working on cars, trucks, or other types of machinery, the OBD-II to DB9 Cable has got you covered.



Constructed from high-quality UL2464 cable-style material, this cable is built to last. It's durable enough to withstand even the toughest conditions in the garage or workshop.



So if you're looking for a reliable and versatile diagnostic tool that can help you get the job done right every time, look no further than the OBD-II to DB9 Cable!





Description



Pin Description OBDII DB9
J1850 BUS+ 2 7
Chassis Ground 4 2
Signal Ground 5 1
CAN High J-2284 6 3
ISO 9141-2 K-Line 7 4
J1850 BUS- 10 6
CAN Low J-2284 14 5
ISO 9141-2 L Line 15 8
Battery Power 16 9

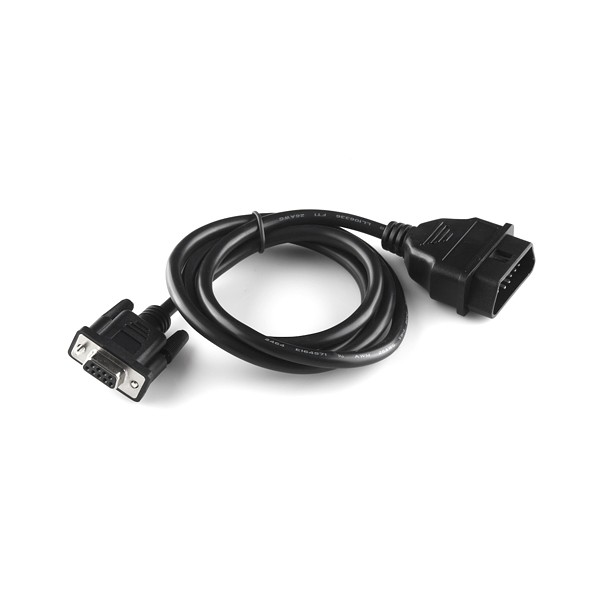

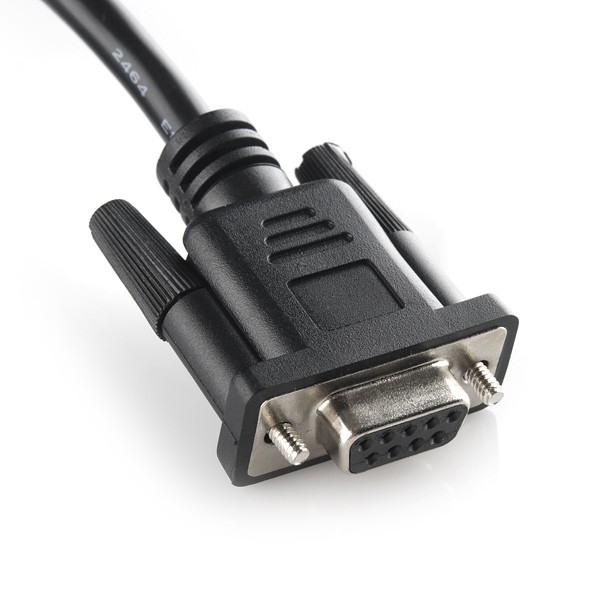

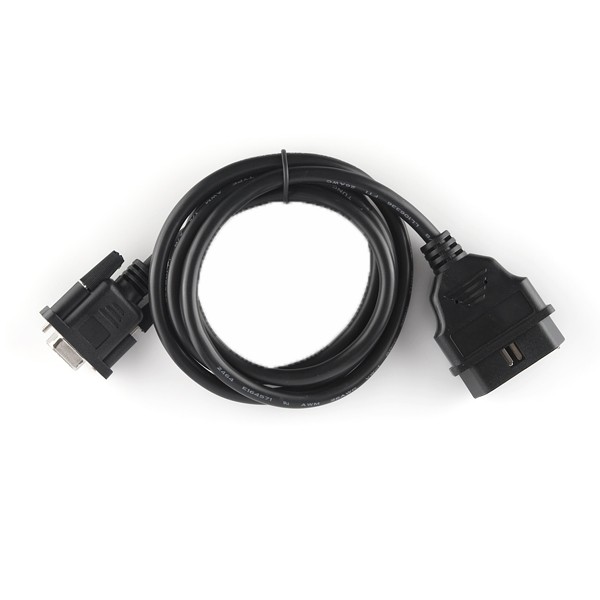

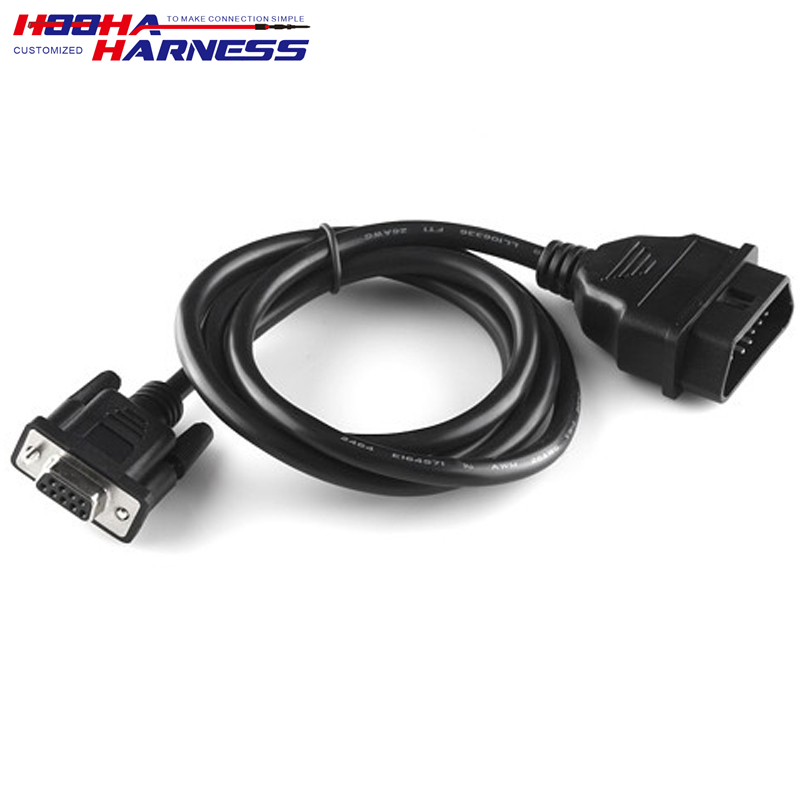

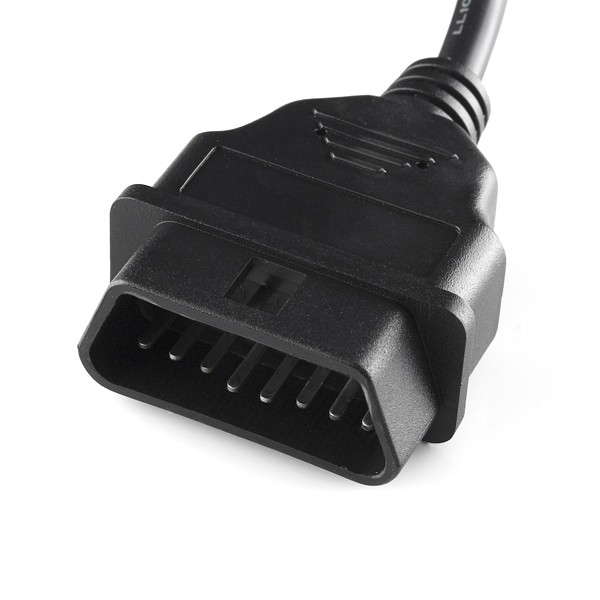

Once you have successfully hacked all devices, why not extend your skills to the garage and hack into your car? This cable provides access to the pins on your car's OBDII connector, featuring an OBDII connector on one end and a DB9 female serial connector on the other. The overall length of this cable is 5 feet.



Note: This cable is not meant to be plugged directly into a computer’s serial port. It is meant to plug into some sort of hardware interface.







How to customize your wire harness?



Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
