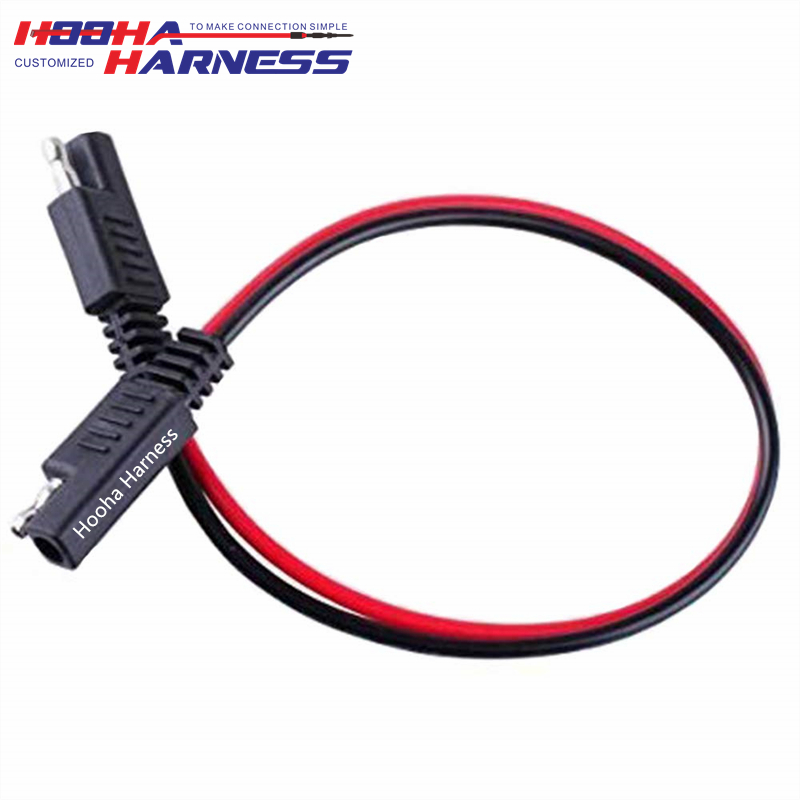

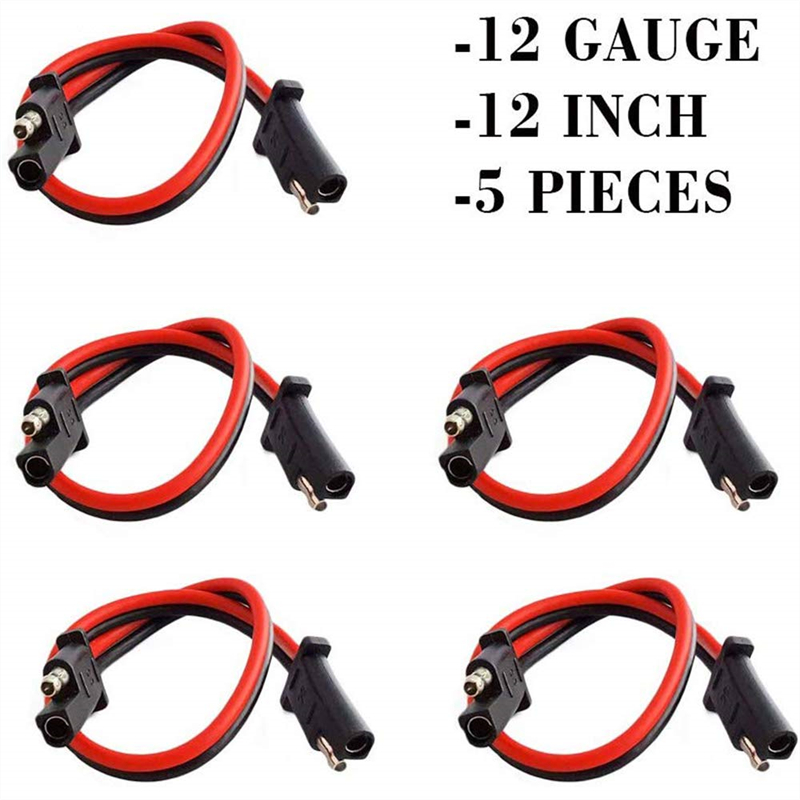

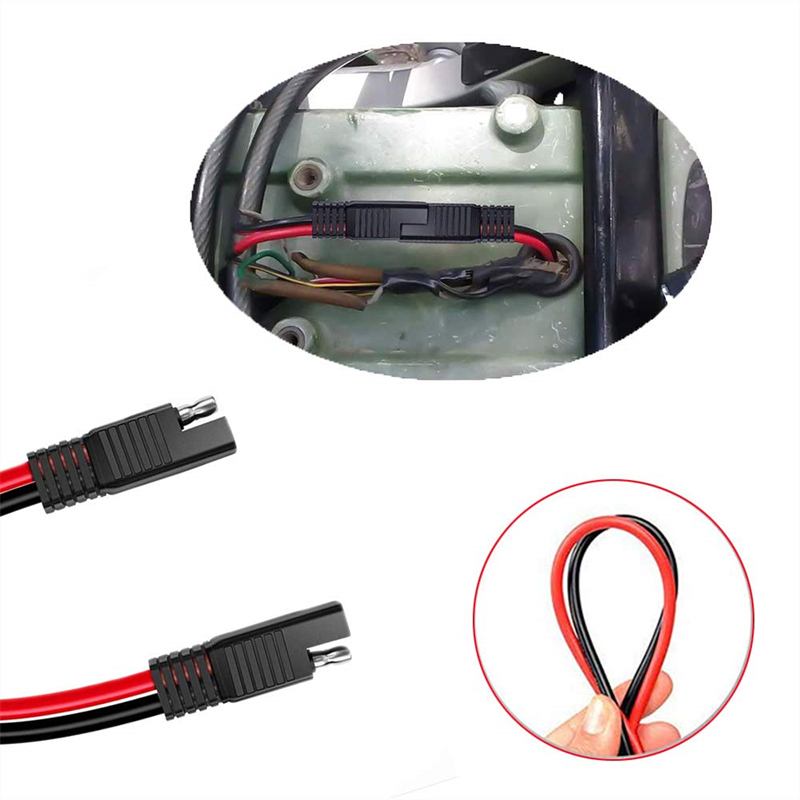

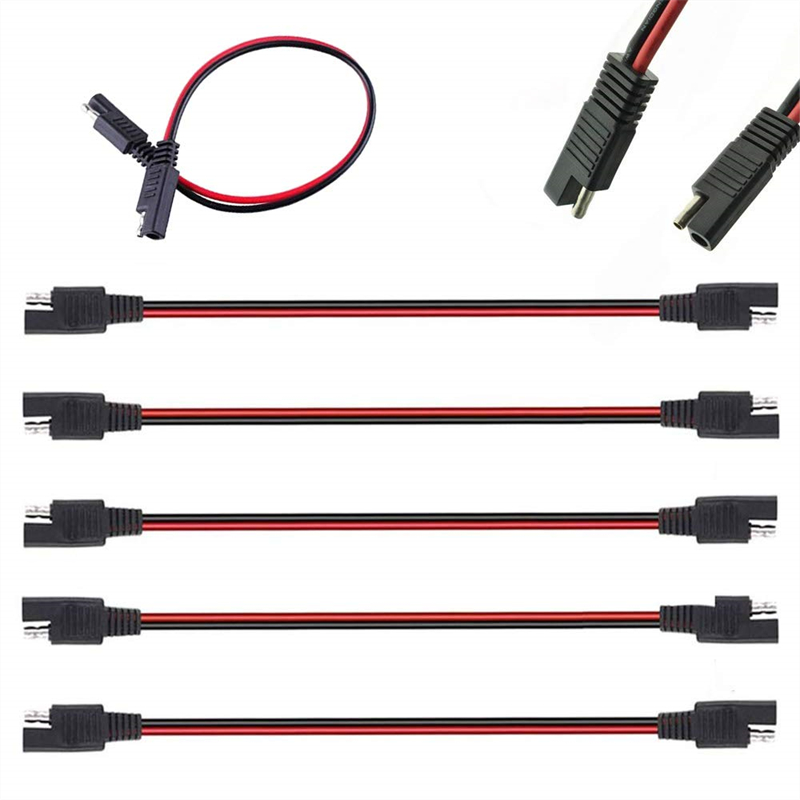

2 Pin Quick Disconnect Wire Harness

Product ID : 13092302

Product Tags : Battery/ Power/ Booster/ Jumper cable Overmold with cable Trailer wire harness custom wire harness

Product Attributes :

2 Pin Quick Disconnect Wire Harness electrical connector that allows for easy and efficient wire management in various electronic devices. This specific type of harness is designed with two pins, making it suitable for a wide range of and secure connection. The Quick Disconnect feature ensures that the wires can be easily detached and recon users with flexibility and convenience. typically made from high-quality materials that are resistant to wear and tear, ensuring durability and longevity in various environments

Product Description

2 Pin Quick Disconnect Wire Harness

Engineered for reliable electrical connections in demanding environments, our 2 Pin Quick Disconnect Wire Harness features high-conductivity copper wiring with PVC insulation rated for 600V. Designed to withstand temperatures from -40°C to 105°C, it ensures minimal voltage drop (<0.5V at 20A) and supports up to 30A continuous current. Ideal for automotive, industrial, and power transmission applications requiring secure yet detachable connections.

Custom Configuration

Available in standard lengths from 15cm to 2m. Supports custom wire gauges (16-22AWG) and terminal types to match specific application requirements.

Rapid Production

All orders ship within 3-5 business days, including fully customized configurations and bulk quantities.

Key Advantages & Technology

1 Superior Durability

Overmolded connectors with IP67-rated sealing provide waterproof protection and strain relief, extending product lifespan by 3x compared to standard harnesses.

2 Advanced Materials

Tin-plated copper terminals ensure corrosion resistance with <0.5mΩ contact resistance. High-temperature PVC insulation maintains flexibility in extreme conditions.

3 Manufacturing Technology

Automated ultrasonic welding ensures consistent terminal bonding. Precision injection molding creates seamless overmolds with ±0.1mm dimensional accuracy.

Technical Specifications

1 Electrical Properties

• Voltage Rating: 600V AC/DC

• Current Capacity: 30A continuous

• Contact Resistance: <0.5mΩ

• Insulation Resistance: >100MΩ

2 Mechanical Specifications

• Mating Cycles: >5000 insertions

• Wire Gauge: 16-22AWG

• Terminal Material: Tin-plated copper alloy

• Housing Material: UL94 V-0 rated thermoplastic

3 Environmental Ratings
