PRODUCT
3 way trailer light wire
Product ID : 13092301
Product Attributes :
This is a trailer light wire connector, which is designed to offer a secure and reliable connection for your trailer lighting system, 3-pin flat type design, male plug and female socket available.
The connector is made from high-quality and environmental PVC materials, self-owned overmold, which ensures a durable and to fit with 16AWG wire, making it compatible systems.
In addition, the connector supports custom length, allowing you to easily adjust the length of the wire to fit your specific needs. This feature provides greater and easily install and configure your trailer lighting system to your preferences.
Product Description

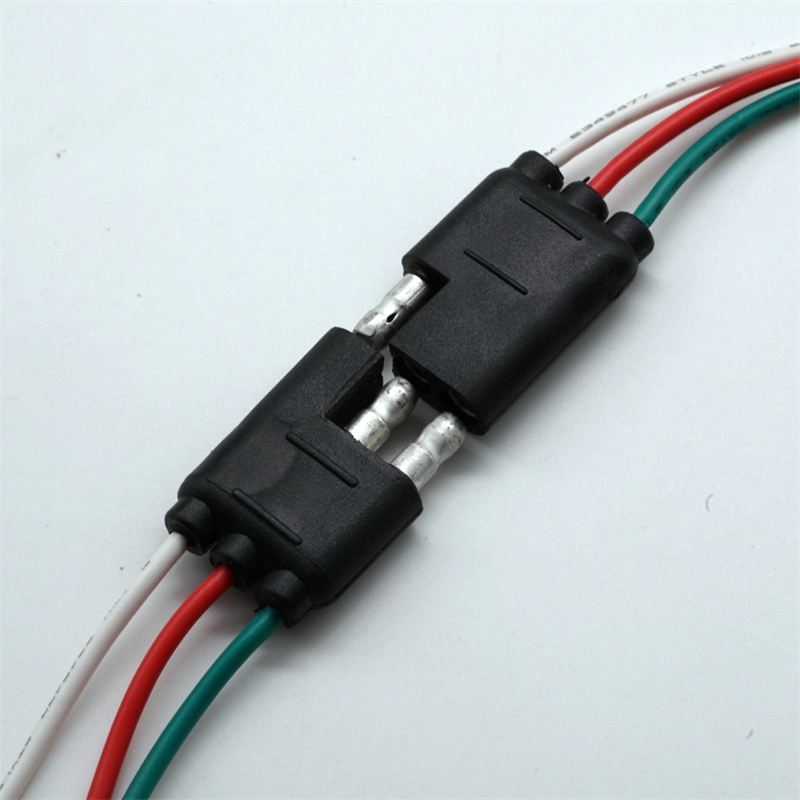

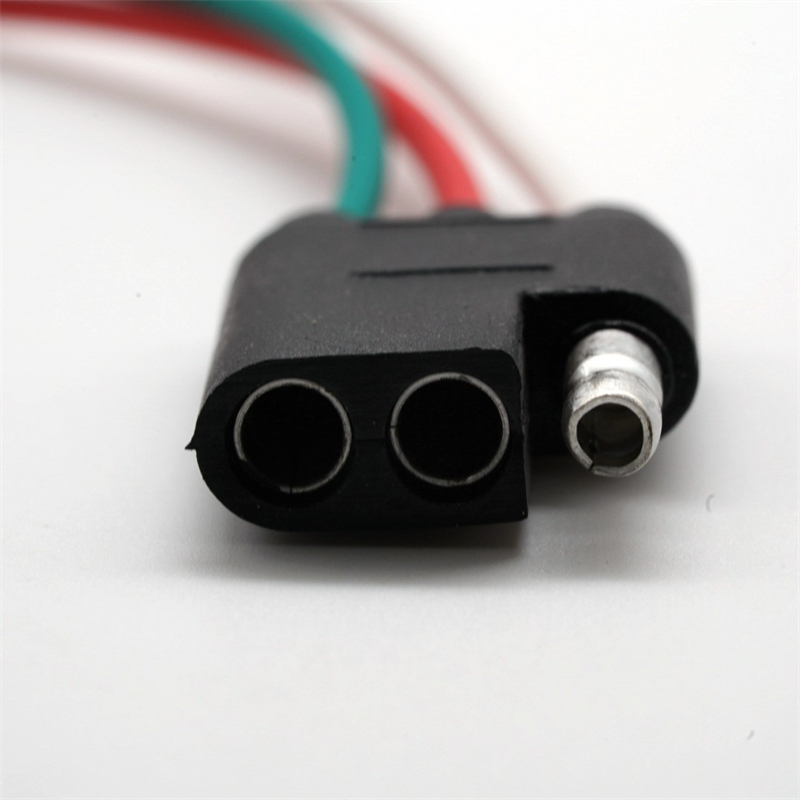

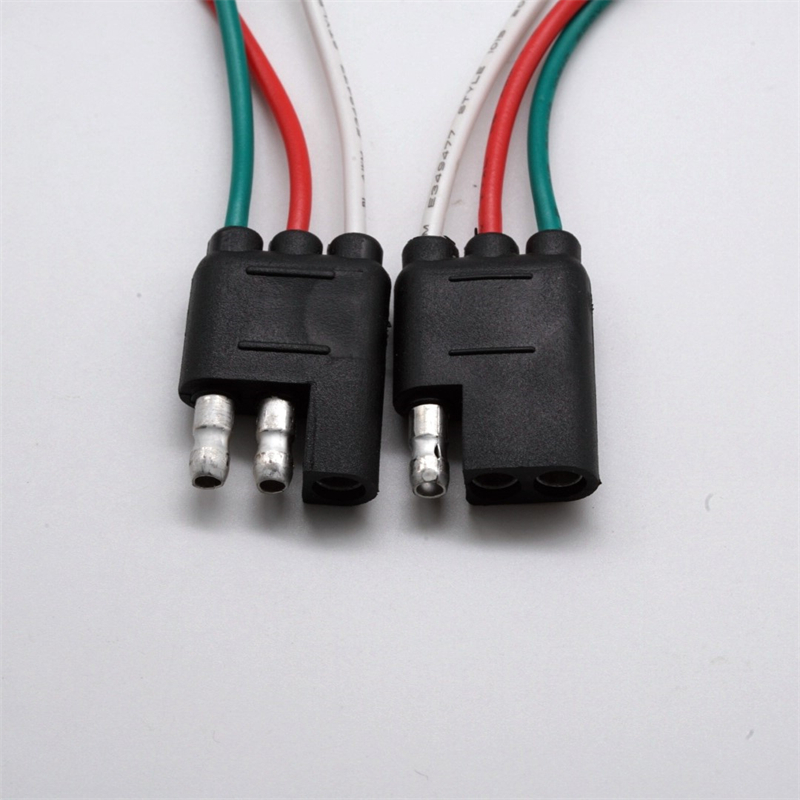

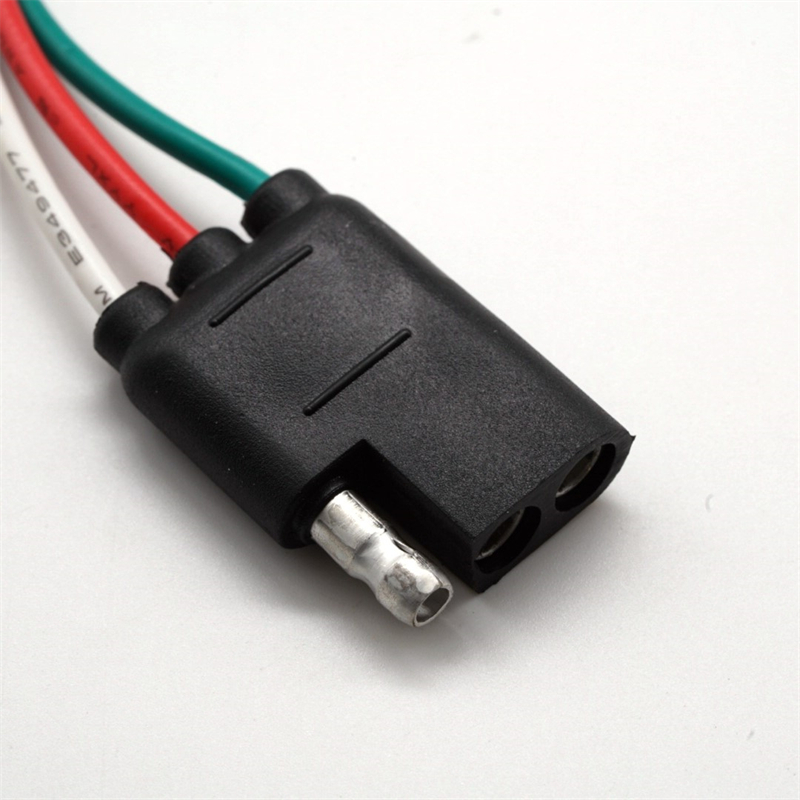

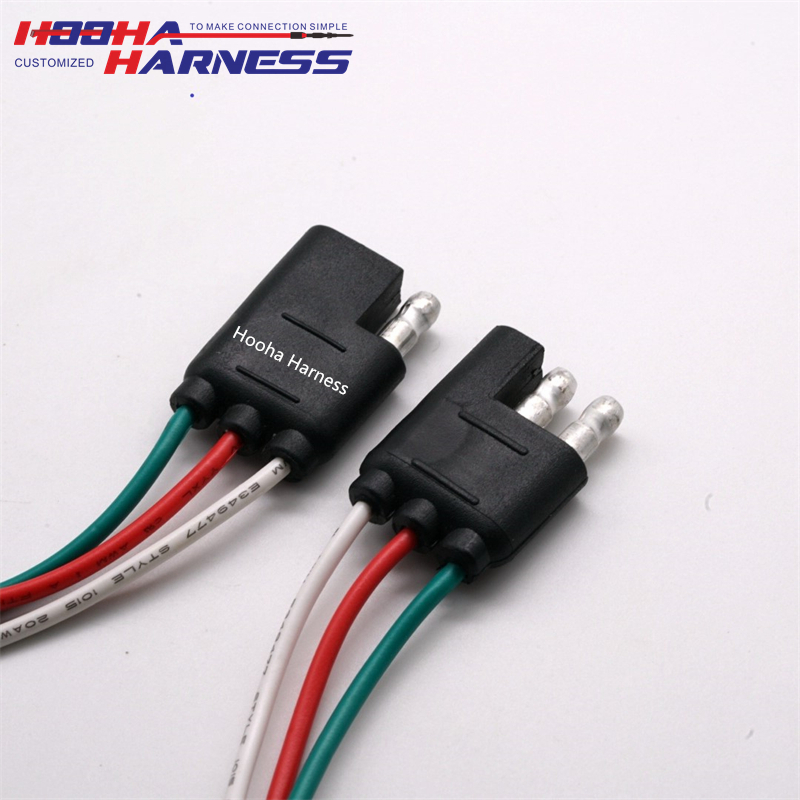

3 Way Trailer Light Wire Connector
Engineered for reliable trailer lighting connections, our 3-pin flat connector features SAE-standard bullet terminals with environmental PVC housing and proprietary overmold technology. Rated for 12V/10A applications, it ensures water-resistant performance with IP54 protection and supports 16AWG wiring for optimal current carrying capacity. The corrosion-resistant copper contacts maintain <0.5Ω resistance through 500+ mating cycles, providing dependable signal transmission in all weather conditions.
Custom Length Options
Available in standard lengths from 1m to 5m. Fully customizable lengths to match your specific trailer wiring requirements.
Rapid Production & Shipping
All orders ship within 3 business days, including custom configurations and bulk quantities.
Key Advantages & Technology
1 Secure Connection Design
SAE-standard bullet connectors with positive-lock mechanism ensure vibration-resistant connections that withstand road impacts and maintain electrical continuity.
2 Advanced Overmold Technology
Proprietary PVC overmolding creates seamless cable-to-connector joints with IP54-rated waterproofing, eliminating moisture ingress points that cause corrosion.
3 Optimized Wiring Compatibility
Precision-engineered terminals accommodate 16AWG trailer wiring with secure crimp connections that maintain <0.5Ω resistance through temperature fluctuations.
Technical Specifications
1 Electrical Properties
• Voltage Rating: 12V DC
• Current Capacity: 10A per circuit
• Contact Resistance: <0.5Ω
• Wire Compatibility: 16AWG
2 Mechanical Specifications
• Connector Type: 3-pin flat
• Terminal Type: SAE bullet
• Housing Material: Environmental PVC
• Mating Cycles: 500+
3 Environmental Ratings
• Water Resistance: IP54 rated
• Temperature Range: -30°C to +85°C
• UV Resistance: 500+ hours
Production Process
Wire Cutting
Terminal Crimping
Overmolding
Quality Testing
Each harness undergoes continuity testing and waterproof validation before shipment
Industry Applications
Trailers & Caravans
- Brake light connections
- Turn signal wiring
- License plate illumination
Utility Vehicles
- Boat trailer wiring
- ATV/UTV light connections
- Agricultural equipment lighting
Custom Installations
- Aftermarket lighting systems
- RV accessory wiring
- Specialty vehicle conversions
