4pin waterproof connector plug extension cable
Custom Wire Harness Factory in China since 2001 - Providing High-Quality Solutions for Your Wiring Needs
For over two decades, our custom wire harness factory has been dedicated to providing top-notch wiring solutions to clients worldwide. We specialize in designing and manufacturing custom wire harnesses that meet the unique needs of various industries, including automotive, medical, aerospace, and more.
Our team of experienced engineers and technicians work closely with clients to understand their specific requirements and develop tailored solutions that exceed expectations. From concept design to final production, we ensure every step is carefully executed with precision and attention to detail.
One of our popular products is the custom 4pin waterproof connector plug extension cable. This high-quality cable is designed for use in harsh environments where water or moisture may be present. It features a durable construction that can withstand extreme temperatures, vibrations, and other environmental factors.
At our factory, we use only the best materials sourced from reputable suppliers around the world. Our state-of-the-art equipment ensures consistent quality control throughout the entire manufacturing process.
We take pride in delivering exceptional customer service by offering competitive pricing without compromising on quality. Whether you need a small batch or large-scale production run of wire harnesses or cables, we have the expertise and resources to deliver on time and within budget.
Choose us as your trusted partner for all your wiring needs – contact us today!

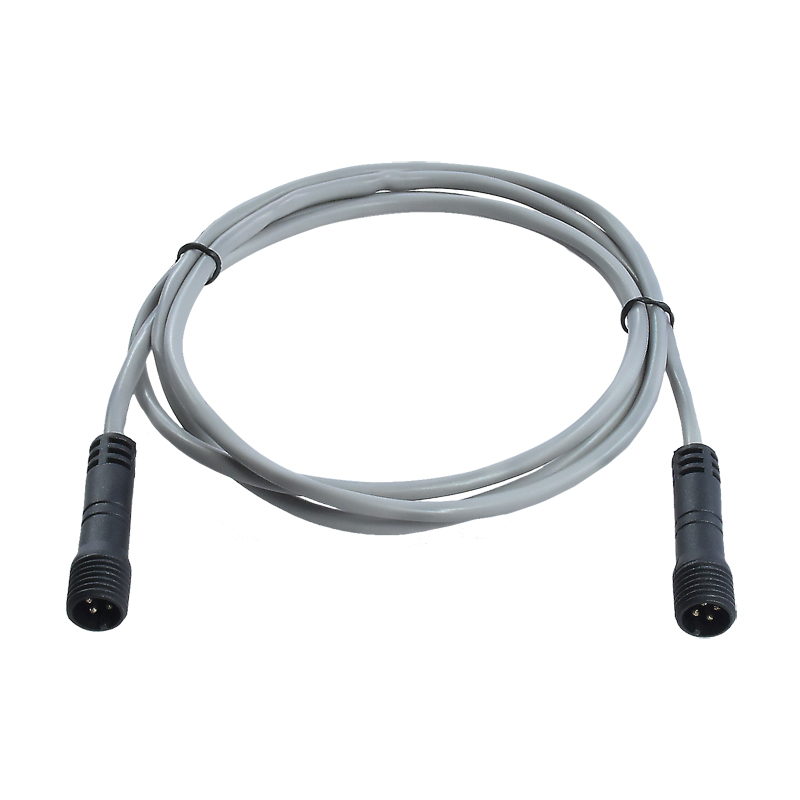

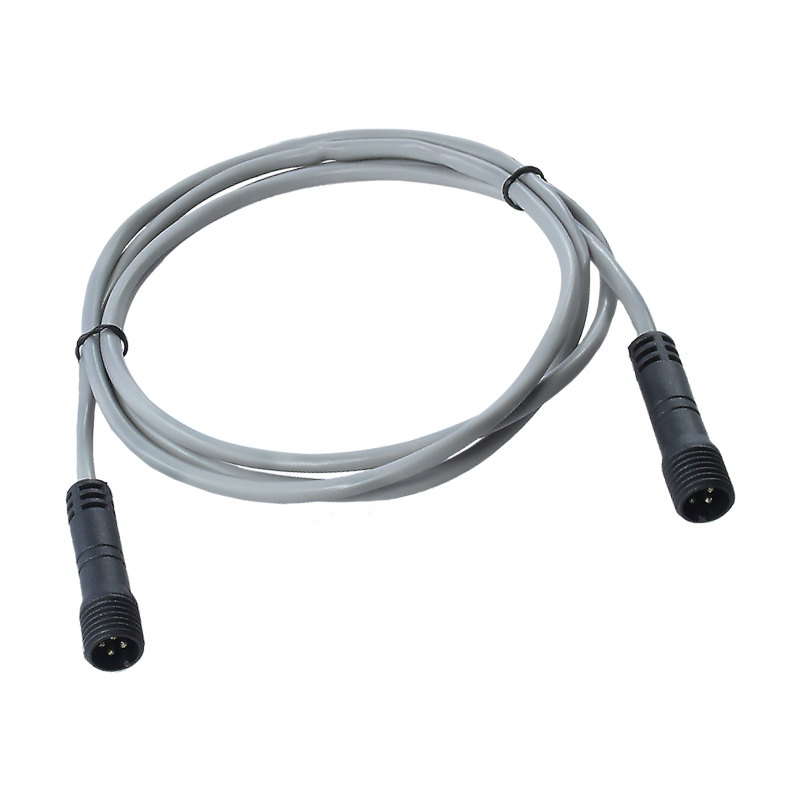

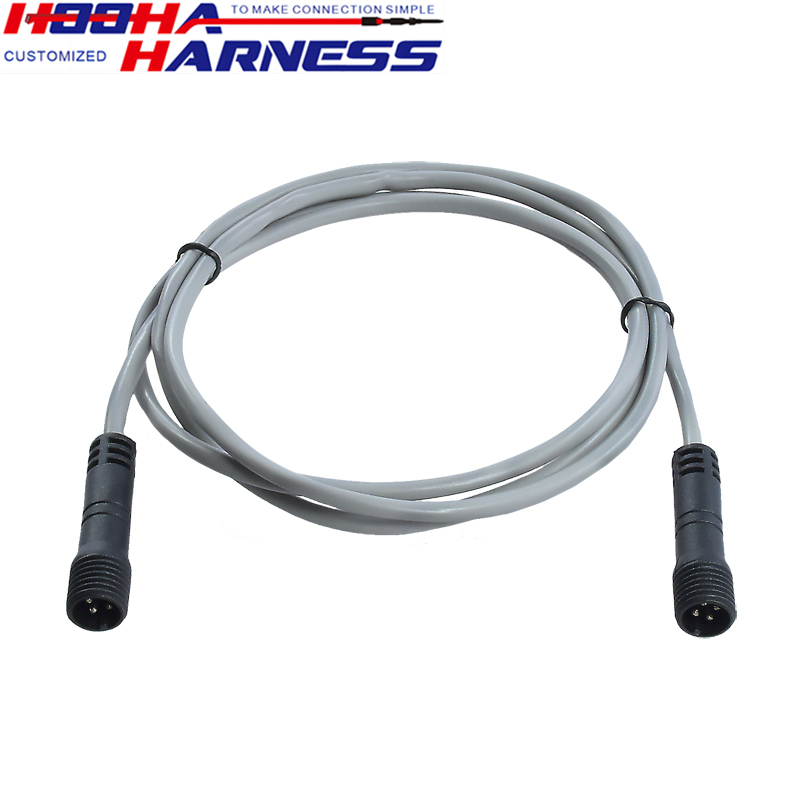

4pin Waterproof Connector Plug Extension Cable
• IP68 waterproof protection (2m submersion)
• 10,000+ insertion/extraction cycles
• -40°C to 125°C operating temperature range
• 360° electromagnetic shielding
• Customizable lengths (standard 1.5m–10m)
- Product ID: 769

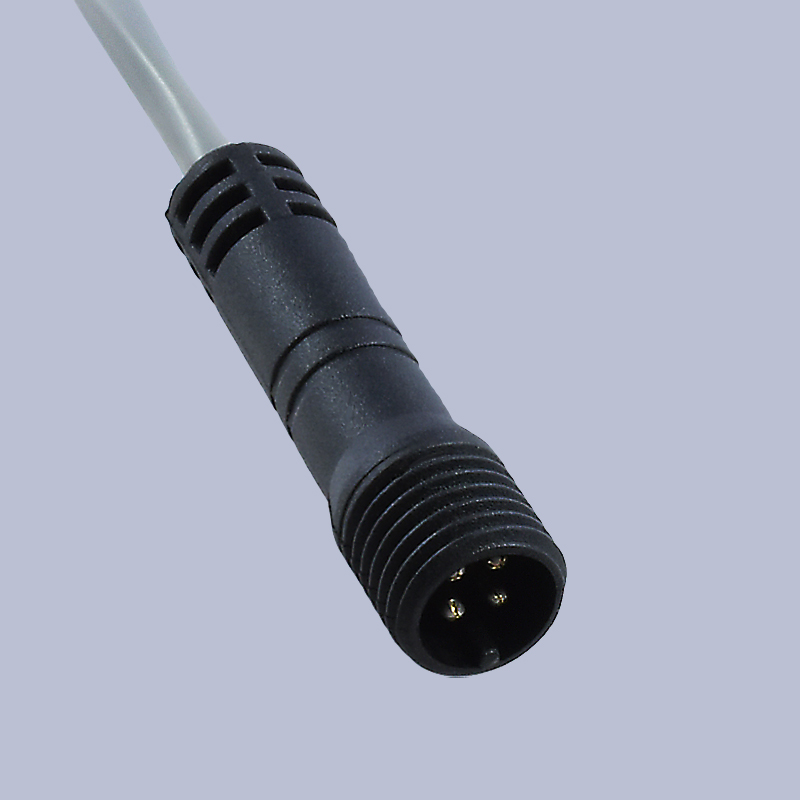

- Connector Type: 4pin male/female waterproof pair
- Waterproof Rating: IP68 (IEC 60529)
- Contact Material: Gold-plated brass
- Insulation: XLPE (cross-linked polyethylene)
- Rated Current: 10A per pin
- Cable Diameter: 8.5mm ±0.2mm
1. Automated precision crimping (±0.1mm tolerance)
2. Ultrasonic welding for waterproof seal integrity
3. 72-hour salt spray testing (ASTM B117)
4. 100% IP68 pressure validation (2m water submersion)
5. Final inspection under 5x magnification
- Pressure Test: 30PSI (2m water depth) for 30 minutes
Immersion Test: 1m depth for 30 minutes (IP68 compliance)
Temperature Cycle: -40°C ↔ 125°C × 500 cycles
- Voltage Rating: 600V AC/DC
Insulation Resistance: >1000MΩ
Contact Resistance: <5mΩ
4pin waterproof connector plug extension cable
Related Products:
How to custom your own wire harness?
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if need(7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
