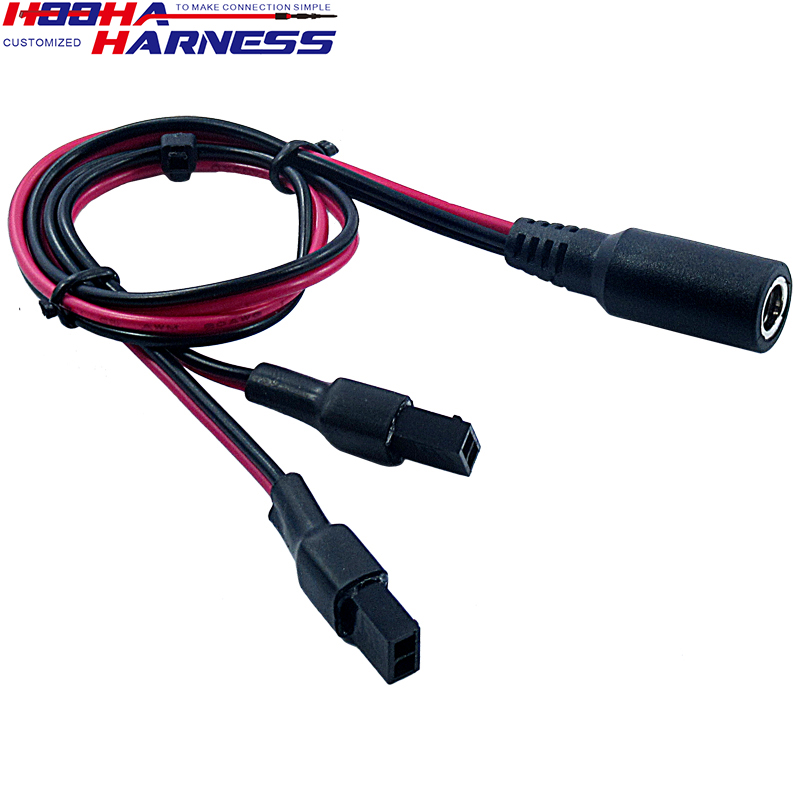

Custom 2x2Pin Male Micro-Fit Connector to 12V DC 5.5mm x 2.1mm socket LED Power Cable
Looking for a reliable and experienced custom wire harness manufacturer in China? Look no further than our team! With over 20 years of experience, we specialize in creating high-quality cables and connectors that meet your unique needs.
One of our most popular products is the Custom 2x2Pin Male Micro-Fit Connector to 12V DC 5.5mm x 2.1mm socket LED Power Cable. This cable is designed to provide reliable power to your LED lights, ensuring they stay bright and vibrant for longer.
Our team uses only the highest quality materials and cutting-edge manufacturing techniques to create each cable and connector we produce. We take pride in delivering products that are not only durable but also easy to use, making them ideal for a wide range of applications.
So if you're looking for a trusted partner who can help you create custom wire harnesses that meet your exact specifications, look no further than us! Contact us today to learn more about how we can help you achieve your goals.
Custom 2x2Pin Male Micro-Fit Connector to 12V DC 5.5mm x 2.1mm Socket LED Power Cable
• 2x2Pin Male Micro-Fit connector (2.0mm pitch)
• 5.5mm x 2.1mm center-positive DC socket
• 20AWG oxygen-free copper conductors
• UL94V-0 flame-retardant insulation
• 5,000+ mating cycle durability
• -20°C to +80°C operating temperature
- Product ID: DC 337
- Connector Type: 2x2Pin Male Micro-Fit to DC Socket
- Wire Gauge: 20AWG oxygen-free copper
- Voltage Rating: 300V DC
- Current Capacity: 1A max
- Temperature Range: -20°C to +80°C
- Insertion Force: ≤4.5N
Step 2: Automated tinning of 20AWG OFHC copper conductors
Step 3: Ultrasonic welding for gas-tight conductor connections
Step 4: Gold-plating of contacts (Ni barrier layer for corrosion resistance)
Step 5: 100% functional testing including:
• Continuity verification
• Hi-pot testing (1000V AC/1min)
• Mechanical life cycle testing
Step 6: Final packaging in anti-static, moisture-barrier bags
- Micro-Fit Male: 2x2Pin, 2.0mm pitch, 4.2mm contact spacing
- DC Socket: 5.5mm outer/2.1mm inner diameter, center-positive
- Retention Force: 4.5N minimum to prevent accidental disconnection
- Insertion Cycles: 5,000+ mating/unmating cycles (tested per IEC 60512)
- UL1007 (wire insulation)
- UL94V-0 (flame retardancy)
- IEC 60227 (electrical safety)
- RoHS 3.0 (lead-free components)
• X-ray analysis of solder joints
• Environmental stress screening (-40°C to 105°C)
• Mechanical shock testing (50G/11ms per IEC 60068-2-27)
• 24-month limited warranty against manufacturing defects
Detail images:
Related products:
How to custom your own wire harness?
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if need(7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
