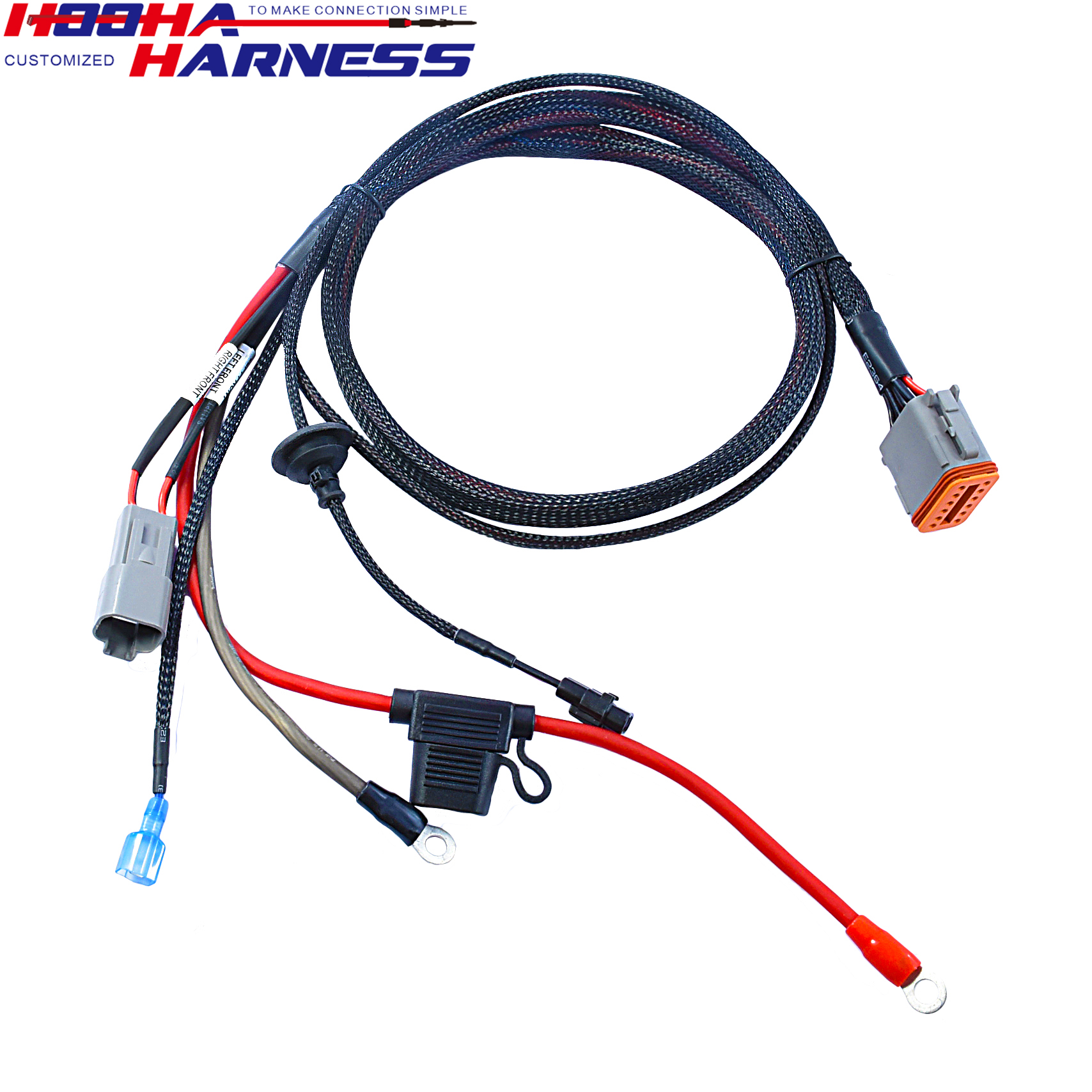

Deutsch DT Series Connector with Inline Fuse Holder & Ring Terminal Auto Wire Harness
The Deutsch DT Series delivers professional-grade connectivity solutions engineered for demanding automotive and industrial applications. These connectors feature robust construction with vibration-resistant designs, maintaining stable electrical connections even in harsh environments. With pin configurations ranging from 2 to 12 positions and operating temperatures from -55°C to 125°C, they ensure reliable performance under extreme conditions. The integrated inner locking mechanism and strain relief system provide superior cable retention and damage prevention.
Vibration-Resistant Performance
Engineered to withstand vehicle vibrations and harsh environmental conditions while maintaining stable electrical connections and preventing damage.
Quick Installation & Reliability
Easy-to-install design with high-quality connectivity that ensures power supply safety and long-term reliability for automotive wire harness applications.
Product Advantages & Technology
Main Benefits
✓
Superior Vibration Resistance: Maintains stable electrical connections in high-vibration vehicle environments
✓
Enhanced Safety Features: Integrated inline fuse holder and strain relief system for power supply protection
✓
Easy Maintenance: Simple installation and reliable connectivity for automotive wiring systems
✓
Durability: Withstands harsh automotive conditions and environmental challenges
Advanced Technology
1
Advanced Locking Mechanism: Inner chord buckle and strap rope system ensures secure connections
2
Sealed Connector Design: Protects against moisture, dust, and environmental contaminants
3
High-Quality Materials: Durable housing with corrosion-resistant metal contacts
4
Integrated Protection: Inline fuse holder provides circuit protection for automotive applications
Production Process
Our manufacturing process ensures the highest quality standards for automotive wire harness applications:
1
Precision molding of connector housings and components
2
Automated crimping of terminals for consistent electrical connections
3
Quality testing for electrical continuity and mechanical integrity
4
Assembly of complete wire harness with fuse holders and ring terminals
5
Final inspection and performance validation
Product Specifications
1 Connector Configuration

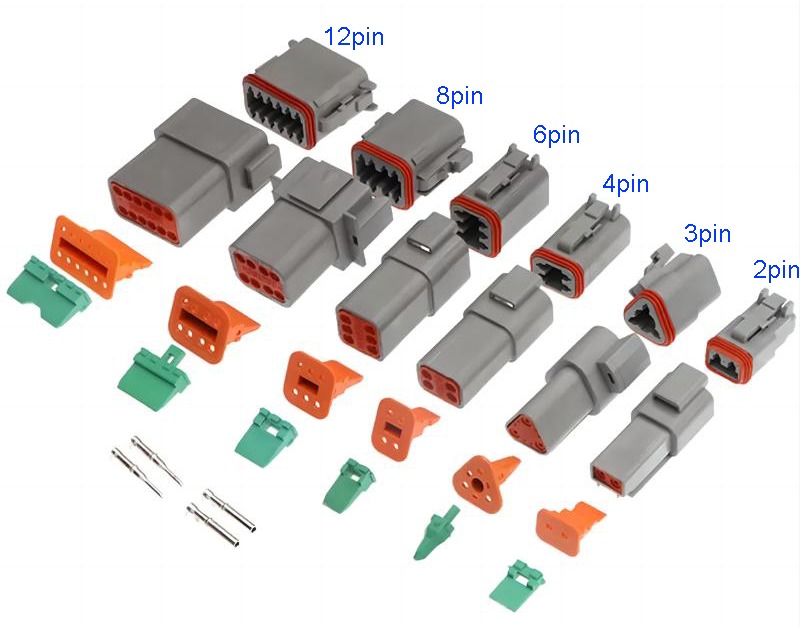

• Multiple pin configurations available (2-12 positions)
• High-quality metal contacts for reliable connectivity
• Color-coded inserts for easy identification
• Sealed and unsealed versions available
2 Technical Specifications
• Temperature Range: -55°C to 125°C
• Current Rating: Up to 13A per circuit
• Voltage Rating: 600V AC/DC
• Vibration resistant design for automotive use
• IP67 rated versions available (when specified)
3 Wire Harness Features
• Inline fuse holder for circuit protection

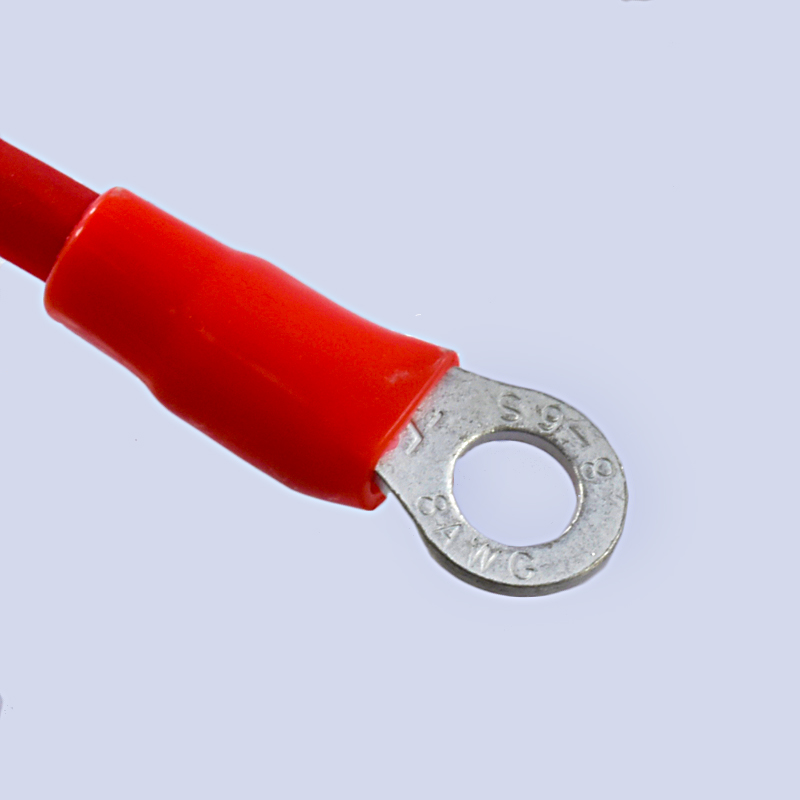

• Ring terminals for secure connections
• Custom wire lengths available

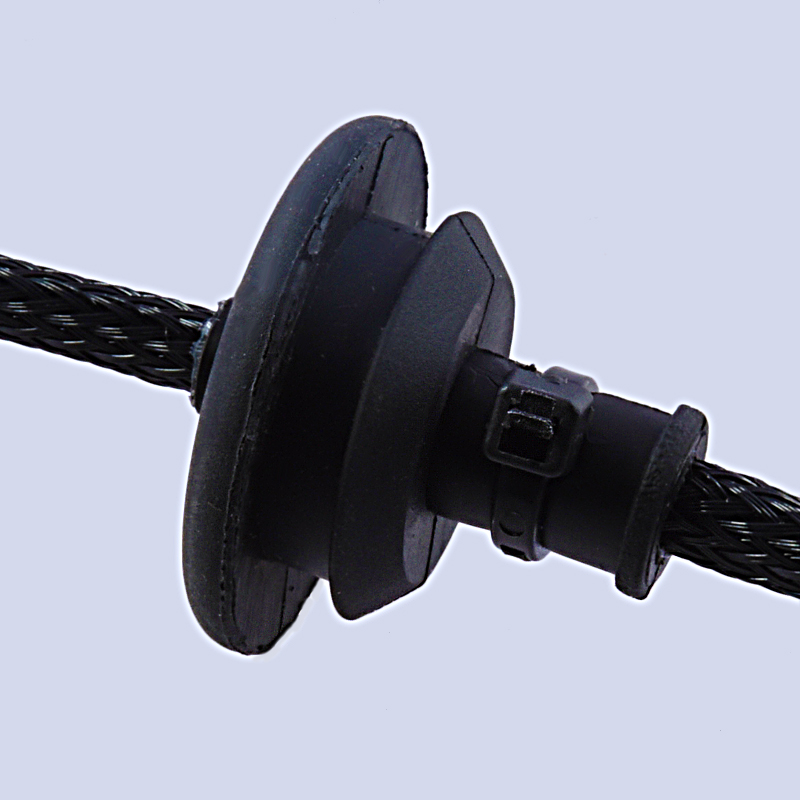

• Strain relief and cable management systems
• Automotive-grade wiring materials
4 Materials & Construction
• High-temperature thermoplastic housing
• Corrosion-resistant metal contacts
• High-strength locking mechanism
• Automotive-grade copper terminals
Common Applications
Automotive Industry
- Vehicle wiring harnesses and electrical systems
- Engine control units and sensor connections
- Lighting systems and power distribution
- Audio/video system installations
Heavy Equipment & Machinery
- Construction and agricultural equipment wiring
- Industrial control systems and automation
- Power distribution and circuit protection
Custom Applications
- Custom wire harness manufacturing
- Aftermarket automotive modifications
- Specialty vehicle electrical systems

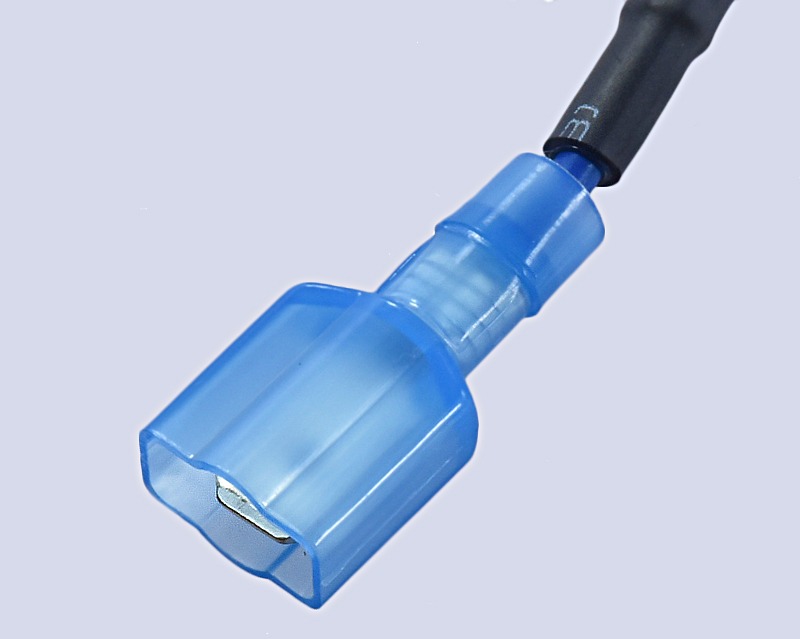

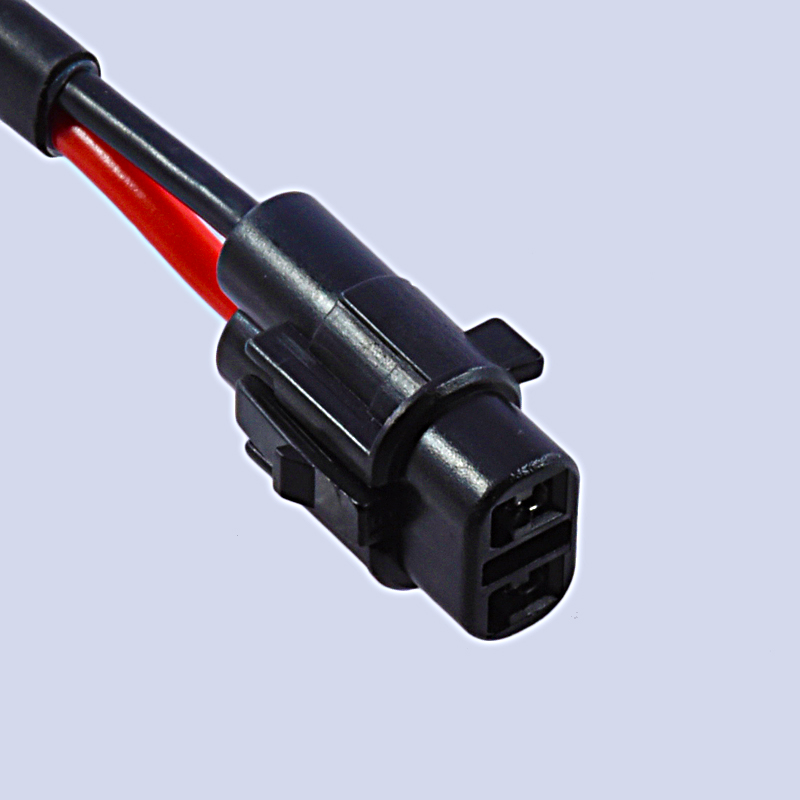

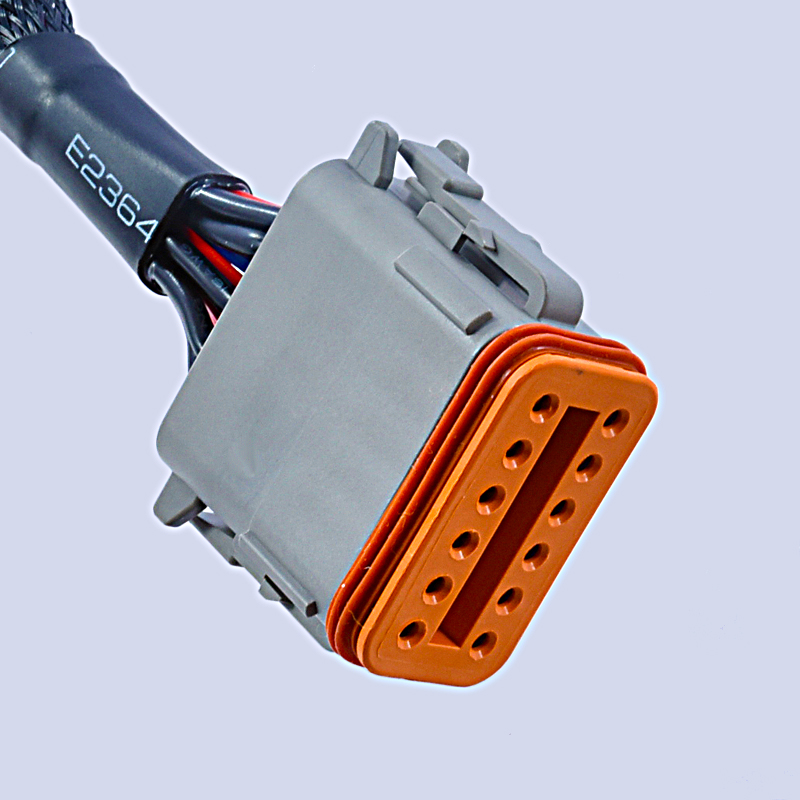

Detail images:

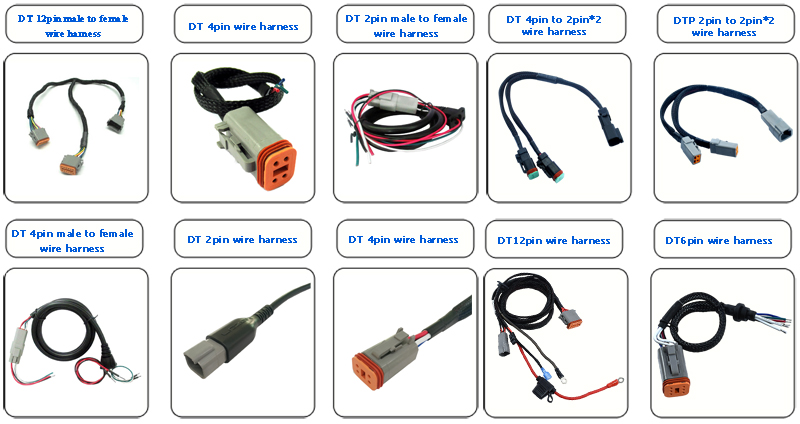

Related products:
How to custom your own wire harness?
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
