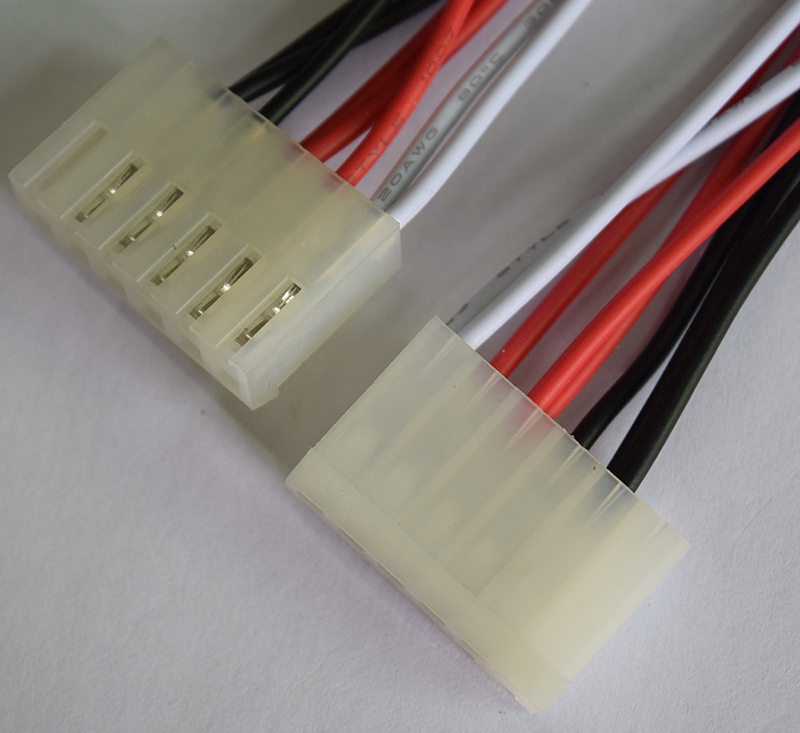

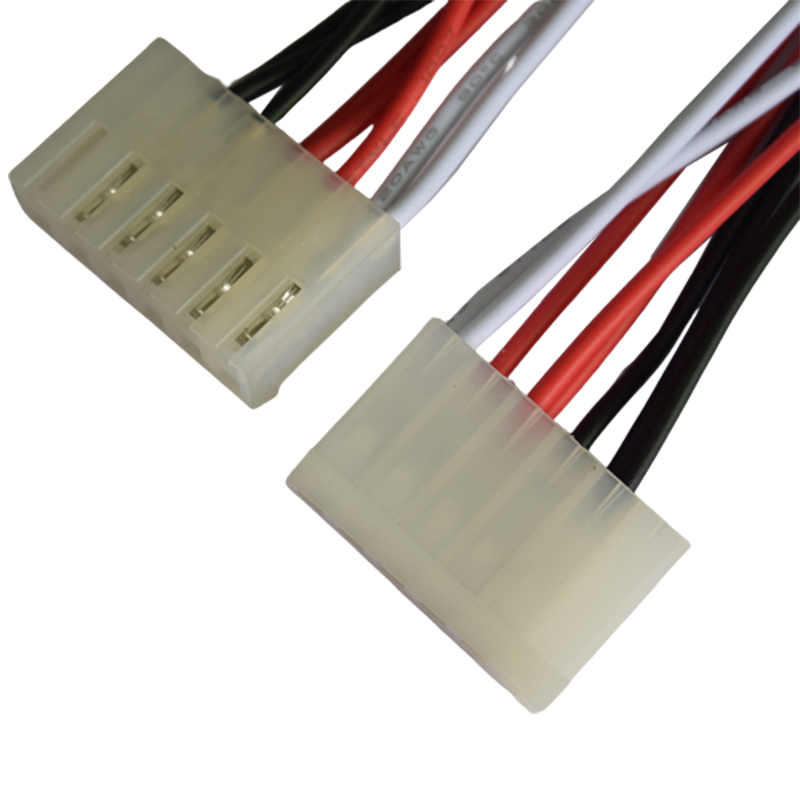

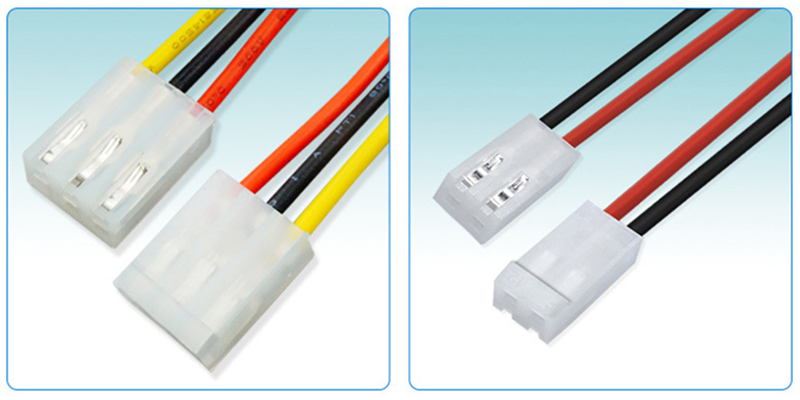

molex 3.96 mm Pitch 2139 series 3 Pin Connector pigtail Wire Harness Cable Assembly

Molex 3.96 mm Pitch 2139 Series Connector

The Molex 3.96 mm Pitch 2139 series connector is a highly reliable and durable interconnect solution that can be used in a wide range of applications, including automotive, industrial, and consumer electronics. This connector features a compact design that allows for easy installation in tight spaces, as well as secure locking mechanisms to ensure stable connections even in harsh environments. In addition to its robust construction, the Molex 3.96 mm Pitch 2139 series connector also offers excellent electrical performance with low contact resistance and high current-carrying capacity. It is available in various configurations such as wire-to-wire, wire-to-board, and board-to-board options to meet different application requirements. Key features of this connector include:

1. Pitch

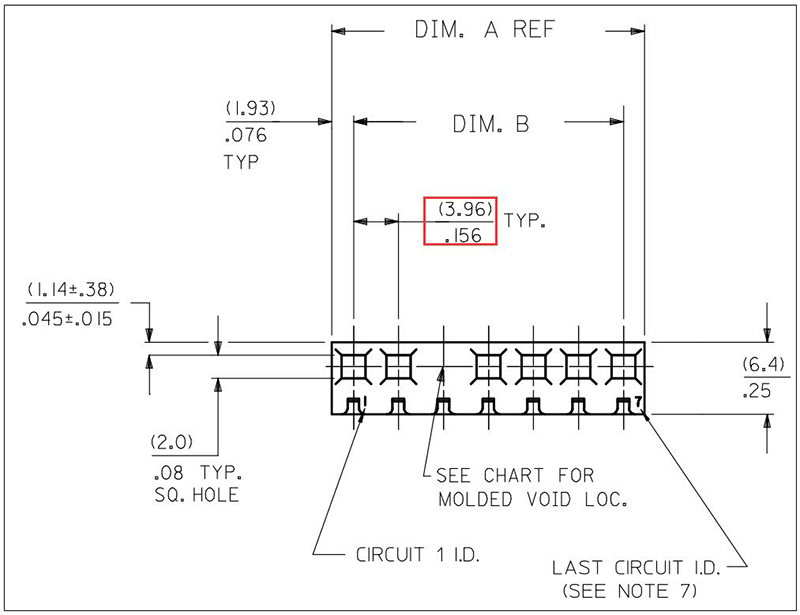

The 3.96 mm pitch provides a compact form factor, making it suitable for applications where space is limited.

2. Pin Configuration

The 2139 series connector comes in various pin configurations, enabling the transmission of power and signals with flexibility and reliability.

3. Durability

Molex ensures the 2139 series connectors are built to withstand challenging conditions. They feature robust construction, enhancing their resistance to mechanical stress, vibrations, and temperature fluctuations.

4. Electrical Performance

These connectors are designed to maintain excellent electrical properties, ensuring optimal signal integrity and power delivery.

Applications

The Molex 3.96 mm Pitch 2139 series connector, combined with the custom Wire Harness and Cable Assembly service, finds extensive application in diverse industries, including:

1. Automotive

The 2139 series connectors are suitable for automotive applications such as engine control units, lighting systems, infotainment systems, and more.

2. Industrial Automation

These connectors are used in industrial automation equipment, control panels, robotics, and machine-to-machine communication, ensuring reliable and efficient connections in demanding environments.

3. Medical Devices

The 2139 series connectors, when paired with custom Wire Harness and Cable Assemblies, meet the stringent requirements of medical devices, enabling reliable and safe connections.

4. Consumer Electronics

These connectors are utilized in various consumer electronic products, including appliances, gaming consoles, audio/video equipment, and more.

Custom Wire Harness and Cable Assembly Service

Hooha Harness offers all kinds of custom Wire Harness and Cable Assembly services. This service allows customers to tailor their interconnect solutions to specific application requirements. Here's how the custom Wire Harness and Cable Assembly service enhances the functionality and value of the 2139 series connector:

1. Application-specific Solutions: Hooha Harness's custom service enables the creation of Wire Harnesses and Cable Assemblies that are precisely designed to fit customers' unique applications. This customization ensures seamless integration and optimized performance.

2. Flexibility in Connector and Cable Selection: With the custom service, customers can choose from a wide range of Molex, TE, JST, etc. connectors and cables to match their specific needs. This flexibility allows for compatibility with various wire gauges, current ratings, and voltage requirements.

3. Design Expertise: Hooha Harness's experienced engineers collaborate closely with customers to understand their application challenges and develop tailored interconnect solutions. This expertise ensures optimal design, functionality, and reliability.

4. Quality Assurance: Hooha Harness follows stringent quality control processes throughout the custom Wire Harness and Cable Assembly manufacturing process. This ensures that the final products meet the highest standards of performance and reliability.

Custom Your  Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval → [Make mold if needed (7 days) → Mold test] → Making samples(1~3 days) → Samples test(Approval) → place order for Mass production(2~3 weeks) → Quality checking → Packing → Delivery → After Service → Repeat Order.
