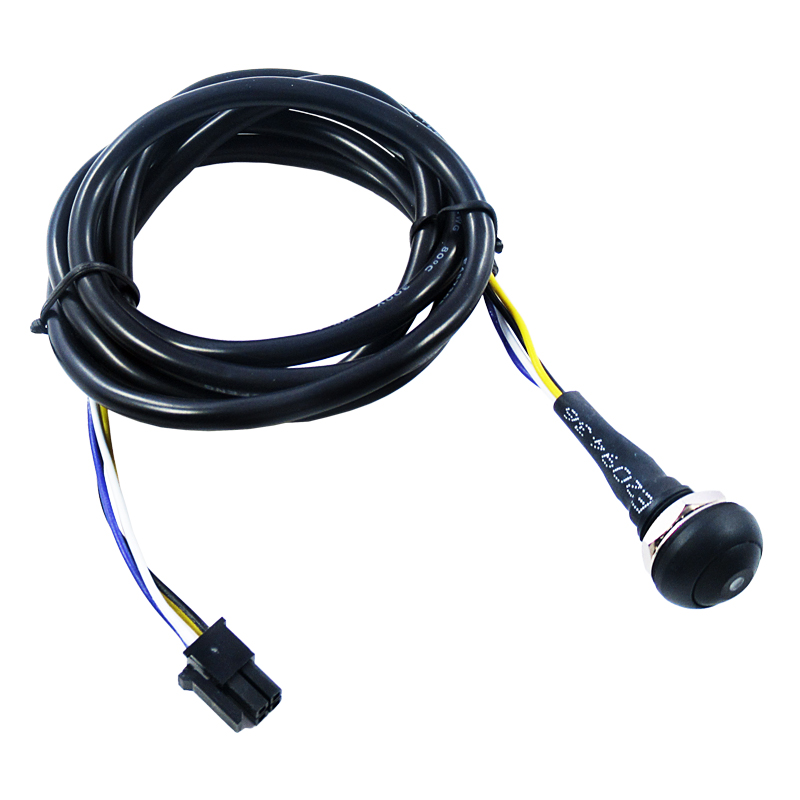

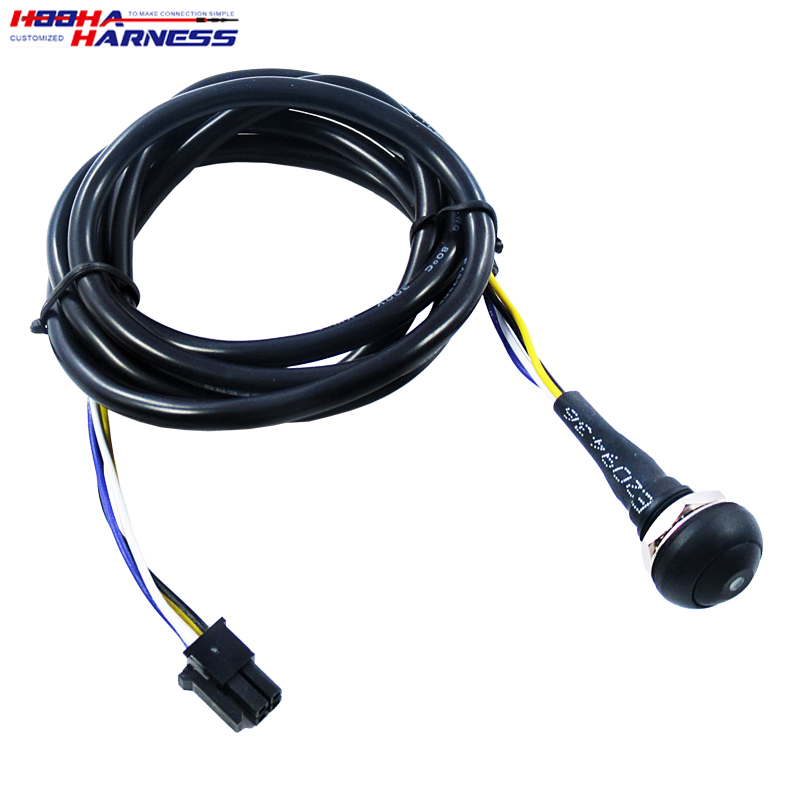

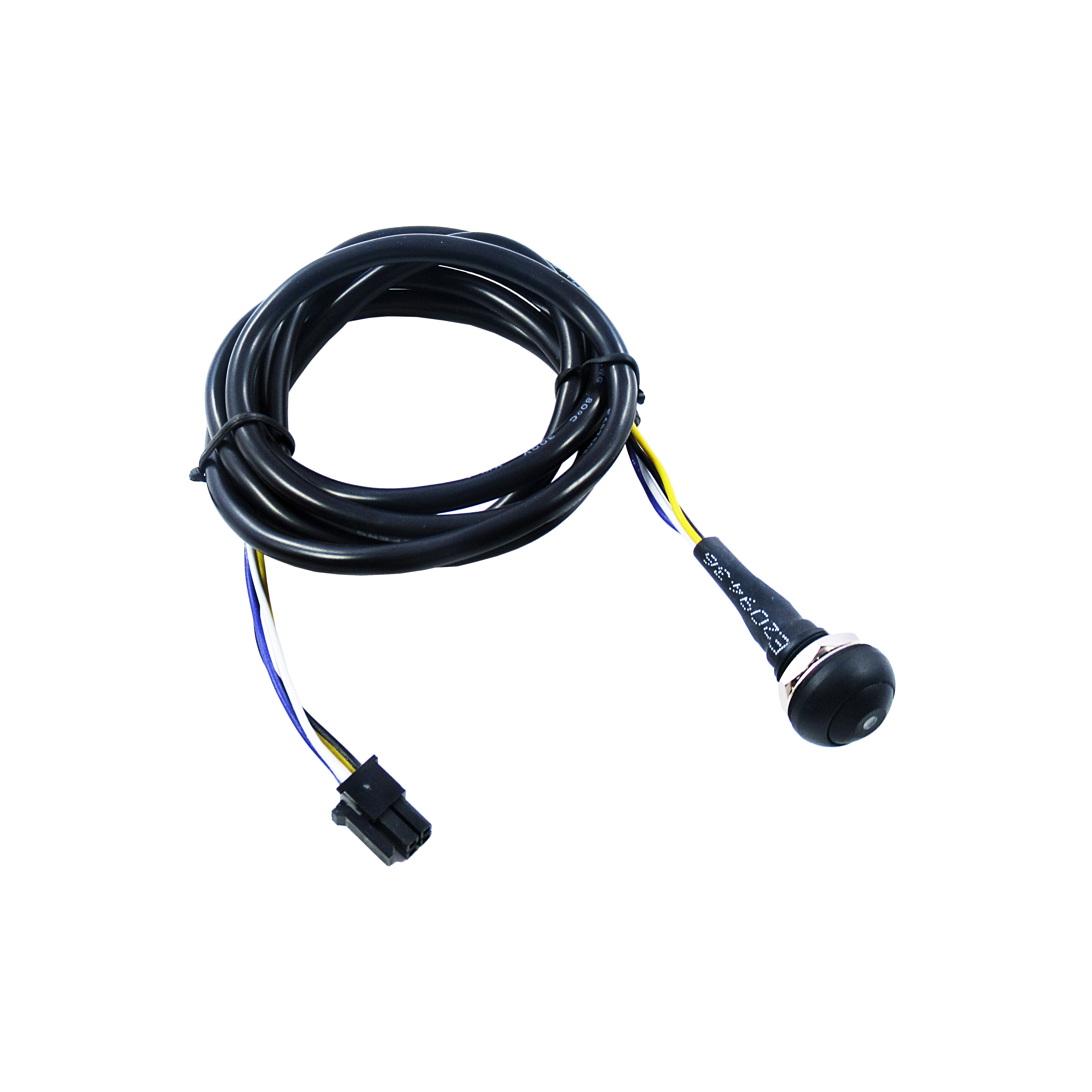

molex 4.2 pitch 5557 series 2*2pin dual row UL2464 style 20AWG 4core cable on off switch control extension wire harness
Molex 4.2 pitch 5557 series is a top-of-the-line connector that boasts exceptional performance and reliability. This dual row, 2*2pin configuration is perfect for applications where space is at a premium but you still need to maintain high levels of connectivity.
The UL2464 style cable used in this wire harness features four cores of 20AWG wire, providing ample power and signal transfer capabilities. And with an on/off switch control extension included, you can easily manage your connections without having to unplug anything.
This wire harness also comes equipped with a range of other impressive features, including its ability to handle wire gauges ranging from 0AWG-30AWG. So whether you're working on a small-scale project or something much larger, this versatile harness has got you covered.
Overall, the Molex 4.2 pitch 5557 series wire harness represents the pinnacle of modern connectivity technology - delivering unparalleled performance and reliability in even the most demanding environments.
Molex 4.2mm Pitch 5557 Series Wire Harness

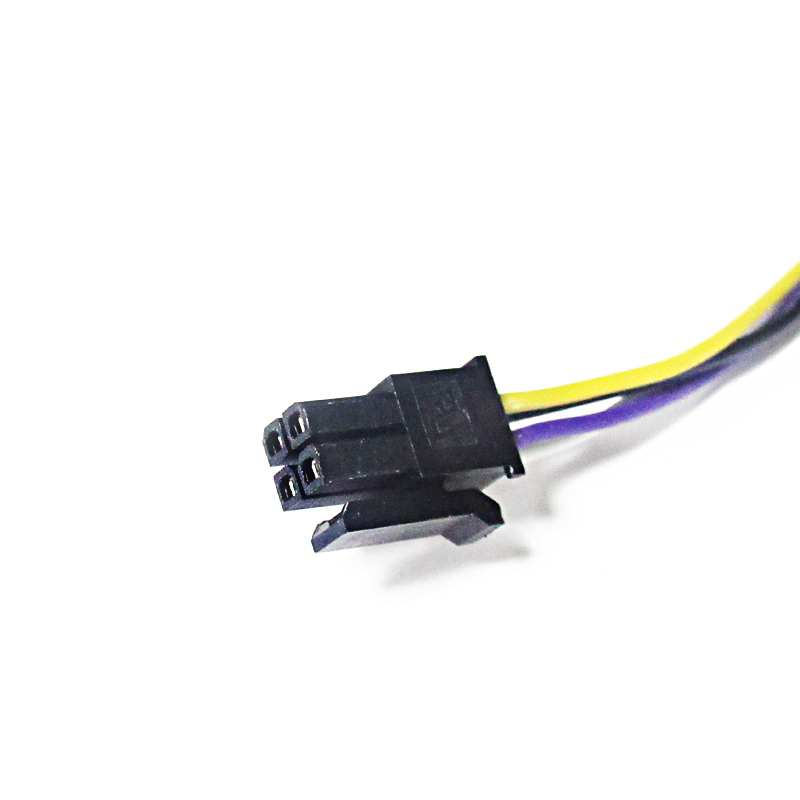

2×2-pin dual row configuration
Polarized housing design
20AWG conductors (4-core)

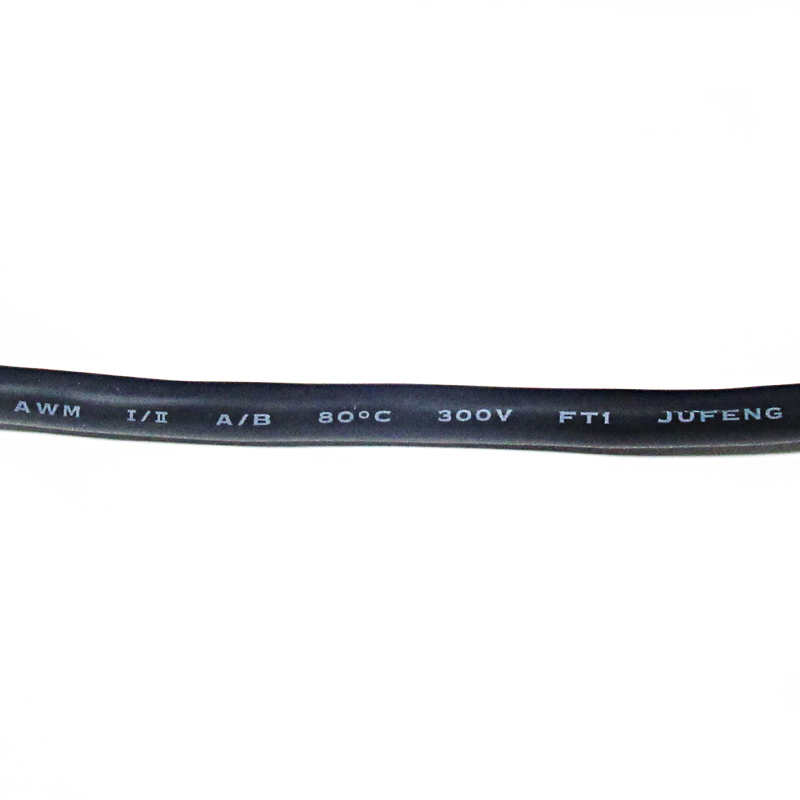

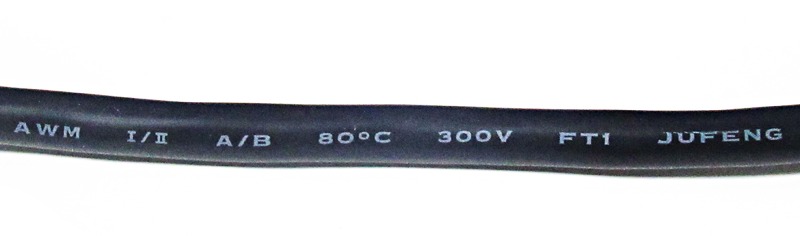

PVC insulation (80°C rating)
OD: 4.8±0.2mm
Current: 7A per circuit
Contact resistance: ≤10mΩ
Insulation resistance: ≥1000MΩ

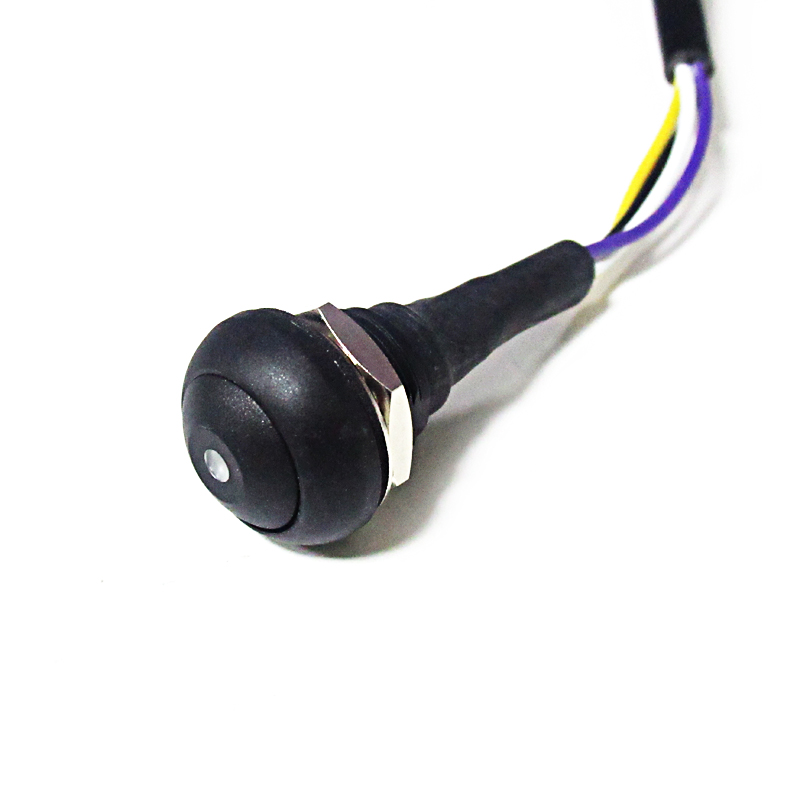

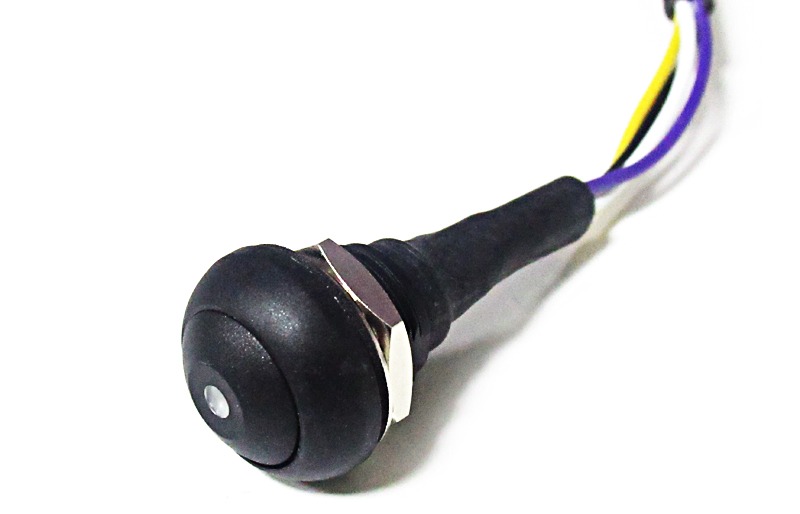

IP54 rated switch housing
Standard extension length: 300mm
Custom lengths available
Industrial Applications
- Control panel wiring for PLC systems
- Sensor and actuator connections
- Motor control circuit extensions
- Power supply unit connections
- UPS and battery backup systems
- Electrical distribution panels
- Remote control station wiring
- Emergency stop circuit extensions
- Safety interlock systems
Molex 4.2 pitch 5557 series 2*2pin dual row UL2464 style 20AWG 4core cable on off switch control extension wire harness
Related Products:
How to custom your own wire harness?
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
