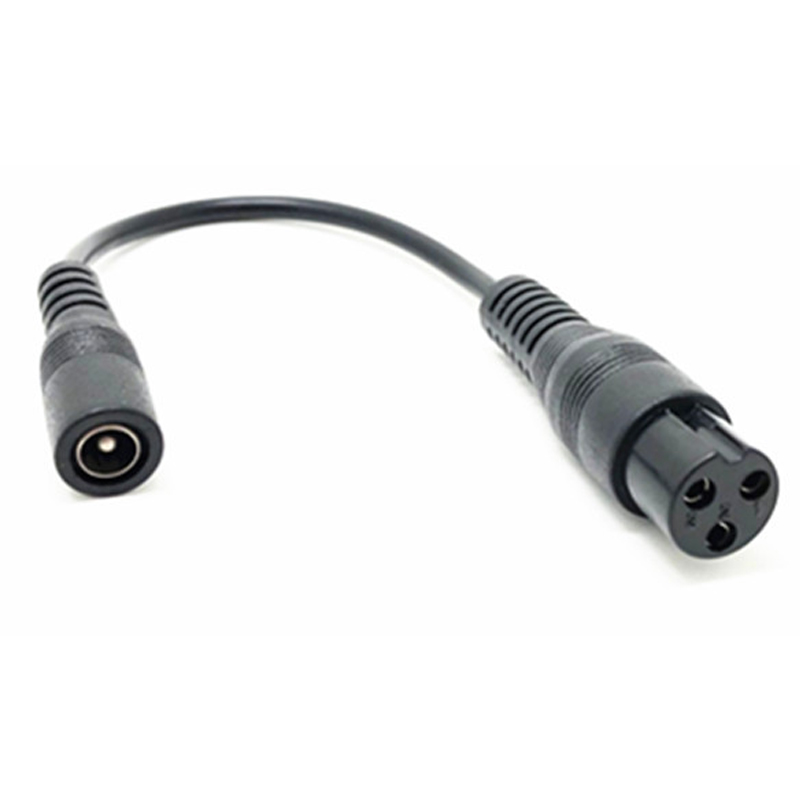

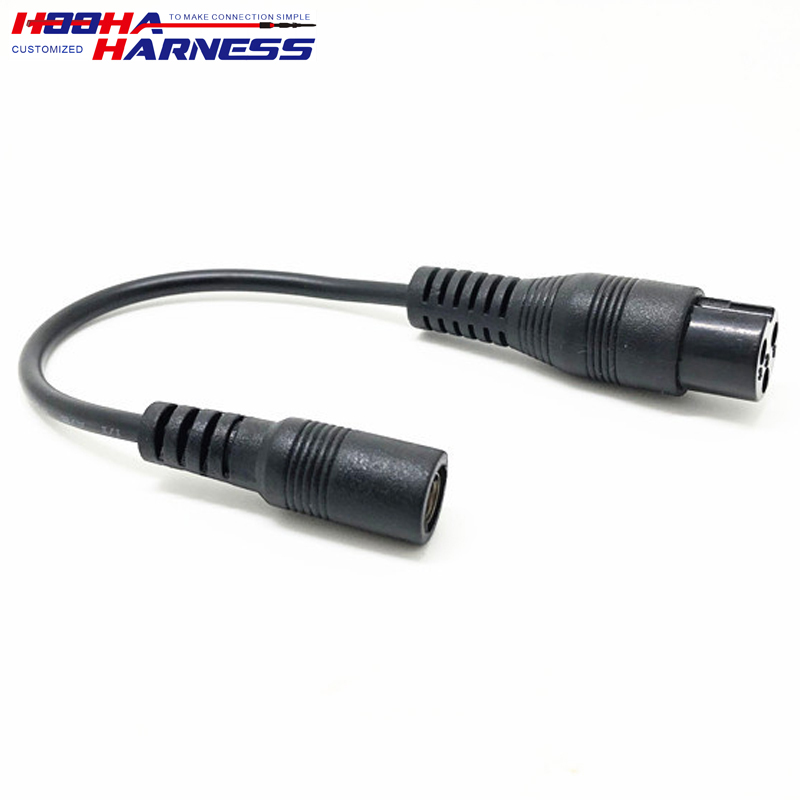

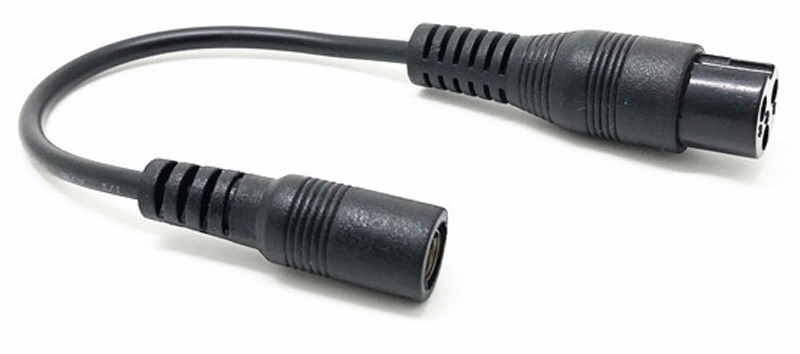

DC5521 to GX16 3pin cable
Professional-Grade Power Transmission Solution
Engineered for reliable 10A/250V power delivery, our DC5521 to GX16 cable features industrial-grade tin-plated copper conductors with 99.9% oxygen-free composition ensuring <1% voltage drop. The triple-layer EMI/RFI shielding maintains signal integrity even in high-interference environments, while IP67-rated connectors withstand dust/water exposure for outdoor applications.
Uncompromising Durability
Constructed with UL94V-0 flame-retardant PVC jackets, this cable withstands 5,000+ mating cycles and operates reliably across extreme temperatures from -40°C to +105°C. The military-spec GX16 aviation connectors feature 12mm threaded couplings and double O-ring seals for vibration-resistant connections.
TECHNICAL SPECIFICATIONS

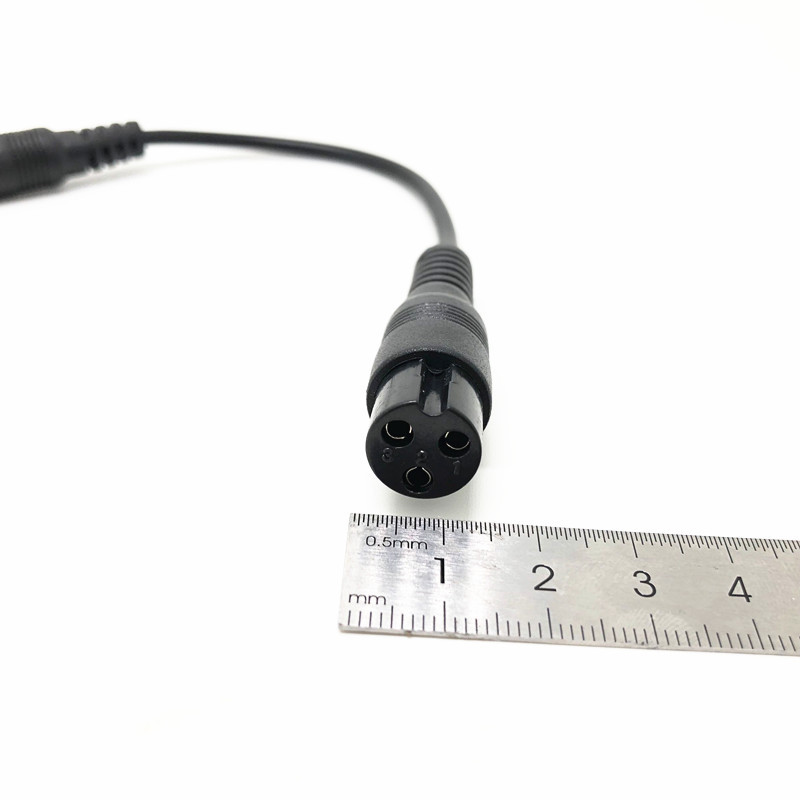

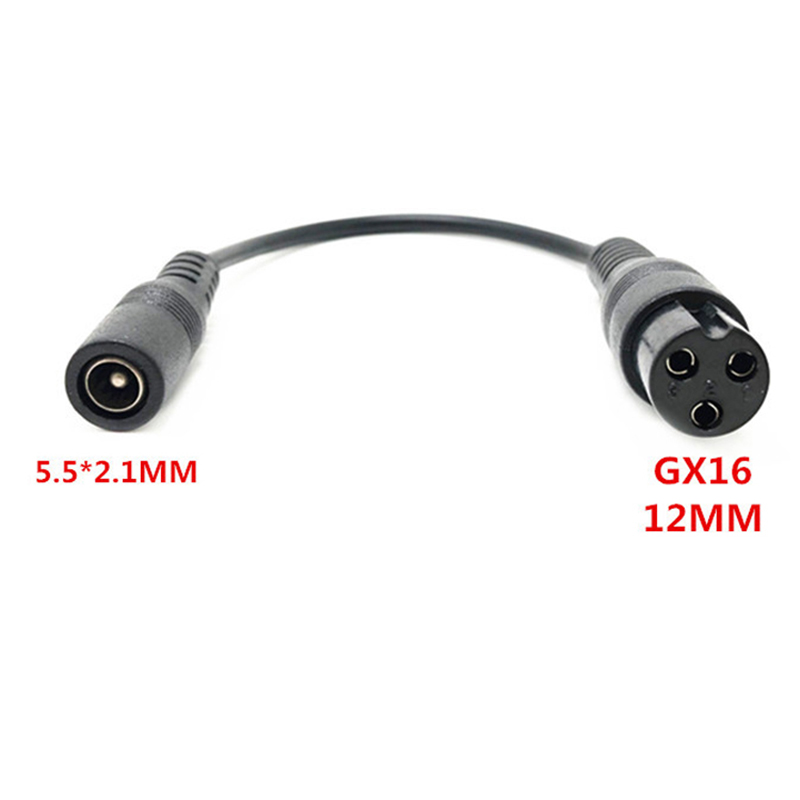

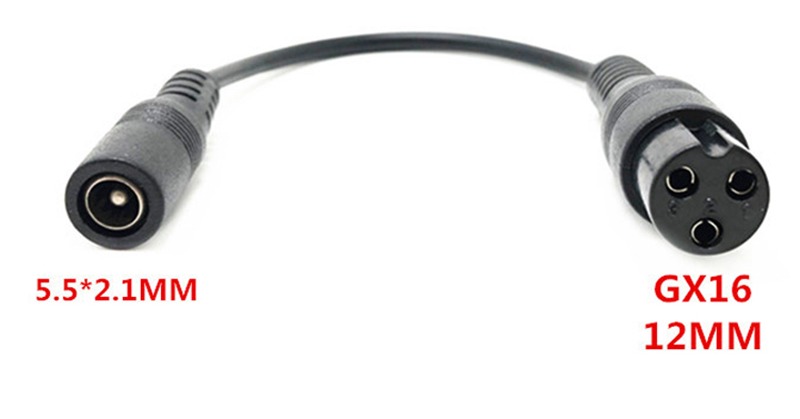

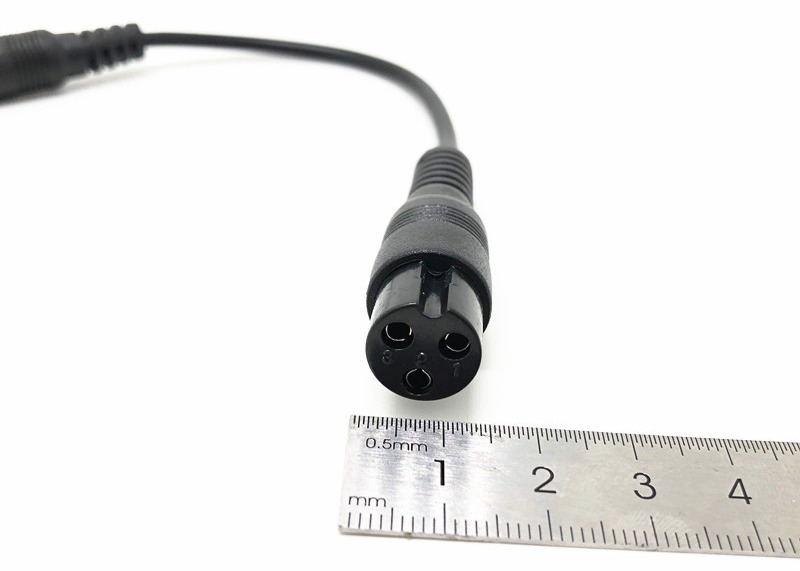

Connectors: DC5521 (5.5×2.1mm) to GX16-3 (12mm)
Current Rating: 10A continuous @ 25°C
Voltage Rating: 250V AC/DC max
Conductors: 18AWG tin-plated copper (3C)
Insulation: 1500MΩ min @ DC500V
Operating Temp: -40°C to +105°C
Compliance: UL/CE/RoHS certified
INDUSTRY APPLICATIONS
• Industrial automation control panels
• Outdoor LED lighting systems
• Telecom equipment power distribution
• Medical diagnostic devices
• Security camera power systems
• Marine/RV electrical installations
• Robotics and drone charging
PERFORMANCE ADVANTAGES
✓ Low-Loss Power Transmission
Optimized 18AWG conductors deliver <1% voltage drop at 1.5m length
✓ Environmental Durability
IP67-rated connectors prevent corrosion in humid/salty environments
✓ Secure Connections
Threaded GX16 couplings maintain contact during vibration/shock
✓ EMI Protection
Triple-layer shielding reduces interference by 40dB @ 100MHz
CUSTOMIZATION SOLUTIONS
✓ Tailored Lengths
Available from 0.5m to 15m (±2cm tolerance)
✓ Specialized Colors
Custom jacket colors available for system identification
✓ Wire Gauge Options
Select 16AWG or 20AWG conductors based on amperage needs
✓ Certification Support
Compliance with specific regional standards on request
CONNECTOR PINOUT REFERENCE
[Upload connector diagram image via WordPress media library]
Standard Configuration:
DC5521: Center positive (+), Outer sleeve (-)
GX16 Pins: Pin1(+), Pin2(-), Pin3(Ground)



Related Products:

How to custom your own wire harness?
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
