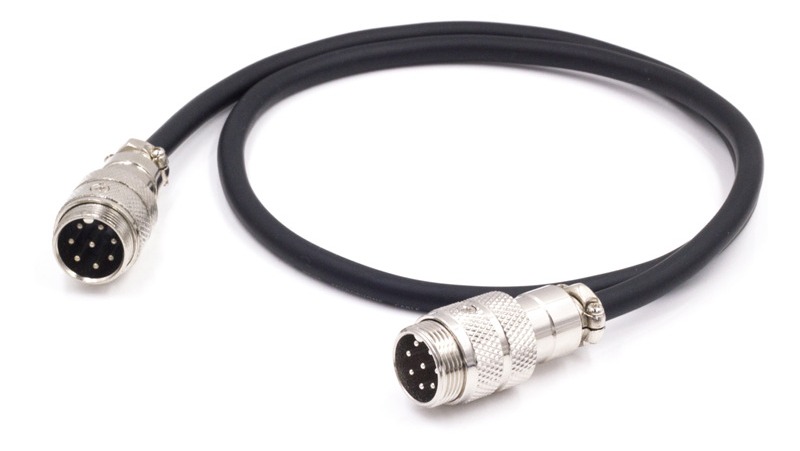

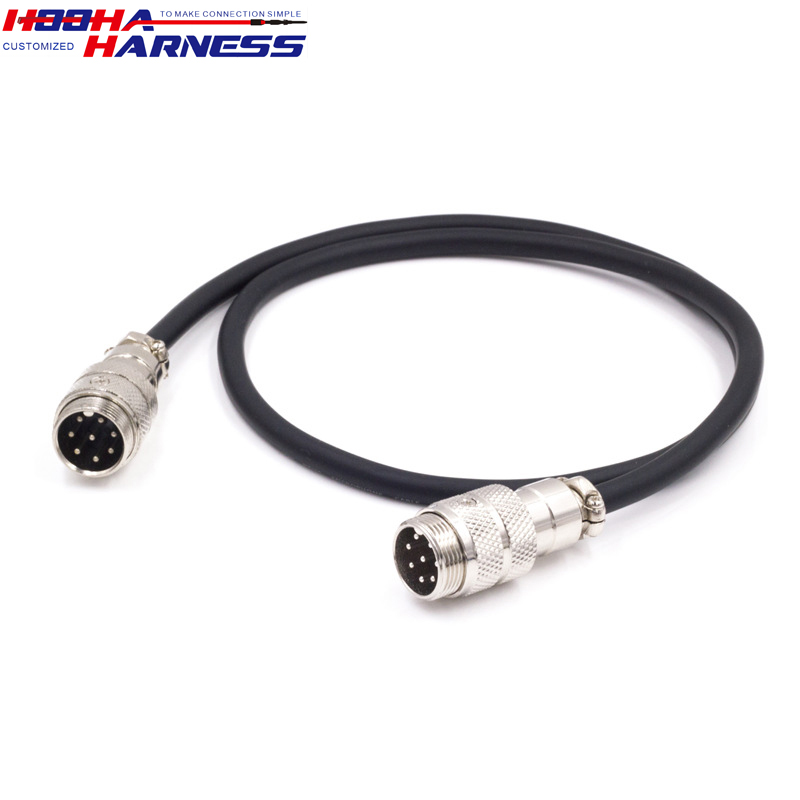

GX16 connector 8pin male to male cable
The GX16 connector 8pin male-to-male cable is an essential component for any electronic setup. This high-quality cable ensures a seamless connection between devices, allowing for smooth data transfer and reliable performance.
Crafted with precision and care, this cable boasts superior durability and longevity. Its sturdy construction guarantees that it can withstand even the toughest conditions, making it ideal for use in industrial settings or outdoor environments.
Whether you're connecting audio equipment, video displays, or other electronic devices, the GX16 connector 8-pin male-to-male cable delivers exceptional results every time. With its advanced design and cutting-edge technology, this cable is sure to exceed your expectations and provide you with unparalleled performance. So why wait? Invest in the best today!
GX16 Connector 8-Pin Male-to-Male Cable
Professional-grade connectivity solution designed for mission-critical applications. This GX16 8-pin cable features military-grade phosphor bronze contacts with 3μm gold plating, ensuring stable signal transmission with <1.5Ω contact resistance. Engineered to operate reliably at -40°C to +85°C, it delivers 5000+ mating cycles durability with IP67 sealing when fully engaged.
With 22AWG stranded copper conductors and double-shielded construction, it provides EMI/RFI rejection >90dB at 1GHz, making it ideal for sensitive industrial, audio/video, and automation systems.
- Current Rating: 2A per pin
- Wire Gauge: 22AWG tinned copper
- Dielectric Withstand: 1000V AC
- Insulation: Dual-layer PVC
Color flexibility: Tailored jacket coloring available for bulk orders (MOQ: 100 units).
Length variations: Available in 0.5m to 10m options with anti-kink reinforcement.

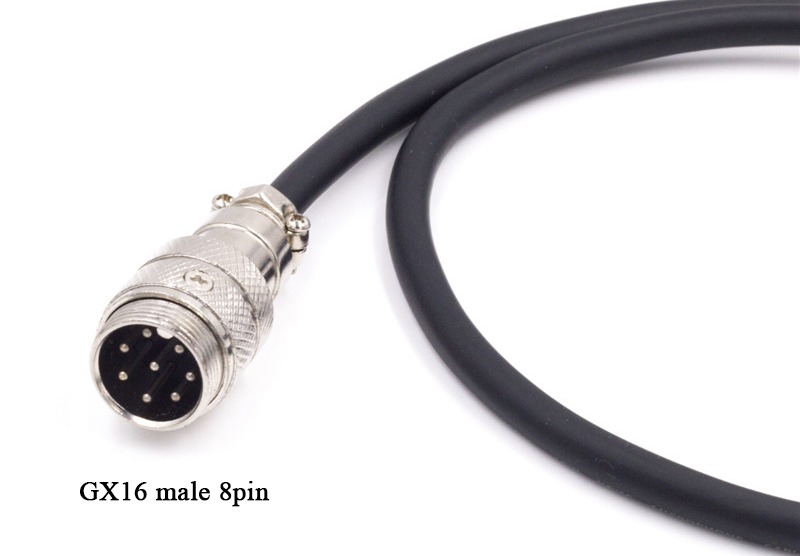

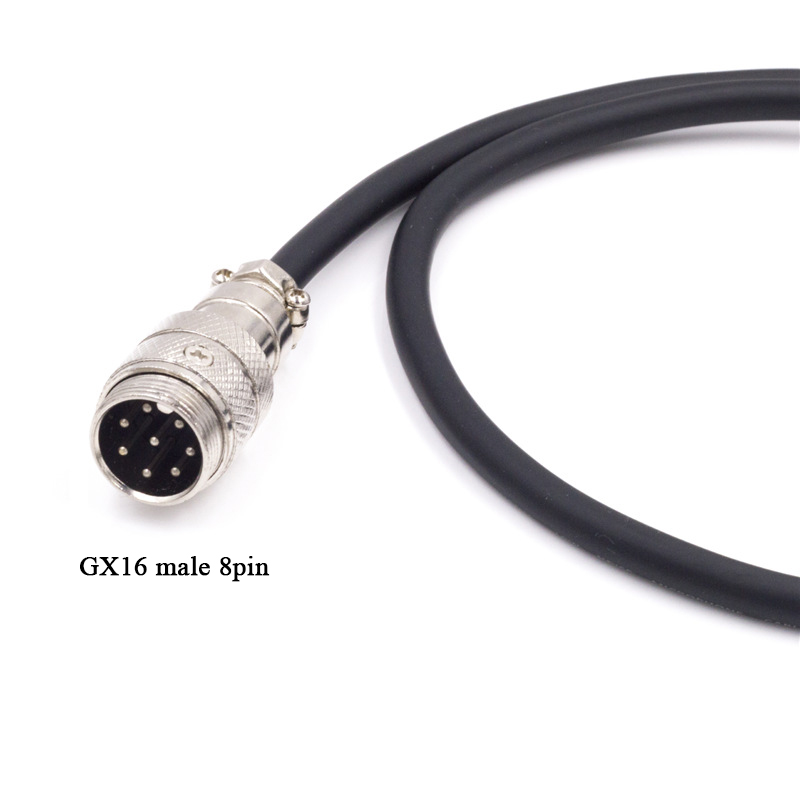

- Connector Type: GX16-8 male threaded coupling
- Housing Material: Nickel-plated brass (salt spray 96hrs+)
- Locking Mechanism: M16×1 thread with anti-vibration lockwasher
- Voltage Rating: 300V AC/DC RMS
- Contact Resistance: ≤3mΩ initial (IEC 60512)
- Insulation Resistance: >5000MΩ at 500VDC
- Operating Temp: -40°C to +85°C
- Ingress Protection: IP67 when mated (IEC 60529)
- Vibration Resistance: 10Hz to 2000Hz, 15G peak
- PLC control cabinet wiring
- Robotic arm servo connections
- CNC machine sensor interfaces
- Stage lighting control networks
- Broadcast equipment interconnects
- Modular synthesizer patching
- IP surveillance camera wiring
- Marine navigation systems
- Agricultural sensor networks
(custom options available)
