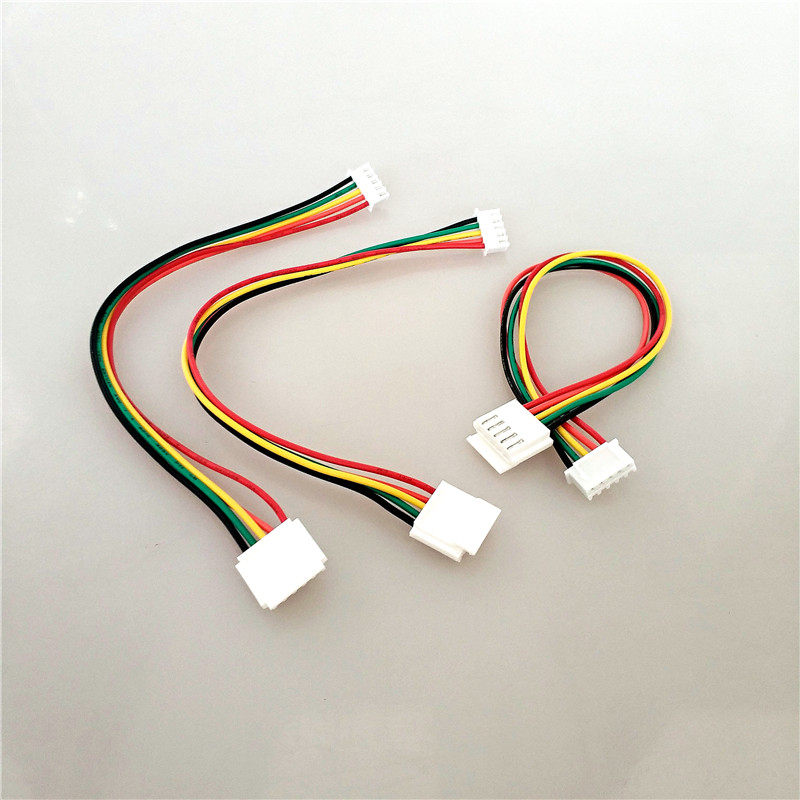

JST NH H5P-SHF-AA to XHP 5pins XHP-5 connector cable wire harness manufacturer
JST NH connector Specifications:
Current rating: 3 A AC/DC (AWG #22)
Voltage rating: 250 V AC/DC
Temperature range: -25'C to +85°C (including temperature rise in applying electrical current
Contact resistance: lnitial value/ 15 MΩ max. After environmental tests/ 20 MΩ max.
Insulation resistance: 500 MΩ min.
Withstanding voltage: 1,500 VAC/minute
Applicable wire: AWG #30 to #22
Applicable PC board thickness: 1.6 mm

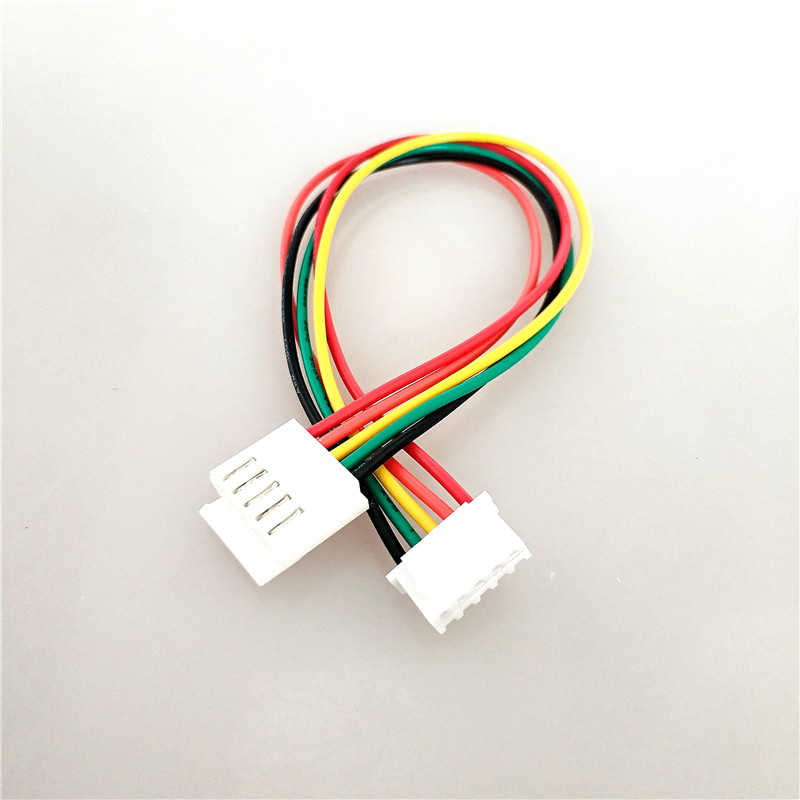

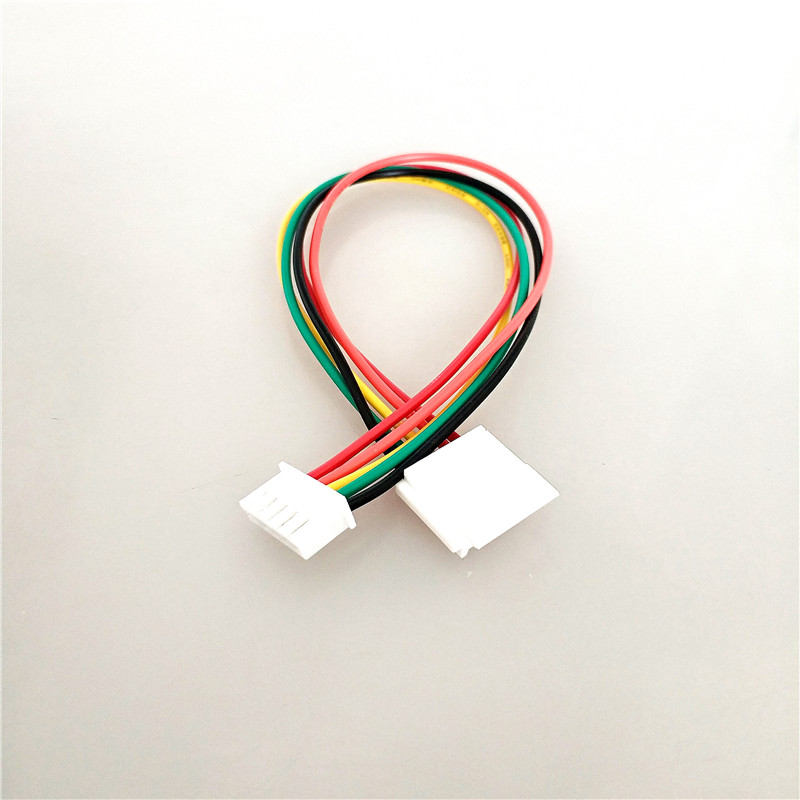

This is a custom wire harness that has been specifically designed to meet the unique needs of a customer based in the United States. The wire harness is an essential component used in their high-density equipment products, and it features a JST NH series connector with a 2.5mm pitch and 5-pin configuration. The part number for this custom wire harness assembly is H5P-SHF-AA.

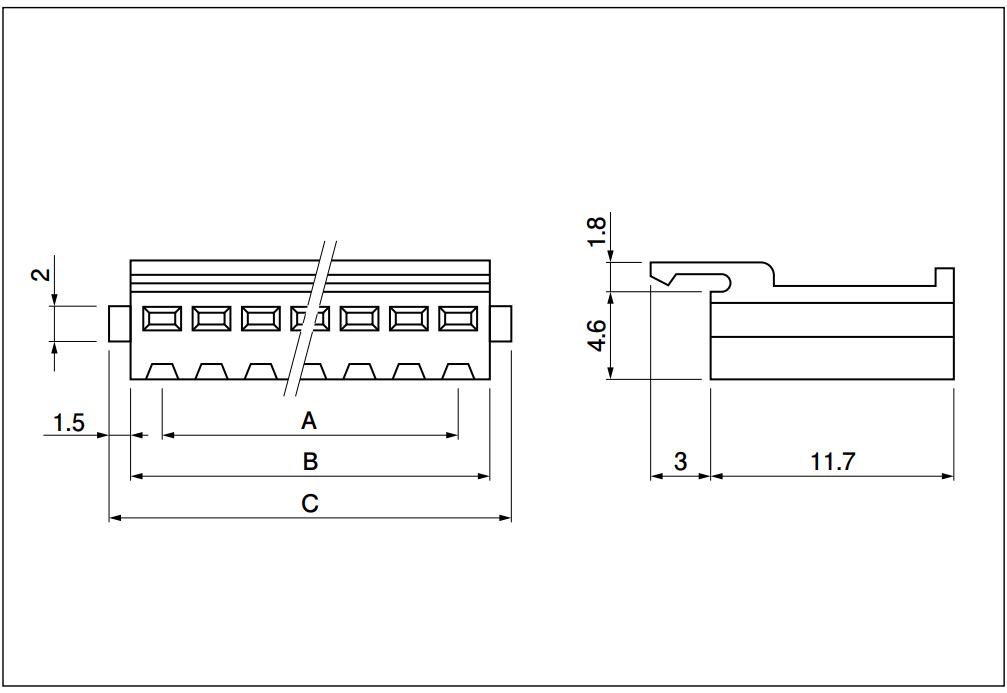

Related NH series connectors part number and specs:
| No.of circuits |
Model No. | Dimensions(mm) | Q'ty/ bag |
||
| A | B | C | |||
| 2 | H2P-SHF-AA | 2.5 | 5.7 | 8.7 | 1,000 |
| 3 | H3P-SHF-AA | 5.0 | 8.2 | 11.2 | 1,000 |
| 4 | H4P-SHF-AA | 7.5 | 10.7 | 13.7 | 1,000 |
| 5 | H5P-SHF-AA | 10.0 | 13.2 | 16.2 | 1,000 |
| 6 | H6P-SHF-AA | 12.5 | 15.7 | 18.7 | 1,000 |
| 7 | H7P-SHF-AA | 15.0 | 18.2 | 21.2 | 500 |
| 8 | H8P-SHF-AA | 17.5 | 20.7 | 23.7 | 500 |
| 9 | H9P-SHF-AA | 20.0 | 23.2 | 26.2 | 500 |
| 10 | H10P-SHF-AA | 22.5 | 25.7 | 28.7 | 500 |
| 11 | H11P-SHF-AA | 25.0 | 28.2 | 31.2 | 500 |
| 12 | H12P-SHF-AA | 27.5 | 30.7 | 33.7 | 500 |
| 13 | H13P-SHF-AA | 30.0 | 33.2 | 36.2 | 500 |
| 14 | H14P-SHF-AA | 32.5 | 35.7 | 38.7 | 500 |
| 15 | H15P-SHF-AA | 35.0 | 38.2 | 41.2 | 200 |
| 16 | H16P-SHF-AA | 37.5 | 40.7 | 43.7 | 200 |
| 18 | H18P-SHF-AA | 42.5 | 45.7 | 48.7 | 200 |
| 20 | H2OP-SHF-AA | 47.5 | 50.7 | 53.7 | 200 |
| 21 | H21P-SHF-AA | 50.0 | 53.2 | 56.2 | 200 |
| 22 | H22P-SHF-AA | 52.5 | 55.7 | 58.7 | 200 |
| 24 | H24P-SHF-AA | 57.5 | 60.7 | 63.7 | 200 |
| 25 | H25P-SHF-AA | 60.0 | 63.2 | 66.2 | 200 |
At Hooha Harness, we are proud to be professional custom wire harness manufacturers based in China. With our extensive experience in creating automotive wire harnesses, we have the expertise needed to create any type of wire harness required by our clients.
Our team of skilled professionals works tirelessly to ensure that every single one of our custom-designed wire harnesses meets or exceeds industry standards for quality and reliability. We use only the highest-quality materials available, ensuring that each product we produce will stand up to even the most demanding applications.
Whether you need a simple wiring solution or a complex multi-circuit system, Hooha Harness can help you design and manufacture exactly what you need. Contact us today to learn more about how we can assist with your next project!
How to customize your wire harness?
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
