JST PH series connector 2.0 pitch custom wire harness assembly

JST PH Connector Customize Wire Harness Assembly

This series connector is ideal for applications that require high-density connections between internal wires and printed circuit boards. Its thin, low-profile design makes it easy to fit into tight spaces, while its reliable contact ensures a stable connection. The fully shrouded header provides additional protection against accidental disconnection or damage.

In addition, the printed circuit board retention mechanism helps to keep the connector securely in place during use. This feature is particularly important in applications where vibration or movement may be present.

The surface mount model (SMT) allows for easy installation onto the PCB without requiring any through-hole components. This not only saves space but also reduces assembly time and cost.

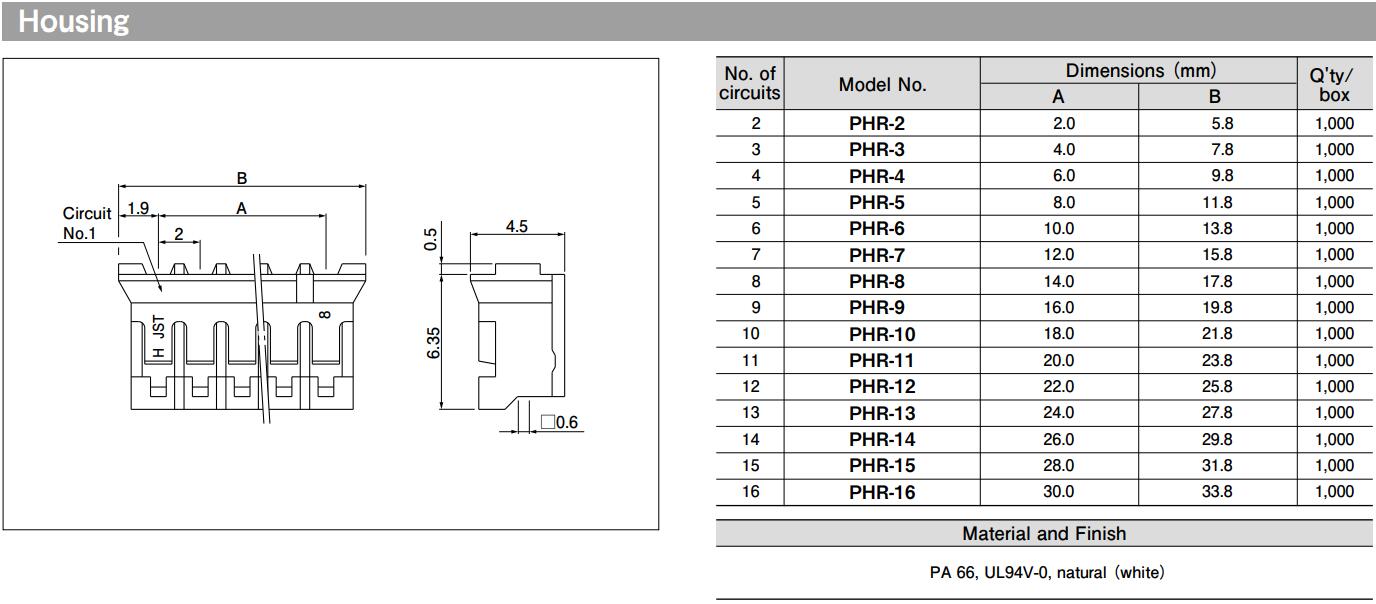

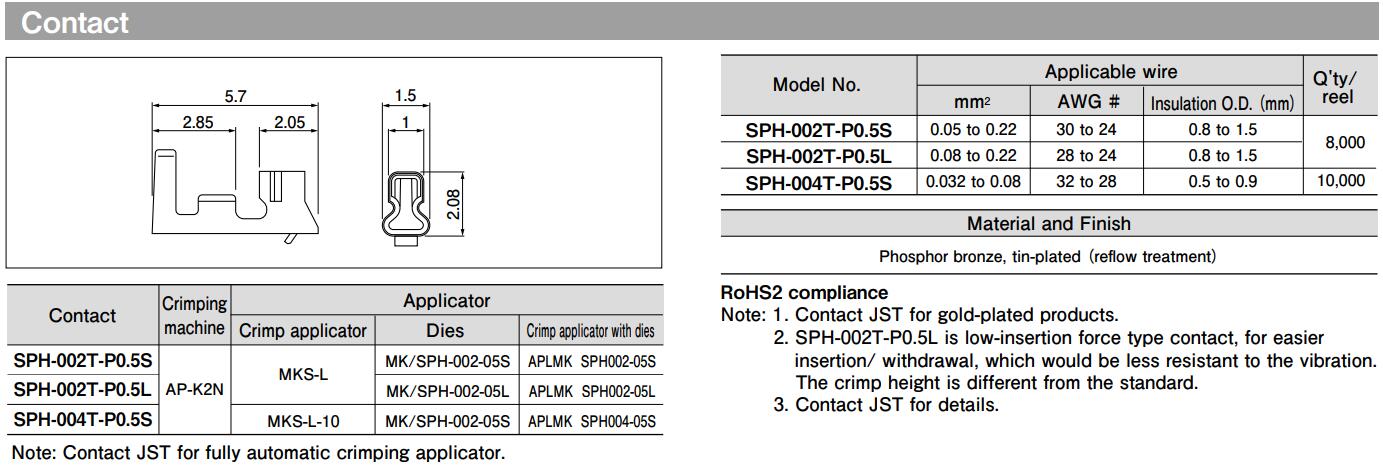

Connector Specifications

• Current rating: 2 A AC/DC (AWG #24)
• Voltage rating: 100 V AC/DC
• Temperature range: -25'C to +85°C(including temperature rise in applying electrical current)
• Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max
• Insulation resistance: 1,000 MΩ min.
• Withstanding voltage: 800 VAC/ minute
• Applicable wire: AWG #32 to #24
• Applicable PC board thickness: 0.8 to 1.6 mm

JST PH series 2.0mm pitch connector customized wire harness is a custom-made and top-quality wiring solution that offers exceptional performance and reliability for all your electrical needs. Whether you're working on a complete wire harness project or simply a wire-to-wire in your industrial equipment, this connector is the perfect choice.

Crafted with precision and care, the JST PH 2.0 mm pitch wire harness boasts superior durability and longevity, ensuring that it can withstand even the toughest conditions without compromising its functionality. Its compact design makes it easy to install and use, while its high-quality materials guarantee optimal conductivity and minimal signal loss.

With JST PH 2.0mm pitch connector, you can rest assured that your electrical connections will remain secure and stable at all times. If you also require a similar custom wire harness assembly service, please provide us with your customized wire harness drawing or diagram. As a professional manufacturer of custom wire harnesses since 2001, we possess extensive experience in producing any type of wire harnesses. All our products are manufactured according to IPC/WHMA-A-620 standards and meet the IATF16949 standard for automotive wire harnesses.

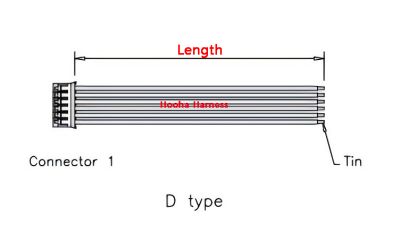

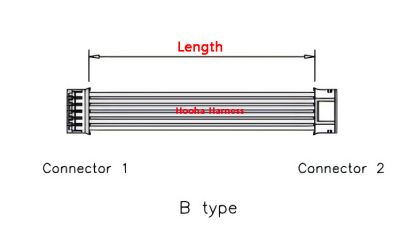

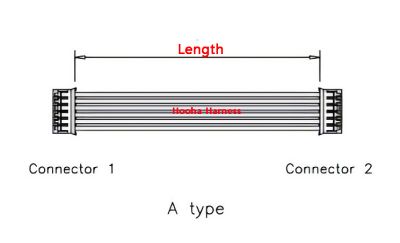

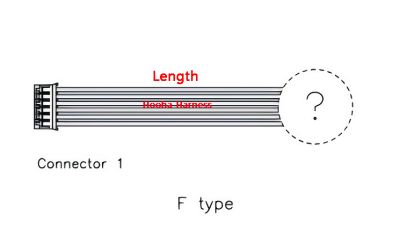

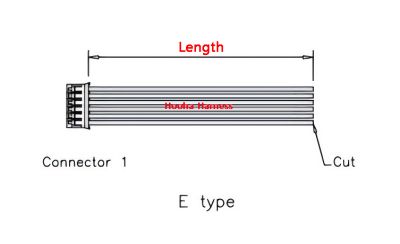

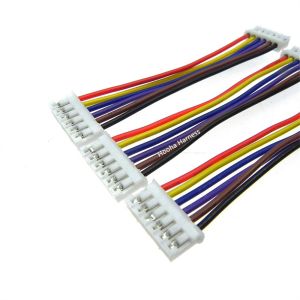

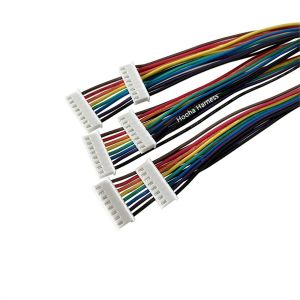

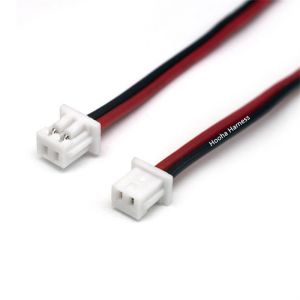

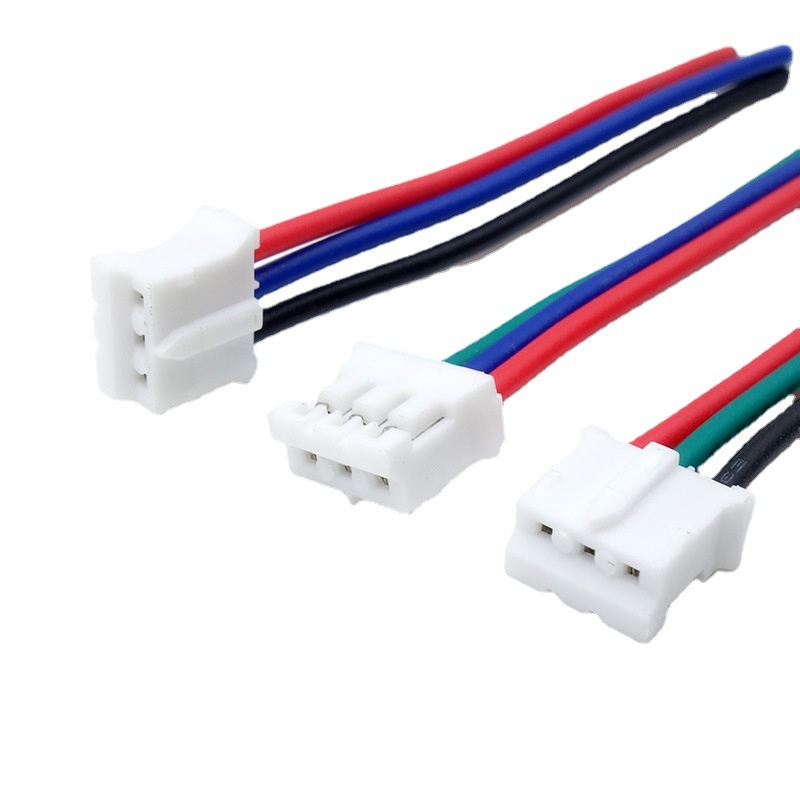

What JST PH Wiring Harness We Processed?

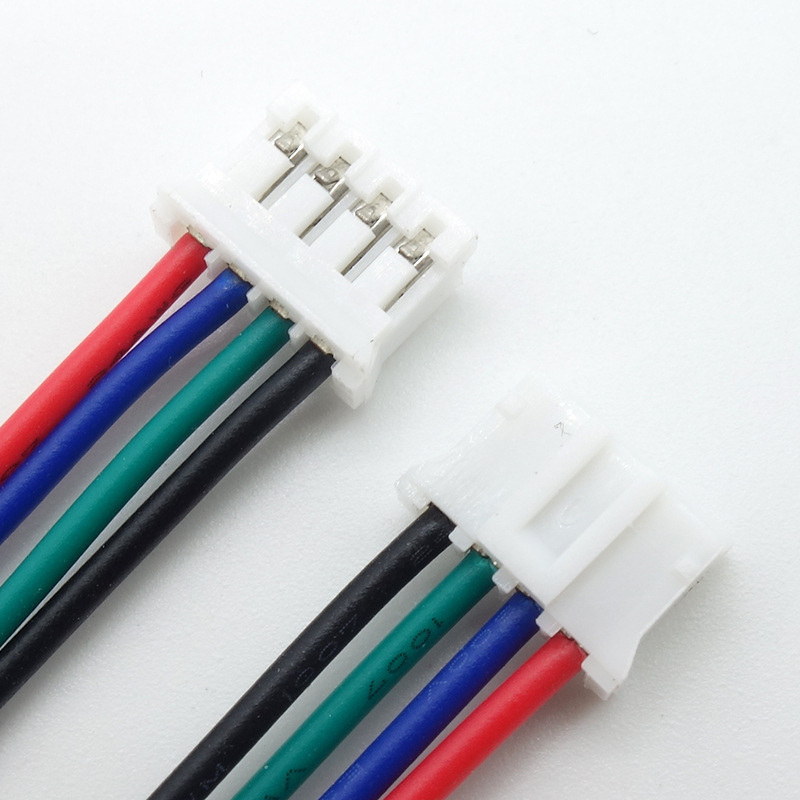

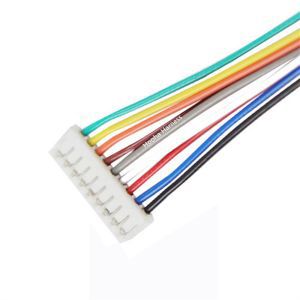

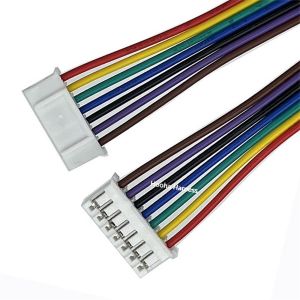

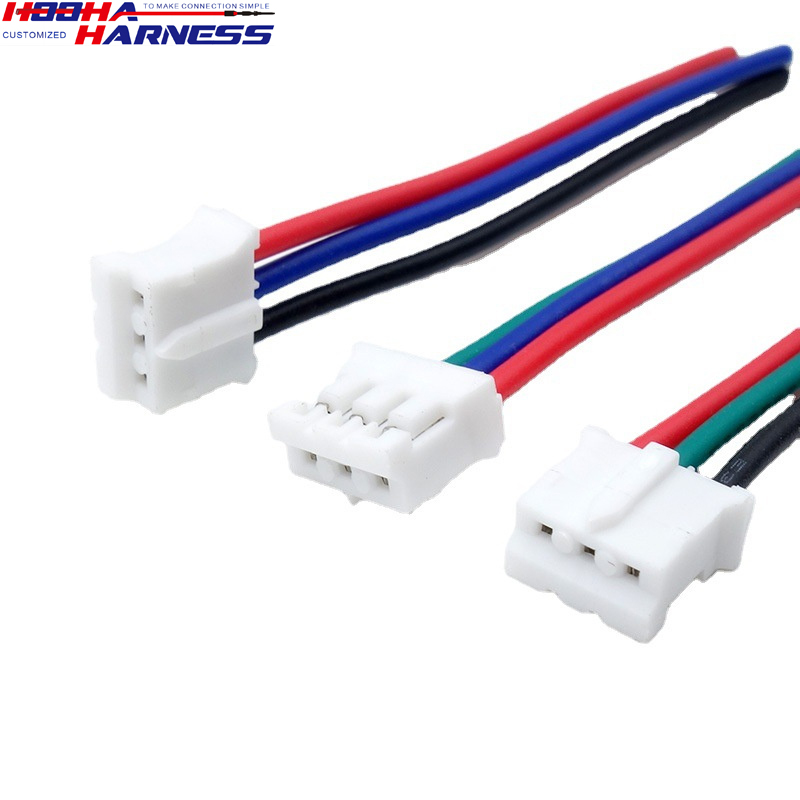

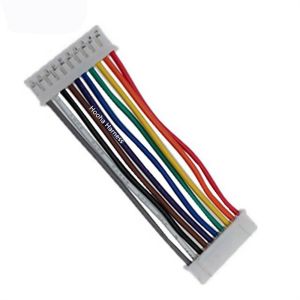

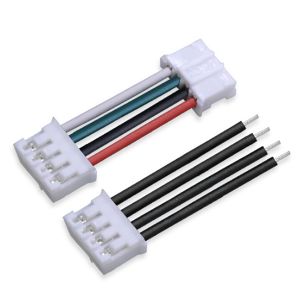

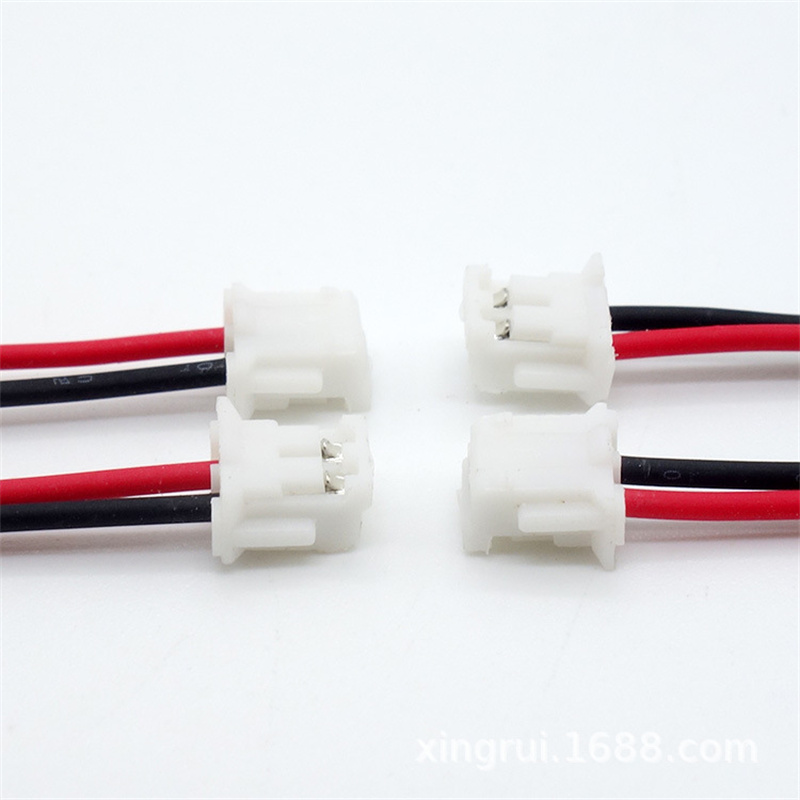

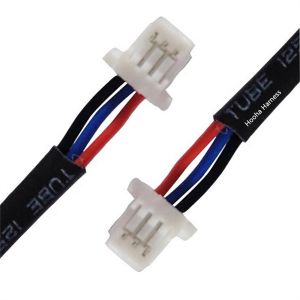

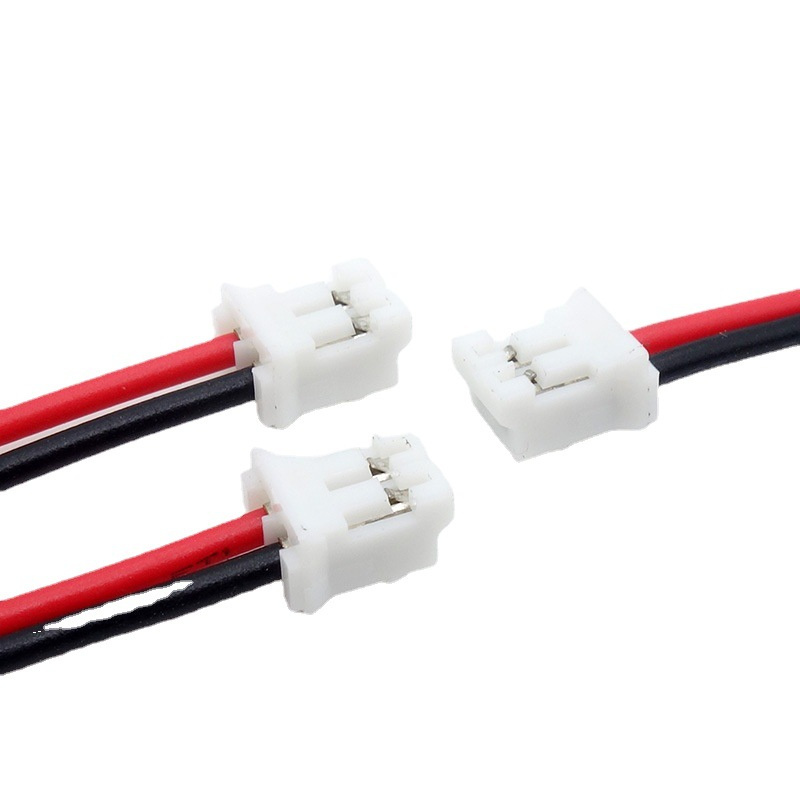

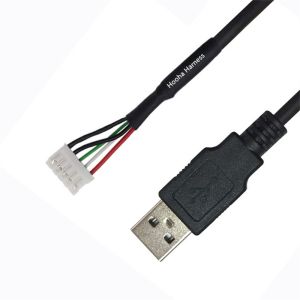

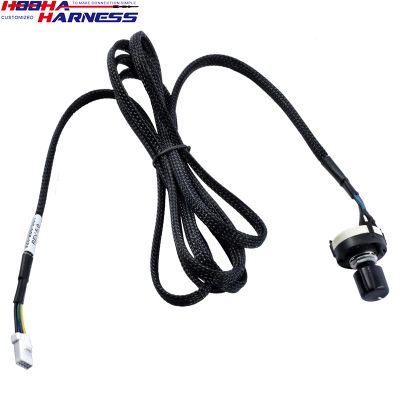

JST PH Wiring Harness Cases

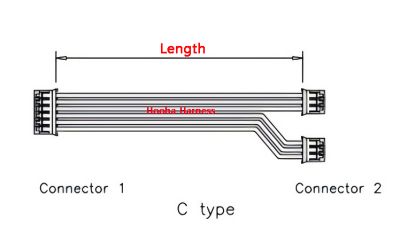

How to customize your wire harness?

Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
