JST SZN series connector custom wire harness assembly
- Connector support from 2Pin to 13Pin.
- Terminal fit for 30AWG~26AWG (OD: 0.7-1.1mm).
- Mounting onto printed circuit boards
- Current rating: 0.7A AC/DC (26AWG).
- Voltage rating: 50V AC/DC.
JST SZN Connector Custom Wire Harness
These are custom wire harnesses that have been specifically designed to meet the unique requirements of a valued customer all over the world. The customer requires their custom-made wire harnesses for use in their printed circuit board products, which are integral components of their cutting-edge technology.
These wire harnesses feature JST SZN series connectors with a 1.5mm pitch, part number listed below. This particular connector type was chosen due to its low-profile design, which boasts an impressively small mounting height of only 4.25mm and a thickness of just 2.4mm.
To ensure optimal performance and reliability, these custom wire harnesses will be soldered directly onto PC boards - providing secure connections that can withstand even the most demanding applications.
At Hooha Harness, we take great pride in delivering high-quality solutions that exceed our customers' expectations - and these custom-designed wire harnesses are no exception. We have worked closely with our client throughout every stage of the design process to ensure that all specifications were met precisely while also offering expert advice on how best to optimize performance and efficiency.
If you're looking for a reliable partner who can deliver customized wiring solutions tailored specifically to your needs - look no further than us!
JST SZN Connector Features
- Current rating: 0.7 A AC/DC (AWG #26)
- Voltage rating: 50 V AC/DC
- Temperature range: -25℃ to +85°C (including temperature rise in applying electrical current)
- Insulation resistance: 500 MA min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: AWG #30 to #26
- Applicable PC board thickness: 0.6 to 1.2 mm
JST SZN Connectors Part Numbers
| No. of circuits | Model No. |
| 2 | 2P-SZN |
| 3 | 3P-SZN |
| 4 | 4P-SZN |
| 5 | 5P-SZN |
| 6 | 6P-SZN |
| 7 | 7P-SZN |
| 8 | 8P-SZN |
| 9 | 9P-SZN |
| 10 | 10P-SZN |
| 11 | 11P-SZN |
| 12 | 12P-SZN |
| 13 | 13P-SZN |
The JST SZN connectors can accommodate wire sizes from AWG#26 to #30, with a maximum outer diameter of 1.3mm. They have a current rating of 1A and a voltage rating of 50V, making them suitable for low-power applications. Operating within the -25°C to +85°C temperature range, they maintain a contact resistance of up to 20mΩ and an insulation resistance of at least 500MΩ. These connectors can withstand voltages up to 500V AC per minute, ensuring reliable electrical connections in various environments.
The board-in connectors have a low mounting height of just 4.25mm and a slim thickness of 2.4mm, making them perfect for direct soldering onto printed circuit boards. The contact's resilient solder tail ensures easy assembly, while housing lances simplify contact insertion.
JST SZN Connector Custom Wire Harness

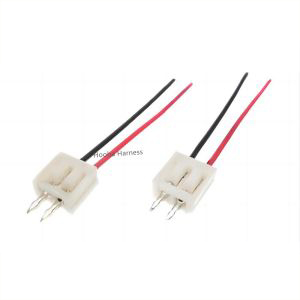

JST SZN 2 Pin Connector 2P-SZN Wiring

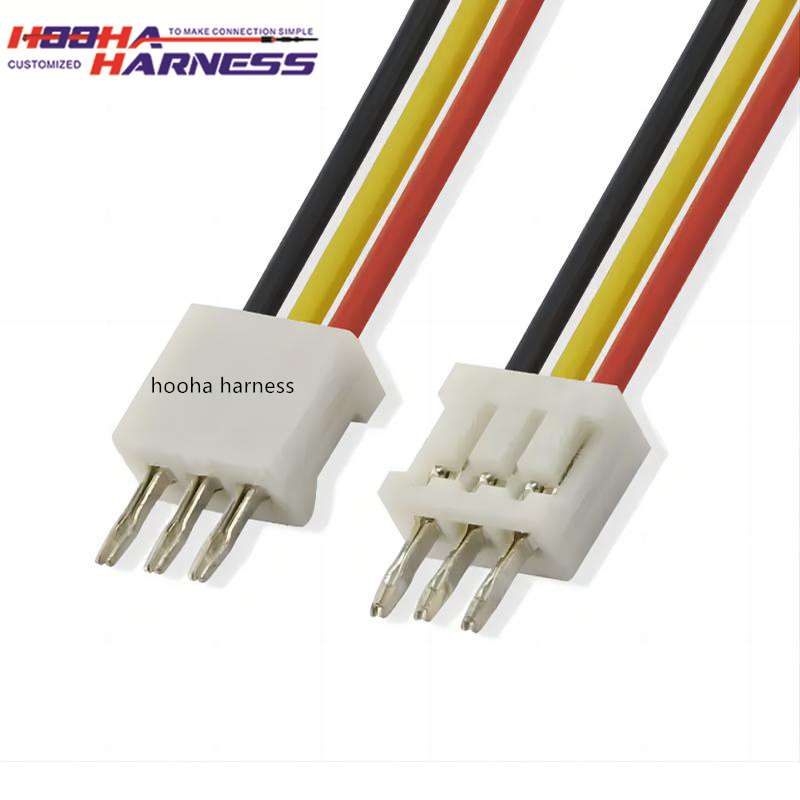

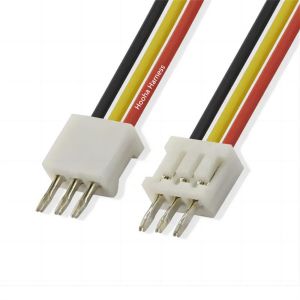

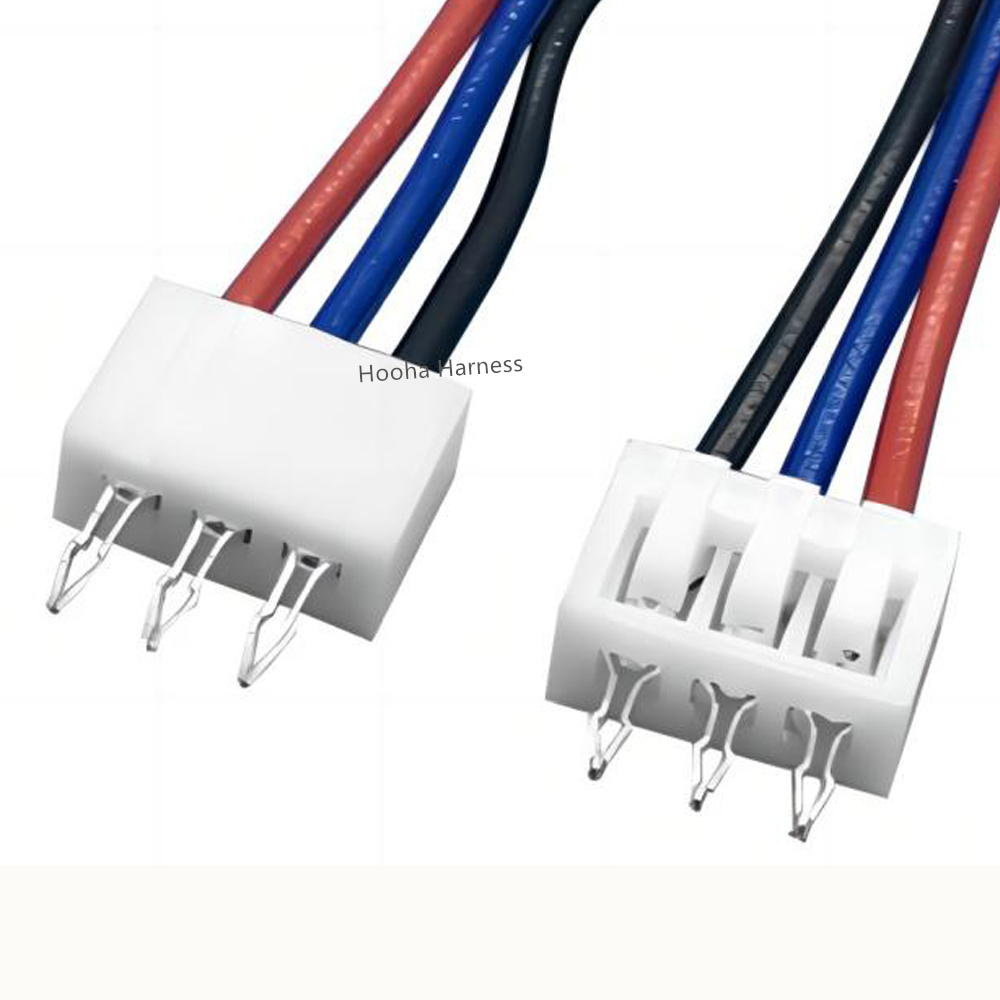

JST SZN 3 Pin Connector 3P-SZN Wiring

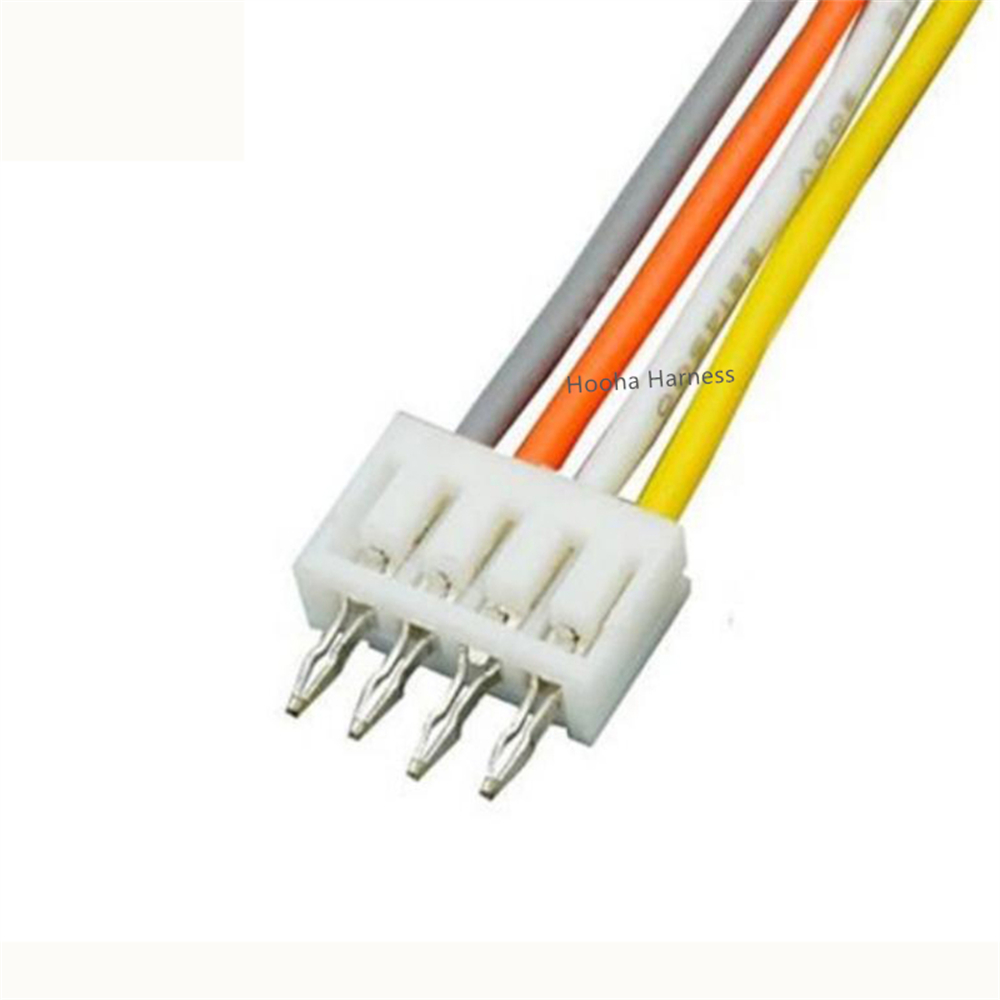

JST SZN 4 Pin Connector 4P-SZN Wiring

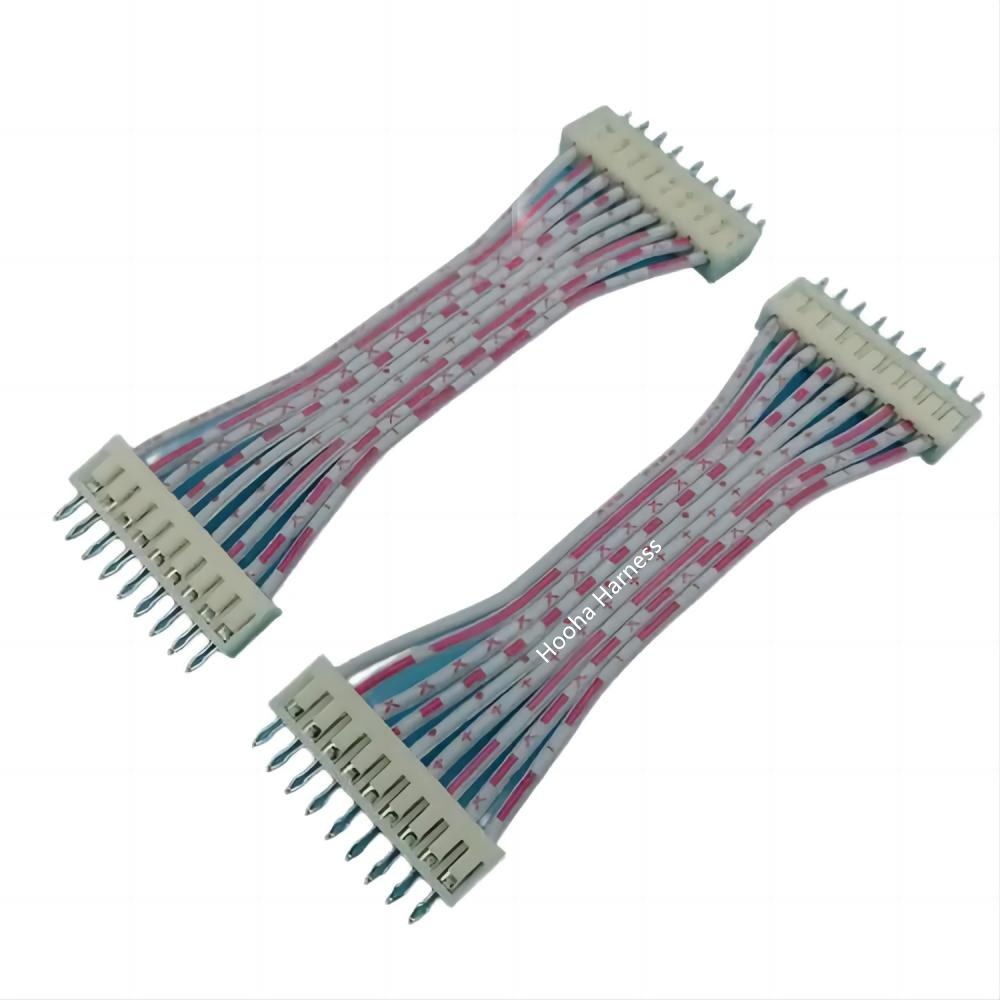

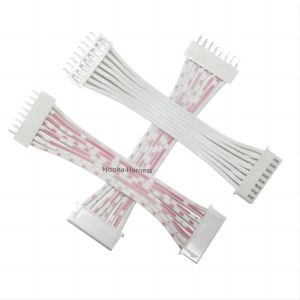

JST SZN 8 Pin Connector 8P-SZN Wiring
JST SZN 9 Pin Connector 9P-SZN Wiring

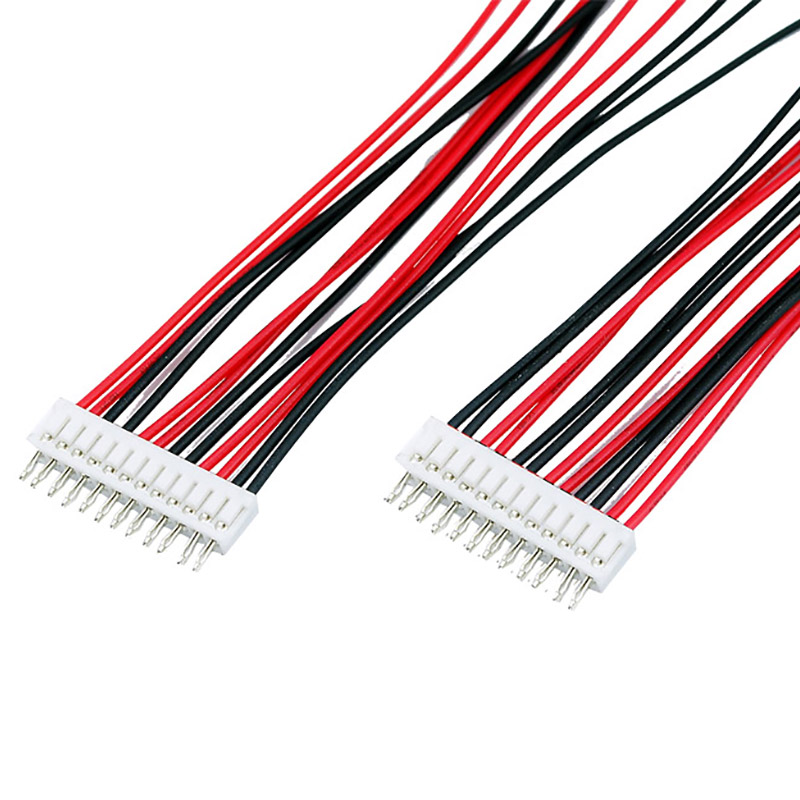

JST SZN 12 Pin Connector 12P-SZN Wiring
How to customize your wire harness?
