JST SJN 2.0mm Pitch Connector, Custom Wire Assembly
Product ID : 14081901
Product Attributes :
- 2.0mm pitch Board-in Crimp style connectors
- Crimp style, Board-in connector Board-in connector
- Side entry type board-in connector, with a mounting height of only 2.8 mm and a thickness of 4.9 mm.
- Housing lances
- Easy mounting onto printed circuit boards
- Connector support 2 Pin to 11 Pin.
- Terminal fit for 28AWG~22AWG (OD: 0.9-1.4mm).
- Current rating: 3A AC/DC max (22AWG).
- Withstanding Voltage: 800V AC/DC max.
- Wire Style: support UL1571, UL1061, UL1007, UL1569, etc.
- Wire Color: red, black, white, yellow, green, blue, orange, purple, and dual colors.
Product Description
Connector Specifications
- Current rating: 3 A AC, DC (22AWG)
- Voltage rating: 250 V AC, DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 800 VAC/minute
- Applicable wire: AWG #28 to #22
- Applicable PC board thickness: 1.2 to 1.6 mm
- Compliant with RoHS.

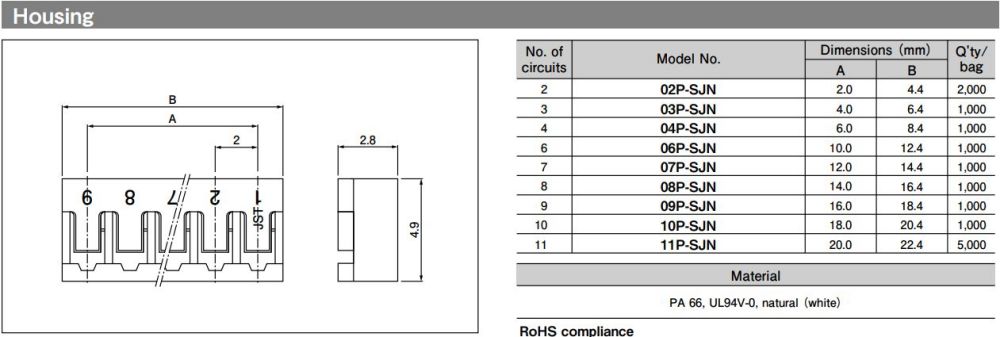

Connector Housing and Part Number

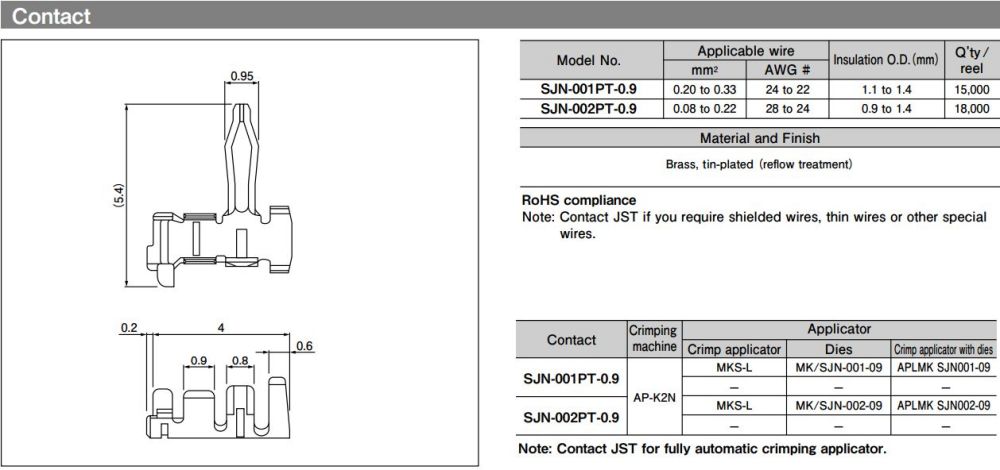

Connector Terminal
>>> JST SJN Connector Wiring Cases <<<

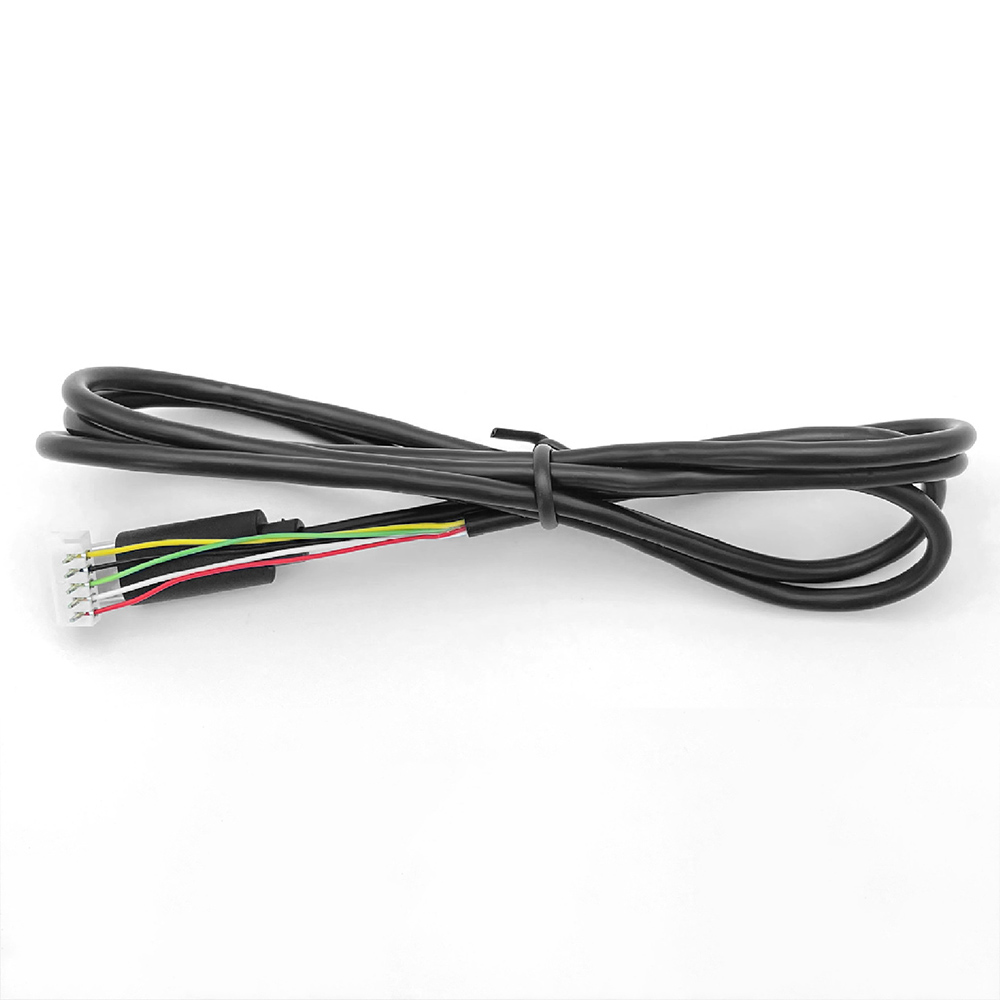

05P-SJN to USB C cable

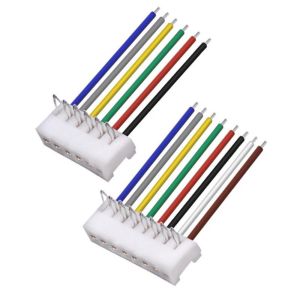

JST SJN 2.0mm pitch connector wire

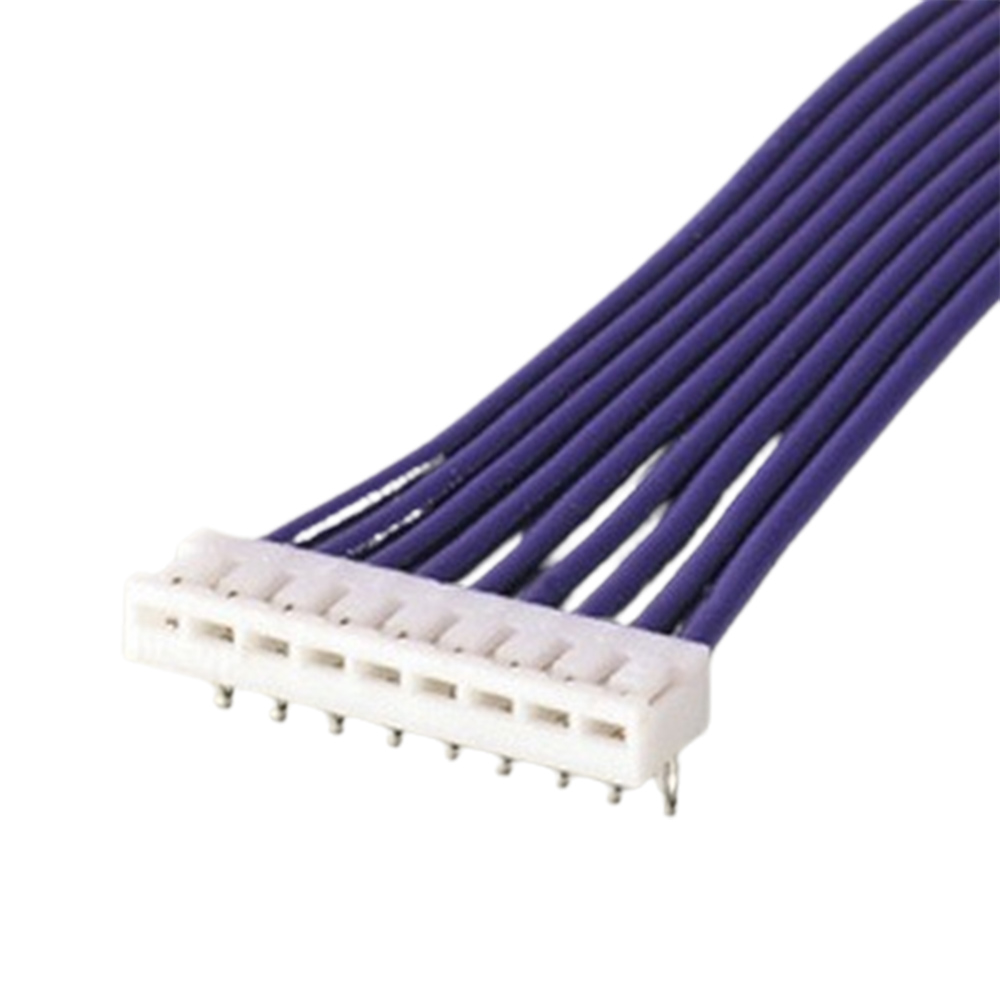

JST 9 Pin Connector 09P-SJN Wiring

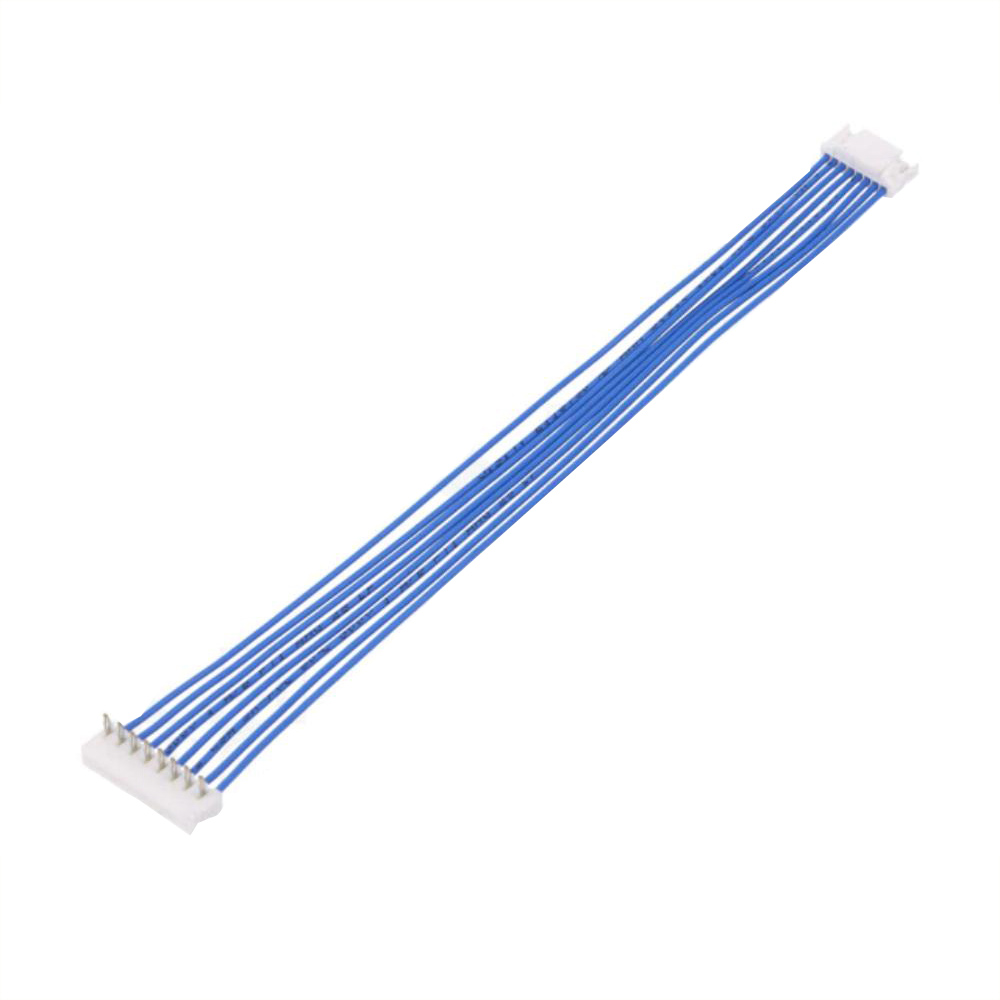

JST SJN 8P Wiring

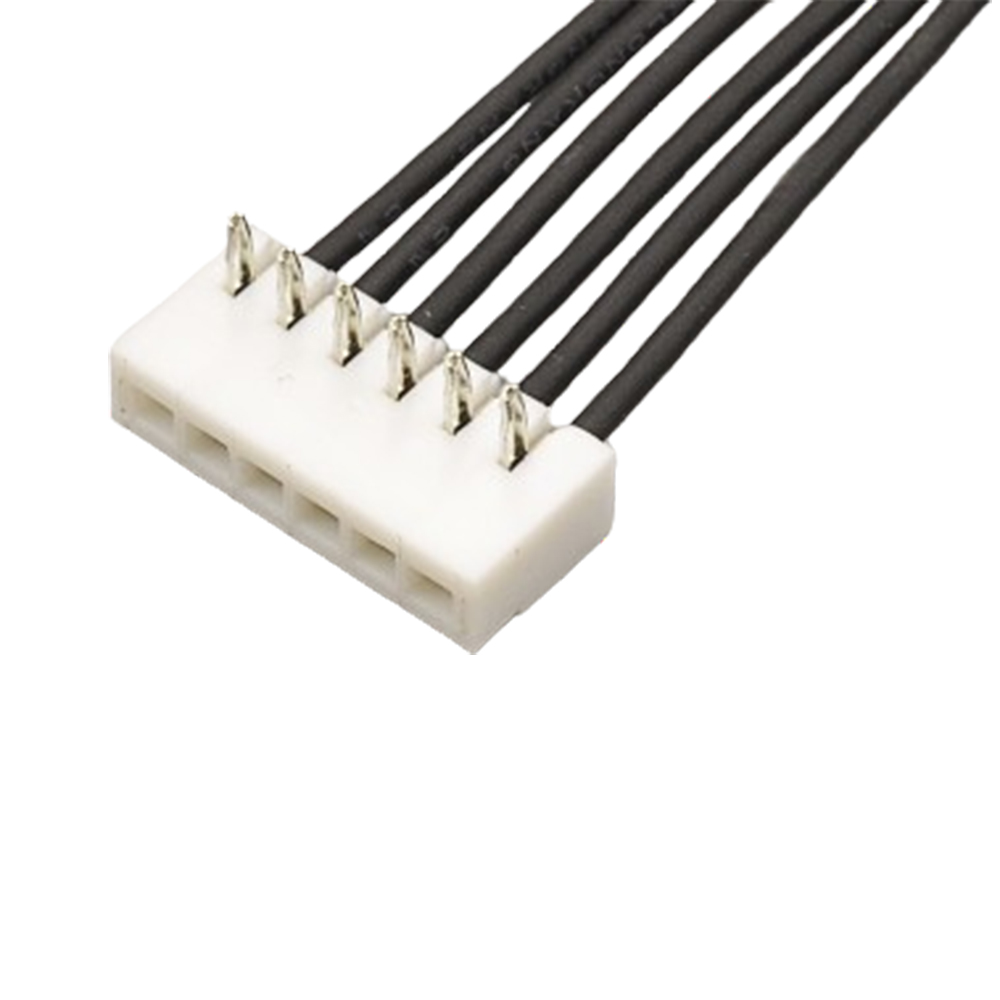

SJN Board In Connector 6 Pin 06P-SJN

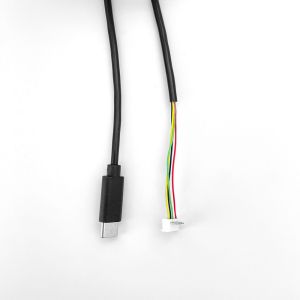

USB C to JST SJN 5P cable
How to customize your wire harness?
If all these wires are not exactly the same as you needed, don't worry, you can customize them from us, below is the custom way.
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
