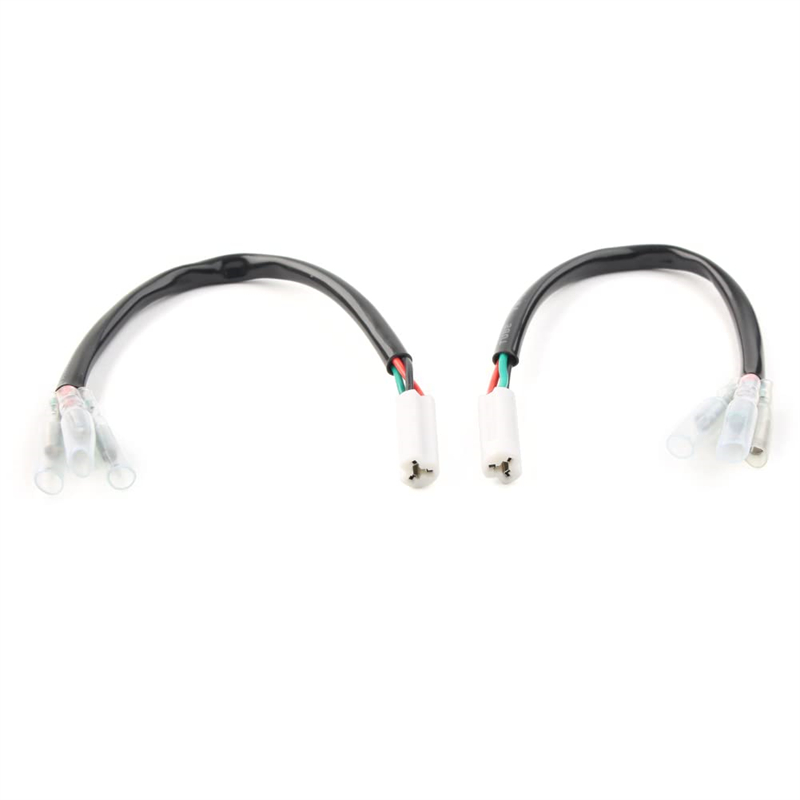

Turn Signal Wiring Harness 3 Wire for Yamaha R1 R3 R6 FZ1 FZ6 FZ07 FZ09

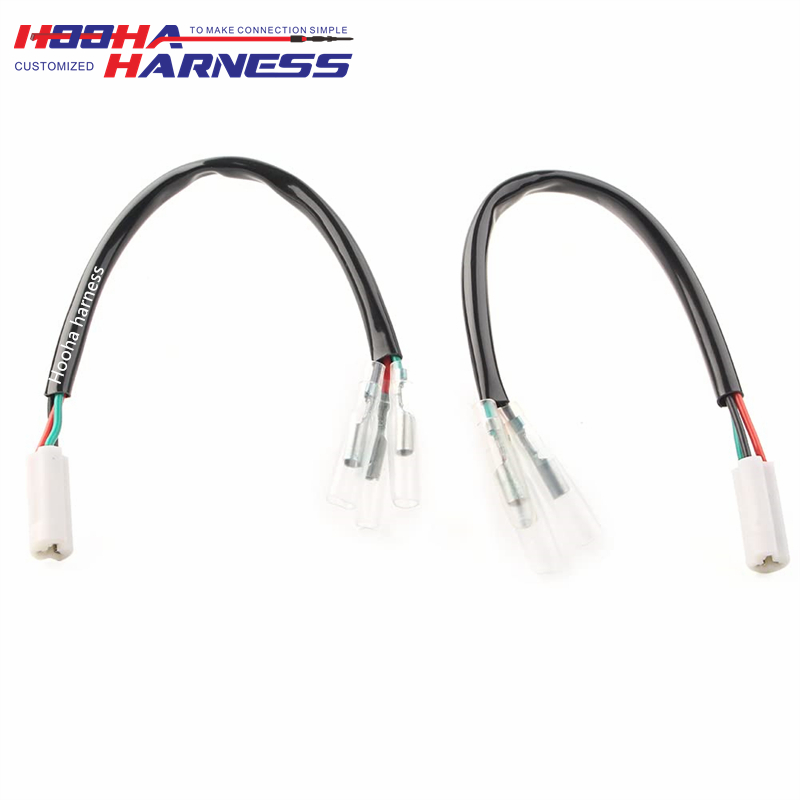

A custom wire harness assembly for a Turn Signal Wiring Harness with a 3 Wire Plug and Play Turn Signal Splitter Harness, compatible with Yamaha R1, R3, R6, FZ1, FZ6, FZ07, and FZ09 motorcycles can be a useful accessory for upgrading or customizing your bike's turn signal system. Here's some information on what this harness does and how you might use it:

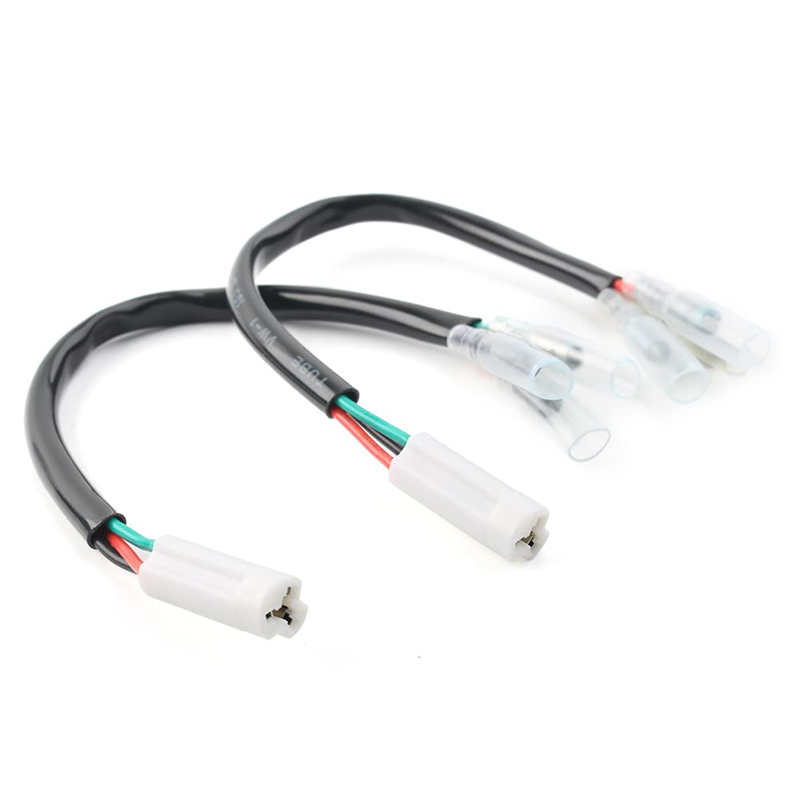

Turn Signal Wiring Harness

This component is designed to simplify the installation of aftermarket turn signals on your Yamaha motorcycle. It typically includes the necessary wires and connectors to link your bike's existing wiring to the new turn signals.

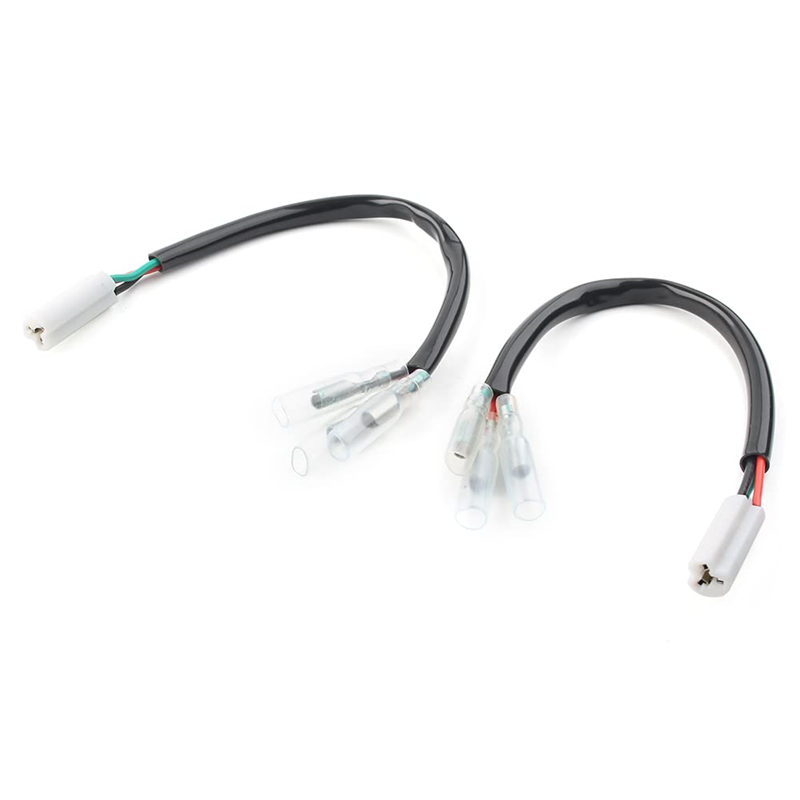

3 Wire Plug and Play Turn Signal Splitter Harness

The "3 Wire" part suggests that it's designed to connect three-wire turn signals, which often have separate wires for the positive, negative, and ground connections. The "Plug and Play" aspect implies that it should be relatively easy to install without the need for advanced electrical skills. The "Splitter Harness" part might mean that it can handle multiple turn signals on both the front and rear of the motorcycle.

Compatibility

This harness is explicitly designed for use with several Yamaha motorcycle models, including R1, R3, R6, FZ1, FZ6, FZ07, and FZ09. This is crucial because different bikes can have different wiring setups, and this harness is likely pre-wired to match the electrical requirements of these specific models.

To use this harness, you would typically follow these steps:

Identify Your Bike's Existing Turn Signal Wiring

Before installing the new harness, identify your motorcycle's existing turn signal wiring. This often involves finding the wires that lead to your current turn signals and understanding their function.

Disconnect the Old Turn Signals

If you have existing turn signals, you'll need to disconnect them by removing any screws, bolts, or clips holding them in place. Make note of which wire is connected to which terminal on the old signals.

Connect the New Harness

Plug the new 3 Wire Plug and Play Turn Signal Splitter Harness into your bike's existing wiring. This should be relatively straightforward because it's designed to be compatible with your specific Yamaha model.

Connect the New Turn Signals

Connect your new turn signals to the splitter harness, typically matching the positive, negative, and ground wires to the appropriate connections.

Secure and Test

Secure the new turn signals in place and test them to ensure they are functioning correctly. Check that they flash at the appropriate rate and that all lights are working as expected.

Please note that the specific installation process can vary depending on the design of the harness and your motorcycle model. Always refer to the provided instructions and, if you also need similar custom needs, you can send your wire harness drawing or sample to us, let me know your order quantity, we will quote a price to you for reference.
