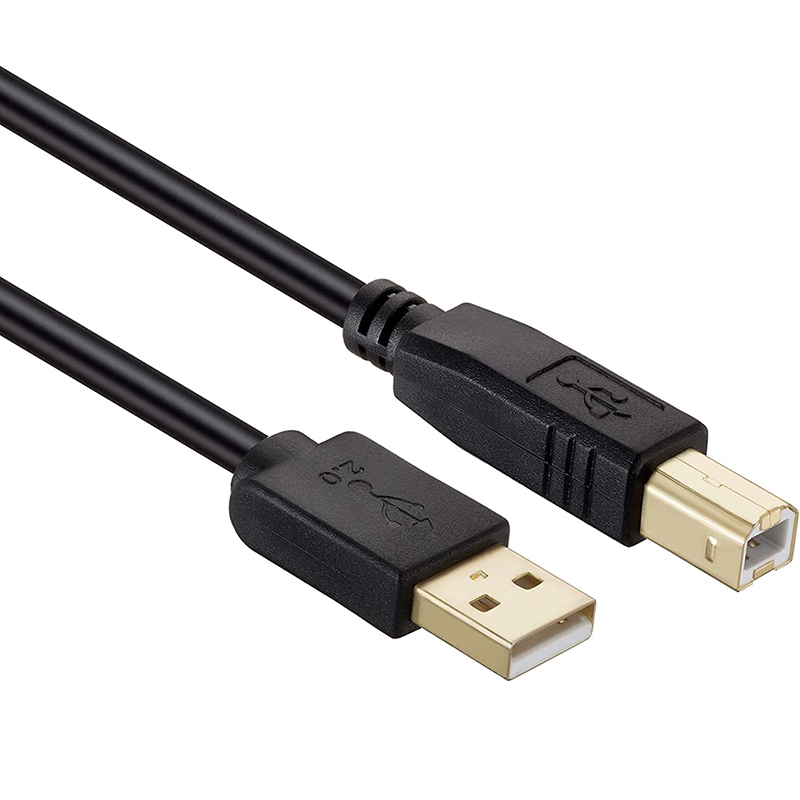

UL2725 style 24+28AWG USB A to B cable
UL2725 style 24+28AWG USB A to B cable UL2725 style 24+28AWG USB A to B cable UL2725 style 24+28AWG USB A to B cable UL2725 style 24+28AWG USB A to B cable UL2725 style 24+28AWG USB A to B cable

UL2725 style 24+28AWG USB A to B cable

Product ID : 0797
Product Tags : USB cable
Product Attributes :

The UL2725 style 24AWG + 28AWG 4 core USB A type male to B type male plug charge cable is the perfect solution for your mobile device charging needs. With its high-quality construction and durable design, this cable ensures a reliable and efficient charging experience every time.

Crafted from premium materials, this cable boasts a sturdy build that can withstand daily wear and tear. The four-core wiring system features both 24AWG and 28AWG wires, providing optimal power supply, while minimizing signal loss.

The USB A type male to B type male plug configuration makes it compatible with a wide range of devices, including smartphones, tablets, cameras, printers, and more. Whether you need to charge your device or transfer data between devices quickly and easily - this cable has got you covered!

So why settle for subpar charging cables when you can have the best? Invest in the UL2725 style 24AWG + 28AWG 4 core USB A type male to B type male plug charge cable today!

Product Description

UL2725 style 24+28AWG USB A to B cable

UL2725 Certified USB 2.0 A to B Cable

Professional-grade connectivity solution featuring 24AWG power conductors and 28AWG data wires for optimal 480Mbps transfer speeds. This UL-listed cable exceeds 5000 bend cycles while maintaining signal integrity for printers, scanners, and industrial devices.
The USB-A male to B male configuration ensures compatibility with legacy printing systems, audio interfaces, and data storage devices. Premium copper conductors deliver stable current up to 2.4A for reliable peripheral operation.

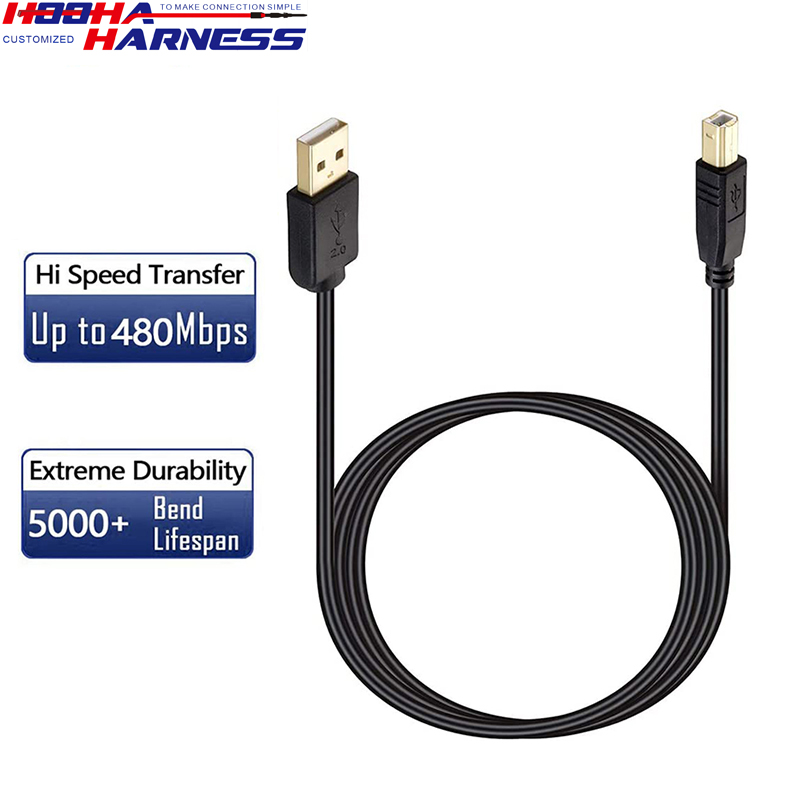

Key Specifications
480Mbps
Hi-Speed Transfer
5000+
Bend Lifespan
24+28AWG
Dual Gauge
USB 2.0
Standard

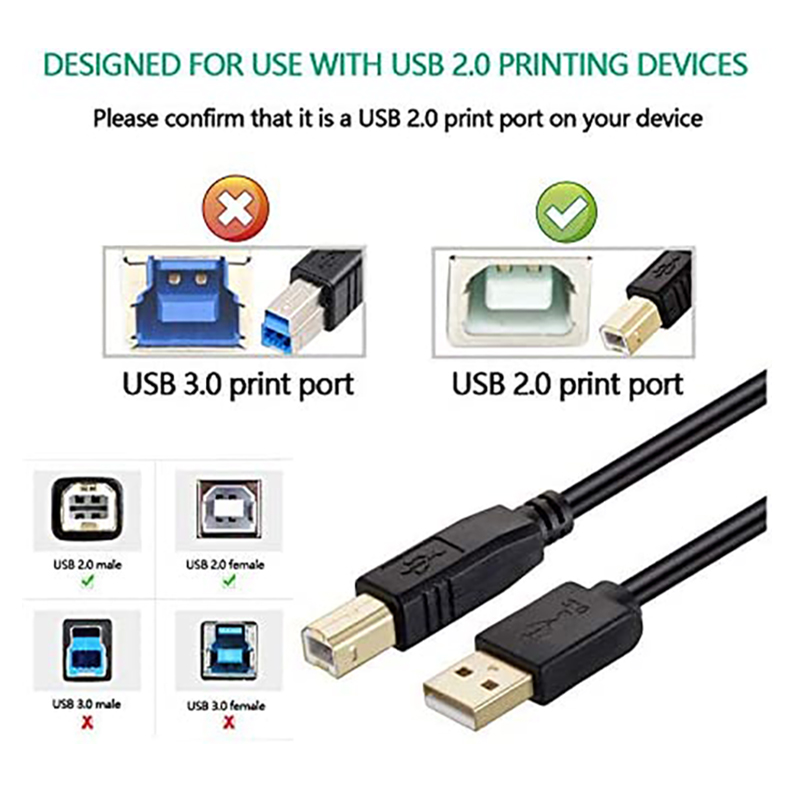

Important Compatibility Note
Designed for USB 2.0 printing devices only. Please confirm your device has a USB 2.0 print port (white connector) before purchase. Not compatible with blue USB 3.0 ports.
Technical Details

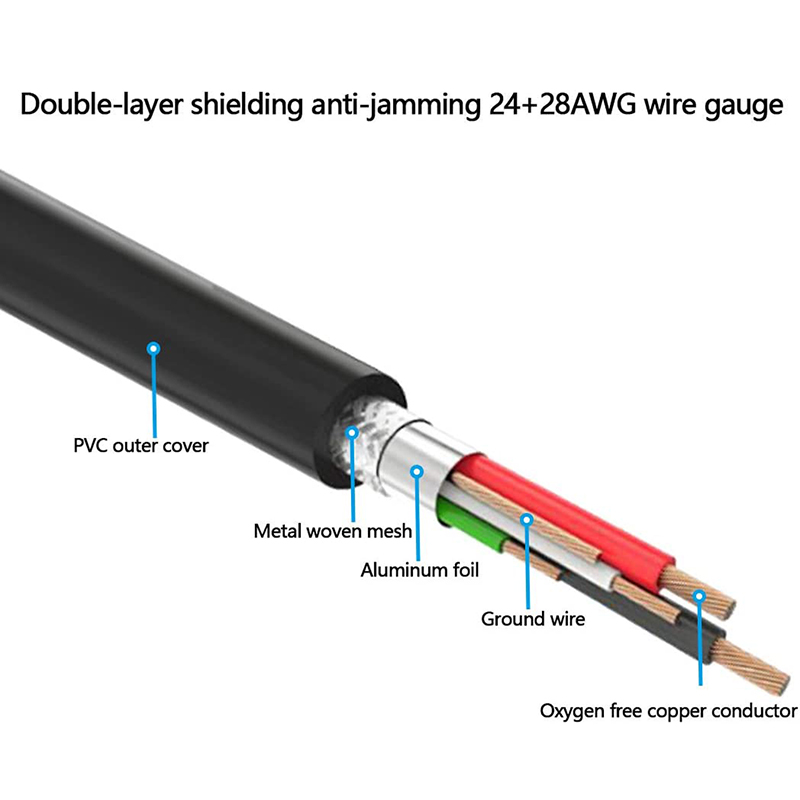

1 Core Specifications
• Conductor: 24AWG (power) + 28AWG (data) oxygen-free copper
• Insulation: High-grade PVC with 80°C rating
• Shielding: Aluminum foil + braided copper (95% coverage)
2 Performance Data
• Data Transfer: 480Mbps (USB 2.0 Hi-Speed)
• Current Rating: 2.4A max (24AWG power lines)
• Bend Radius: 4D (5000+ cycles tested)
3 Connector Details
• USB-A: Standard male connector (4-pin)
• USB-B: Square male printer connector
• Contacts: Gold-plated for corrosion resistance
Customization Options
Length Customization
3ft (0.9m)
6ft (1.8m)
10ft (3m)
Custom Length
Color Options
Standard black available for immediate shipment. Custom colors (red, blue, white, yellow) available with 7-10 day lead time. Minimum order may apply for custom colors.
Special Configurations
• Right-angle connectors (A or B side)
• Ferrite bead additions for EMI reduction
• Reinforced strain relief sections
• Custom printing/logos on cable jacket

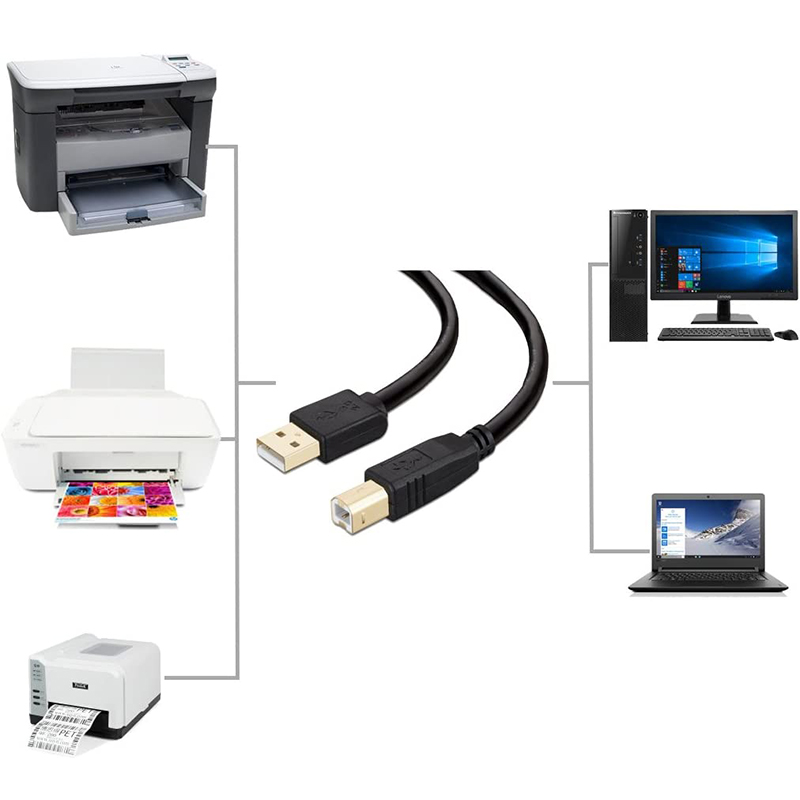

Compatible Devices & Applications

Printing Solutions
  • Laser/inkjet printers (HP, Epson, Canon)
  • Label printers (Zebra, DYMO)
  • All-in-one office machines
  • Industrial barcode printers
Audio/Video Equipment
  • Audio interfaces (Focusrite, Behringer)
  • MIDI controllers
  • Video capture devices
Data Storage
  • External hard drive enclosures
  • Optical drive connections
  • Legacy backup systems

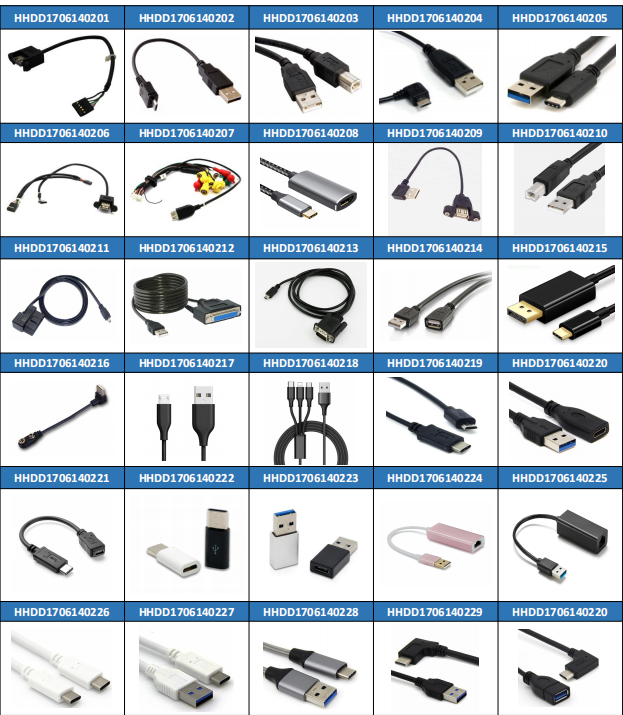

Related Products:





How to custom your own wire harness?

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
