PRODUCT

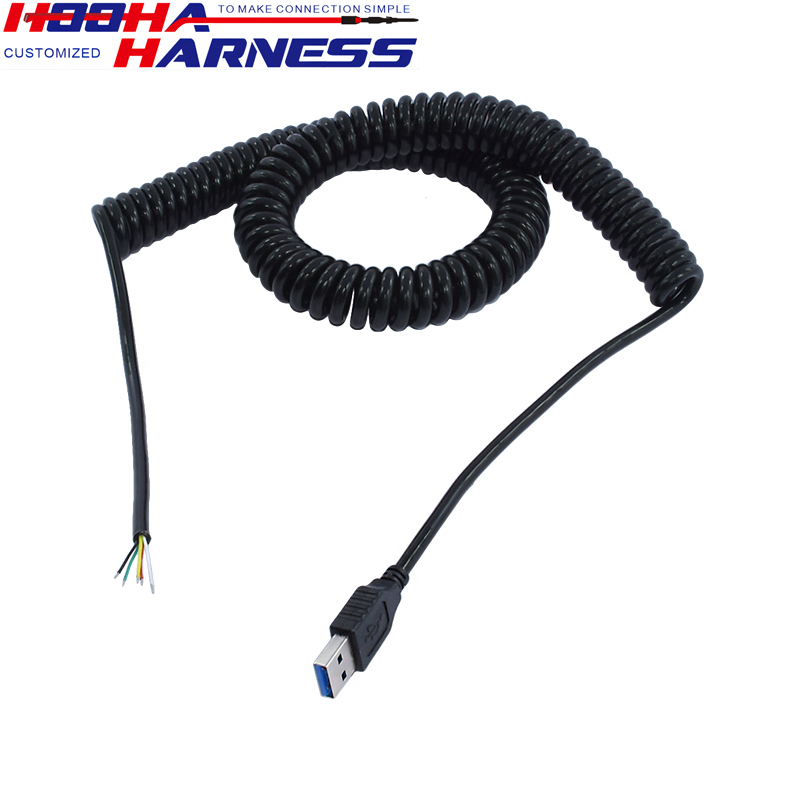

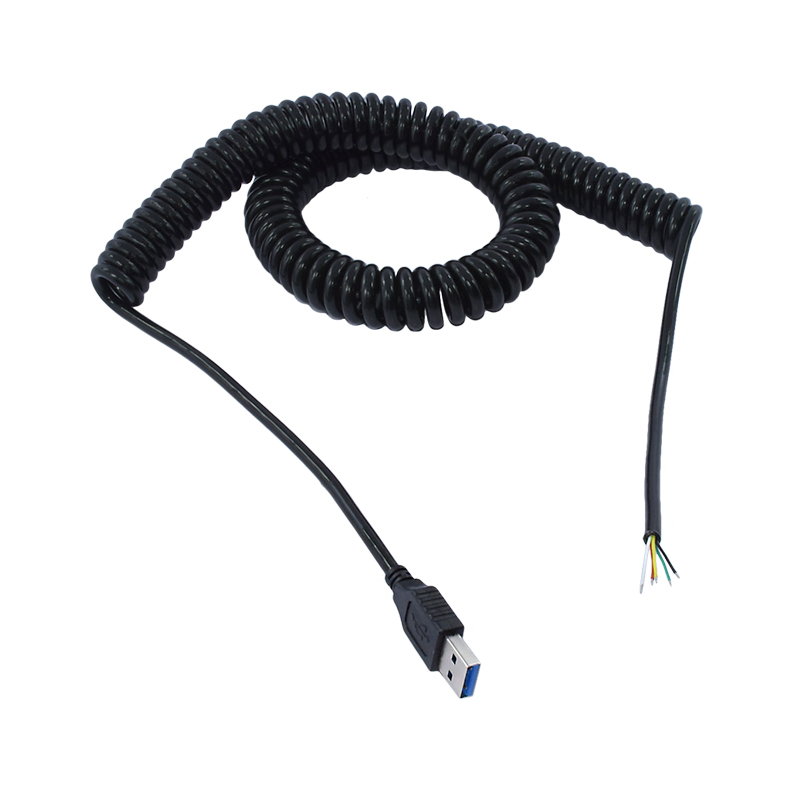

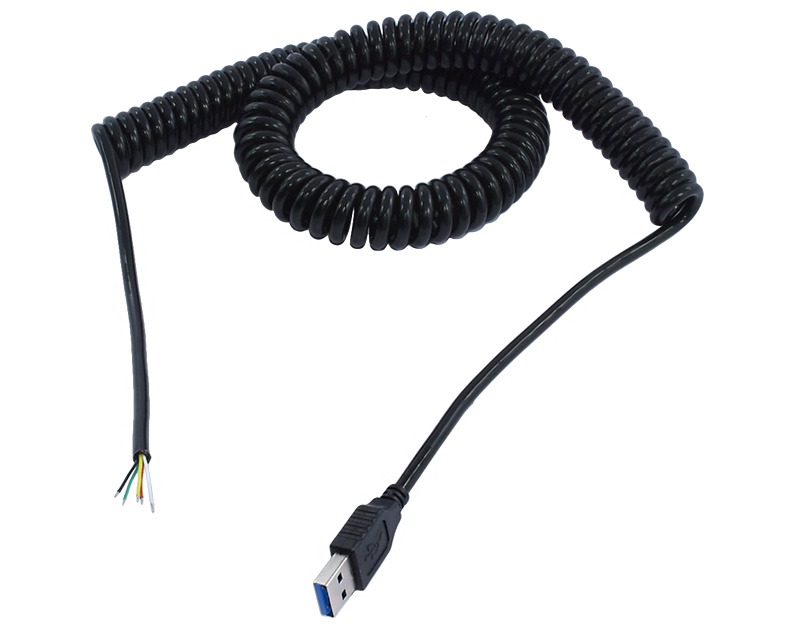

custom USB cable male 2.0 to free end with spring cable
This custom USB cable is the perfect solution for your charging and data transfer needs. With a male 2.0 connector on one end, you can easily connect it to any device that supports USB connectivity. The other end of the cable features a free end with a spring cable, providing flexibility and durability.
Whether you need to charge your smartphone or tablet, transfer files between devices, or sync your music library, this custom USB cable has got you covered. Its high-quality construction ensures reliable performance and long-lasting use.
So why settle for ordinary cables when you can have a custom-made one that meets all your specific requirements? Order yours today and experience the convenience and versatility of this amazing product!
Custom USB cable male 2.0 to free end with spring cable
Custom USB 2.0 Male to Free End Spring Cable

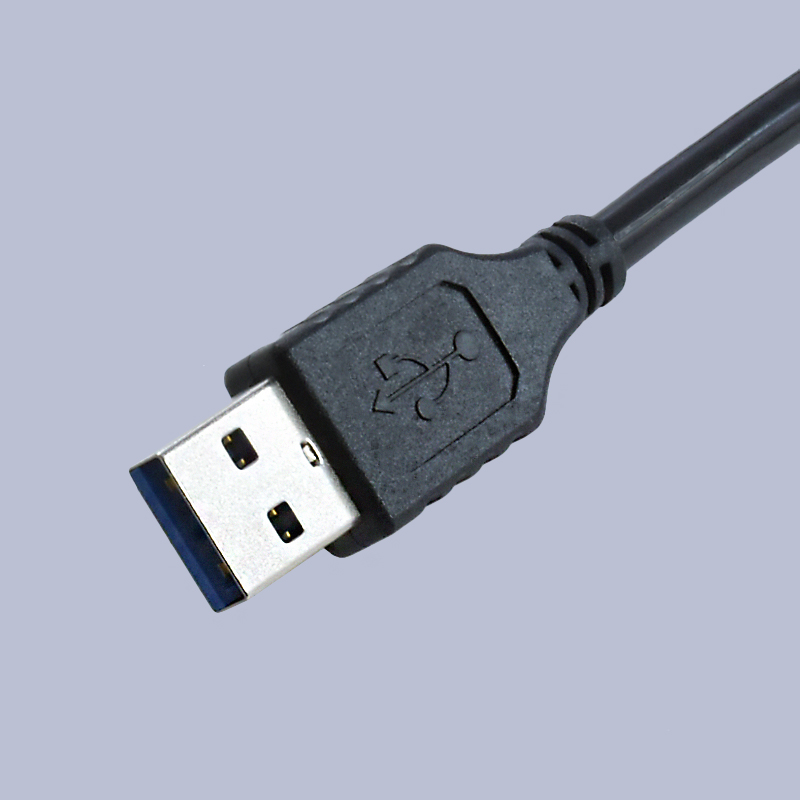

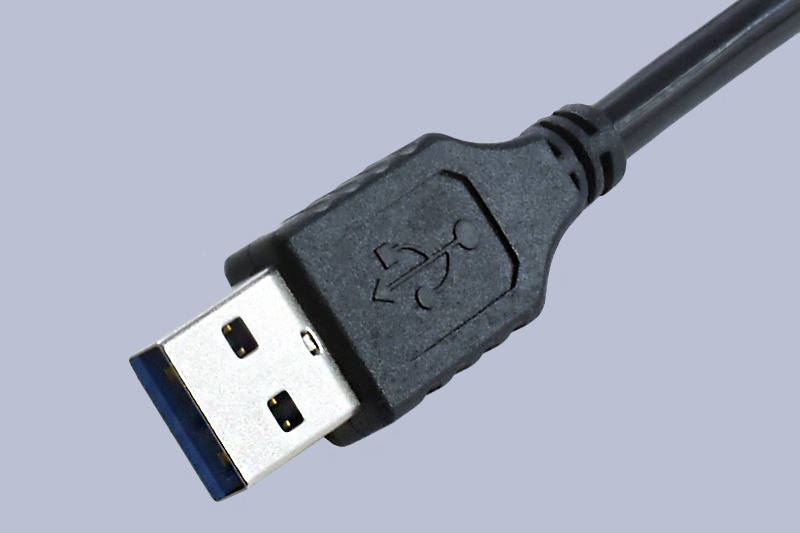

• USB 2.0 Male A connector

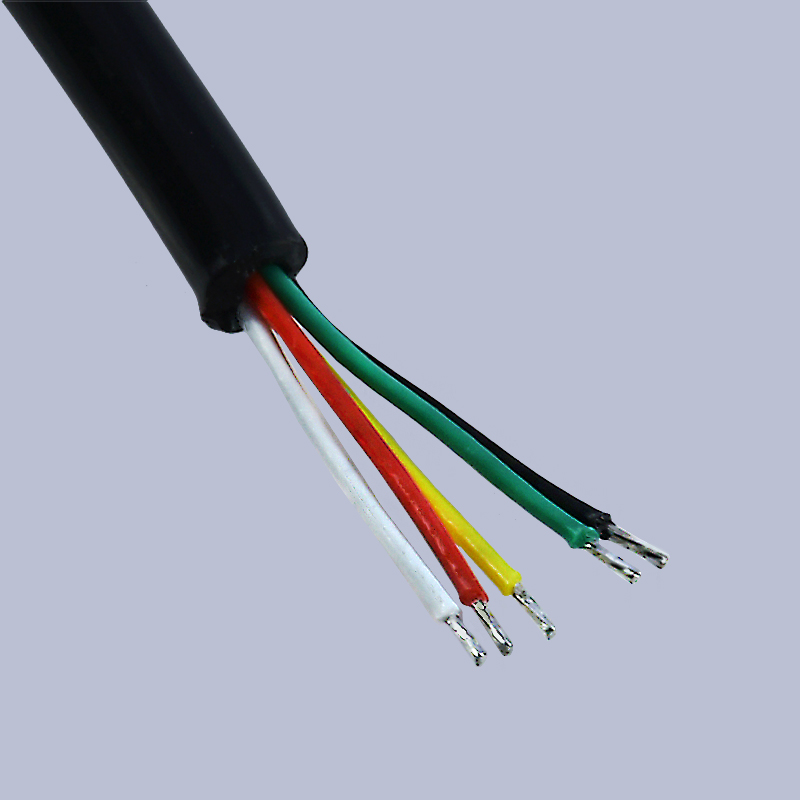

• Free end for custom termination

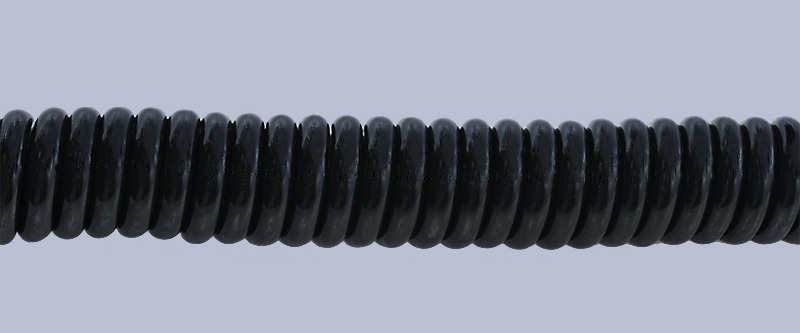

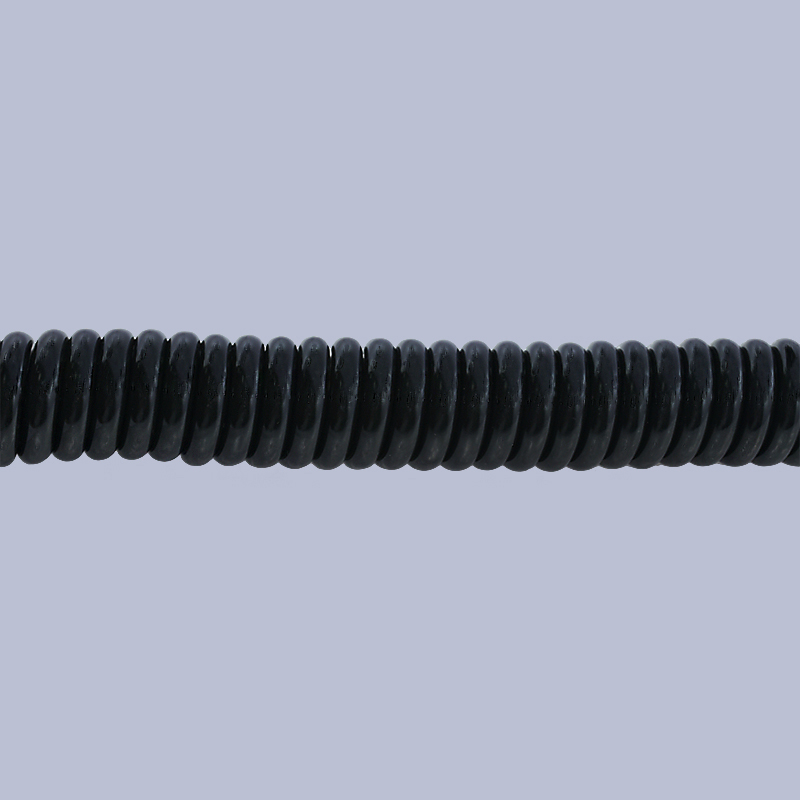

• High-flexibility spring design
• Plug-and-play compatibility
- Product ID: 784
- Connector Type: USB 2.0 Male A to Free End
- Cable Type: Spring/Spiral design
- Data Transfer: USB 2.0 (480 Mbps)
- Current Rating: 500mA maximum
- Extended Length: Up to 1.5 meters
- Coiled Length: Approximately 0.5 meters
Step 2: Connector termination and soldering
Step 3: Quality testing and performance validation
Step 4: Custom packaging and shipment
- Data Transfer Rate: USB 2.0 High-Speed (480 Mbps)
- Current Capacity: 500mA (2.5W power delivery)
- Voltage Rating: 5V DC ±5%
- Insulation Resistance: >100MΩ at 500V DC
Retracted Length: 0.5 meters nominal
Spring Cycles: 10,000+ extension/retraction cycles
Operating Temperature: -20°C to +70°C
Conductor Gauge: 28AWG tinned copper
Connector: USB 2.0 Male Type A (gold plated contacts)
Related Products:
How to custom your own wire harness?
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
