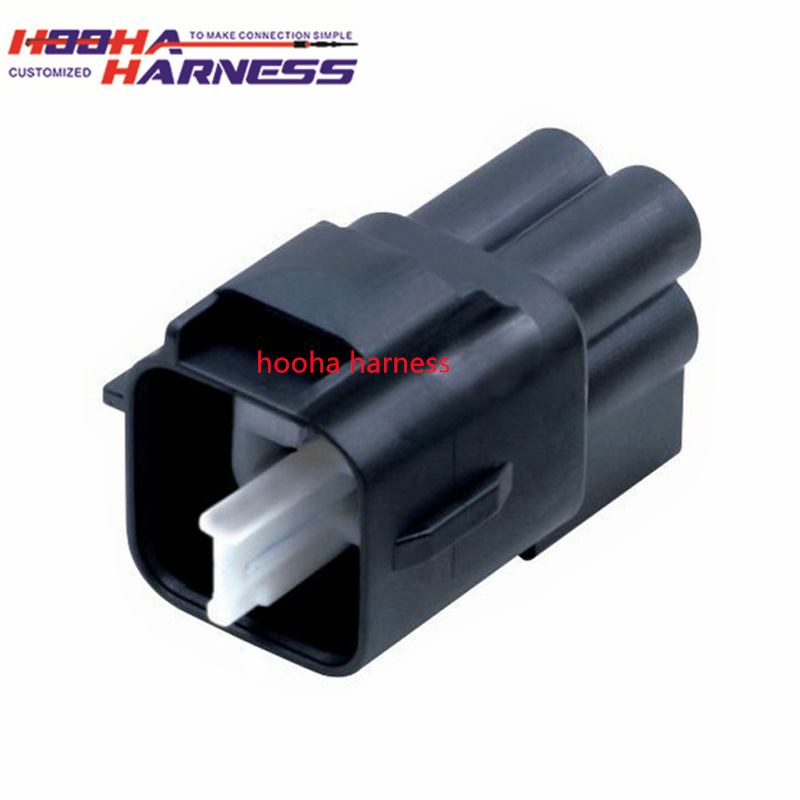

MG651747-5 KET replacement Chinese equivalent housing plastic automotive connector
Product ID : MG651747-5
Product Tags :
4pin
Product Attributes :
MG651747-5 KET replacement Chinese equivalent housing plastic automotive connector
Product Description
General Feature
- Series: 187 SERIES
- Dimensions: 43.0*23.0*24.8
Physical Feature
- Sealed: YES
- Color: Natural
- Primary Locking Type: HSG Lance
- TPA: YES
- Number of Poles: 4
- Mating Terminal: ST740734-3, ST740735-3, ST740736-3
- Pitch(mm): 8.2
- Mating Tab Width(in): .187
Electrical Feature
- Wire Range: 187IIWP:AVSS 0.3~0.5,AVS 0.3~0.85,AVSS 1.25~2.0,AVS 3.0
- Insulation Resistance: DC 500V 100MΩ MIN
- Contact Resistance: 3mΩ MAX
- Terminal Transmits(A): 20
