PRODUCT

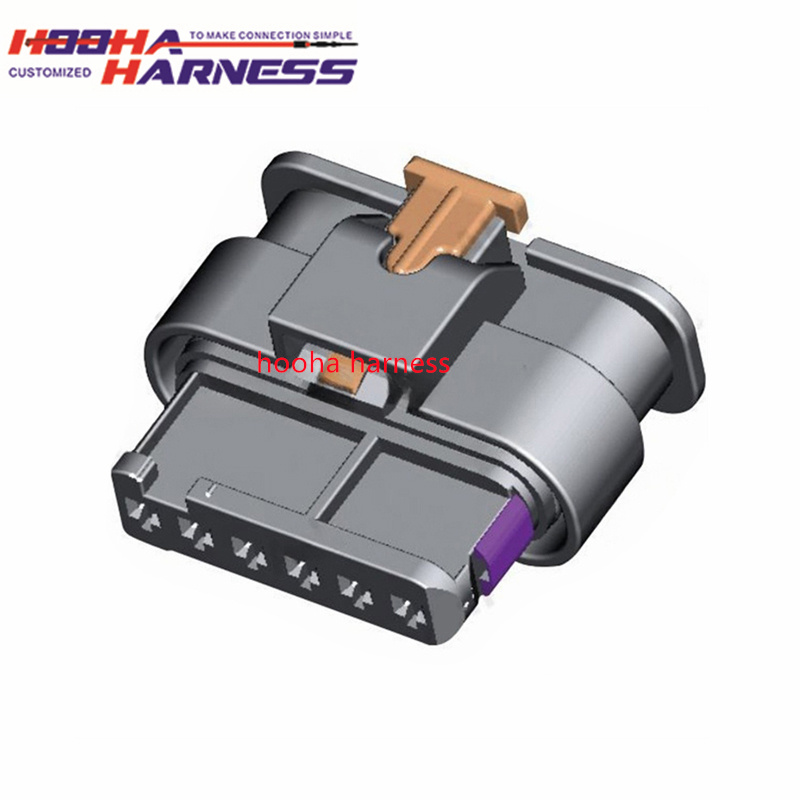

1-1718646-1 TE AMP original brand housing plastic automotive connector
Product ID : 1-1718646-1
Product Description
| Product Attribute | Attribute Value |
|---|---|
| TE Connectivity | |
| Product Category: | Automotive Connectors |
| RoHS: | Yes |
| Housings | |
| 6 Position | |
| 4 mm | |
| Receptacle (Female) | |
| Cable Mount / Free Hanging | |
| Crimp | |
| Black | |
| MCON 1.2 | |
| Application: | Wire to Wire |
| Brand: | TE Connectivity / AMP |
| Contact Gender: | Without Socket Contacts |
| Height: | 16.5 mm |
| Housing Material: | Polyamide (PA) |
| Ingress Protection: | IP6K9K |
| Length: | 32.7 mm |
| Locking Mechanism: | On the terminal |
| Material: | Polyamide (PA) |
| Maximum Operating Temperature: | + 130 C |
| Minimum Operating Temperature: | - 40 C |
| Mounting Angle: | Straight |
| Number of Rows: | 1 Row |
| Product Type: | Automotive Connectors |
| Type: | Receptacle Housing |
| Voltage Rating: | 12 VDC |
| Width: | 26.5 mm |
| Unit Weight: | 0.225612 oz |
