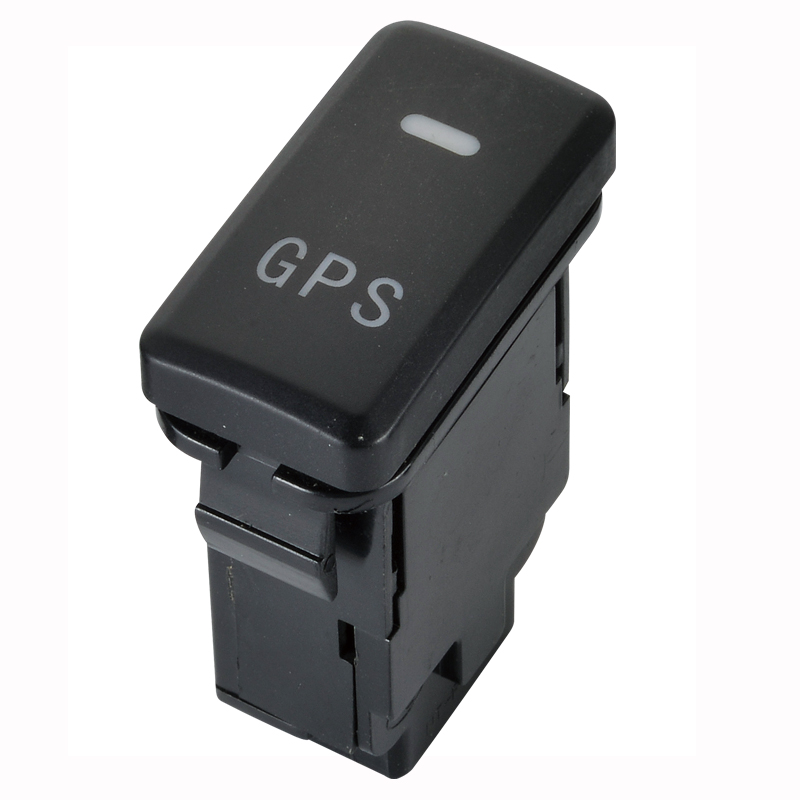

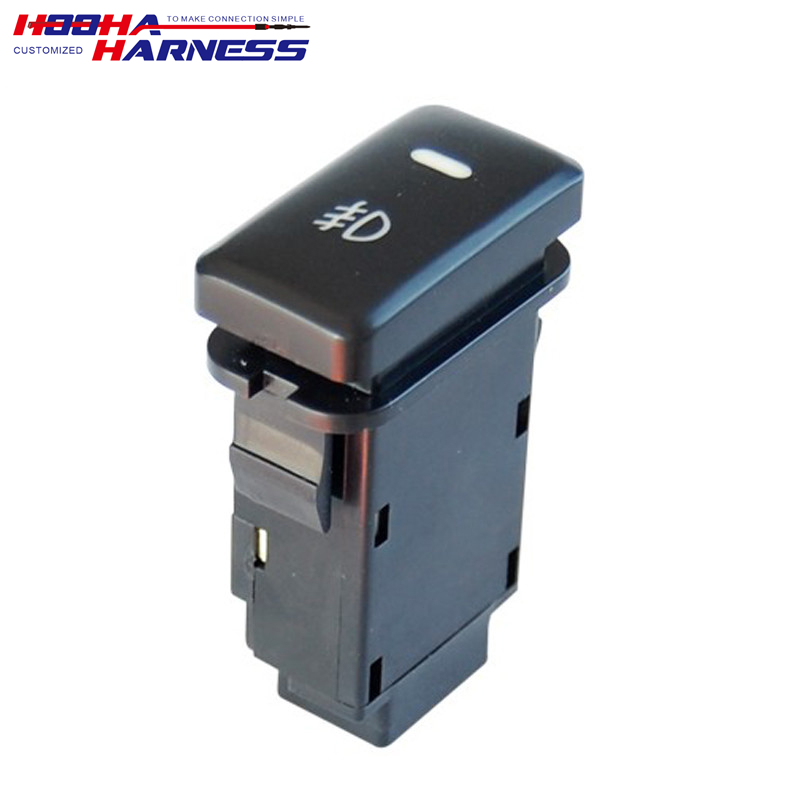

Toyota Hilux Prado Land Cruiser refit GPS fog light switch

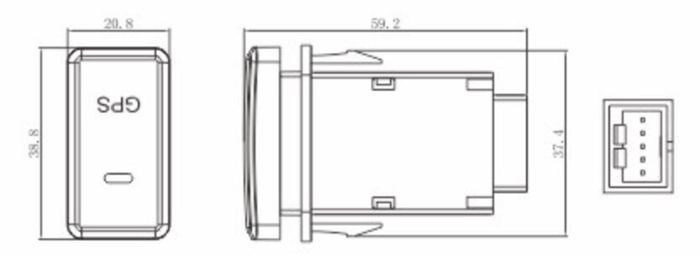

Drawing:

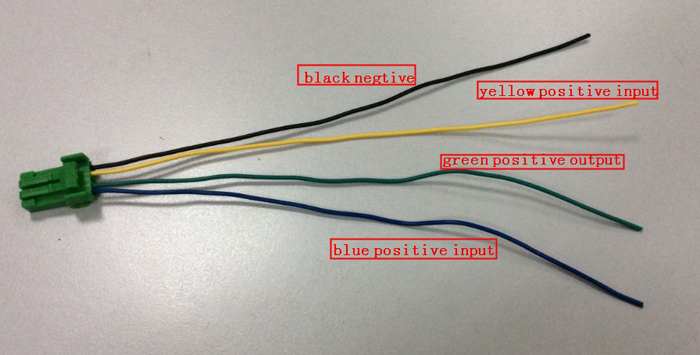

plug Leads:

Product description:

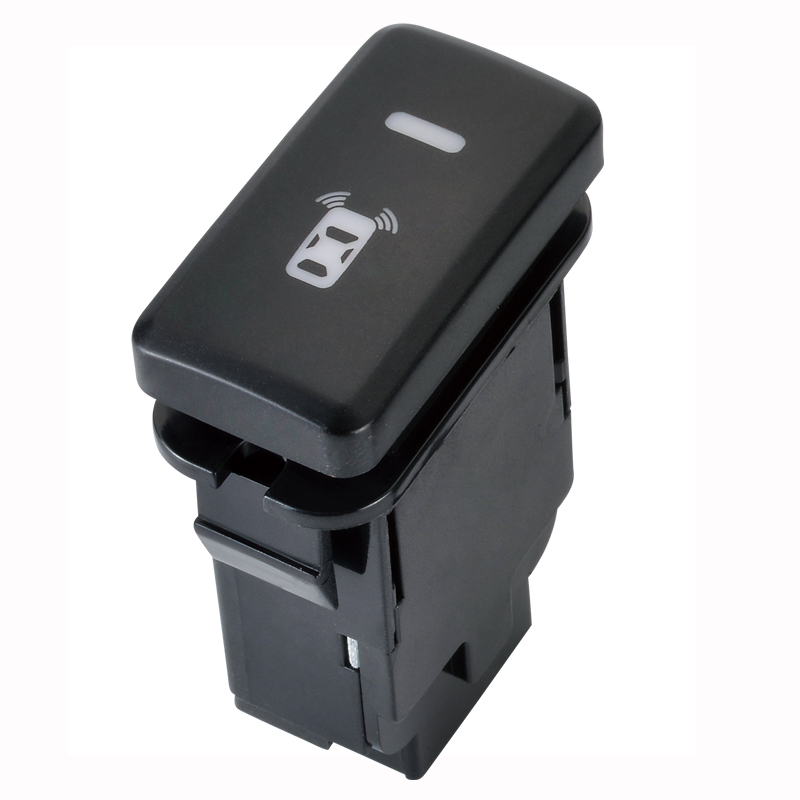

Customized Symbol LED Backlit Push Button ON/OFF Switch

This NEW high-quality 12-volt push switch allows you to operate ANY 12-volt accessories. It fits on all LATE model Toyota's vehicles, such as FJ Cruiser, Fortune and so on, also compatible with some other model cars. It has short circuit protection to protect your vehicle(s). The switch is made out of heavy-duty ABS plastic that will ensure years of service and come in matte black surface color, the SAME color as the OEM Switches!

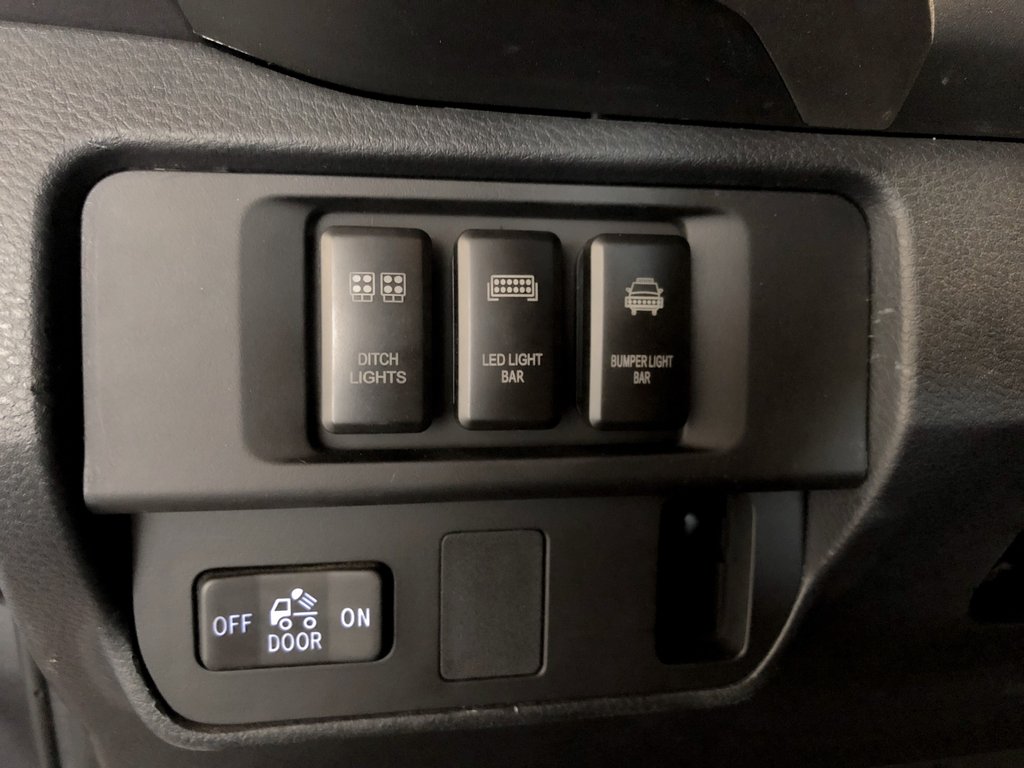

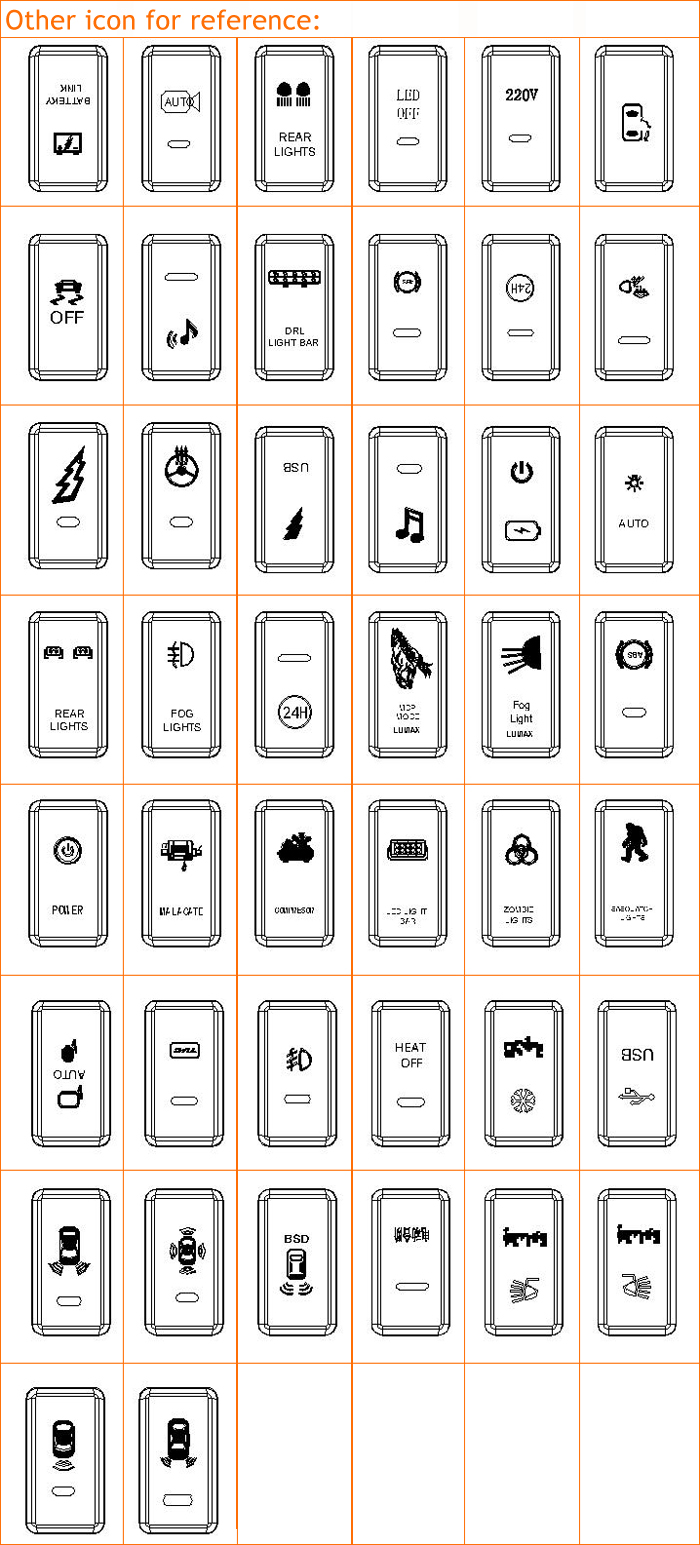

It has a face surface size of 1.54" x 0.83" and all symbols are Etched directly onto the switch face using modern high Tech engraving equipment to ensure long image life. These high-quality PUSH BUTTON SWITCHES feature a backlit panel that illuminates when the switch is turned on. There are 2 LEDs UPPER/ LOWER. 1 LED constant backlit, 1 LED ON when set to ON position. High Quality 12 Volt Push Switch will give you a clean and original style look, they are installed in the existing holes that come with the vehicle!

NOTE: The switch is an electronic switch rated at 1 Amp. Therefore in ALL cases, the accessory MUST be wired through a fused relay.

Compatible Vehicles:

# Toyota FJ Cruiser 2007-2015
# Toyota Fortuner 2005-2014
# Toyota Hilux 2005-2014
# Toyota Tacoma 2005-2011
# Toyota Tacoma 2012-2015 (Left Side ONLY)
# Toyota Highlander 2001-2007
# Toyota Tundra 2005-2007 (Center Console if equipped)
# Toyota 4Runner 2003-2009
# Toyota Prado 120 Series 2003-2009
