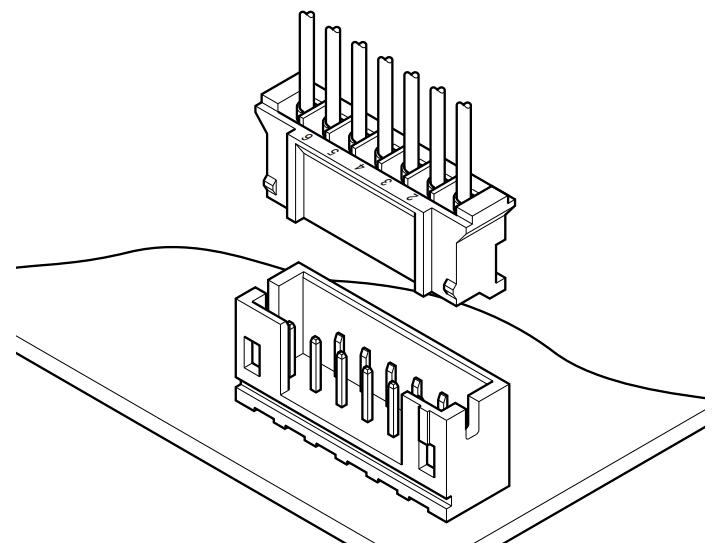

JST PH Connector

This JST PH Connector is a compact, low-profile wire-to-board connector with a 2.0 mm pitch, measuring just 8.0 mm in height and 4.5 mm in width after mounting. This space-saving design is ideal for applications requiring high-density connections between internal wires and printed circuit boards (PCBs). Engineered for reliability, it features a robust contact system that ensures stable electrical performance. The fully shrouded header offers added protection against misalignment and accidental contact damage. Additionally, a PCB retention mechanism provides secure mounting, while the surface-mount technology (SMT) model supports automated assembly, enhancing production efficiency and reducing labor costs. The JST PH Connector strikes a perfect balance between size, performance, and affordability.

Specifications

• Connector type: Wire to Board, Disconnectable Crimp style
• Connector pitch: 2.0mm
• Current rating: 2 A AC/DC (AWG #24)
• Voltage rating: 100 V AC/DC
• Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
• Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Withstanding voltage: 800 VAC/ minute
• Applicable wire: AWG #32 to #24
• Applicable PC board thickness: 0.8 to 1.6 mm

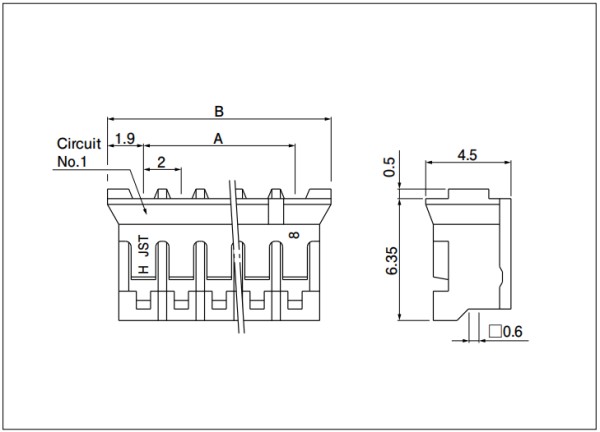

Housing

Material and Finish: PA 66, UL94V-0, natural (white)

Terminal

Notes:

• Material and Finish: Phosphor bronze, tin-plated(reflow treatment)
• RoHS2 compliance

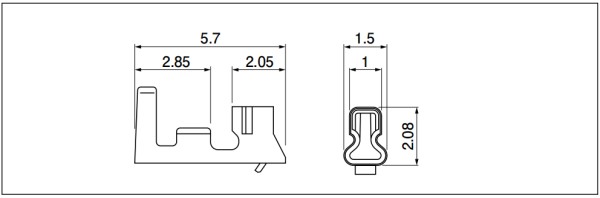

• SPH-002T-P0.5L is low-insertion force type contact, for easier insertion/ withdrawal, which would be less resistant to the vibration. The crimp height is different from the standard.

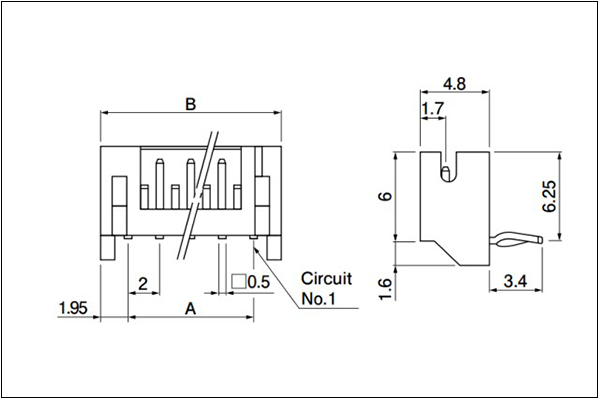

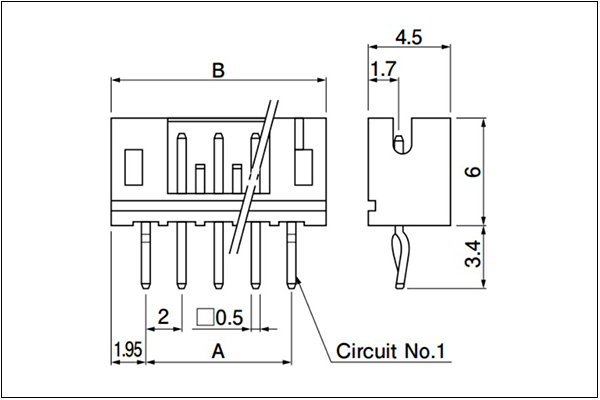

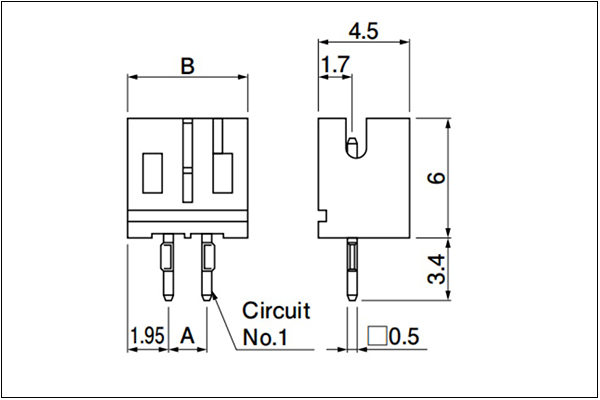

Header

Material and Finish

• Post: Brass, copper-undercoated, tin-plated (reflow treatment)
• Wafer: PA 66, UL94V-0, natural (white)

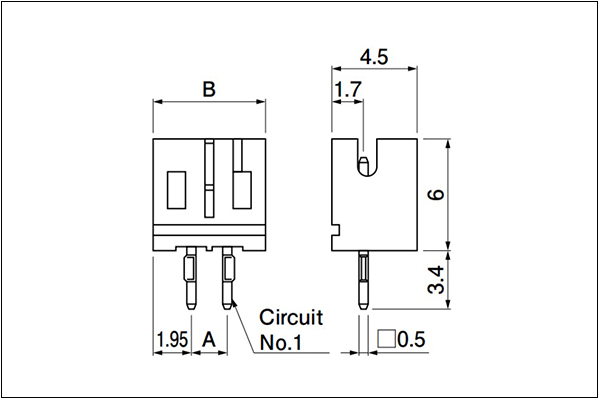

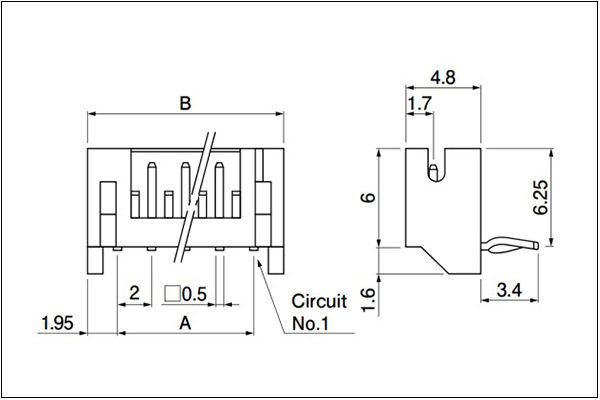

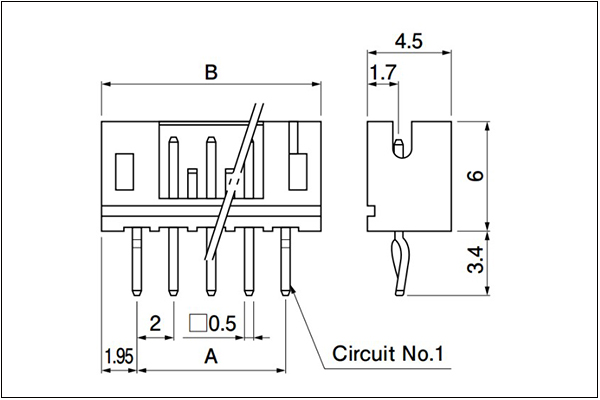

Header (Low insertion force type)

Material and Finish

• Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
• Wafer: PA 66, UL94V-0, gray

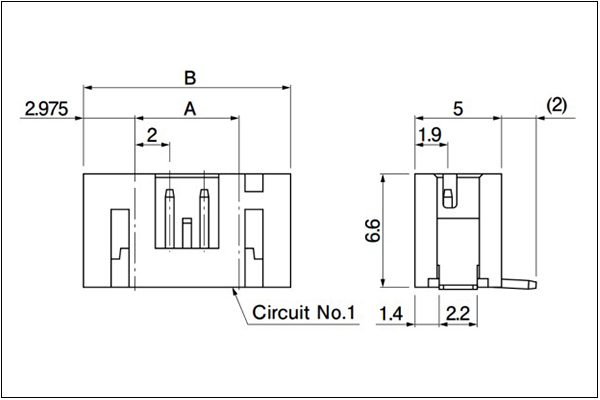

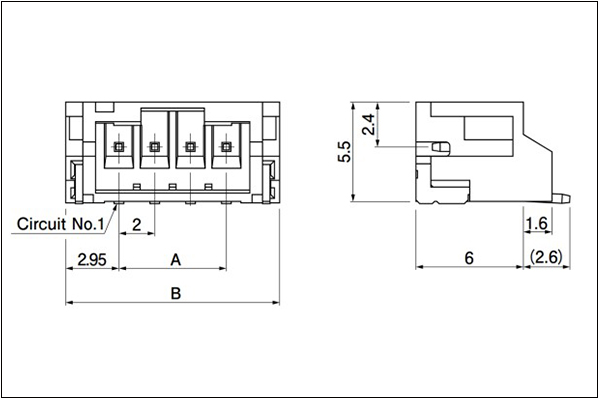

Header (SMT type)

Material and Finish

• Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
• Wafer: PA, UL94V-0, natural (ivory)
• Solder tab: Brass, copper-undercoated, tin-plated (reflow treatment)

Support Custom Wiring Harness Assembly

• Connector: 2 - 16pin
• Wire gauge: 24 - 32AWG
• Wire length: as long as your needs
• Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
• Custom type:
  • wire to wire
  • wire to tinned end
  • wire to open end
  • wire to any suitable connectors
• Minimum Order: 50 pieces per order.

What JST PH Wiring Harness We Processed?

JST PH Wiring Harness Cases

Custom Your Wire Harness

Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
