JST PH series connector 6pin housing PHR-6 custom wire harness assembly
JST PH series connector 6pin housing PHR-6 custom wire harness assembly JST PH series connector 6pin housing PHR-6 custom wire harness assembly JST PH series connector 6pin housing PHR-6 custom wire harness assembly JST PH series connector 6pin housing PHR-6 custom wire harness assembly

JST PH series connector 6pin housing PHR-6 custom wire harness assembly

Product ID : HHDW13061903
Product Attributes :

JST PH connector Specifications:

Current rating: 2 A AC/DC (AWG #24)

Voltage rating: 100 V AC/DC

 Temperature range: -25'C to +85°C (including temperature rise in applying electrical current)

Contact resistance: Initial value/ 10 mΩ max. After environmental tests/ 20 mΩ max.

Insulation resistance: 1,000 MΩ min.

Withstanding voltage: 800 VAC/ minute

Applicable wire: AWG #32 to #24

Applicable PC board thickness: 0.8 to 1.6 mm

Product Description

This is a custom wire harness that has been specifically designed to meet the requirements of a customer based in Australia. The wire harness is an essential component used in their printed circuit board products, and it features a JST PH series connector with a 2.0mm pitch and six positions. The part number for this custom wire harness assembly is PHR-6.

The purpose of this wire harness is to provide high-density connections between internal wires and PC boards, ensuring optimal performance and reliability. It has been meticulously crafted by Hooha Harness, a professional custom wire harness manufacturer based in China.

With years of experience under their belt, Hooha Harness specializes in creating top-quality automotive wire harnesses that are tailored to meet the unique needs of each client they work with. Their expertise allows them to create highly customized solutions that are both efficient and effective.

In summary, if you're looking for a reliable partner who can deliver exceptional quality when it comes to custom wire harnesses, look no further than Hooha Harness!

Find more JST Connectors.





Related PH series connector:

No. of circuits Model No.
2 PHR-2
3 PHR-3
4 PHR-4
5 PHR-5
6 PHR-6
7 PHR-7
8 PHR-8
9 PHR-9
10 PHR-10
11 PHR-11
12 PHR-12
13 PHR-13
14 PHR-14
15 PHR-15
16 PHR-16



Related PH connector wire harness:

PH 2.0 custom 2pin connector wire harness

PHR-2

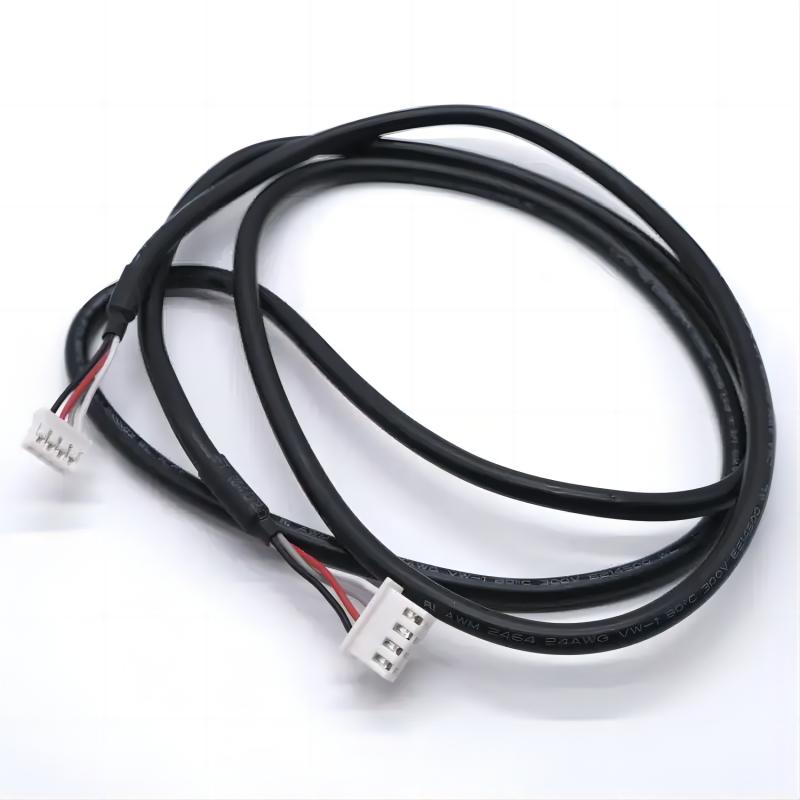

PHR-4 wire harness assembly

PHR-4

PHR-10 custom wire harness

PHR-10



Example PH wire harness price for reference:

PHR-2 wire harness price

PHR-4 wire harness price

PHR-6 wire harness price

PHR-8 TO PHR-6 TO PHR-4 wire harness price



How to customize your own wire harness?

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
