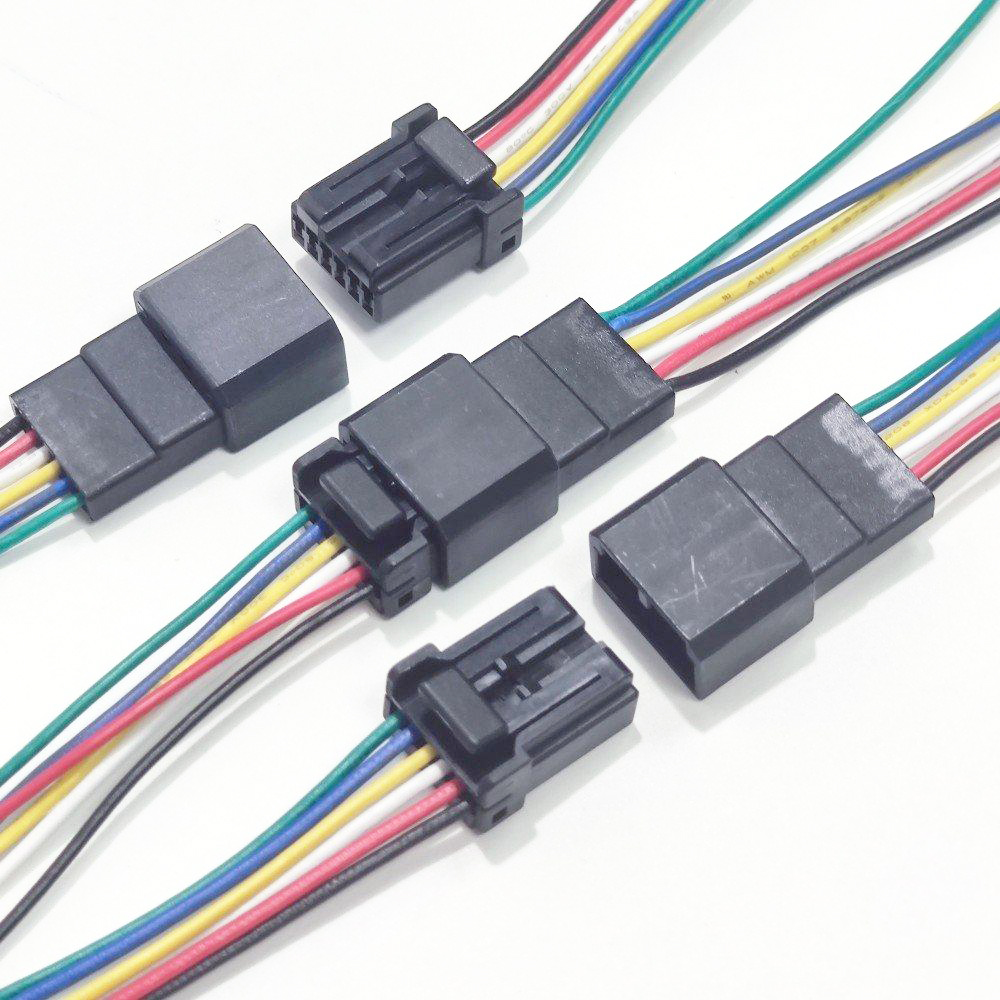

6 Pin 175507-2 345178-2 Automotive Socket Cable Harness Connector
The TE .040 MULTILOCK 6P connector assembly (male 175507-2 / female 345178-2) is a durable, sealed automotive connector for harsh environments. Custom wire harness services offer tailored solutions, including precise crimping, waterproofing, and OEM-compliant assembly, ensuring reliable power and signal transmission for sensors, modules, and vehicle electronics. Ideal for automotive, industrial, and aftermarket applications requiring high-quality, custom-fit harnesses.
Connector Specification
| P/N: | 175507-2 | 345178-2 |
| Manufacturer: | TE Connectivity | TE Connectivity |
| Product Category: | Automotive Connectors | Automotive Connectors |
| Product: | Housings | Housings |
| Number of Positions: | 6 Position | 6 Position |
| Pitch: | 2.5 mm (0.098 in) | 2.5 mm (0.098 in) |
| Gender: | Plug (Male) | Receptacle (Female) |
| Mounting Style: | Cable Mount / Free Hanging | Cable Mount / Free Hanging |
| Termination Style: | Crimp | Crimp |
| Color: | Black | Black |
| Series: | .040 MULTILOCK | .040 MULTILOCK |
| Application: | Wire to Wire | Wire to Wire |
| Brand: | TE Connectivity / AMP | TE Connectivity / AMP |
| Contact Gender: | Without Socket Contacts | Without Pin Contacts |
| Height: | 12.9 mm | 11.7 mm |
| Housing Material: | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Length: | 21 mm | 19.1 mm |
| Locking Mechanism: | Integrated in Housing | Integrated in Housing |
| Unit Weight: | 2.40 g | 1.877 g |
| Width: | 17.1 mm | 29.3 mm |
| Number of Rows: | 1 Row | 1 Row |
| Product Type: | Automotive Connectors | Automotive Connectors |
| Tradename: | MULTILOCK | MULTILOCK |
| Chinese replacement | Available | Available |
Wire Assembly Details

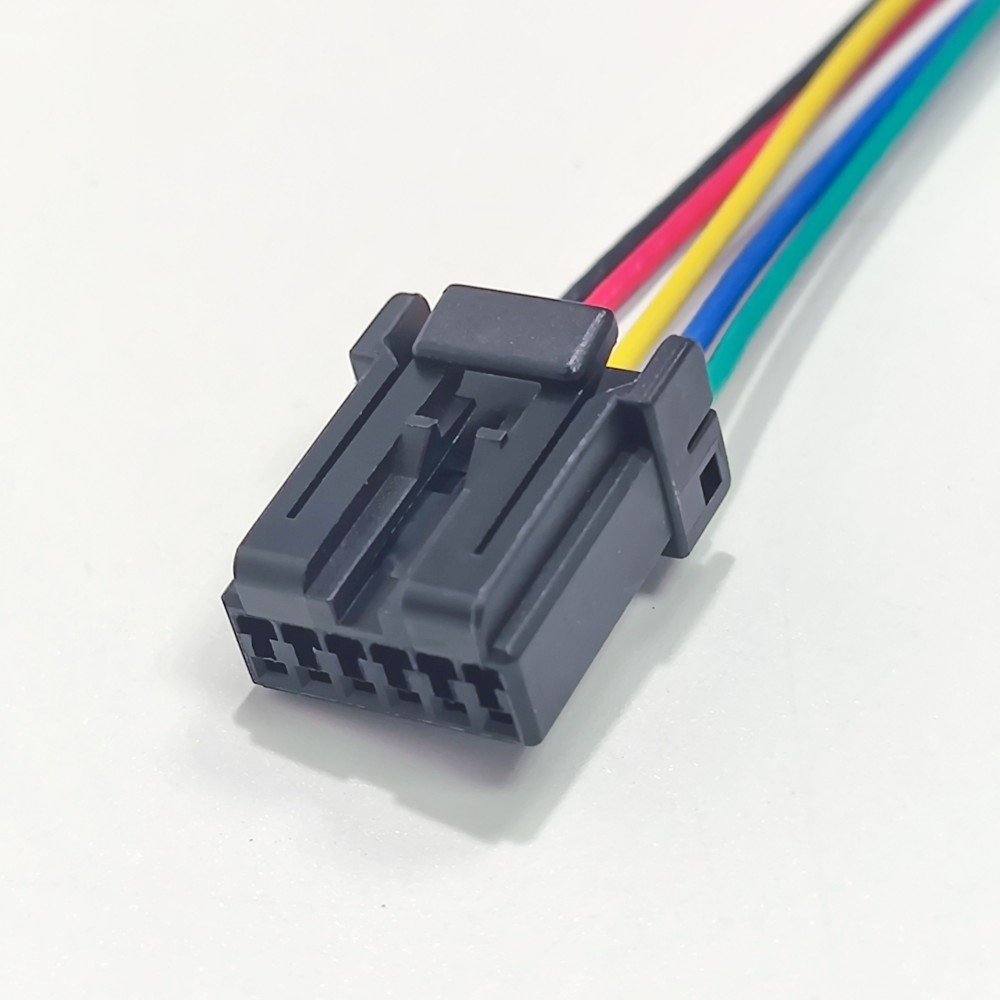

175507-2 Wire

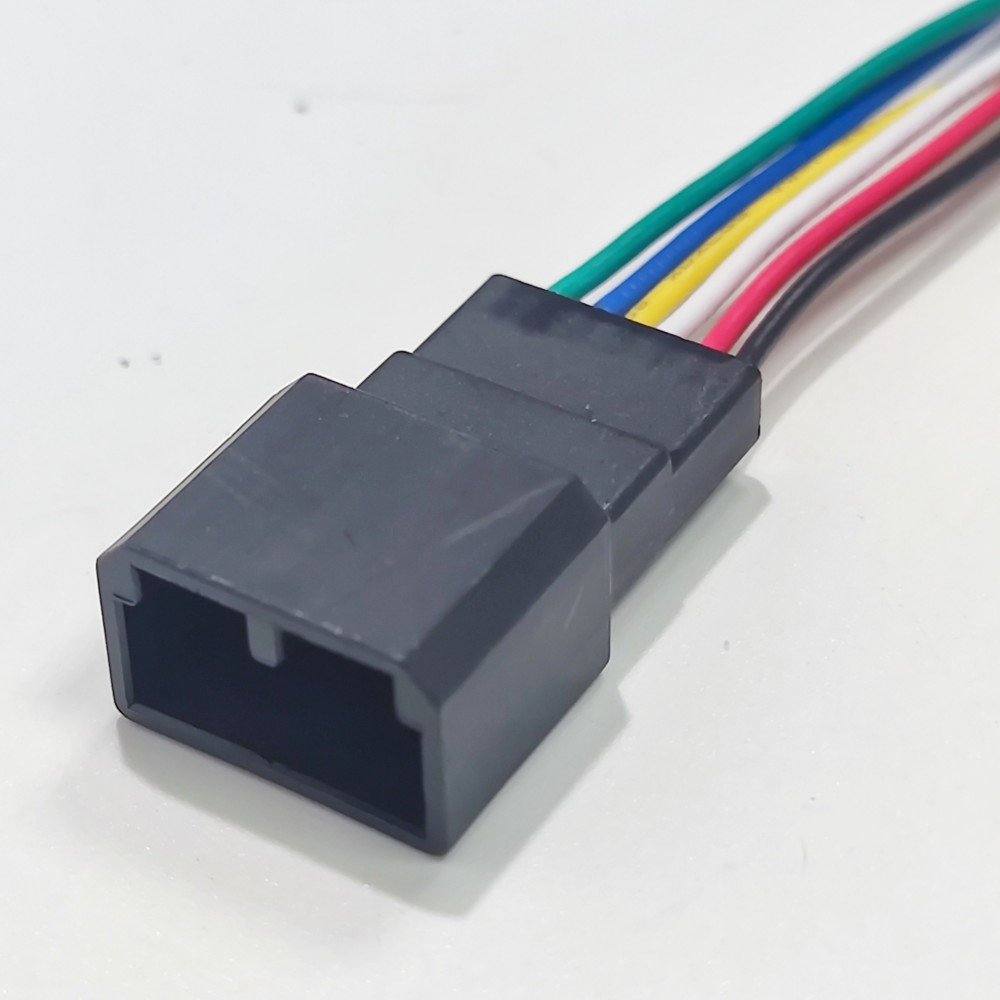

345178-2 Wire

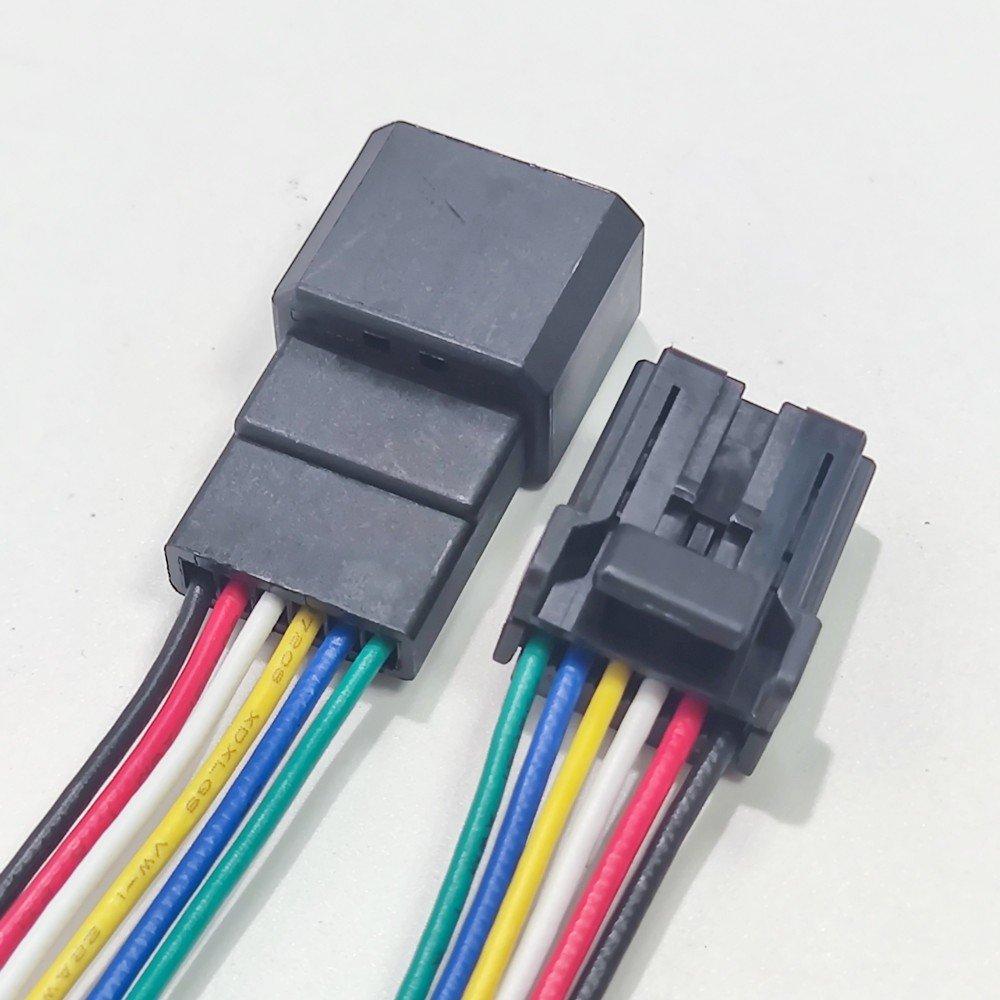

Front View

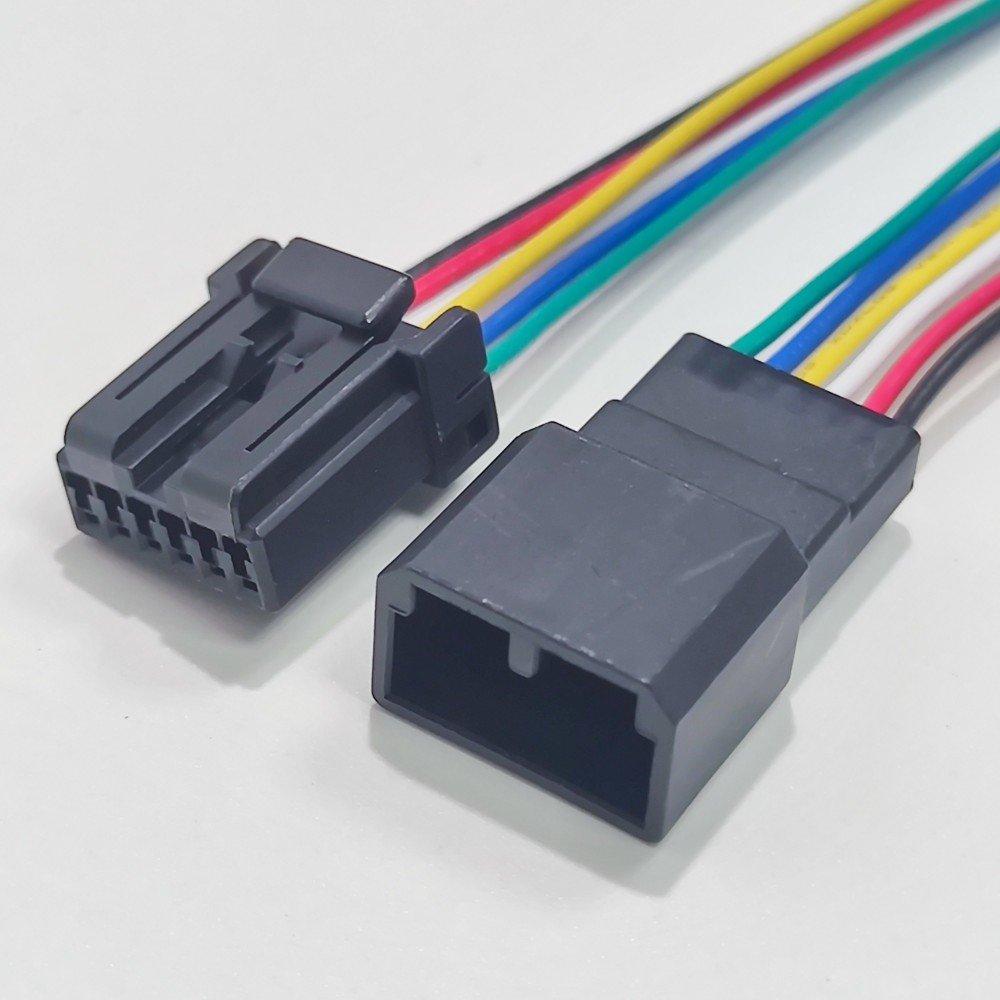

Back View

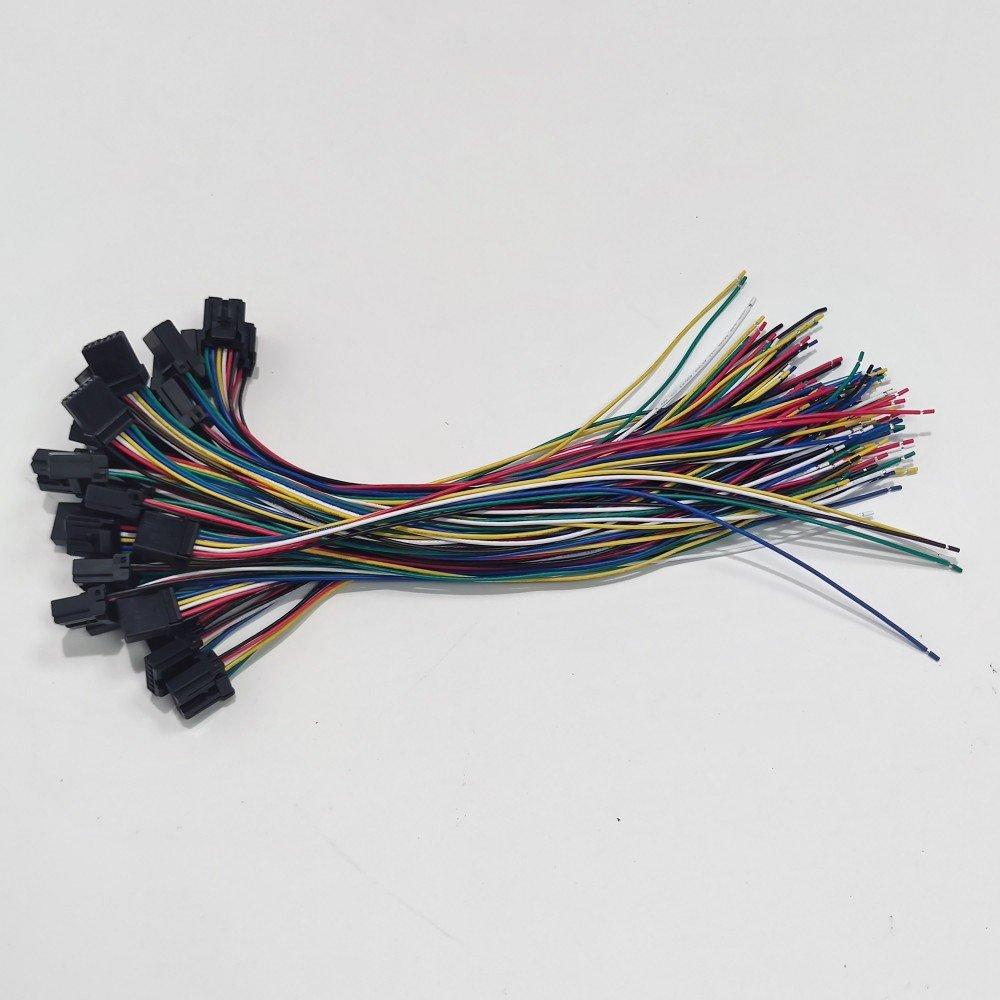

175507-2 Wire Assembly

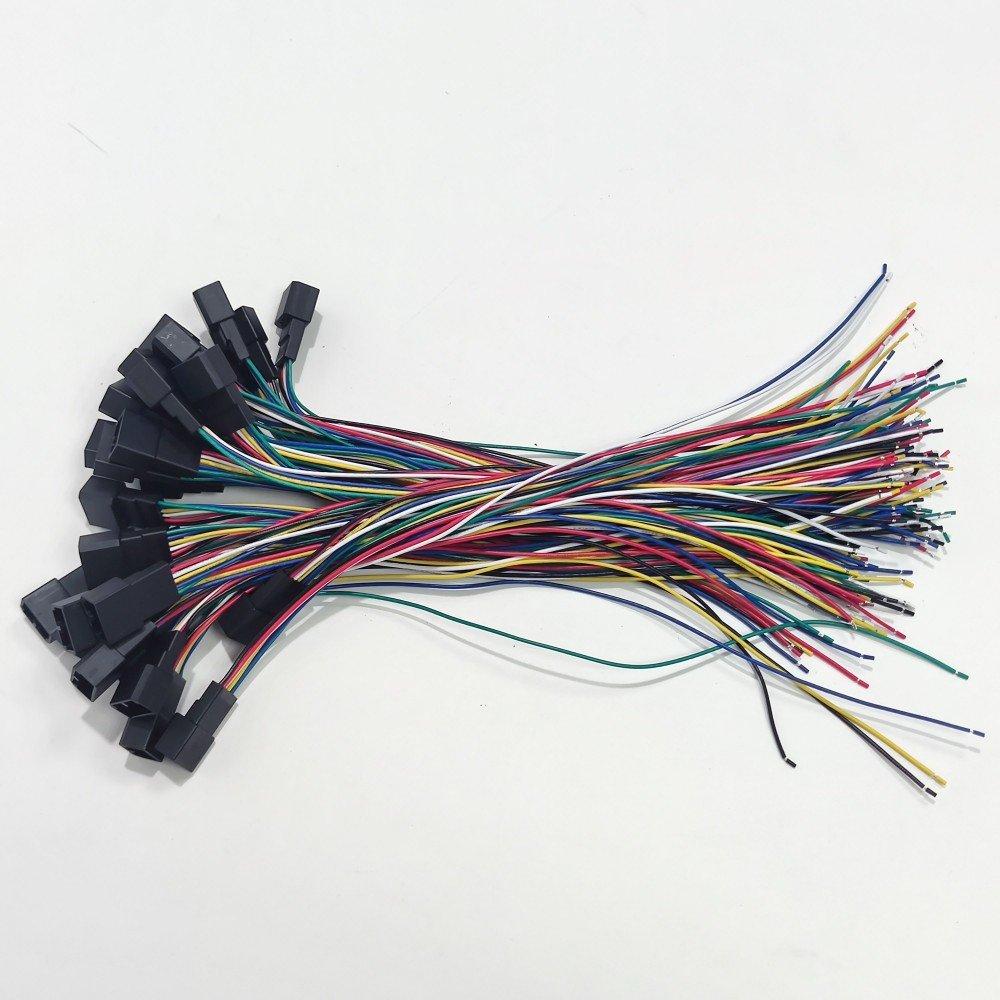

345178-2 Wire Assembly
Support Custom Wire Harness Assembly
- Connectors: 175507-2 and 345178-2.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send the drawing to customize.
- Send a sample to customize.
- Please provide as many details as possible to help us customize.
- Minimum Order: 50 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
