Introduction
We are a Professional Custom Fuel Injection Wiring Harness Manufacturer in China. A Fuel Injection Wiring Harness is a precisely engineered bundle of electrical conductors, terminals, and connectors serving as the dedicated interface between the Engine Control Unit (ECU) and the fuel injectors. Unlike generic wiring, this harness is optimized for high-frequency switching and harsh environmental exposure. It transmits the PWM (Pulse Width Modulation) signals generated by the ECU to the injector solenoids, controlling the duration and timing of fuel delivery. Given that modern engines demand microsecond-level precision, the harness must maintain signal integrity while resisting electromagnetic interference (EMI). Essentially, it serves as the central nervous system of the fuel delivery system, ensuring the engine operates at peak efficiency and performance while complying with emissions standards.
Classification
Fuel injection harnesses vary significantly based on application and engine architecture. Understanding these classifications ensures correct system integration. Below is a breakdown of common types:
| Category | Type / Standard | Description & Characteristics |
| By Engine Type | Port Fuel Injection (PFI) | Low-pressure systems typically use simpler wiring configurations. |
| Gasoline Direct Injection (GDI) | High-pressure systems require enhanced shielding and higher-temp materials. | |
| Common Rail (Diesel) | Heavy-duty applications; focus on robust power delivery and vibration resistance. | |
| By Vehicle Platform | Automotive / Light Duty | Focuses on space optimization and weight reduction. |
| Commercial / Heavy Truck | Prioritizes durability, thick insulation, and resistance to road debris. | |
| Powersports / Marine | Requires extreme waterproofing (IP67+) and corrosion-resistant materials. | |
| By Configuration | Standalone / Swap | Used in engine conversions; designed for compatibility with aftermarket ECUs. |

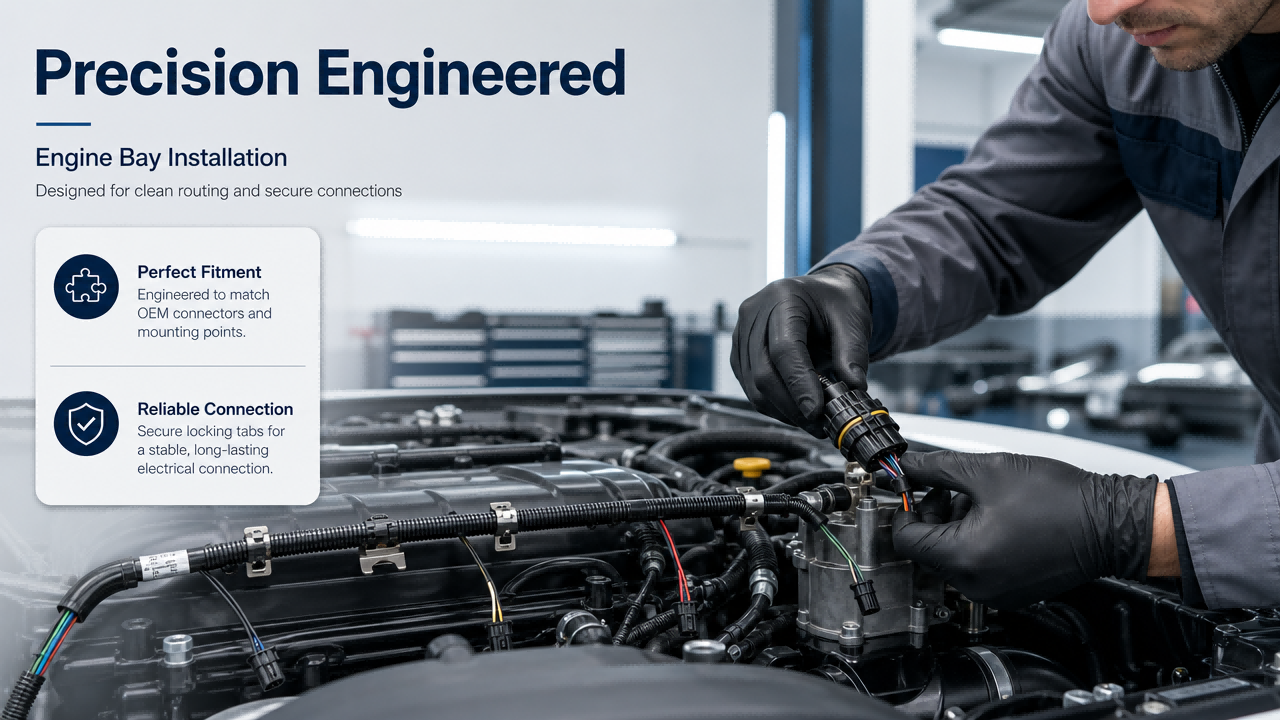

Applications
The primary function of a fuel injection harness is to deliver precise electrical energy to the injectors. In operation, the ECU calculates the required fuel mass and sends a corresponding voltage pulse through the harness. Beyond simple power delivery, the harness plays several critical roles. First, it ensures signal stability, preventing voltage drop that could delay injector opening time. Second, it provides mechanical protection for sensitive copper conductors against extreme engine-bay temperatures (often exceeding 120°C) and chemical exposure from fuel, oil, and coolant. Third, it facilitates sensor integration, often incorporating wiring for O2 sensors and fuel rail pressure sensors. Ultimately, a high-quality harness optimizes the Air-Fuel Ratio (AFR), leading to improved throttle response, reduced emissions, and maximized horsepower output.
Material Selection: Engineering for Reliability
Selecting the right components is paramount to preventing premature failure. We categorize our material selection into three key areas: connectors, conductors, and protective sheathing.
Connector Selection (The Interface)
Connectors are the most common point of failure. We recommend are based on temperature rating, sealing capability, and mating cycles.
-
TE Connectivity AMP Junior Power Timer (JPT): Our preferred choice for OE-level replacements. It offers excellent high-temperature resistance and secure locking latches.
-
TE Sealed Sensor Connector (SSC) Series: Ideal for integrating fuel pressure and temperature sensors due to its compact size and IP68 rating.
-
Aptiv Weather Pack: Standard for North American aftermarket; known for its reliable seal in wet conditions.
Wire Selection (The Conductor)
Wire insulation must withstand under-hood chemicals and heat. We primarily use cross-linked wire types:
| Standard | Type | Temp Rating | Characteristics | Recommended Use |
| SAE | GXL | 125°C | Thin-wall, cross-linked Polyethylene. Resistant to gas/oil. | Most common for engine harnesses. |
| SAE | TXL | 125°C | Extra-thin wall, lighter weight. | Tight spaces, racing applications. |
| ISO | FLRY-B | 105°C | Thin-wall PVC, flexible. | European vehicles (VW, BMW, etc.). |
| JASO | AVSS | 80°C | Very thin-wall, high flexibility. | Japanese motorcycles and compact cars. |
Auxiliary Materials (Protection & Durability)
To protect the core wiring, we specify high-performance auxiliary materials. Corrugated Conduits made from PA6 (Nylon) or PP provide crush and abrasion resistance; we select flame-retardant grades for sections near the exhaust. For added aesthetic and abrasion resistance, PET Braided Sleeving is applied. Finally, we use Fleece Cloth Tape for final bundling, which dampens vibration noise better than PVC tape and resists engine oils without unraveling.
Processing & Manufacturing Techniques
General Process Flow

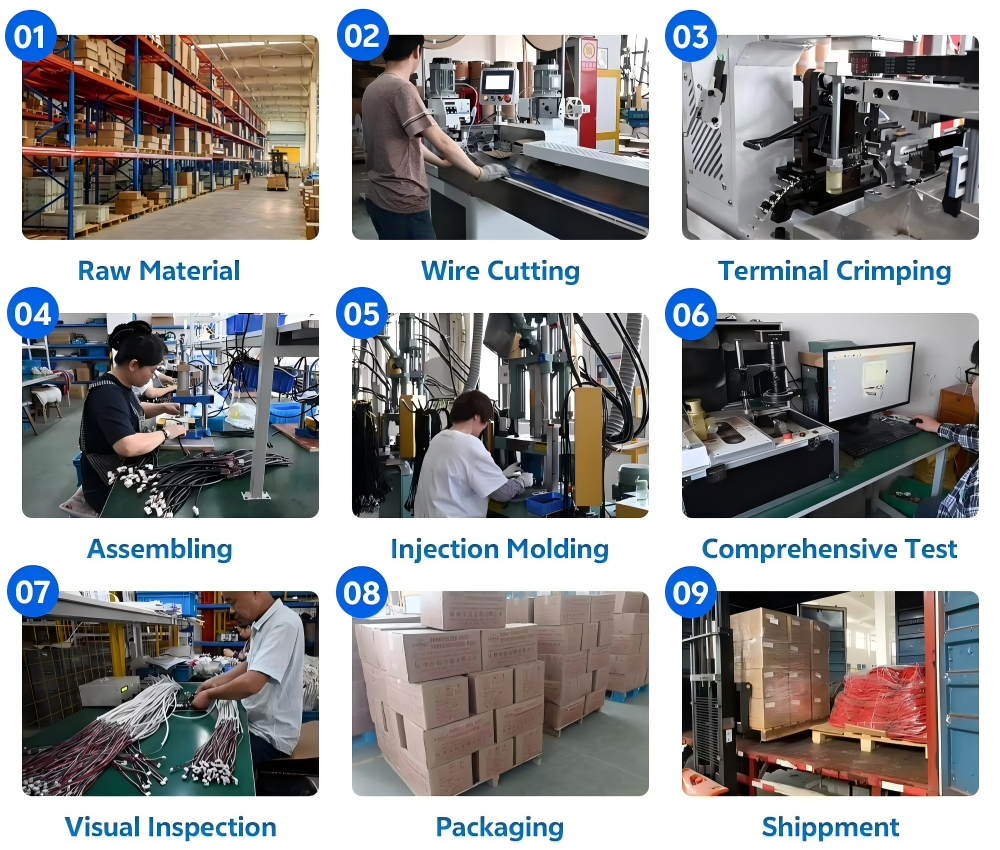

Our manufacturing adheres to IPC/WHMA-A-620 standards. The process begins with precision cutting and stripping of wires using programmed automatic machines. Next, terminals are crimped onto the conductors using calibrated pneumatic presses. These sub-assemblies are then routed according to the schematic, with operators manually positioning connectors and applying protective sleeving. Finally, the harness is assembled with clamps and ties to match the OEM form factor.
Quality Control: Precision and Testing
Dimensional accuracy is critical. We custom jigs to ensure every branch length matches the design specification, preventing tension or slack in the engine bay. More importantly, every single harness undergoes a 100% Continuity and Hipot Test. Using automated test equipment (ATE), we verify that there are no open circuits, shorts, or miswires. Each circuit is checked for proper pin-to-pin mapping, and a test report is generated for every batch. This guarantees that the harness you receive is electrically correct and ready for installation.
Custom fuel injection wiring harness Cases

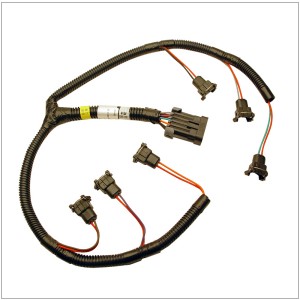

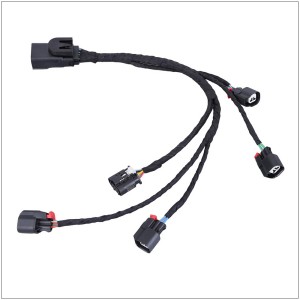

Fuel Injector Wiring Harness

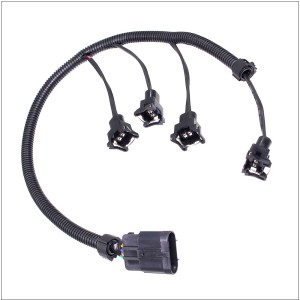

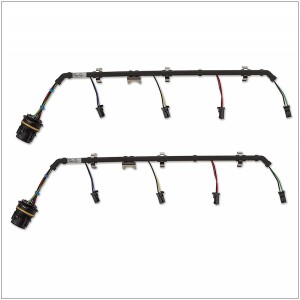

Fuel Injector Wire Harness

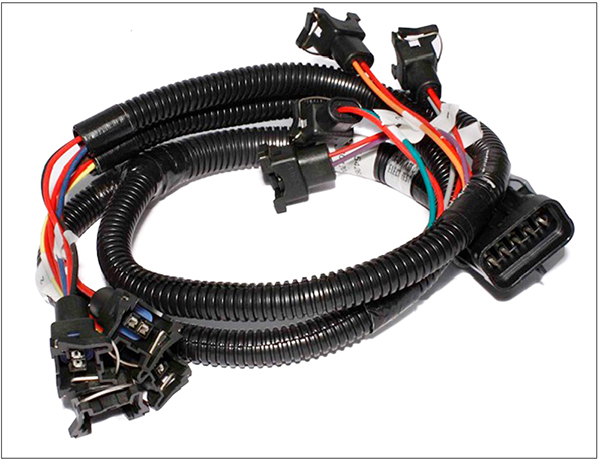

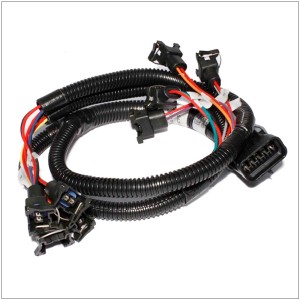

Fuel Injection Wiring Harnesses

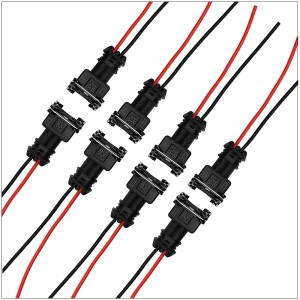

Fuel Injector Connector
Fuel Injection Wiring Harness
Fuel Injection Wire Harness

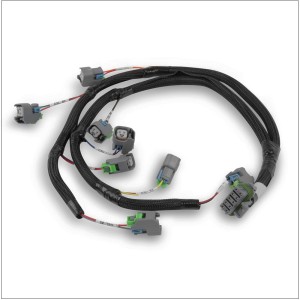

Fuel Injection harness

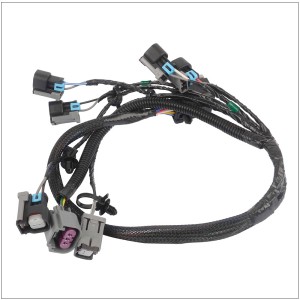

Engine Injector Harness
We Support Custom Wire Harness Assembly
- Connectors: Support TE, Deutsch, Aptiv, Amphenol, Sumitomo, Yazaki, etc.
- Wire Gauge:
- depends on your needs
- recommended by us
- Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 100 pieces.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
