Aptiv Metri Pack Series 280 Connectors, Custom Wiring Harness Assembly
- Rated for up to 16V and 30amps
- In-line connectors are ideally suited for space-limited application
- Secondary lock and TPA capabilities for improved and more robust system design.
- Seal retention and protection features help prevent loss or damage to the connector seal.
- Low engage force improves reliability and ergonomics.
- Pass SAE J2030* Heavy-Duty Electrical Connector Standard (with silver interface platings).
- Mates to ISO, and SAE blades for compatibility with existing systems and increased efficiency
The Metri-Pack 280 Series offers compact and efficient in-line APTIV connectors that provide high current and current density. These connectors are designed to withstand extreme temperatures, chemicals, and abrasions, making them suitable for automotive applications under the hood as well as marine, off-road, and agricultural applications. With a rating of 16 volts and 30 amps, these APTIV connectors must be used together with a sealed Splice Pack system.
Aptiv Metri-Pack 280 Connector Features
- 30A continuous maximum current rating
- Standard ISO 2.8mm configuration
- Connector Position Assurance (CPA)
- Terminal Position Assurance (TPA)
- Small overall dimensions
- Low energy, low voltage capabilities
- Excellent resistance to temperature, chemicals, and abrasion
- 0.35mm2 to 5mm2 (sealed and unsealed) cable range
- 0A to 30A current range
- -40°C to + 125°C operating temperature range
- <10mΩ @ 20mV resistance
- <3mV/A voltage drop
- 5mm (unsealed), 7.7mm (sealed) centerline spacing
- 2.8mm blade width
Aptiv Metri-Pack 280 Connector Part Number Lists
| Part Number | Number of Position | Gender | Color |
| 12089916 | 1 | Receptacle (Female) | Gray |
| 10719099 | 1 | Receptacle (Female) | Black |
| 12065170 | 1 | Receptacle (Female) | Black |
| 12089916 | 1 | Receptacle (Female) | Gray |
| 10719099 | 1 | Receptacle (Female) | Black |
| 12065172 | 1 | Receptacle (Female) | Black |
| 12059450 | 2 | Plug (Male) | Black |
| 12129487 | 2 | Receptacle (Female) | Gray |
| 12162694 | 2 | Receptacle (Female) | Gray |
| 15393198 | 2 | Receptacle (Female) | Gray |
| 12124817 | 2 | Receptacle (Female) | Black |
| 13743443 | 2 | Plug (Male) | Orange |
| 12059450 | 2 | Plug (Male) | Black |
| 12129487 | 2 | Receptacle (Female) | Gray |
| 12034147 | 3 | Receptacle (Female) | Black |
| 15300029 | 4 | Receptacle (Female) | Black |
| 12129716 | 4 | Receptacle (Female) | Gray |
| 15300029 | 4 | Receptacle (Female) | Black |
| 15300030 | 5 | Receptacle (Female) | Black |
| 12186579 | 5 | Plug (Male) | Gray |
| 12186614 | 5 | Plug (Male) | |
| 15300030 | 5 | Receptacle (Female) | Black |
| 12052287 | 5 | Receptacle (Female) | Black |
| 12110295 | 6 | Receptacle (Female) | Gray |
| 15354653 | 7 | Receptacle (Female) | Black |
| 15354653 | 7 | Receptacle (Female) | Black |
Metri-Pack 280 Connectors offer a continuous maximum current rating of 30A and have a standard ISO 2.8mm configuration. The connectors in the 280 series feature a blade width of 2.8mm, centerline spacing options of either 5mm or 7.7mm, and can accommodate cables ranging from 0.35 mm² to 5 mm². They provide resistance below <10mΩ @20mV and can operate within a temperature range of -40°C to +125°C. These connectors are designed with low energy consumption, low voltage capabilities, and excellent resistance against high temperatures, chemicals, and abrasion. Aptiv Metri-Pack 280 Connectors are specifically engineered to meet or exceed the requirements for various marine, appliance, and industrial control applications.
Aptiv Metri-Pack 280 Connector Custom Wiring Harness Cases

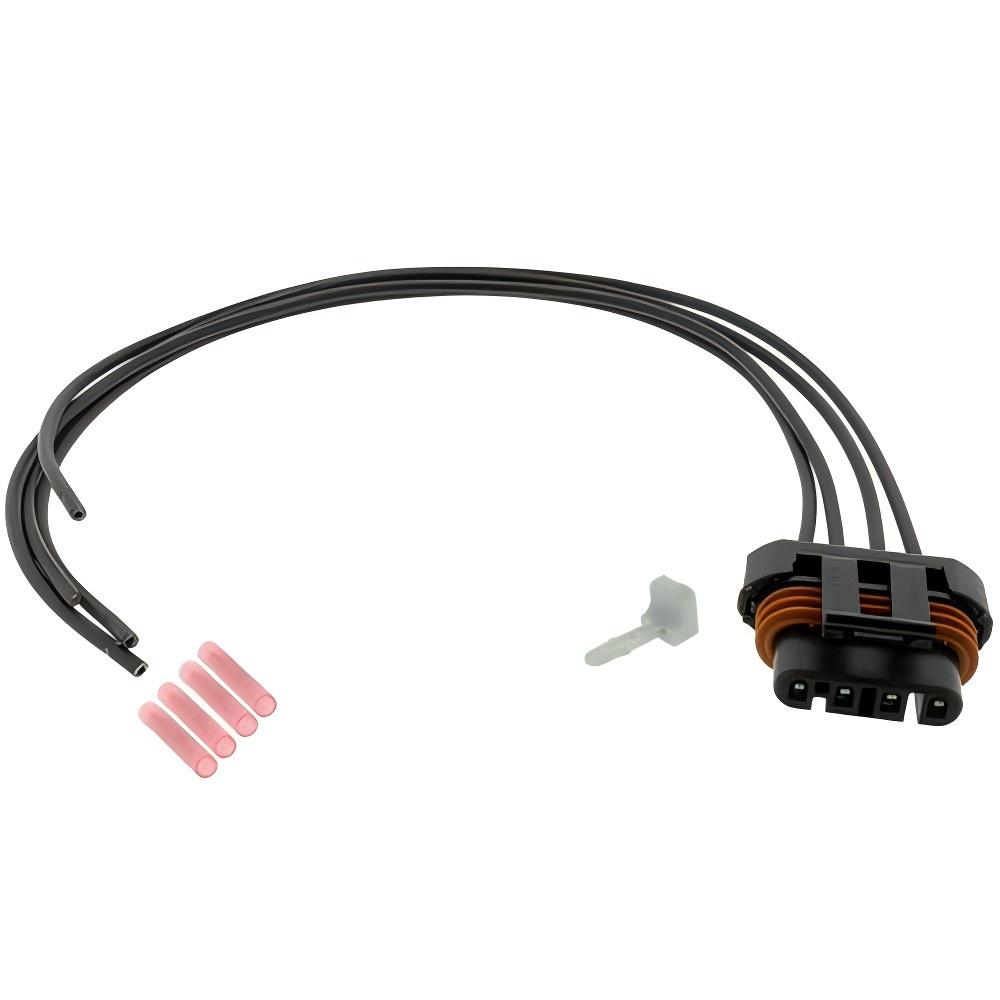

Aptiv 12020599 2-Way Connector Wiring
Aptiv 12034147 3-Way Connector Wiring

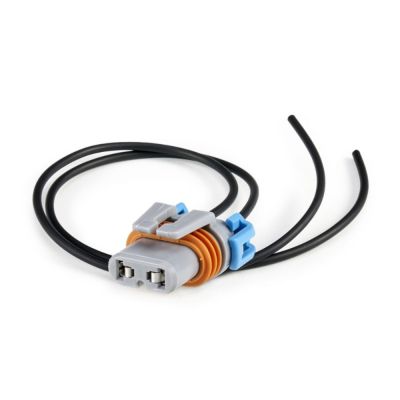

Aptiv 12059181 2-Way Connector Wiring

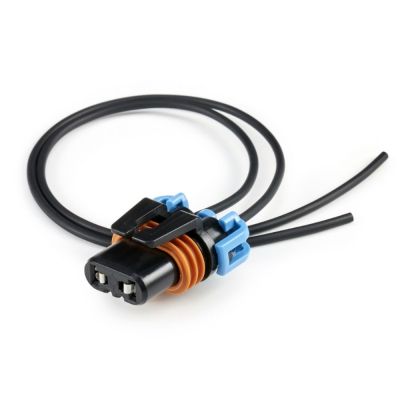

Aptiv 12059183 2-Way Connector Wiring

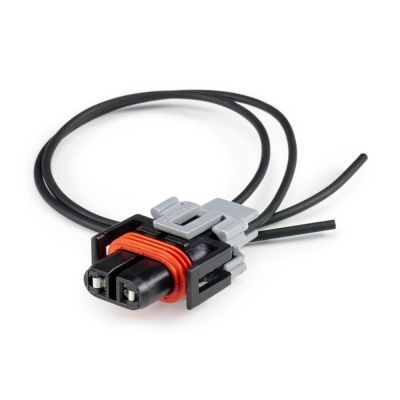

Aptiv 12124819 2-Way Connector Wiring
Aptiv 15300027 2-Way Connector Wiring

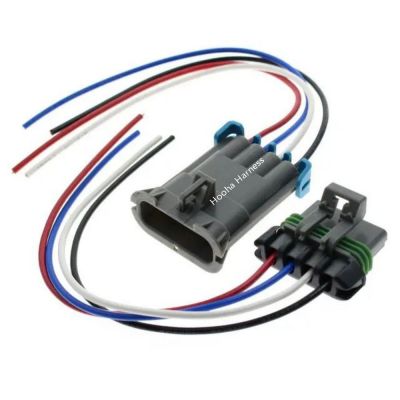

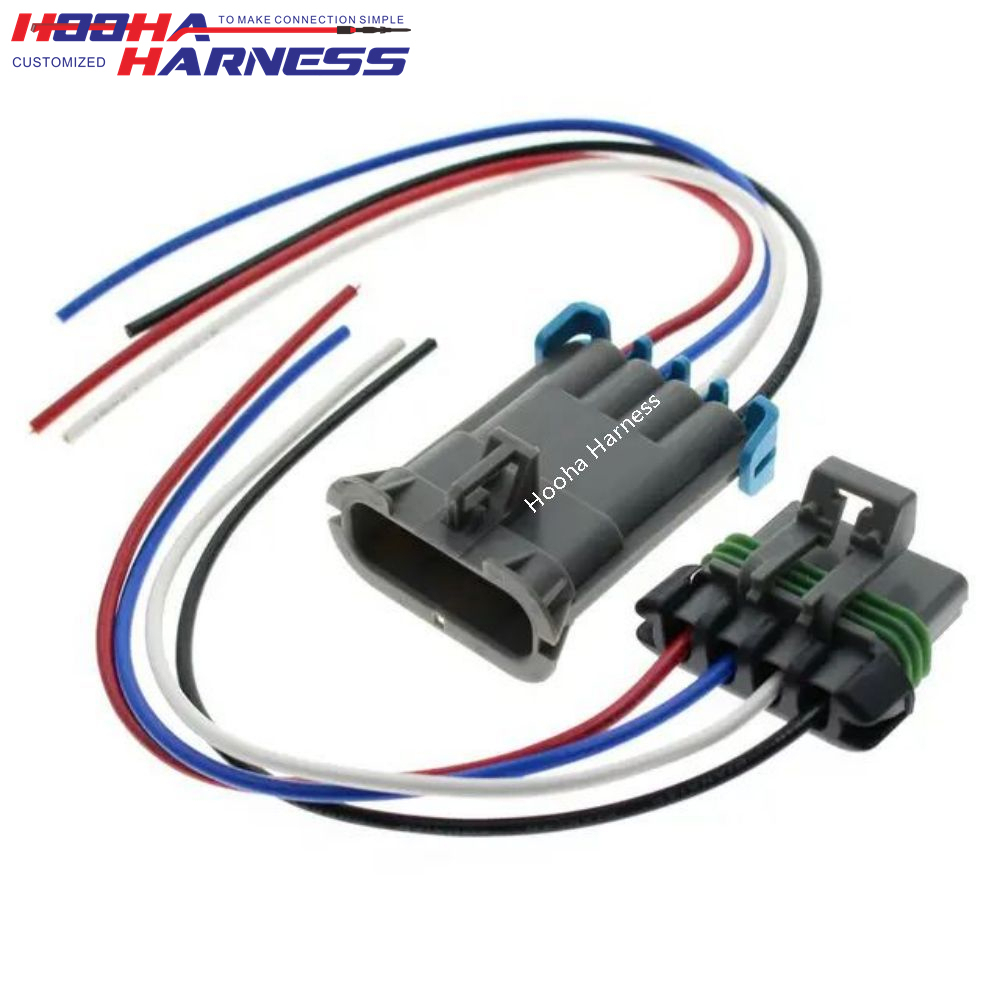

Delphi 4p Metri-Pack 280 Series connector 12129600, 12129565, 15306069

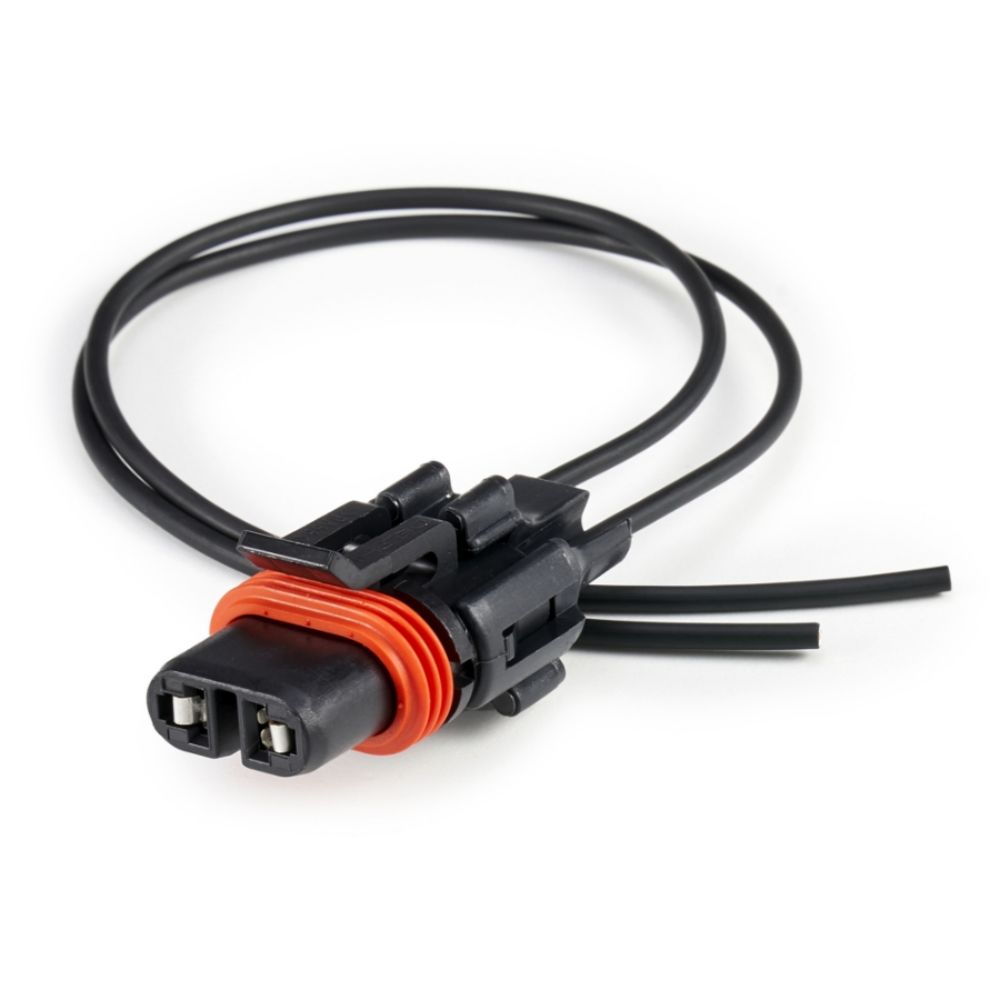

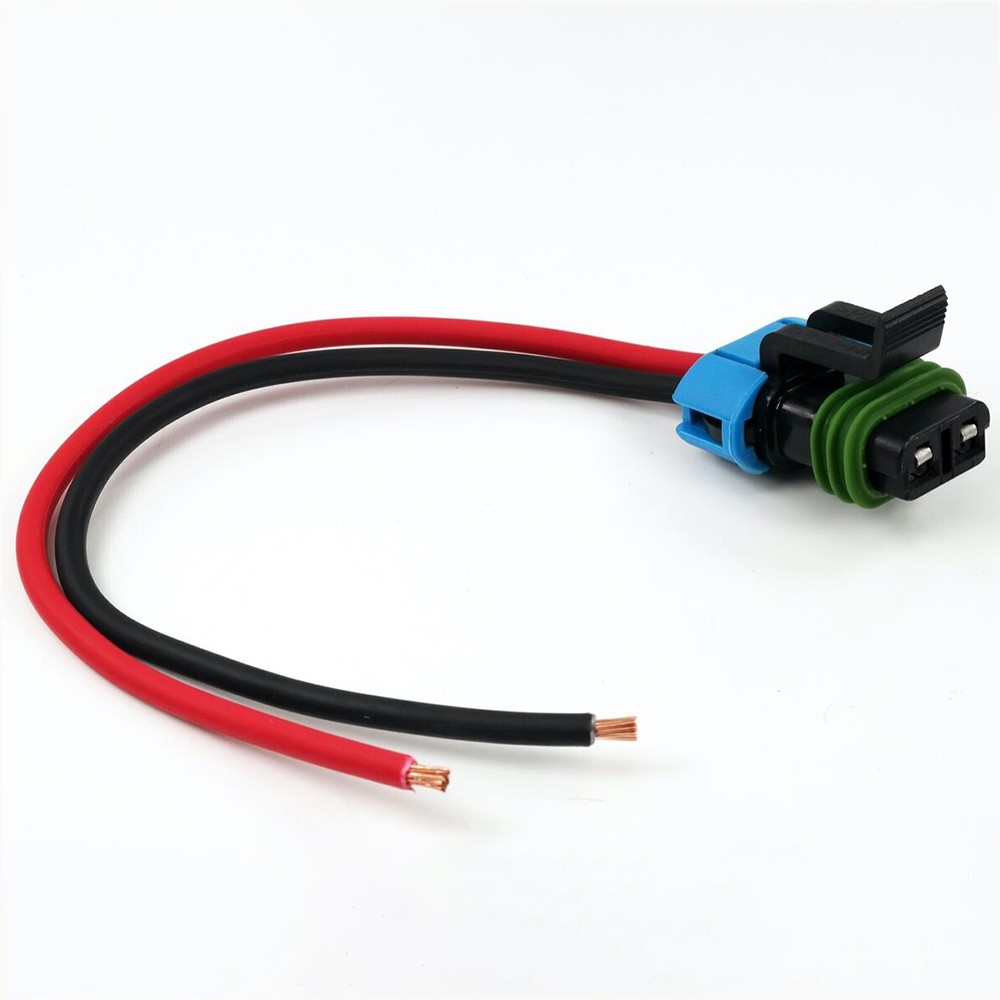

Delphi Metri-Pack 2-Pin 280 Series FEMALE Connector

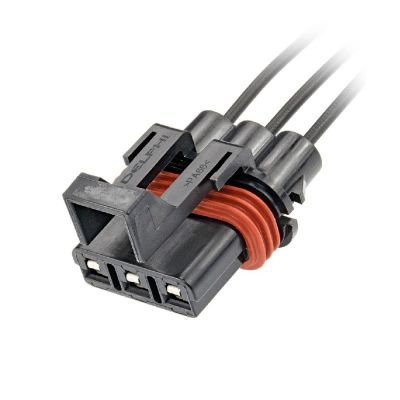

3-Way Delphi Metripack 280 Female Connector
How to customize your wiring harnesses?
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
