Aptiv Weather Packing Connector, Custom Wiring Harness Assembly
- Cable Range: 0.35mm² – 3.0 mm²
- Current Range: 0 – 20 amps
- Temperature Range: -40°C to 125°C
- Resistance: <10mΩ @ 50mV
- Voltage Drop: <3.0mV/amp
- Centerline Spacing: 7.7 mm
- Blade Width: Pin and Sleeve
Aptiv Weather Packing Connector Features
- Connector Position Assurance (CPA) available
- Secondary Lock (Cover)
- 20 amps continuous maximum current rating
- Sealed system
- Pin and sleeve configuration
- Dual-locking tangs on terminals
- Low energy, low voltage capability
- -40°C to 125°C temperature range

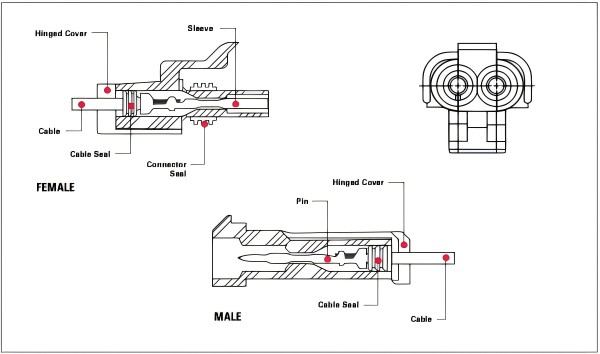

Connector Cross-Sectional Views
Connector Part Number
| Part Number | Number of Position | Gender | Color |
| 13510096 | 1 | Pin (Male) | Black |
| 12010996 | 1 | Plug (Male) | Black |
| 12015791 | 1 | Socket (Female) | Black |
| 12015792 | 2 | Socket (Female) | Black |
| 12010973 | 2 | Plug (Male) | Black |
| 12015378 | 2 | Plug (Male) | Gray |
| 12015782 | 2 | Socket (Female) | Black |
| 12034074 | 2 | Plug (Male) | Gray |
| 12103784 | 2 | Receptacle (Female) | Gray |
| 12103584 | 2 | Socket (Female) | Brown |
| 12015092 | 3 | Plug (Male) | Red |
| 12157968 | 3 | Pin (Male) | Black |
| 12010717 | 3 | Plug (Male) | Black |
| 12015793 | 3 | Socket (Female) | Black |
| 12015795 | 3 | Receptacle (Female) | Red |
| 12020829 | 3 | Receptacle (Female) | Black |
| 12020827 | 3 | Plug (Male) | Black |
| 10737788 | 3 | Socket (Female) | Black |
| 12010974 | 4 | Plug (Male) | Black |
| 12015024 | 4 | Plug (Male) | Black |
| 12015797 | 4 | Socket (Female) | Black |
| 12015798 | 4 | Socket (Female) | Black |
| 12020830 | 4 | Plug (Male) | Black |
| 12020832 | 4 | Socket (Female) | Black |
| 12065158 | 5 | Pin (Male) | Gray |
| 12034342 | 5 | Plug (Male) | Black |
| 12020786 | 6 | Plug (Male) | Black |
| 12010975 | 6 | Plug (Male) | Black |
| 12015799 | 6 | Socket (Female) | Black |
| 12020926 | 6 | Socket (Female) | Black |
| 15492531 | 22 | Receptacle (Female) | Black |
| 15492521 | 22 | Plug (Male) | Black |
| 15492584 | 22 | Socket (Female) |
>>> Custom Wiring Harness Cases <<<
3p 12015793 to 2p superseal connector

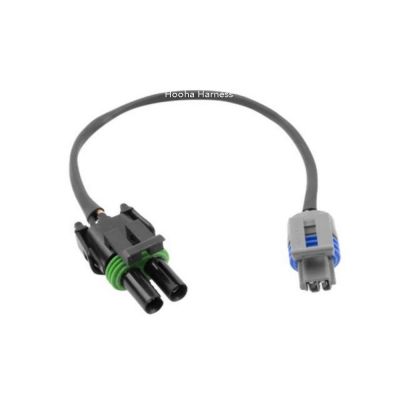

5p 12034342 wire harness

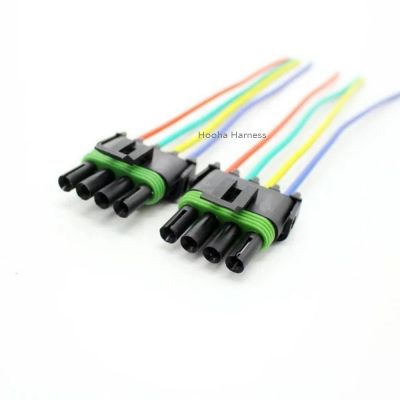

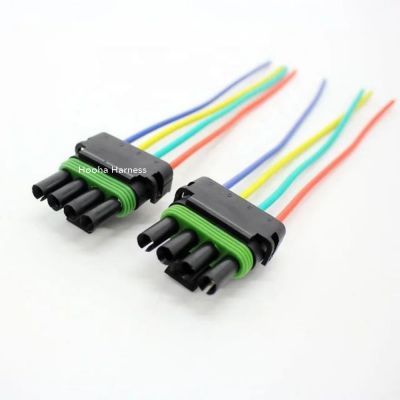

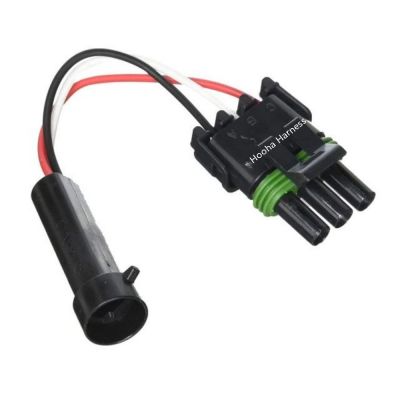

4p female connector 12015797 wire

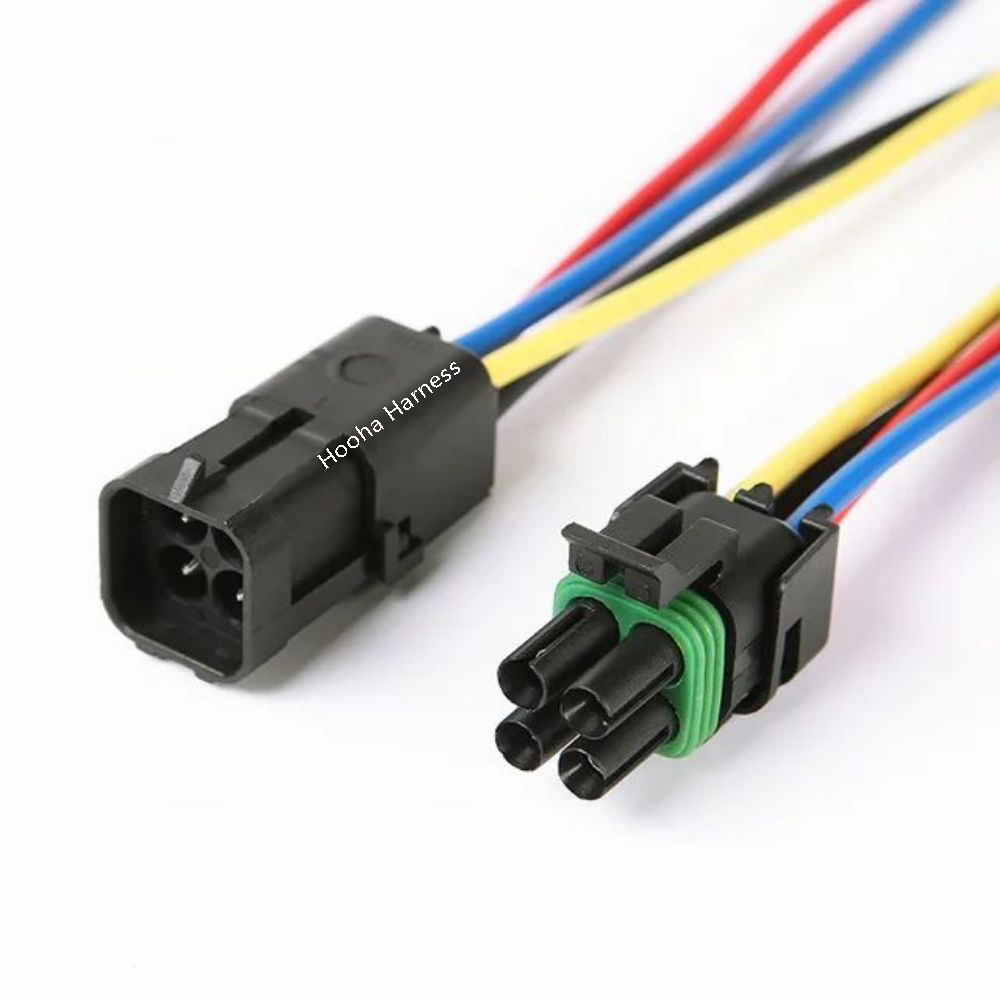

12015024, 12015798 wiring

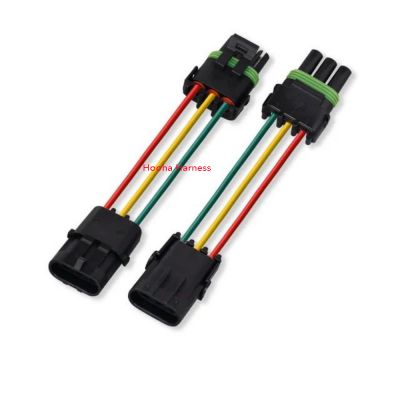

12015442, 12015793 Wiring

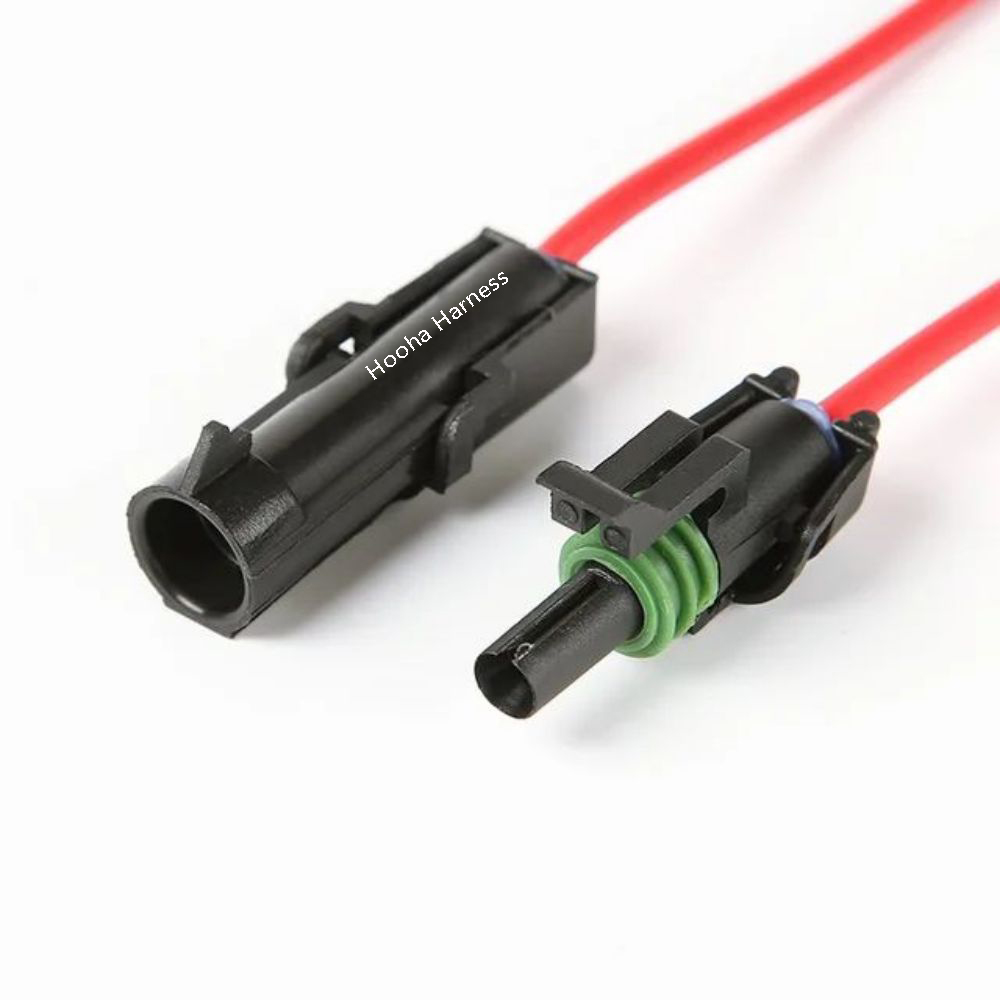

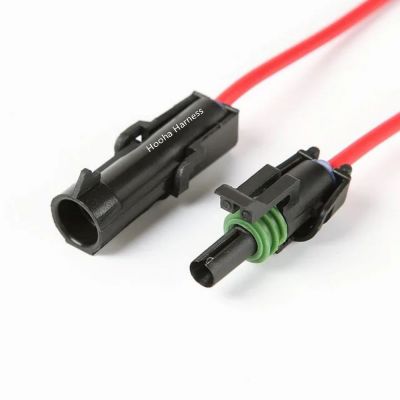

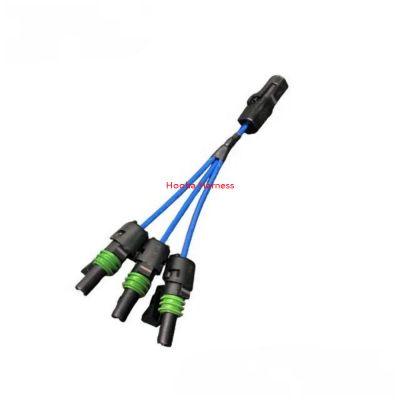

12015791, 12010996 1 to 3 Wiring

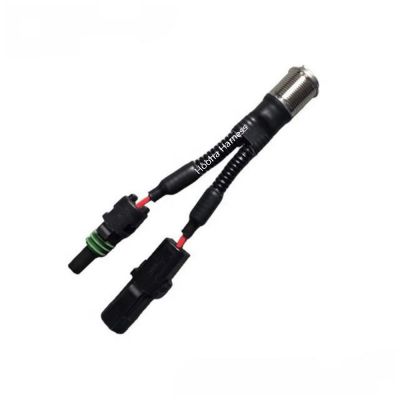

12015791, 12010996, female to female to switch cable
12015791, 12010996 Wiring

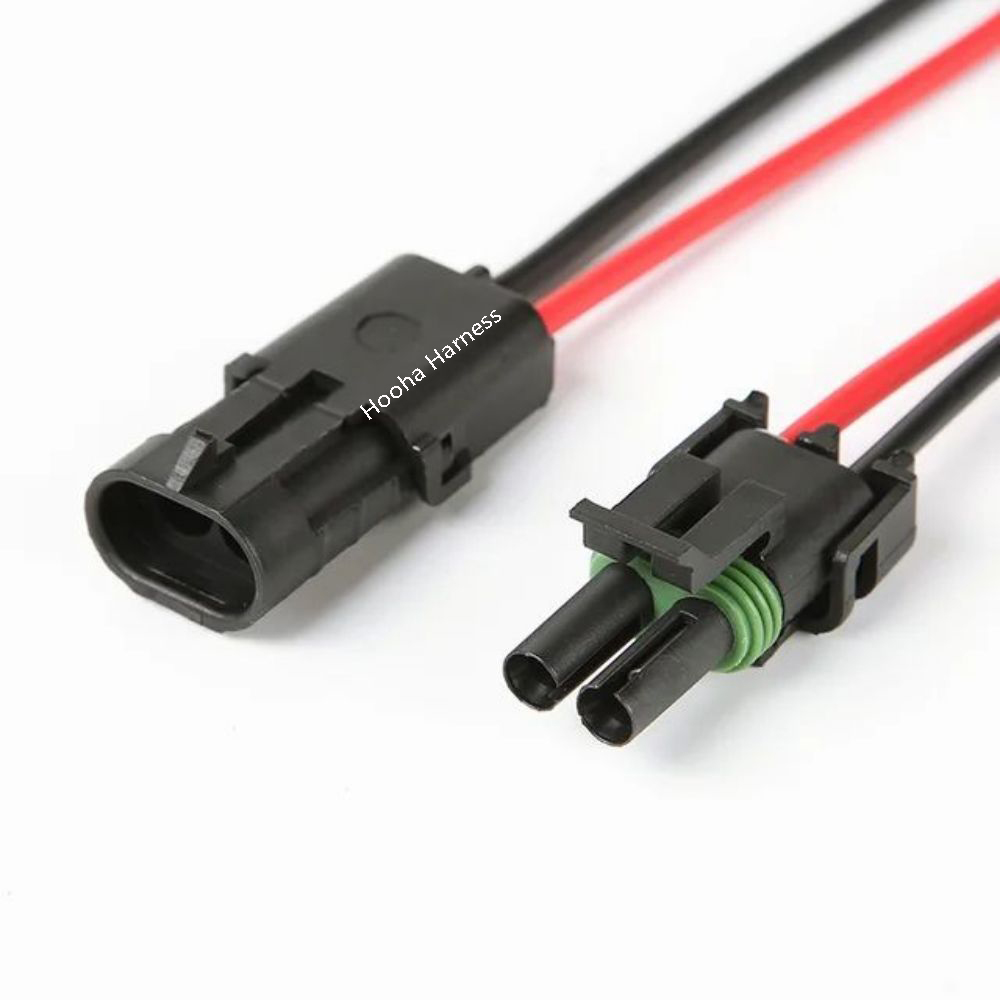

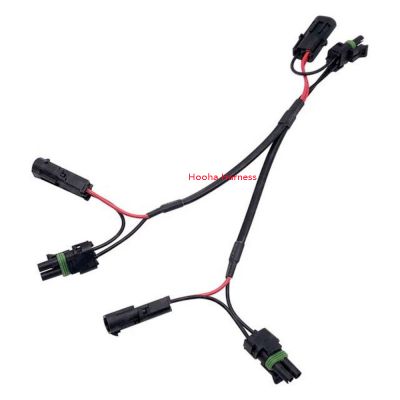

12015792, 12010973 2p custom wire harness

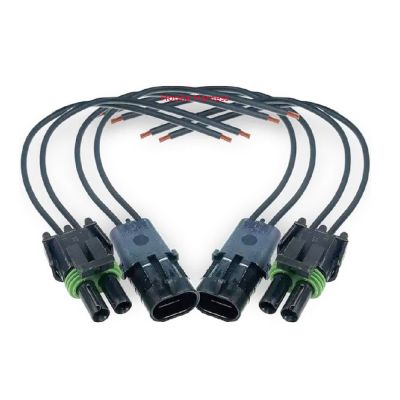

12015792, 12010973 wiring
12015792, 12010973 Wiring

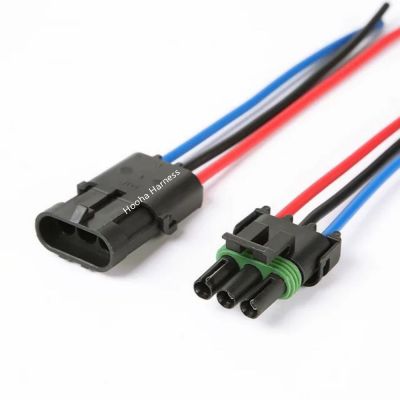

12015793, 12010717 Wiring

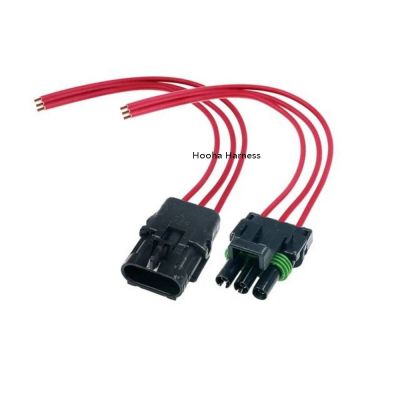

12015793, 12020827 Wiring

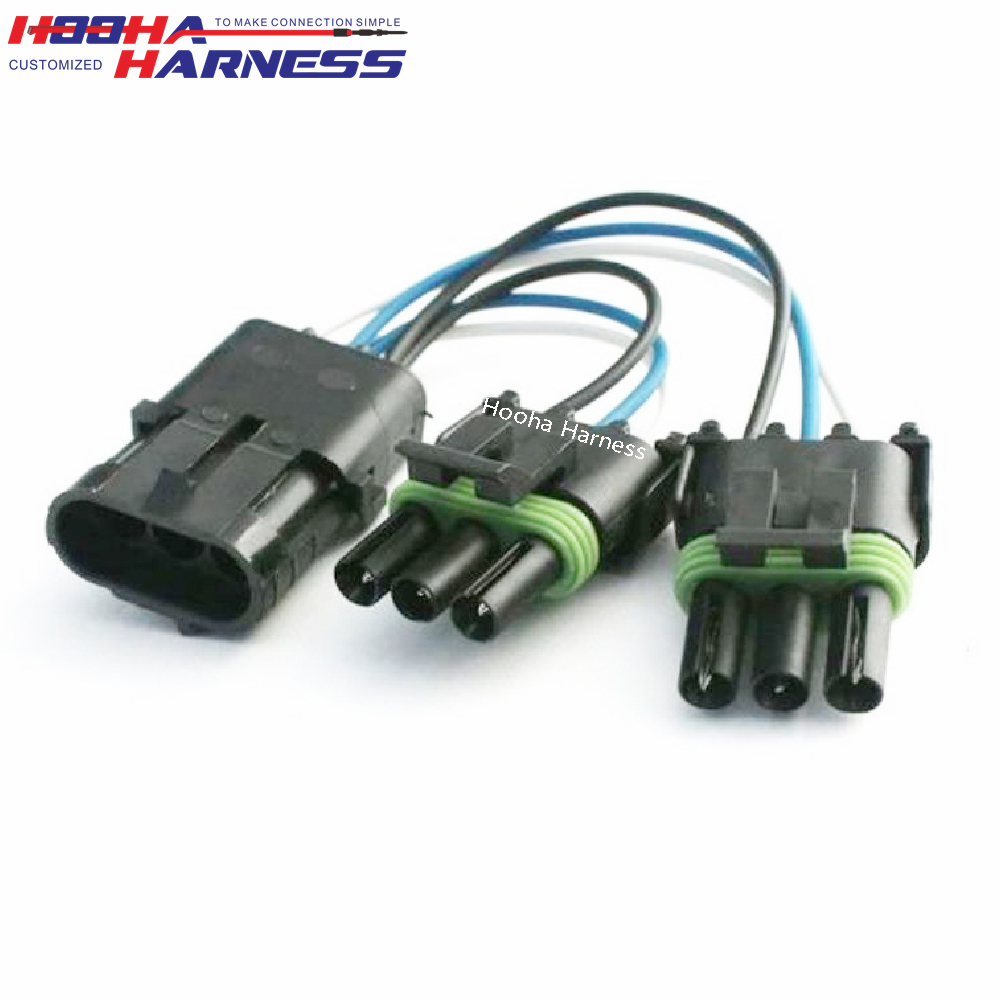

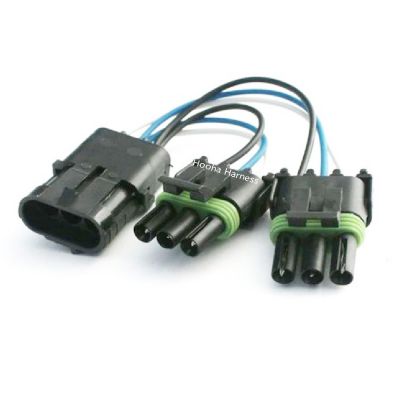

12015793,12157968 female to female 1 to 2

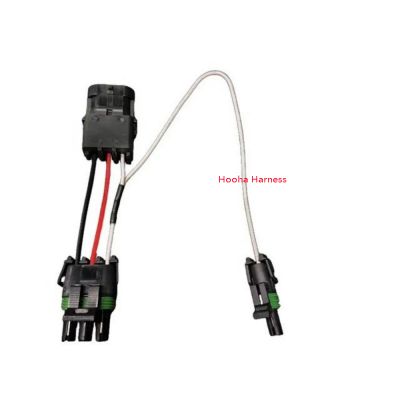

12015793,12157968 male to female + 1p

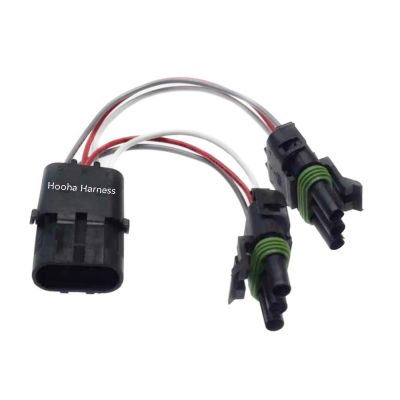

12015793,12157968 male to female 1 to 2 splitter cable

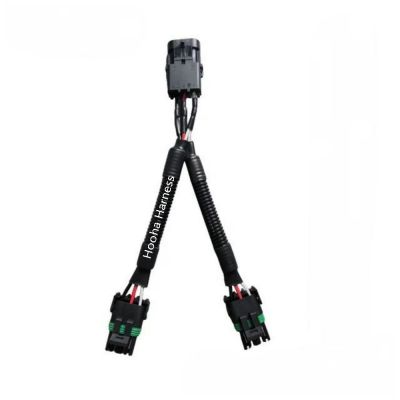

12015793,12157968, 1 to 2 splitter

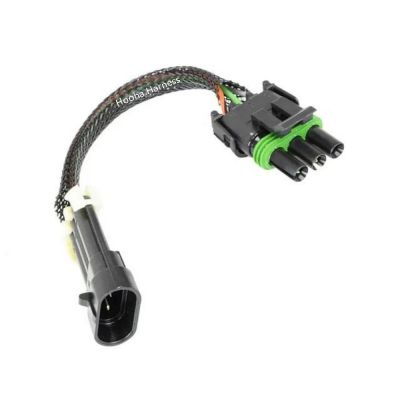

12015796 wire harness
12015797 wiring

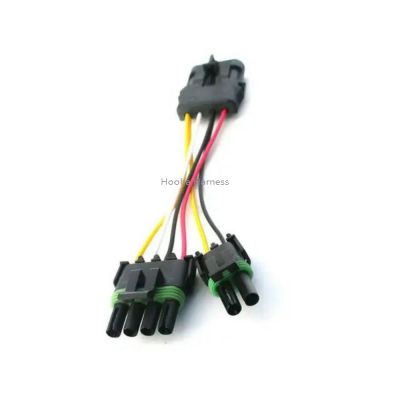

12015797, 12010974 4p + 2p 12015792

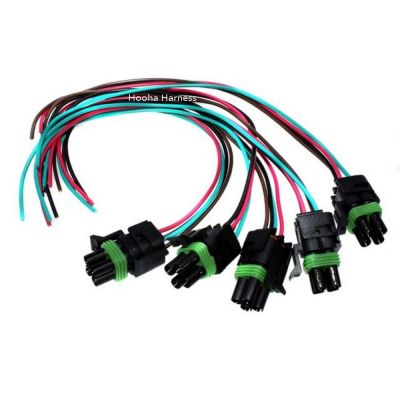

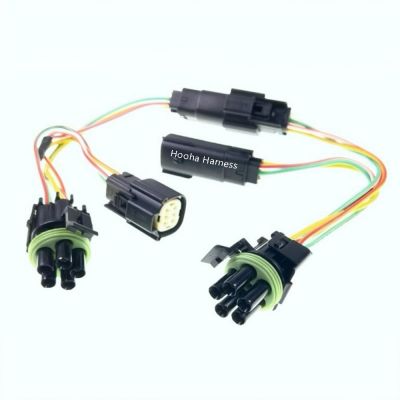

12015798 wiring
12103584 wire harness

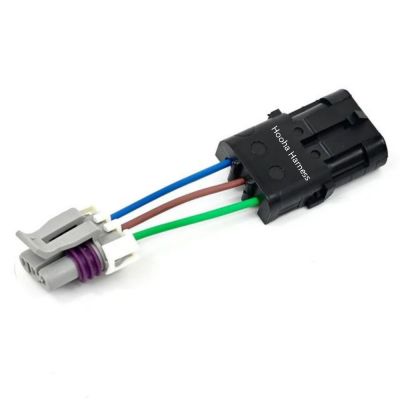

13831309 Wire Harness Assembly

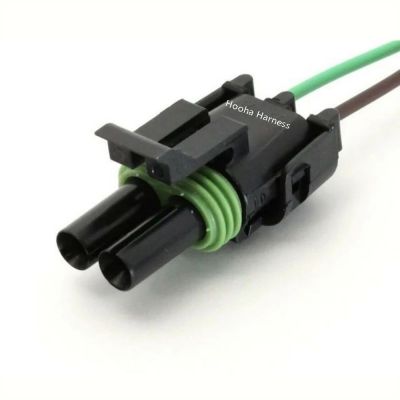

15368499 wire harness

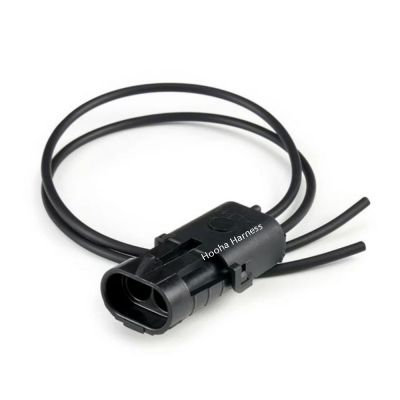

15426914 wire harness

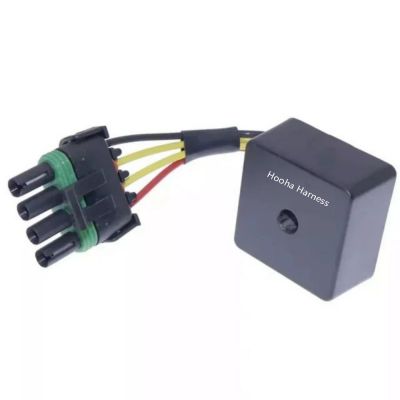

Aptiv 12015797 plug sensor Wire Harness Assembly

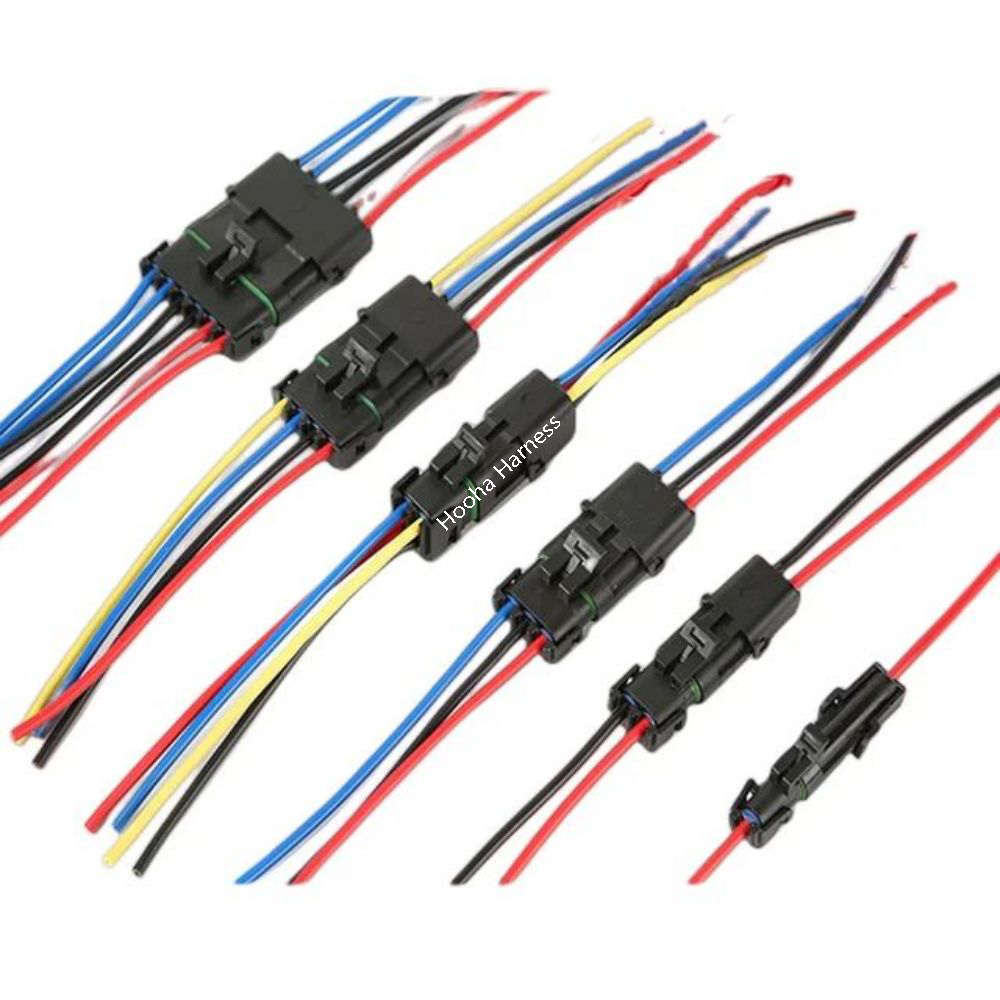

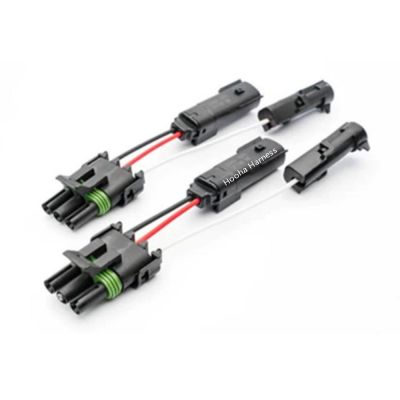

Aptiv Weather-Pack connector 3p to 2p 1p
How to customize your wire harness?
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
