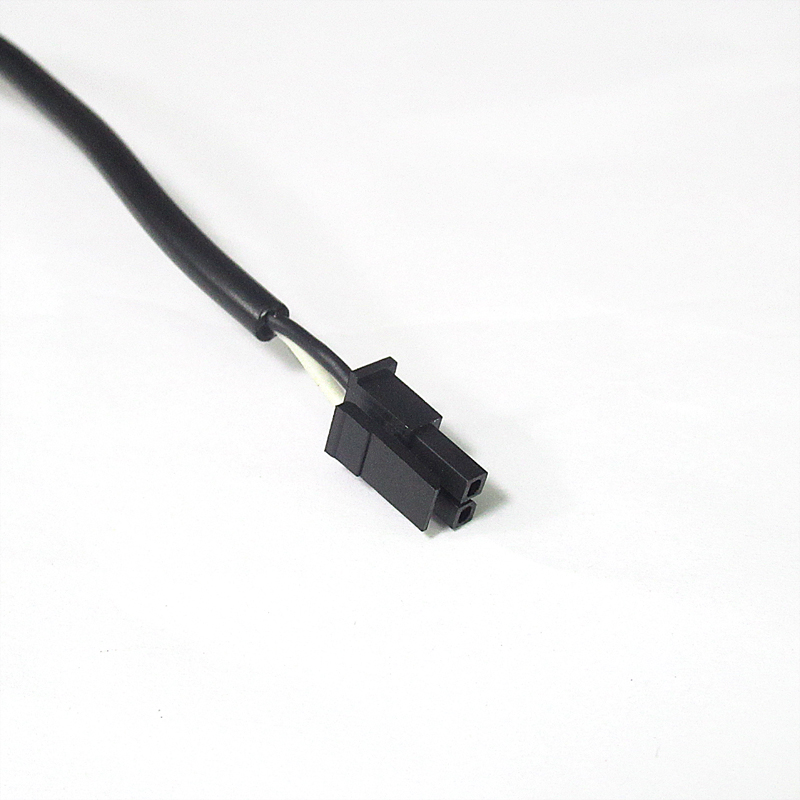

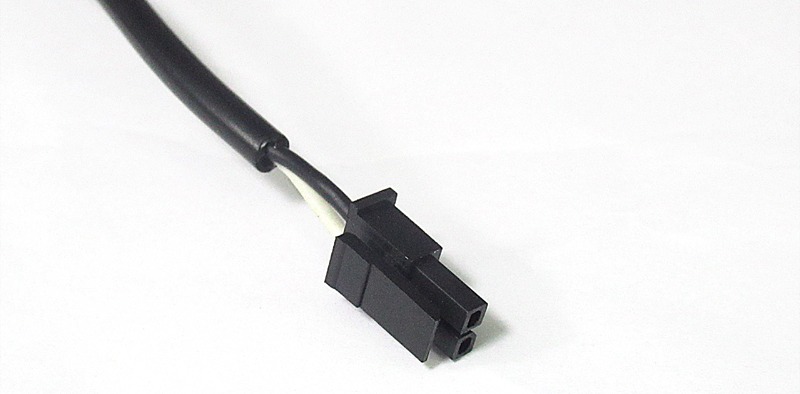

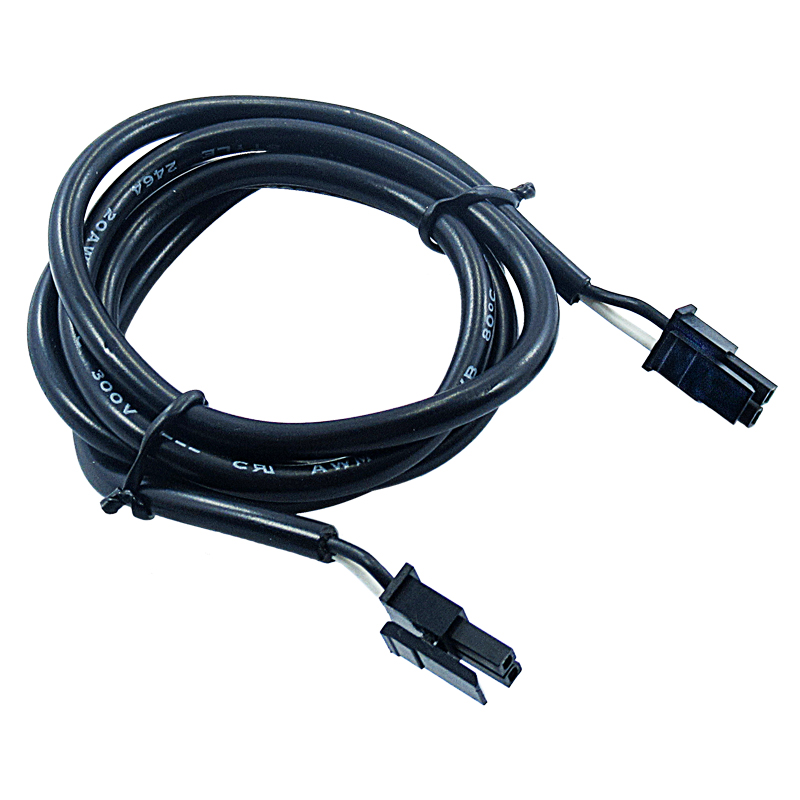

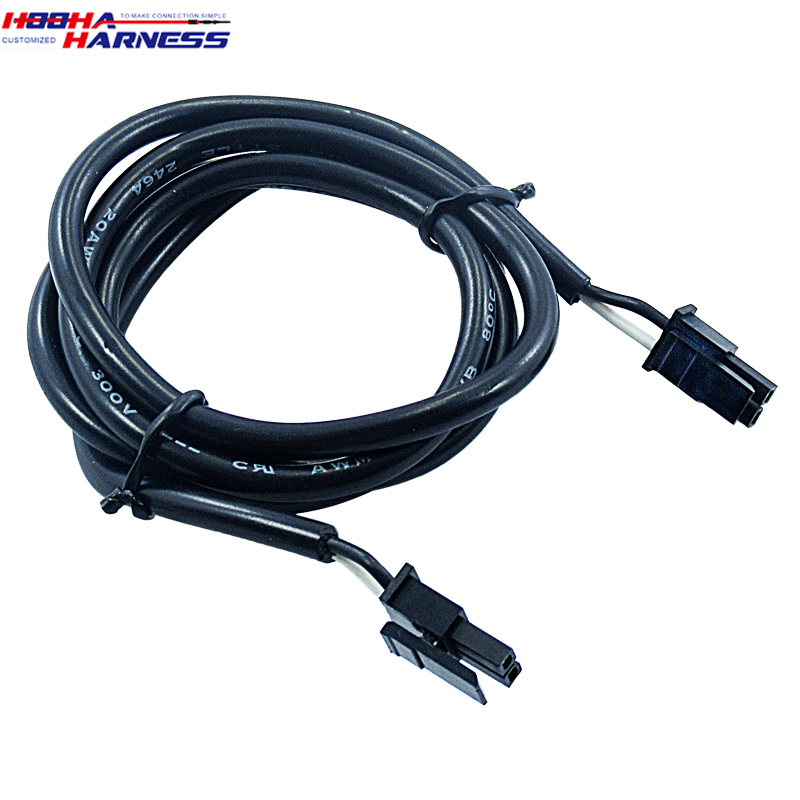

molex micro fit 3.0mm pitch 2pin female to female extension cable assembly

molex micro fit 3.0mm pitch 2pin female to female extension cable assembly

Product ID : 334

Product Tags : Molex Connector Wiring custom wire harness

Product Attributes :

The Molex Micro-Fit 3.0mm Pitch 2pin Female to Female Extension Cable Assembly is the custom solution for extending your cables with ease and convenience. This high-quality cable assembly boasts a durable construction that ensures reliable performance, even in demanding environments.

With its female-to-female design, this extension cable allows you to connect two devices together seamlessly without any hassle. Whether you're looking to extend the reach of your computer peripherals or simply need more flexibility in your wiring setup, this cable assembly has got you covered.

The Molex Micro-Fit connector is renowned for its superior quality and reliability, making it an ideal choice for a wide range of applications. Its compact size makes it easy to install and use, while its robust design ensures long-lasting durability.

So if you're looking for a top-quality extension cable assembly that delivers exceptional performance and reliability, look no further than the Molex Micro-Fit 3.0mm Pitch 2pin Female to Female Extension Cable Assembly!

Product Description

Molex Micro-Fit 3.0mm Pitch 2pin Female to Female Extension Cable Assembly

This professional-grade extension cable assembly features Molex Micro-Fit 3.0mm pitch connectors with precision-engineered 2-pin female terminals. Engineered for reliable signal transmission in demanding environments, it supports up to 3A current rating and 250V AC/DC voltage. The assembly maintains signal integrity with low insertion loss (<0.5dB) and high durability (500+ mating cycles).

Ideal for industrial automation, medical equipment, and data center applications requiring secure interconnections with precise 3.0mm pitch alignment.

Custom Length Options

Standard length: 300mm. We support fully customized lengths from 100mm to 2000mm to meet specific application requirements.

Rapid Production & Delivery

All standard configurations ship within 3 business days. Custom orders ship within 5-7 business days.

Key Features & Benefits

Robust Construction

Features high-temperature thermoplastic housings rated for -40°C to +105°C operation with polarized connectors for secure mating.

Reliable Performance

Gold-plated contacts ensure low contact resistance (<20mΩ) and stable signal transmission in high-vibration environments.

Secure Connection

Positive latch mechanism provides audible mating confirmation and prevents accidental disconnection.

Precision Manufacturing Process

Step 1: Precision wire cutting to specified lengths (±1mm tolerance)
Step 2: Automated terminal crimping with force monitoring
Step 3: Connector housing assembly with polarization check
Step 4: 100% electrical continuity and pull-force testing

Technical Specifications

1 Connector Specifications

• Type: Molex Micro-Fit 3.0mm pitch

• Gender: Female to Female

• Positions: 2-pin

• Contact Material: Phosphor bronze

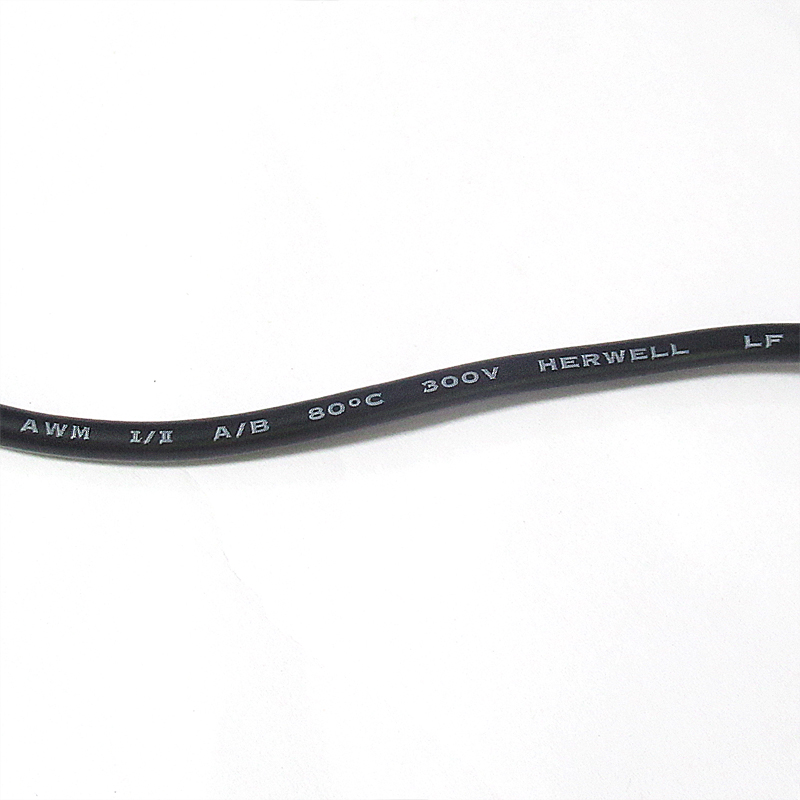

2 Cable Specifications

• Standard length: 300mm (customizable)

• Conductor: 22AWG stranded copper

• Insulation: PVC (UL 1061)

• Jacket: PVC (UL 20276)

3 Electrical Ratings

• Current Rating: 3A per contact

• Voltage Rating: 250V AC/DC

• Contact Resistance: <20mΩ

• Insulation Resistance: >1000MΩ

4 Environmental Specifications

• Temperature Range: -40°C to +105°C

• Mating Cycles: >500 cycles

• Flammability Rating: UL94 V-0

Packaging Specifications

• Standard Packaging: Bulk packaging

• Custom Packaging: Available upon request

• Quantity per Package: 50 units

• Package Dimensions: 300×200×100mm

Industry Applications

Industrial Automation

PLC control system interconnections
Sensor and actuator wiring extensions
Robotic arm control connections

Medical Equipment

Diagnostic device internal wiring
Patient monitoring system connections
Medical imaging equipment interfaces

Data & Communications

Server rack component interconnects
Network equipment signal extensions
Telecom infrastructure connections

molex micro fit 3.0mm pitch 2pin female to female extension cable assembly

Related Products:

How to custom your own wire harness?

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
