molex 43020 43025 series connector custom wire harness assembly
Molex 43020 and 43025 series connectors are the perfect solution for your custom wire harness assembly needs. These high-quality connectors offer exceptional performance, durability, and reliability that you can count on.
Our team of experts is dedicated to providing you with the best possible service and support throughout the entire process. From design to delivery, we work closely with you to ensure that your wire harness assembly meets all of your specific requirements.
Whether you need a simple or complex wire harness assembly, our skilled technicians have the knowledge and experience necessary to get the job done right. We use only top-quality materials and state-of-the-art equipment to ensure that every product we produce meets our strict quality standards.
So if you're looking for a reliable partner for your custom wire harness assembly needs, look no further than Hooha harness. Contact us today to learn more about how we can help bring your project to life!
Introduction
In the world of electrical and electronic connectivity, Molex has established itself as a leading manufacturer of high-quality connectors. The Molex 43020 and 43025 series connectors are prime examples of the company's commitment to innovation, versatility, and reliability. These connectors offer a wide range of features and applications, making them ideal for various industries such as automotive, industrial, telecommunications, and consumer electronics. In this article, we will delve into the key features and benefits of the Molex 43020 and 43025 series connectors.
Key Features and Benefits:
-
Compact Design: The Molex 43020 and 43025 series connectors are designed with compactness in mind, allowing for high-density packaging. These connectors occupy minimal space on the PCB (Printed Circuit Board), making them suitable for applications where space is at a premium.
-
High-Speed Data Transmission: With the increasing demand for high-speed data transmission, the Molex 43020 and 43025 series connectors excel in meeting these requirements. They are engineered to support high-speed data protocols such as USB 3.1 and HDMI, enabling seamless and reliable data transfer in demanding applications.
-
Versatile Configurations: Molex offers a wide variety of configurations within the 43020 and 43025 series, providing flexibility for designers and engineers. These connectors are available in different numbers of positions, allowing for customization based on the specific application needs. Additionally, they come in various mounting options, including through-hole and surface mount, further enhancing their versatility.
-
Secure and Reliable Connection: The Molex 43020 and 43025 series connectors are designed to ensure a secure and reliable connection. They feature robust mechanical latching mechanisms and polarization features, which prevent mismating and ensure proper alignment during the mating process. This design consideration helps to reduce the risk of signal loss, intermittent connections, and potential damage to the connectors.
-
Durability: In demanding environments, durability is crucial. The Molex 43020 and 43025 series connectors are built to withstand harsh conditions, including temperature extremes, vibration, and mechanical stress. The connectors' high-quality materials and construction ensure their long-term reliability, making them suitable for applications that require a ruggedized interconnect solution.
-
Industry Compliance: Molex has a strong commitment to adhering to industry standards. The 43020 and 43025 series connectors comply with various industry specifications, including those related to electrical performance, safety, and environmental considerations. This compliance provides peace of mind for engineers and designers, knowing that the connectors meet the necessary requirements for their specific applications.

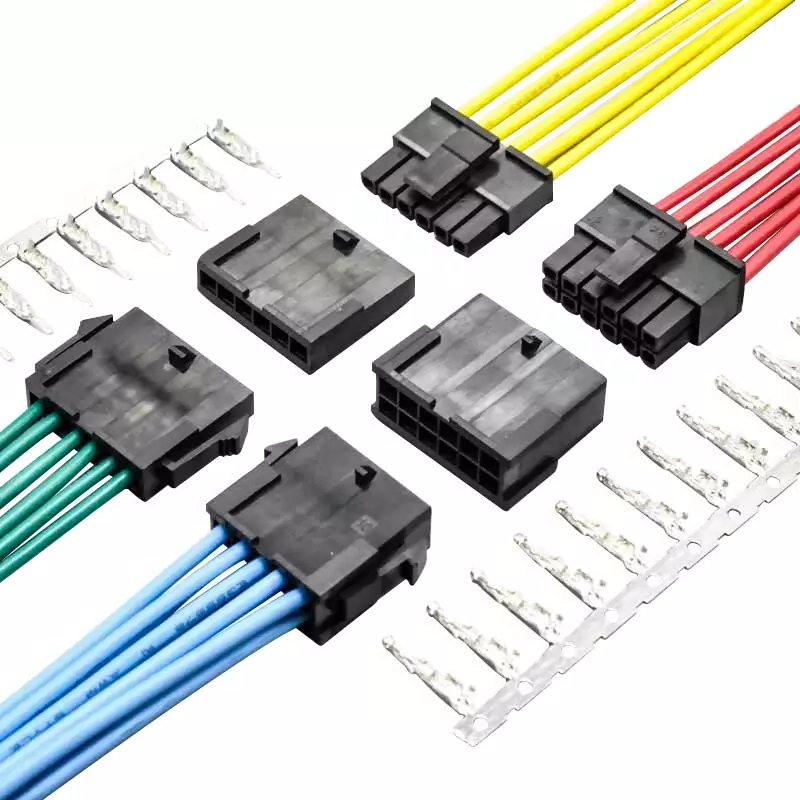

- 43020 Connector features:
1) housing material:
"A"- unfilled polyester， rated u.l.94v-0， color is black.
"B” - unfilled nylon, rated ul.94v-0， halogen-free， color is black.
2) these housing mates with micro-fit receptacle #43025-****
3) this housing is to be used with Molex male terminal #43031-****
4) designed for 0.055/(1.4) minimum to a 0.100/(2.54) maximum thick panel or printed circuit board.
5) panel mount features must lock on the side opposite punch side for optimum retention.
6) part conforms to class "B" requirements of cosmetic specification PS-45499-002 some housings may have a small gate blemish near the gate location that does not affect functionality.
 |
|
Overmold plug cable assembly
| 2pin cable assembly ▼ | 3pin cable assembly ▼ |
 |
 |
| 4pin cable assembly ▼ | 6pin cable assembly ▼ |
 |
 |
Non-overmold wire assembly
| 2pin wire assembly ▼ | 4pin wire assembly ▼ |
 |
 |
| 6pin wire assembly ▼ | 8pin wire assembly ▼ |
 |
 |
| 10pin wire assembly ▼ | 12pin wire assembly ▼ |
 |
 |
Conclusion
The Molex 43020 and 43025 series connectors offer a combination of compact design, high-speed data transmission, versatility, and reliability. With their diverse range of configurations and industry compliance, these connectors can meet the needs of various applications across different industries. Whether it's automotive electronics, industrial automation, telecommunications, or consumer electronics, the Molex 43020 and 43025 series connectors are an excellent choice for engineers and designers seeking reliable interconnect solutions.
Hooha Harness Introduction
Hooha Harness, your trusted partner for all your wire harness needs. We are a China-based factory that specializes in providing OEM and ODM services to our clients worldwide. With over 20 years of experience in customizing wire harnesses, we have become experts in the field. Our team is dedicated to delivering high-quality products that meet the highest standards of excellence. We carry out IPC/WHMA-A-620 standards, ensuring that every product we produce meets strict quality control measures. Additionally, we hold IATF16949, ISO9001, and UL certificates - further proof of our commitment to quality. Our expertise lies in automotive wire harnesses, data cables, and power cables. We work closely with our clients to understand their unique requirements and provide customized solutions tailored specifically for them. Contact us now and send us your wire harness drawing to get a free quote. Let us help you take your business to the next level with our top-notch products and exceptional customer service!
How to custom your own wire harness?
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
