JST SUR 0.8MM pitch pierced custom wire harness assembly service
The 0.8 mm pitch wire-to-board insulation displacement connector is a groundbreaking innovation in the field of electronic connectors. With its side entry type measuring only 3.9 mm depth and 1.75 mm height after mounting on the PC board, and top entry type measuring only 22 mm depth and 3.9 mm height, this connector offers significant space-saving advantages over conventional connectors with a pitch of 1.0mm.
The three-point grip construction ensures secure contact between wires and terminals, while the twin U-slot insulation displacement section allows for easy insertion of super-fine wires without damaging them.
In addition to its technical features, this connector also boasts a shrouded header that provides protection against accidental contact or short circuits during handling or transportation.
Introduction
JST SUR 0.8MM pitch pierced connector customized wire harness is a custom and top-of-the-line service that boasts exceptional quality and reliability. This cutting-edge technology is designed to provide seamless connectivity between various electronic components, ensuring optimal performance and efficiency.
Crafted with precision engineering, this wire harness features a unique design that allows for easy installation and maintenance. The 0.8mm pitch ensures maximum compatibility with a wide range of devices, while the seven-pin configuration provides ample room for multiple connections.
Whether you're working on an industrial project or simply need to connect your electronics at home, JST SUR has got you covered. With its durable construction and superior functionality, this wire harness is sure to exceed your expectations in every way.
Send us an inquiry if you need a similar custom wire harness, and we will quote a price for your reference.
SUR Connector Specifications
- Current rating:
- 0.5 A AC, DC (AWG #32);
- 0.2 A AC, DC (AWG #36).
- Voltage rating: 30 V DC
- Temperature range: -25'C to +85°C(including temperature rise in applyingelectrical current)
- Contact resistance: initial value/ 20 mΩ max, After environmental tests / 40 mΩ max
- Insulation resistance: 100 MΩ min.
- Withstanding voltage: 200 VAC/minute
- Applicable wire:
- Conductor size: AWG #32, #36
- Conductor: 7 strands, tin-coated copper alloy
- Insulation OD: 0.39 mm
Socket
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/box | ||
| #32(Natural) | #36 (Lemon yellow) | A | B | ||
| 2 | 02SUR-32S | 02SUR-36L | 0.8 | 2.4 | 2000 |
| 3 | 03SUR-32S | 03SUR-36L | 1.6 | 3.2 | 2000 |
| 4 | 04SUR-32S | 04SUR-36L | 2.4 | 4 | 2000 |
| 5 | 05SUR-32S | 05SUR-36L | 3.2 | 4.8 | 2000 |
| 6 | 06SUR-32S | 06SUR-36L | 4 | 5.6 | 2000 |
| 8 | 08SUR-32S | 08SUR-36L | 5.6 | 7.2 | 2000 |
| 10 | 10SUR-32S | 10SUR-36L | 7.2 | 8.8 | 2000 |
| 12 | 12SUR-32S | 12SUR-36L | 8.8 | 10.4 | 2000 |
| 14 | 14SUR-32S | 14SUR-36L | 10.4 | 12 | 2000 |
| 15 | 15SUR-32S | 15SUR-36L | 11.2 | 12.8 | 2000 |
| 16 | 16SUR-32S | 16SUR-36L | 12 | 13.6 | 2000 |
| 17 | 17SUR-32S | 17SUR-36L | 12.8 | 14.4 | 2000 |
| 20 | 20SUR-32S | 20SUR-36L | 15.2 | 16.8 | 2000 |
| 22 | 22SUR-32S | 22SUR-36L | 16.8 | 18.4 | 2000 |
Material and Finish
- Contact: Copper alloy, tin-plated (reflow treatment)
- Housing: PA, UL94V-0
Shrouded Header
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/reel | |||
| Top entry type | Side entry type | A | B | Top enty tpe | Sde entytpe | |
| 2 | BM02B-SURS-TF | SM02B-SURS-TF | 0.8 | 3.8 | 2500 | 3500 |
| 3 | BM03B-SURS-TF | SM03B-SURS-TF | 1.6 | 4.6 | 2500 | 3500 |
| 4 | BM04B-SURS-TF | SM04B-SURS-TF | 2.4 | 5.4 | 2500 | 3500 |
| 5 | BM05B-SURS-TF | SM05B-SURS-TF | 3.2 | 6.2 | 2500 | 3500 |
| 6 | BM06B-SURS-TF | SM06B-SURS-TF | 4 | 7 | 2500 | 3500 |
| 8 | BM08B-SURS-TF | SM08B-SURS-TF | 5.6 | 8.6 | 2500 | 3500 |
| 10 | BM10B-SURS-TF | SM10B-SURS-TF | 7.2 | 10.2 | 2500 | 3500 |
| 12 | BM12B-SURS-TF | SM12B-SURS-TF | 8.8 | 11.8 | 2500 | 3500 |
| 14 | BM14B-SURS-TF | SM14B-SURS-TF | 10.4 | 13.4 | 2500 | 3500 |
| 15 | BM15B-SURS-TF | SM15B-SURS-TF | 11.2 | 14.2 | 2500 | 3500 |
| 16 | BM16B-SURS-TF | SM16B-SURS-TF | 12 | 15 | 2500 | 3500 |
| 17 | BM17B-SURS-TF | SM17B-SURS-TF | 12.8 | 15.8 | 2500 | 3500 |
| 20 | BM20B-SURS-TF | SM20B-SURS-TF | 15.2 | 18.2 | 2500 | 3500 |
| 22 | 一 | SM22B-SURS-TF | 16.8 | 19.8 | — | 3500 |
Material and Finish
- Contact: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Wafer: PA, UL94V-0, natural
- Solder tab: Brass, copper-undercoated, tin-plated (reflow treatment)
What Types of Wiring Harnesses Can We Process?

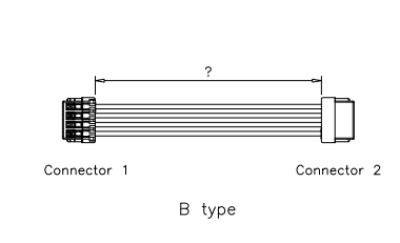

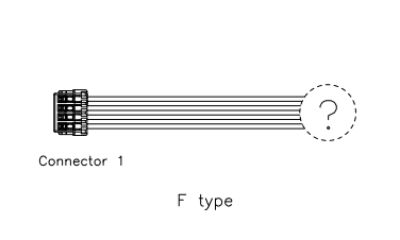

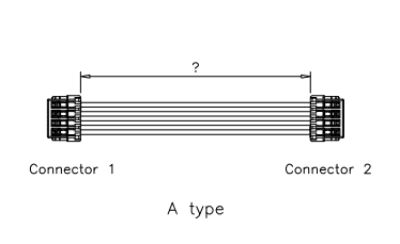

Both Connectors Same Direction

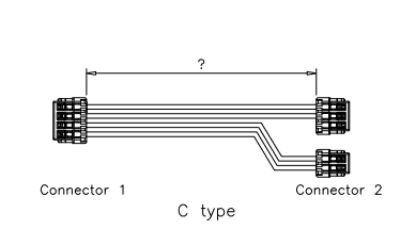

Both Connectors Opposite Direction
1 to 2 Splitter Wire Harness

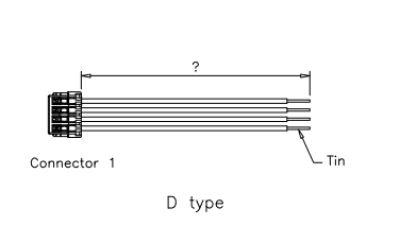

Wire Tinned End

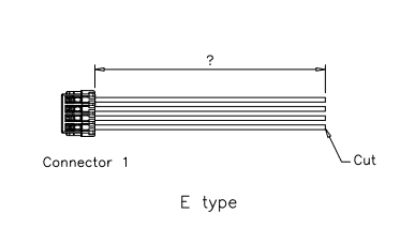

Wire Blunt End
Add Any Suitable Connectors
JST SUR Connector Wire Harnesses Cases

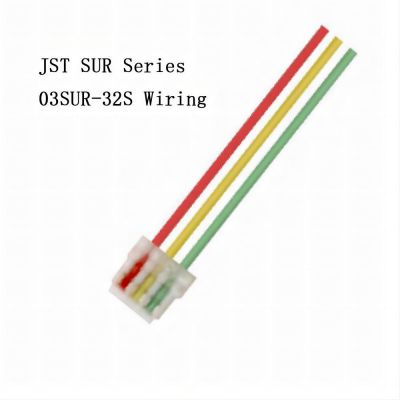

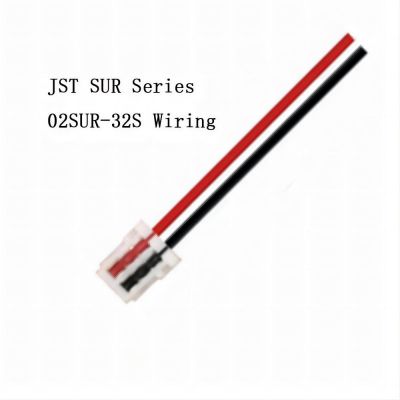

JST SUR 2 Pin Connector Wiring
JST SUR 3 Pin Connector Wiring

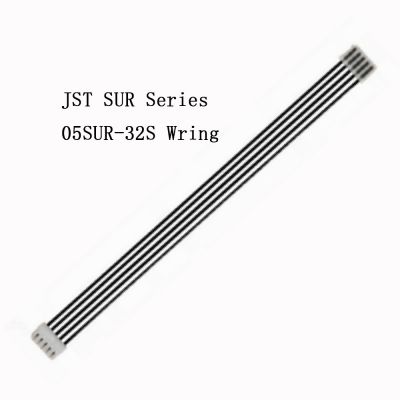

JST SUR 4 Pin Connector Wiring
JST SUR 5 Pin Connector Wiring

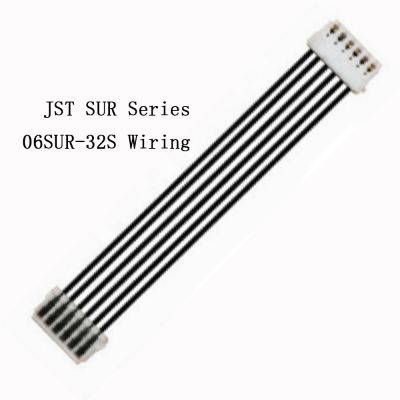

JST SUR 6 Pin Connector Wiring

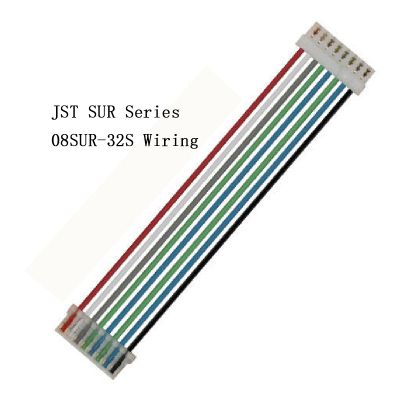

JST SUR 8 Pin Connector Wiring

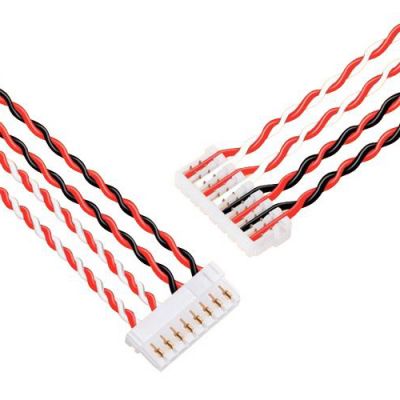

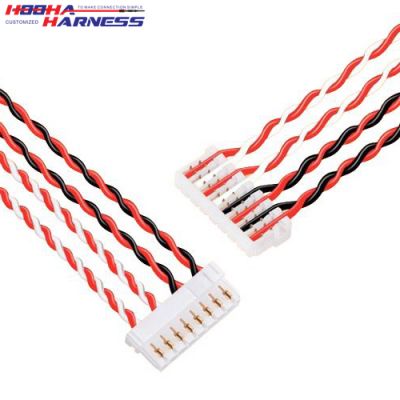

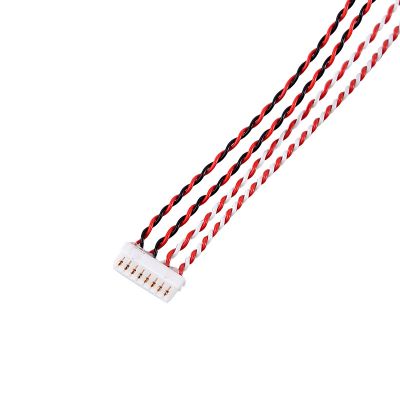

JST SUR 8pin pierced wire harness

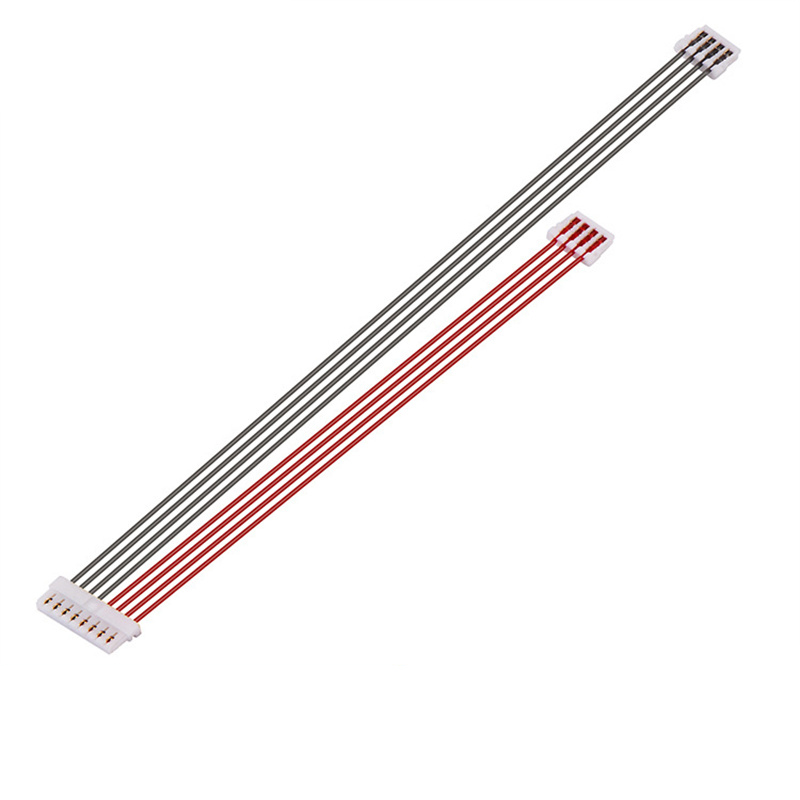

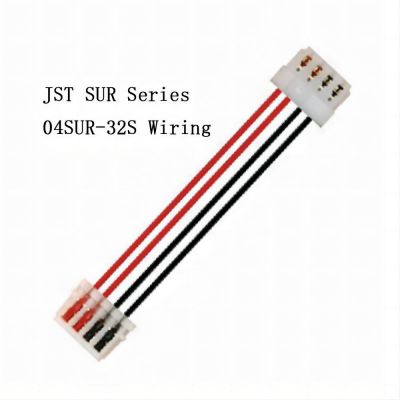

08SUR-32S to 04SUR-32S
08SUR-32S wire harness

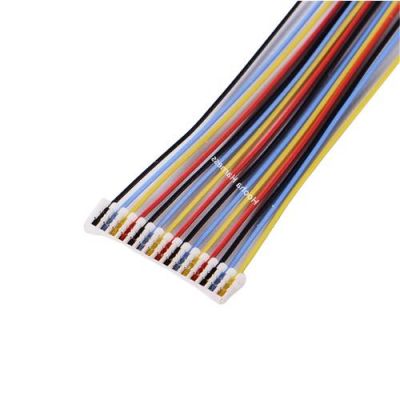

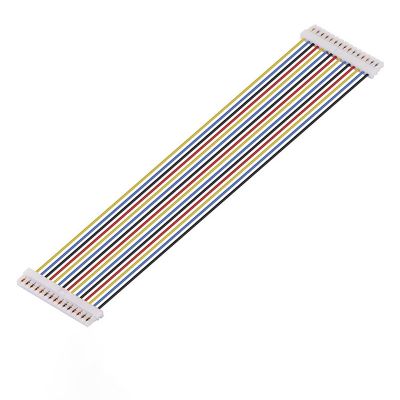

JST SUR 15 pin male to male

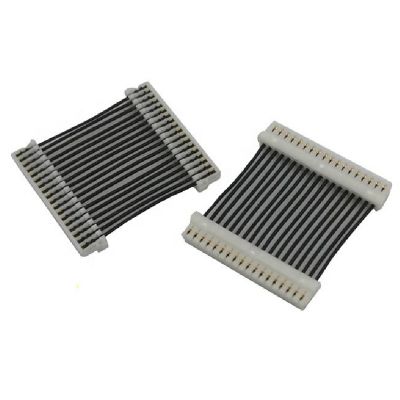

JST SUR 18 Pin Wiring

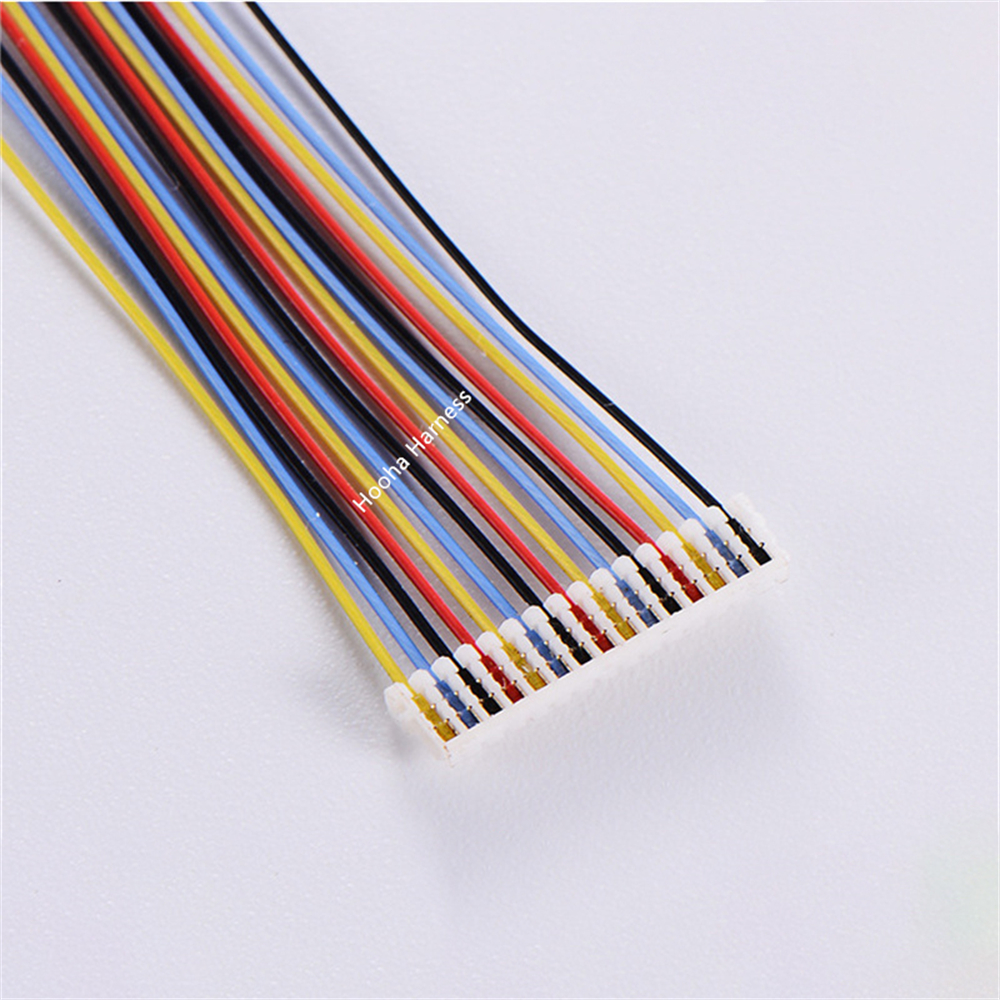

JST SUR 15p Wiring Harness
