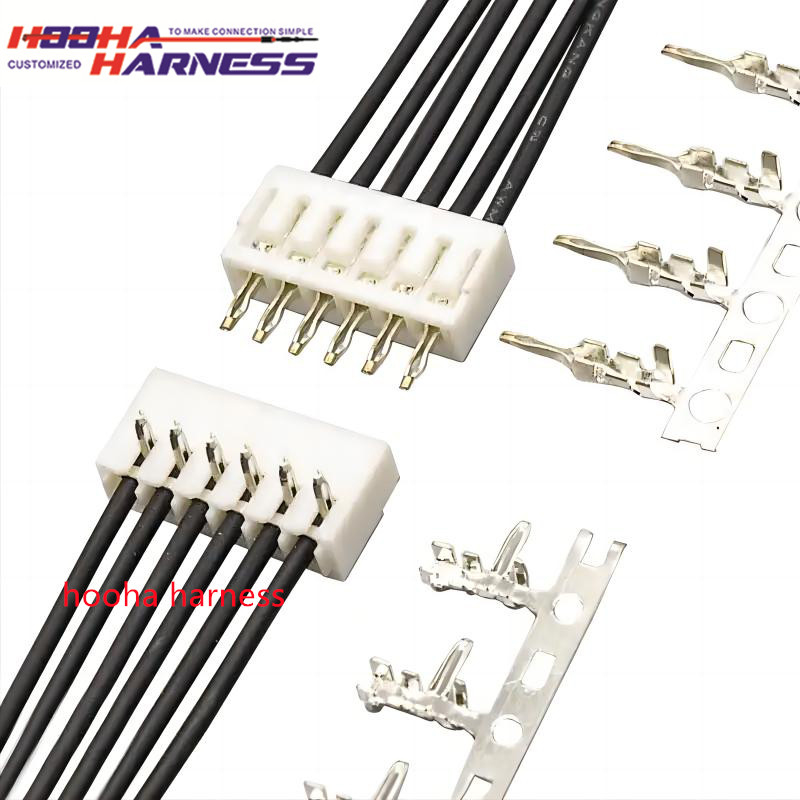

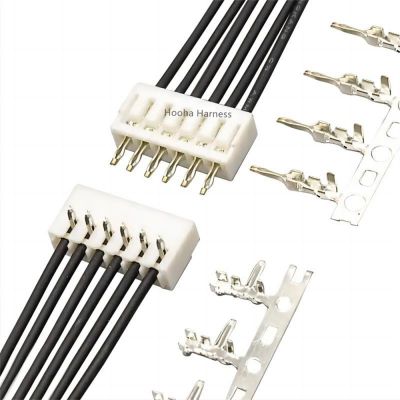

JST SAN series 6pin connector 6P-SAN, custom wire harness assembly

We Customize Wiring Harness, Your Way

This is a custom wire harness that has been specifically designed to meet the requirements of a valued customer based in the United States. The custom wire harness is an essential component used in their high-density mounting on PC board products, and it features the highly regarded JST SAN series connector with a 2.0mm pitch and 6 positions.

The part number for this custom wire harness assembly is 6P-SAN, which ensures that it meets all of the necessary specifications required by our client. With its compact design measuring just 2.0 mm in pitch, 6.0 mm in mounting height, and 3.25 mm in thickness, this board-in connector provides efficient and cost-effective solutions for high-density mounting on printed circuit boards.

Our team has worked tirelessly to ensure that every aspect of this custom-designed wire harness meets or exceeds our client's expectations. We understand how important it is to provide reliable components that can withstand even the most demanding applications while maintaining optimal performance levels.

Connector Features

• Compact design
• One-touch connection
• Easy inserting contacts into housing
• Secure mounting onto the PC Board
• The easy harness processing process
• Applicable for 2 types of Pc board thickness
• Two types of contacts

JST SAN series 2.0 pitch connector part number lists

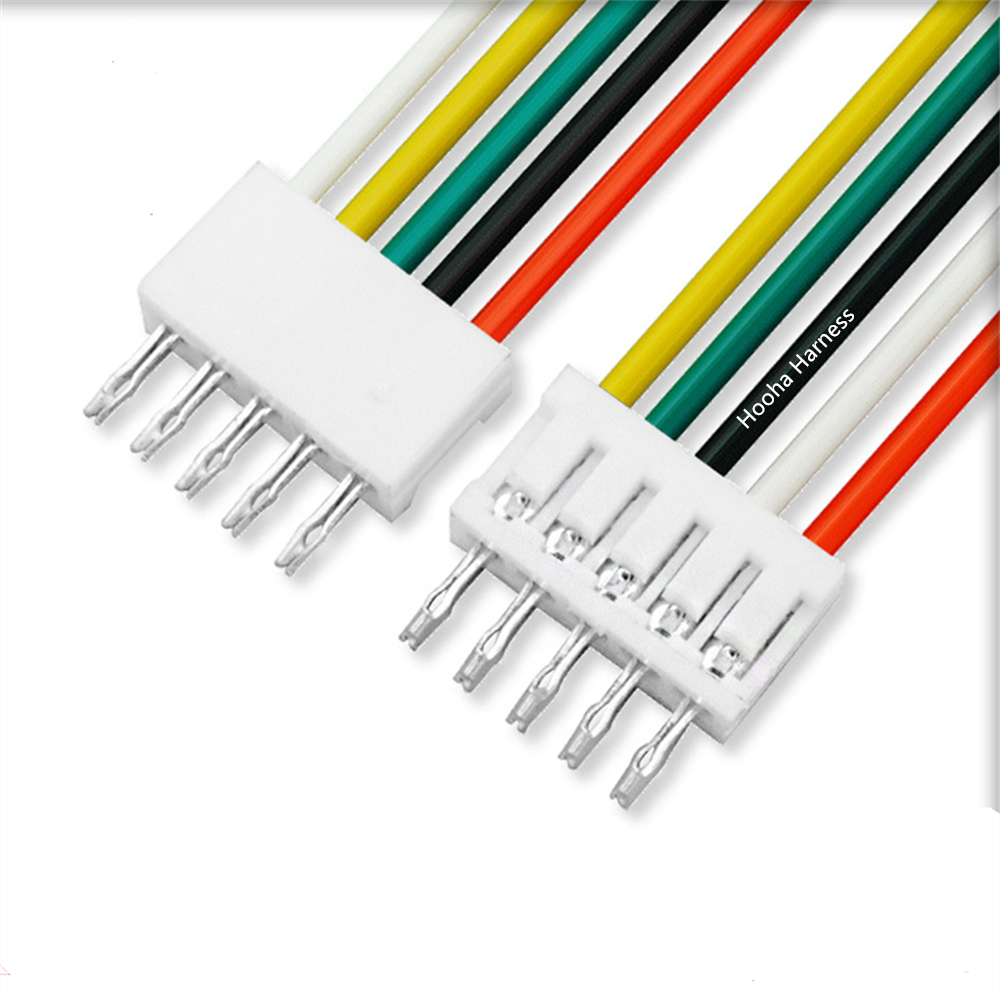

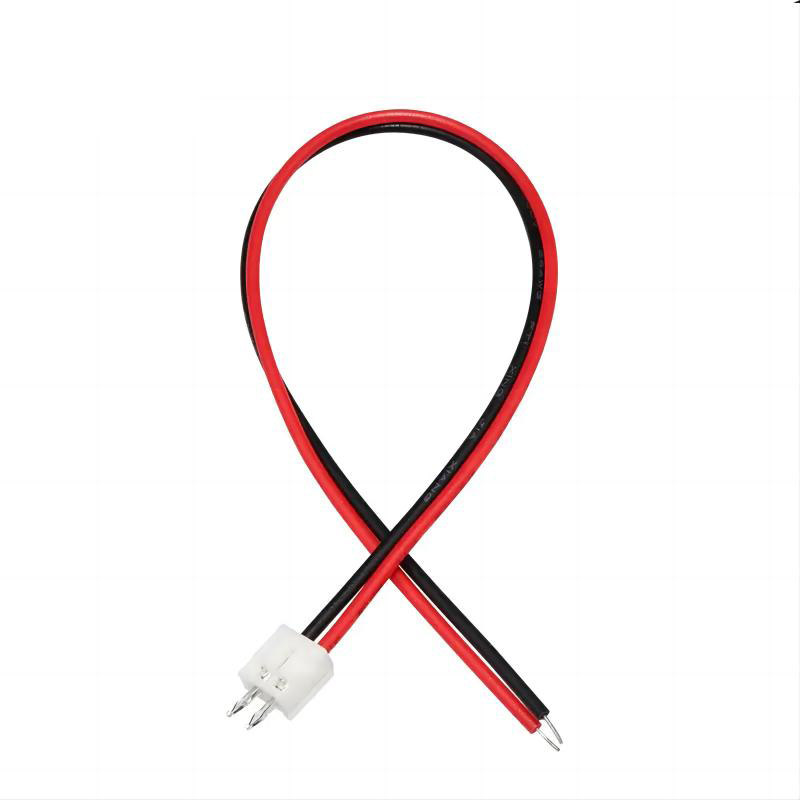

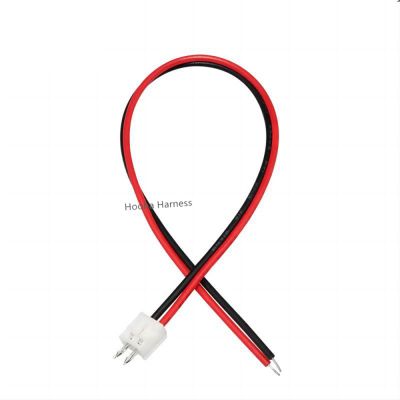

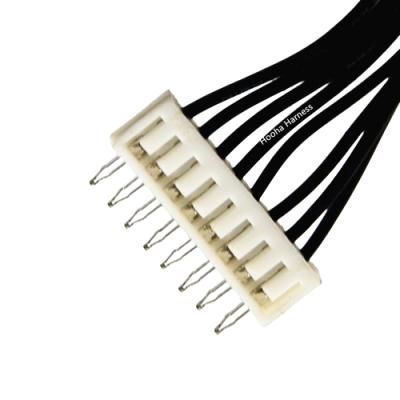

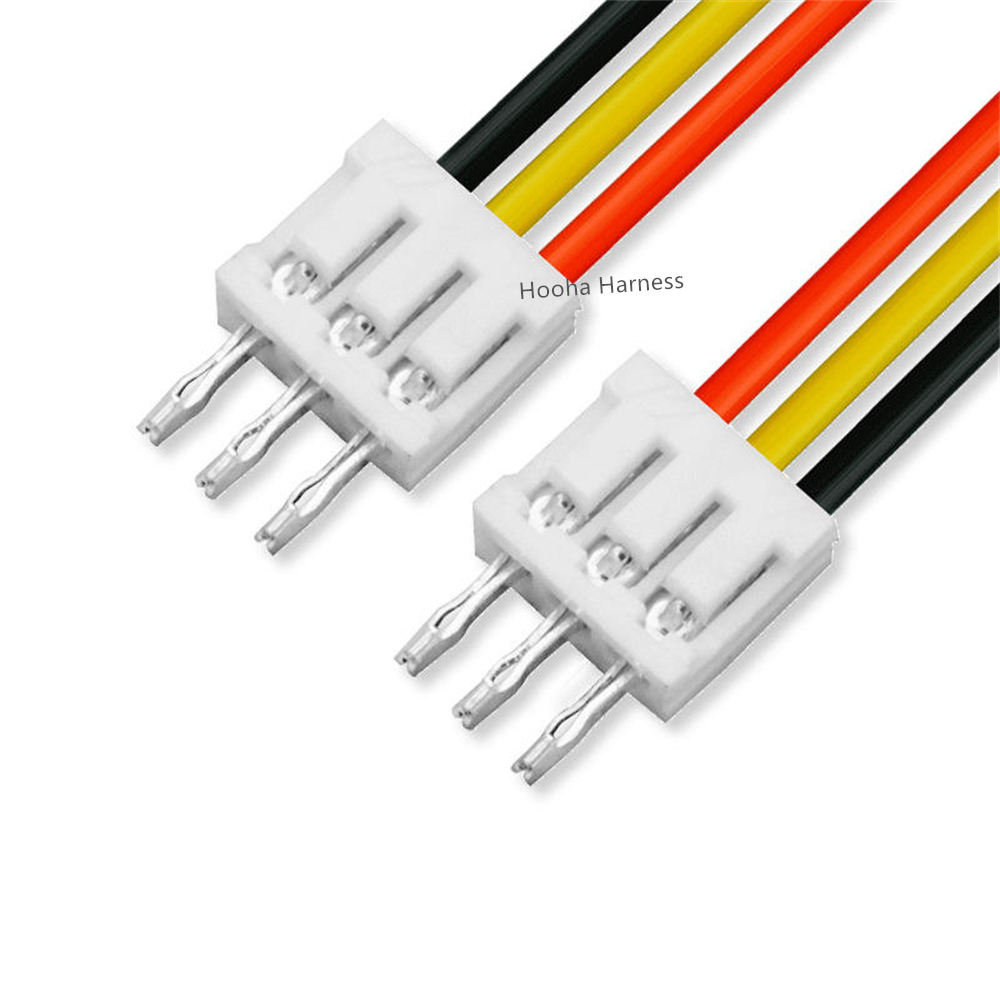

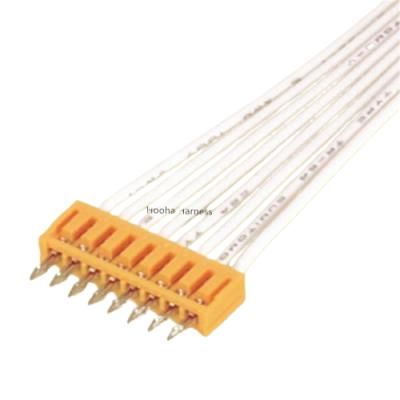

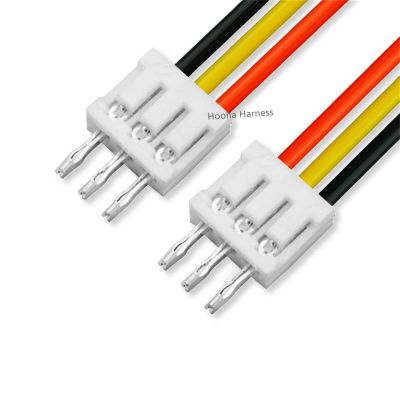

Part of Wire Harness Connector Cases

How to customize your wire harness?

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
