JST Cable, JST Connector Wire Assembly
Hooha Harness is a professional custom wire harness manufacturer based in China. We specialize in providing Custom JST Cables with Different Pitch JST Connectors. Each year, we purchase many JST connectors for various types of custom wire harness assemblies. To meet regular demands, we maintain a well-stocked warehouse with connectors such as XH, PH, JWPF, GH, SM, SUR, VH, ZH, PA, and EH, etc. available in pitches ranging from 0.6mm to 8.0mm. In this summary, we will provide specifications for each connector type to help you better understand their unique features.
- 0.6mm Pitch Connector: XSR
- 0.8mm Pitch Connector: SUR, SUH
- 1.0mm Pitch Connector: SH, SHD
- 1.25mm Pitch Connector: GH
- 1.5mm Pitch Connector: SZN, ZH
- 2.0mm Pitch Connector: PA, PH, PHD, SAN, JWPF
- 2.5mm Pitch Connector: SM, EH, NH, XH, SCN, RCY
- 2.54mm Pitch Connector: RA
- 3.96mm Pitch Connector: VH
0.6mm Pitch Connector: XSR

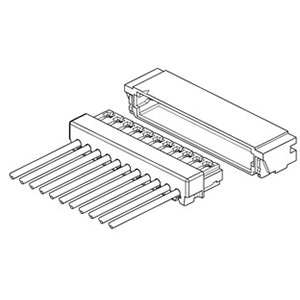

>>> JST XSR Connectors <<<
- Current rating: 3 A AC/DC (AWG #22)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to +85℃ ( including temperature rise in applying electrical current )
- Contact resistance: Initial value/ 10 mΩ max. After environmental tests/ 20 mQ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,000 VAC/minute
- Applicable wire: AWG #30 to #22
- Applicable PC board thickness: 1.6 mm
- Custom range: Connector brand, Pin number, Wire length, Gauge, Color, Electric circuits.
____________________________________________________
0.8mm Pitch Connector: SUR, SUH

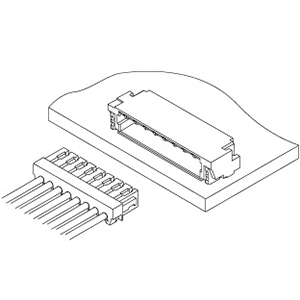

>>> JST SUR Connectors <<<
- Current rating: 0.5 A AC, DC (AWG #32), 0.2 A AC, DC (AWG #36)
- Voltage rating: 30 V DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 20 mΩ max. After environmental tests / 40 mQ max.
- Insulation resistance: 100 MΩ min.
- Withstanding voltage: 200 VAC/minute
- Applicable wire: Conductor size/ AWG #32, #36, Conductor/ 7 strands, tin-coated copper alloy, Insulation O.D./ 0.39 mm
- Custom range: Connector brand, Pin number, Wire length, Gauge, Color, Electric circuits.
____________________________________________________

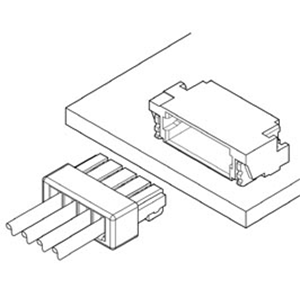

>>> JST SUH Connectors <<<
- Current rating: 1.0 A AC, DC (AWG #28)
- Voltage rating: 30 V AC, DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 30 mΩ max. After environmental tests/ 50 mQ max.
- Insulation resistance: 100 MΩ min.
- Withstanding voltage: 200 VAC/minute
- Applicable wire: Conductor size/ AWG #32 to #28
- Insulation O.D./ 0.5 to 0.6 mm
- Custom range: Connector brand, Pin number, Wire length, Gauge, Color, Electric circuits.
____________________________________________________
1.0mm Pitch Connector: SH, SHD

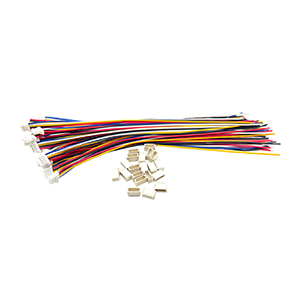

>>> JST SH Connectors <<<
- Current rating: 1.0 A AC/DC (AWG #28)
- Voltage rating: 50 V AC/DC
- Temperature range: -25℃to+85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 20mΩ max. After environmental tests/ 40 mΩ max.
- Insulation resistance: 100 M min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: Conductor size/AWG #32 to #28, Insulation O.D./0.4 to 0.8 mm
- Custom range: Connector brand, Pin number, Wire length, Gauge, Color, Electric circuits.
____________________________________________________

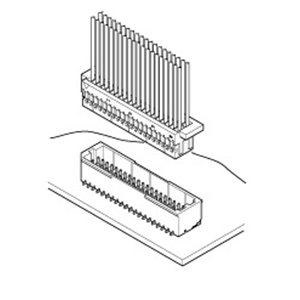

>>> JST SHD Connectors <<<
- Current rating: 1.0 A AC/DC (AWG #28)
- Voltage rating: 50 V AC/DC
- Temperature range: -25℃to+85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/20 mΩ max.
- After environmental tests/ 40 mΩ max.
- Insulation resistance: 100 M min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: Conductor size/AWG #32 to #28, Insulation O.D./0.4 to 0.8 mm
- Custom range: Connector brand, Pin number, Wire length, Gauge, Color, Electric circuits.
____________________________________________________
1.25mm Pitch Connector: GH

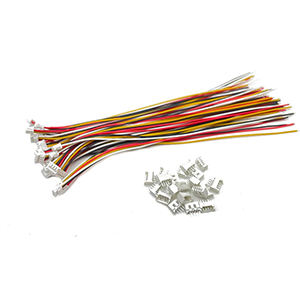

>>> JST GH Connectors <<<
- Current rating: 1.0 A AC/DC (AWG #26)
- Voltage rating: 50 V AC/DC
- Temperature range: -25℃to+85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/30 mΩ max.
- After environmental tests/50 mΩ max.
- Insulation resistance: 100 M min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: Conductor size/AWG #30 to #26, Insulation O.D./0.76 to 1.0 mm
- Custom range: Connector brand, Pin number, Wire length, Gauge, Color, Electric circuits.
____________________________________________________
1.5mm Pitch Connector: SZN, ZH

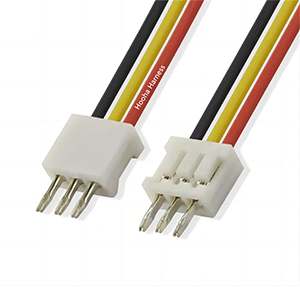

>>> JST SZN Connectors <<<
- Current rating: 0.7 A AC/DC (AWG #26)
- Voltage rating: 50 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Insulation resistance: 500 MΩ min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: AWG #30 to #26
- Applicable PC board thickness: 0.6 to 1.2 mm
- Custom range: Connector brand, Pin number, Wire length, Gauge, Color, Electric circuits.
____________________________________________________

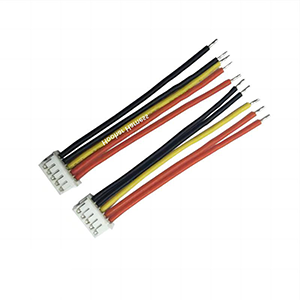

>>> JST ZH Connectors <<<
- Current rating: 1.0 A AC/DC (AWG #26)
- Voltage rating: 50 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 20 mΩ max.
- After environmental tests/ 30 mΩ max.
- Insulation resistance: 500 MΩ min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: AWG #32 to #26
- Applicable PC board thickness: 0.6 to 1.2 mm, 1.6 mm
- Custom range: Connector brand, Pin number, Wire length, Gauge, Color, Electric circuits.
____________________________________________________
2.0mm Pitch Connector: PA, PH, PHD, SAN, JWPF

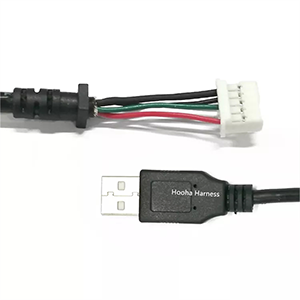

>>> JST PA Connectors (Standard type) <<<
- Current rating: 3 A AC/DC (AWG #22)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max. After environmental tests/ 20 mΩ max.
- Insulation resistance: Initial/ 1,000 MΩ min.
- Withstanding voltage: 800 VAC/minute
- Applicable wire: Conductor size/ AWG #28 to #22, Insulation O.D./ 0.76 to 1.5 mm
- Applicable PC board thickness: 1.6 mm
- Custom range: Connector brand, Pin number, Wire length, Gauge, Color, Electric circuits.
____________________________________________________

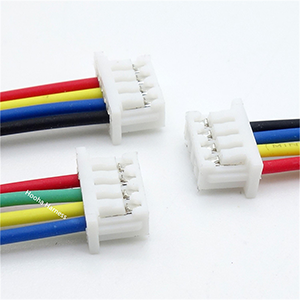

>>> JST PH Connectors <<<
- Current rating: 2 A AC/DC (AWG #24)
- Voltage rating: 100 V AC/DC
- Temperature range: -25℃ to+85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/10 mΩ max.
- After environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 800 VAC/minute
- Applicable wire: AWG #32 to #24
- Applicable PC board thickness: 0.8 to 1.6 mm
- Custom range: Connector brand, Pin number, Wire length, Gauge, Color, Electric circuits.
____________________________________________________

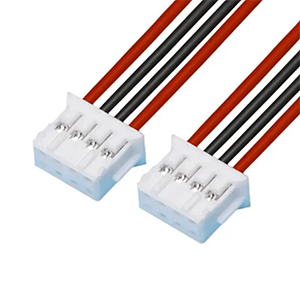

>>> JST PHD Connectors <<<
- Current rating: 3 A AC/DC (AWG #22)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to+85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/10 mΩ max.
- After environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 800 VAC/minute
- Applicable wire: AWG #28 to #22
- Applicable PC board thickness: 1.6 mm
- Custom range: Connector brand, Pin number, Wire length, Gauge, Color, Electric circuits.
____________________________________________________

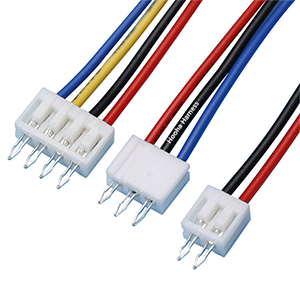

>>> JST SAN Connectors <<<
- Current rating: 2 A AC/DC (AWG #24)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to+85℃ (including temperature rise in applying electrical current)
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 800 VAC/minute
- Applicable wire: AWG #30 to #24
- Applicable PC board thickness: Type A contact:1.2 mm,1.6 mm, Type B contact:1.6 mm
- Custom range: Connector brand, Pin number, Wire length, Gauge, Color, Electric circuits.
____________________________________________________

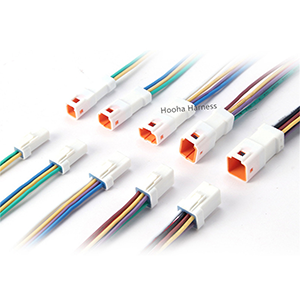

>>> JST JWPF Connectors <<<
- Current rating: 3 A AC, DC (AWG #22)
- Voltage rating: 100 V AC, DC
- Temperature range: -55'C to +85'C (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max. After environmental tests/ 15 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,000 VAC/minute
- Applicable wire: AWG #26 to #22, 0.13 to 0.33mm², Insulation O.D./1.4 to 1.7 mm
- Waterproof grade: Grade 7 ingress protection of JIS C 0920 (IPX7 of IEC 60529)
- Custom range: Connector brand, Pin number, Wire length, Gauge, Color, Electric circuits.
____________________________________________________
2.5mm Pitch Connector: SM, EH, NH, XH, SCN, RCY

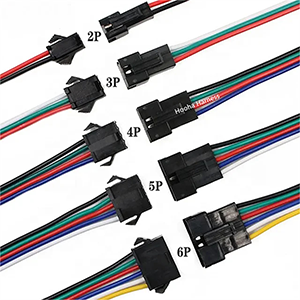

>>> JST SM Connectors <<<
- Current rating: 3 A AC/DC max.
- Voltage rating: 250 V AC/DC max.
- Temperature range: -25℃ to+85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max.
- After environmental tests/ 20 mΩ max.
- Insulation resistance: 500 MΩ min.
- Withstanding voltage: 1,500 VAC/minute
- Applicable wire: AWG #28 to #22, 0.08 to 0.33mm²
- Applicable panel thickness: 0.5 to 2.0 mm
- Custom range: Connector brand, Pin number, Wire length, Gauge, Color, Electric circuits.
____________________________________________________

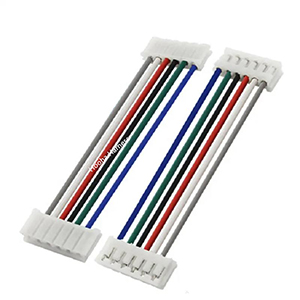

>>> JST EH Connectors <<<
- Current rating: 3 A AC/DC (AWG #22)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to+85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/10 mΩ max.
- After environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 800 VAC/minute
- Applicable wire: AWG #32 to #22
- Applicable PC board thickness: 0.8 to 1.6 mm
- Custom range: Connector brand, Pin number, Wire length, Gauge, Color, Electric circuits.
____________________________________________________

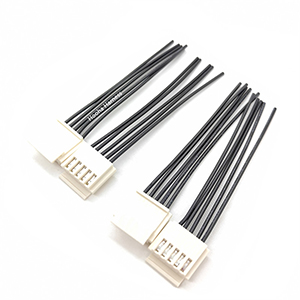

>>> JST NH Connectors <<<
- Current rating: 3 A AC/DC (AWG #22)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to+85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 15 mΩ max.
- After environmental tests/ 20 mΩ max.
- Insulation resistance: 500 MΩ min.
- Withstanding voltage: 1,500 VAC/minute
- Applicable wire: AWG #30 to #22
- Applicable PC board thickness: 1.6 mm
- Custom range: Connector brand, Pin number, Wire length, Gauge, Color, Electric circuits.
____________________________________________________

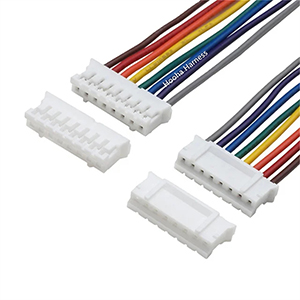

>>> JST XH Connectors <<<
- Current rating: 3 A AC/DC (AWG #22)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to+85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/10 mΩ max.
- After environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,000 VAC/minute
- Applicable wire: AWG #30 to #22
- Applicable PC board thickness: 1.6 mm
- Custom range: Connector brand, Pin number, Wire length, Gauge, Color, Electric circuits.
____________________________________________________
>>> JST SCN Connectors <<<
- Current rating: 3 A AC/DC (AWG #22)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to+85℃ (including temperature rise in applying electrical current)
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 800 VAC/minute
- Applicable wire: AWG #28 to #22
- Applicable PC board thickness: 1.2 mm,1.6 mm
- Custom range: Connector brand, Pin number, Wire length, Gauge, Color, Electric circuits.
____________________________________________________

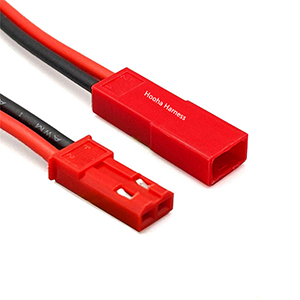

>>> JST RCY Connectors <<<
- Current rating: 3 A AC/DC
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to+85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/10 m max.
- After environmental tests/ 20 m max.
- Insulation resistance: 500 M min
- Withstanding voltage: 1,500 VAC/minute
- Applicable wire: AWG #28 to #22 (0.08 to 0.33mm²)
- Custom range: Connector brand, Pin number, Wire length, Gauge, Color, Electric circuits.
____________________________________________________
2.54mm Pitch Connector: RA

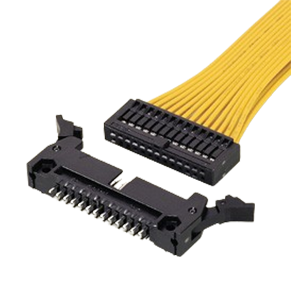

>>> JST RA Connectors <<<
- Current rating: 1.0 A AC/DC (AWG #22)
- Voltage rating: 300 V AC/DC
- Temperature range: -55℃ to+85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/15 mΩ max.
- After environmental tests/ 30 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,000 VAC/minute
- Applicable wire: AWG #26 to #22
- Applicable PC board thickness: 1.6 mm
- Custom range: Connector brand, Pin number, Wire length, Gauge, Color, Electric circuits.
____________________________________________________
3.96mm Pitch Connector: VH

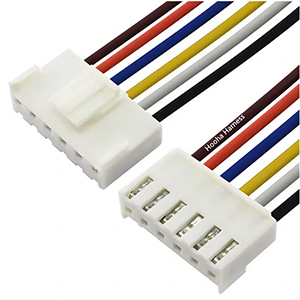

>>> JST VH Connectors <<<
- Current rating: 10 A AC/DC (AWG #16)
- Voltage rating: 250 V AC/DC
- Temperature range:- 25℃ to+85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/10 mΩ max.
- After environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,500 VAC/minute
- Applicable wire: AWG #22 to #16
- Applicable PC board thickness: 1.6 mm
- Custom range: Connector brand, Pin number, Wire length, Gauge, Color, Electric circuits.
____________________________________________________
For more connector details, you can contact us to get it, or visit JST's official website.
About Us
How to customize your wire harness?
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
