Deutsch Connector Introduction
Deutsch connectors have gained a strong reputation in the industry due to their exceptional reliability and outstanding performance even in the most challenging environments. These connectors are specifically designed to withstand extreme temperatures, vibrations, moisture, and other harsh conditions that are commonly encountered in demanding applications.
One of the key reasons for the widespread use of Deutsch connectors is their versatility across various industries. In the automotive sector, these connectors play a crucial role in ensuring efficient communication between different electrical systems within vehicles. They provide secure connections for critical components such as engine control units, sensors, and lighting systems.
Deutsch connectors come in various types, each designed to meet specific application requirements and environmental conditions. Here are some of the most commonly used types of Deutsch connectors:
- DT Series Connectors
- DTM Series Connectors
- DTP Series Connectors
- HD10 Series Connector
- HDP20 Series Connector
- HD30 Series Connector
- AS Series Connector
- ASL Series Connector
- ACE Series Connector
- DRB Series Connector
- DRC Series Connector
- DTV Series Connector

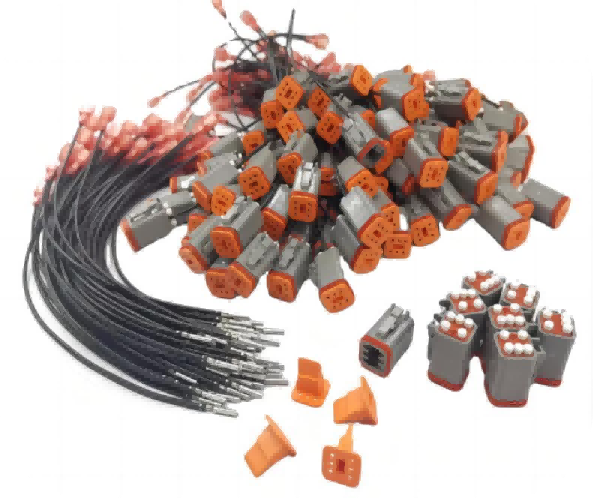

DT Series Connectors
Deutsch DT connectors are the top choice for the transportation and racing industry. They're widely used by Automotive, Trailer, Trunk, Medical, Aerospace, and other performance racing outfitters. Known for their reliability, performance, and ease of use, Deutsch DT connectors ensure a secure connection in any environment. You can find these
part numbers in various arrangements with 2, 3, 4, 6, 8, or 12 cavities.

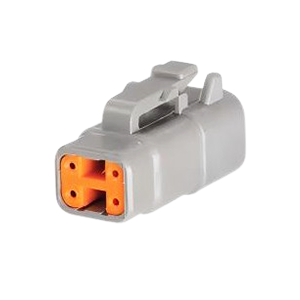

DTM Series Connectors
The Deutsch DTM Series of transportation connectors features a miniature contact with an enhanced design based on the world-class, field-proven Deutsch "DT" Series. The DTM connector is specifically designed for harsh environmental applications where reliable signal circuits are crucial to optimal performance. It is commonly used in areas such as the engine, transmission, and under the hood. In fact, wherever data signals or critical electronic circuits are present, the tried-and-tested Deutsch design of the DTM ensures dependable peak connector performance. It is available in
2, 3, 4, 6, 8, and 12 cavities.

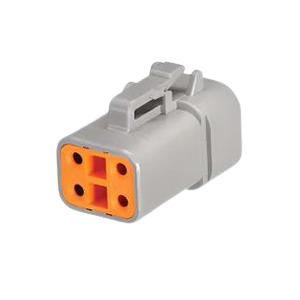

DTP Series Connectors
The
DTP Series connectors are designed to meet all of your power application requirements with exceptional reliability and quality. They combine the trusted performance of Deutsch's DT Series with the added flexibility of power contacts. These connectors are environmentally sealed and available in two or four-pin configurations. They can be mounted in-line or on a flange, and have a continuous current rating of 25 amps at +120º C. Choose from 2 or 4 cavity arrangements.

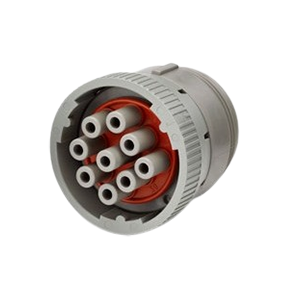

HD10 Series Connectors
The
Deutsch HD10 Connector series features environmentally sealed connectors with durable thermoplastic housing, making them highly sought after in the diagnostics industry. Offering 3 to 9 cavity arrangements and accommodating size 4 to 16 contacts, these connectors are designed for an extended service life cycle.

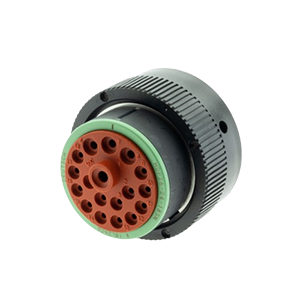

HDP20 Series Connectors
The
Deutsch HDP20 Connector series was specifically designed for the heavy-duty on and off-highway industry. Whether you are working on a semi-truck, city bus, sanitation truck, or caterpillar loader, this connector series is perfect for you. The HDP20 series features a thermoplastic shell that allows for quick and easy connect/disconnect coupling. Additionally, the Deutsch contacts can be easily inserted and removed from the rear of the connector. This series is available in various cavity arrangements including 2, 6, 7, 8, 9, 14, 16, 18, 19, 20, 21, 23, 29, 31, 33, 35, and 47.

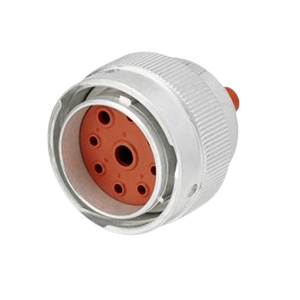

Deutsch metal HD30 Series provides quick and easy coupling and cost-effectiveness with heavy-duty terminations for the truck, bus, and off-highway industries. The HD30 is a heavy-duty rated, environmentally sealed, and multi-pin connector that uses a bayonet coupling system to provide a vibration-resistant locking mechanism. These rugged connectors with seals fabricated from tear-resistant, high-temperature silicone, and a rear grommet, protect the contacts from moisture, sand, dust, lubricating oils, fuel, road salt, hydraulic fluid, grease, mud, and other contaminants encountered in heavy-duty operations. Available in 2, 6, 7, 8, 9, 14, 16, 18, 19, 20, 21, 23, 29, 31, 33, 35, and 47 cavities

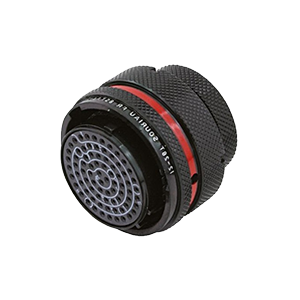

AS Series Connectors
AS Connectors support a wide range of options, including 3P, 4P, 6P, 10P, 13P,16P, 22P, 37P, 41P, 55P, and even the larger size of connectors like the popularly used 66-pin receptacle and plug. These connectors are designed to provide reliable and secure connections for various applications in industries such as telecommunications, automotive electronics, industrial automation systems, and more.

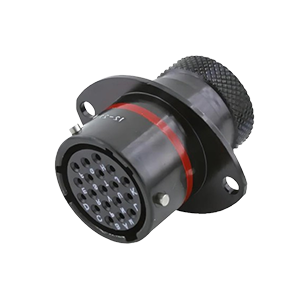

ASL Series Connectors
ASL Connectors offer a wide range of options to support various pin configurations, including 5P, 13P, 22P, and 37P. These connectors are designed to provide reliable connections for both receptacles and plugs. One notable feature of ASL Connectors is their versatility in accommodating different wire gauges. They can handle wire sizes ranging from 12AWG to 32AWG, ensuring compatibility with a diverse range of applications. With such flexibility in pin configuration and wire gauge support, ASL Connectors prove to be highly adaptable for numerous industries and purposes. Whether it's for industrial machinery, automotive electronics, or consumer electronics devices, these connectors can meet the demands of various electrical connectivity needs.

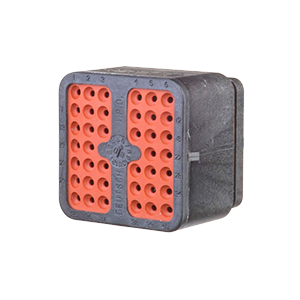

ACE Series Connectors
The AEC Series is a circular connector system specifically designed for aerospace and defense applications. It boasts a lightweight design, with contacts capable of handling up to 23 amps, and is conveniently available in a 40-cavity arrangement. In addition to its technical specifications, the AEC Series also prioritizes ease of use and convenience. The connectors are designed for quick installation and removal, saving valuable time during maintenance or repair operations. Moreover, they offer excellent resistance against vibration, shock, moisture, and other harsh environmental conditions commonly encountered in aerospace and defense settings.

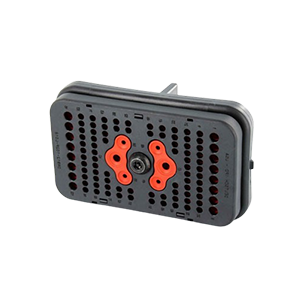

DRB Series Connectors
The
DRB Series connector is a highly versatile rectangular connector system that has been specifically designed to meet the demands of rugged industrial applications. With its robust construction and reliable performance, this connector system ensures seamless connectivity in even the harshest environments. The contacts are rated for up to 13 amps, ensuring efficient power transmission without any compromise on safety or reliability. the DRB Series offers multiple cavity arrangements to cater to different needs. It is available in 48, 60, 102, and 120 cavity arrangements, providing options for various connection configurations.

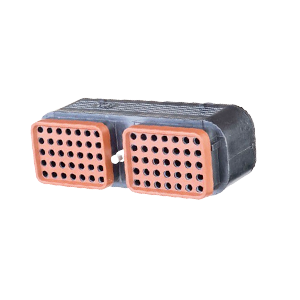

DRC Series Connectors
The
DRC Series connector is a circular connector system specifically designed for use in motorsports and other high-performance applications. It boasts a compact and lightweight design, with contacts capable of handling up to 13 amps, and is available in various cavity arrangements including 24, 40, 50, 60, and 70.

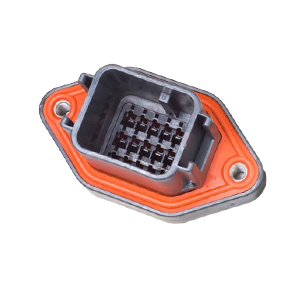

DTV Series Connectors
The DTV Series is a circular connector system specifically designed for use in the transportation industry. It boasts a compact and lightweight design, featuring contacts that are rated for up to 13 amps. Additionally, it is conveniently available in an 18-cavity arrangement.

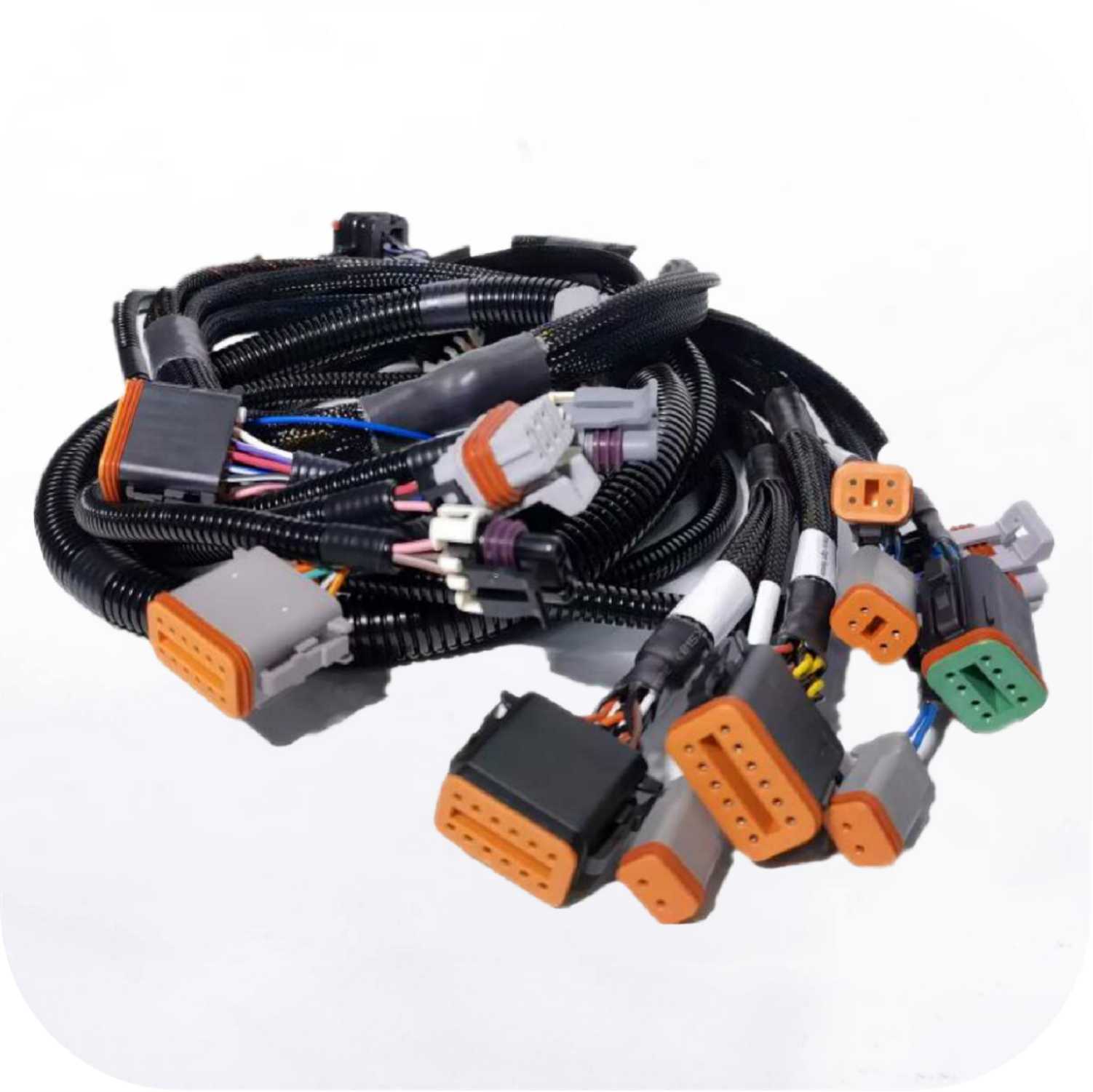

Our Deutsch Connector Wiring Harness Assembly Service
As a professional provider of wiring harness assembly services, we specialize in delivering high-quality, custom solutions using Deutsch connectors. Our services are designed to meet the specific needs of our clients, ensuring optimal performance and reliability. Key aspects of our service include:
We offer tailored wiring harness designs based on our client's unique requirements, ensuring that each project receives the most efficient and effective solution.
We use only the best materials, including top-grade cables and connectors, to ensure that every wiring harness is durable and long-lasting.
Our state-of-the-art manufacturing facilities and experienced technicians guarantee precise and consistent assembly of each wiring harness.
Every wiring harness undergoes rigorous electrical and mechanical testing to ensure it meets the highest standards of reliability and performance.
We understand the importance of timely delivery, and our efficient production processes ensure that we can meet tight deadlines without compromising on quality.
By choosing our wiring harness assembly service, you benefit from our commitment to excellence, attention to detail, and dedication to customer satisfaction. Contact us today to learn more about how we can support your projects with our superior Deutsch connector solutions.

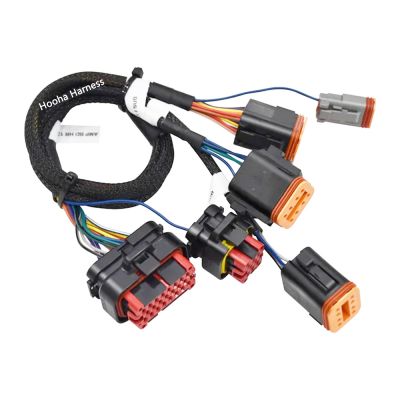

auto Amplifier wire harness

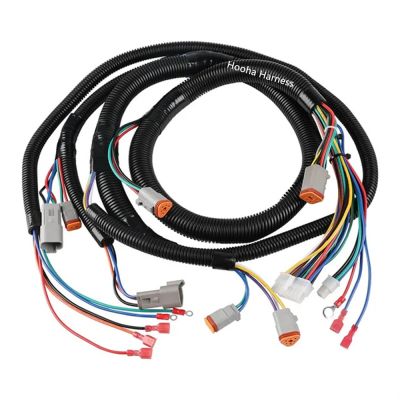

car golf cart Controller wire harness

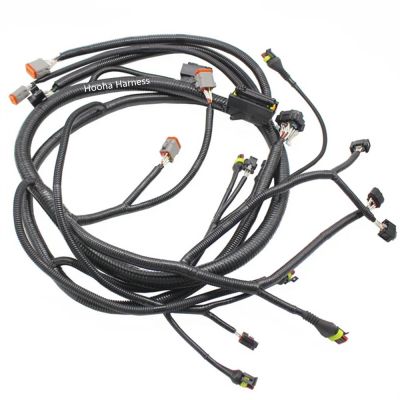

Automotive ECU wire harness

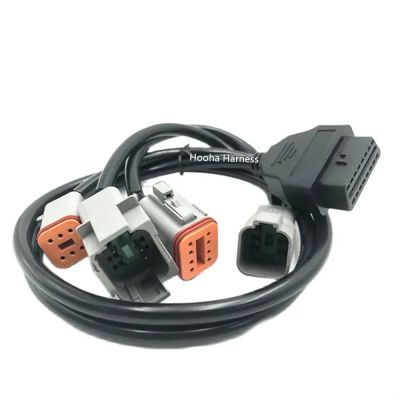

Diagnostic Connect Cable

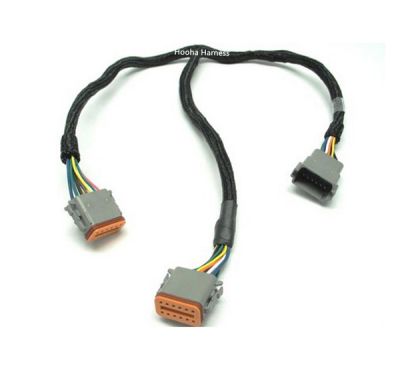

DT06-12S male to female

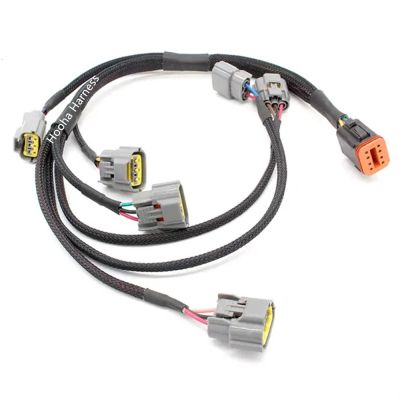

Ignition Coil Wiring

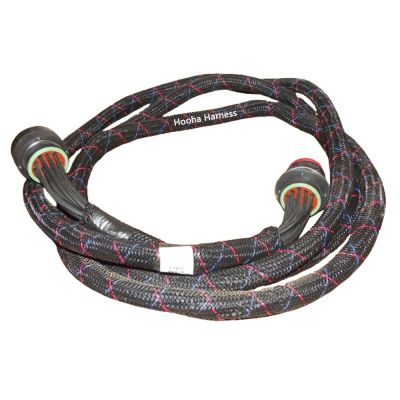

HDP24-24-16 to HDP26-24-16SN

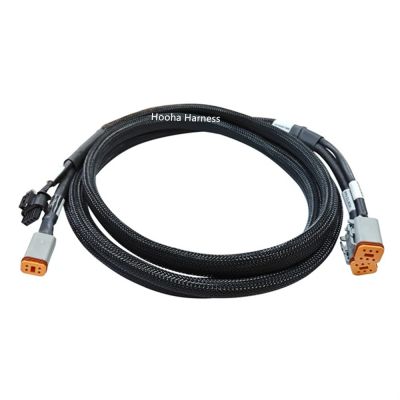

Marine Motor Wiring Harness

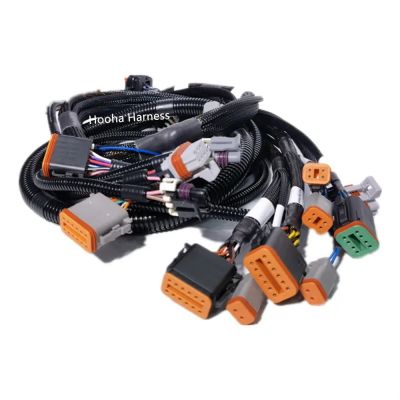

RV Wiring Harness
How to customize your wire harness?
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
